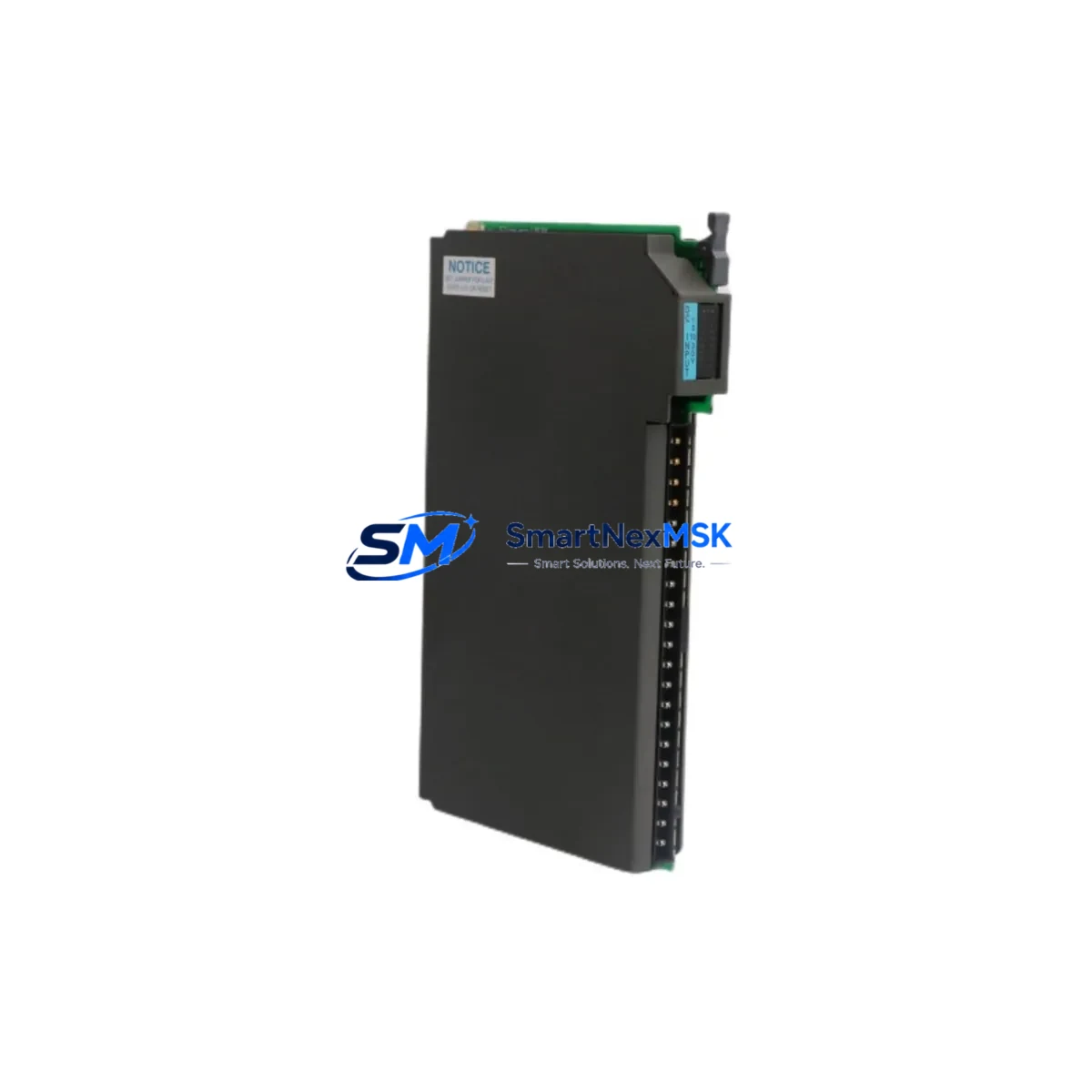

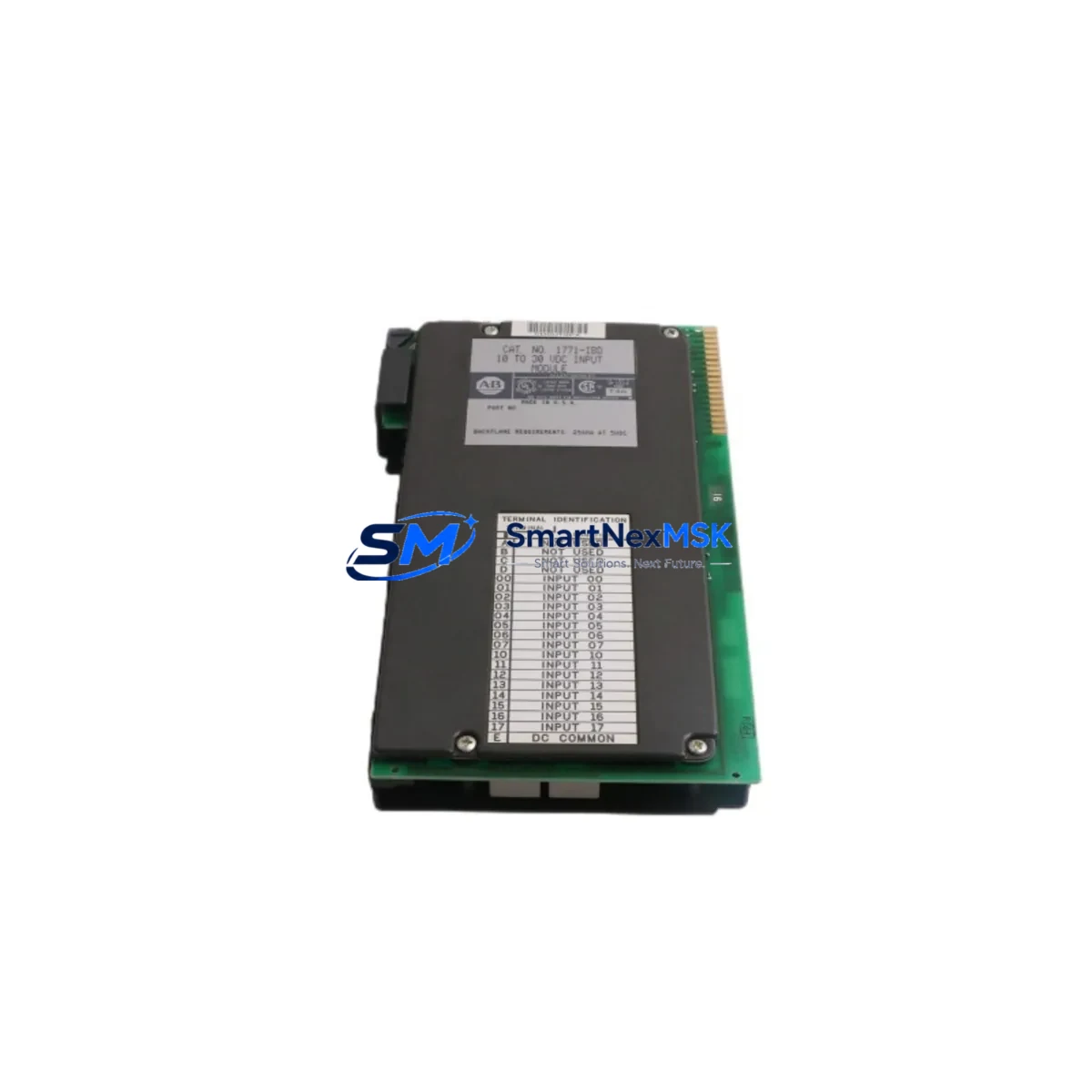

Allen-Bradley 1771-IBD Safety-Enhanced DC Input Module

Allen-Bradley 1771-IBD Safety-Enhanced DC Input Module for Harsh Industrial Sites

The Allen-Bradley 1771-IBD is a 16-point DC digital input module engineered for the PLC-5 programmable controller platform. Designed to operate reliably in high-noise, high-vibration, and electrically hostile industrial environments, the 1771-IBD delivers consistent signal integrity across demanding applications including petrochemical processing, power generation, mining extraction, water treatment, metallurgical operations, port logistics, and continuous manufacturing. Where control system uptime is non-negotiable and safety interlock integrity is paramount, the 1771-IBD provides the field-proven performance that industrial engineers and safety system integrators depend on.

In critical control cabinet architectures, a single unreliable input module can cascade into process shutdowns, safety interlock failures, or unplanned downtime events. The 1771-IBD addresses this risk through robust EMI/RFI shielding, optically isolated input channels, and a wide operating temperature range that sustains performance even in environments subject to thermal cycling, humidity ingress, and aggressive electrical transients. Its compatibility with the Allen-Bradley PLC-5 backplane — including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis — ensures seamless integration into existing control architectures without requiring costly platform migrations.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1771-IBD as part of a comprehensive control cabinet protection strategy requires careful attention to the surrounding hardware ecosystem. In PLC-5-based control systems, the module works in concert with the Allen-Bradley 1771-OBD DC output module to form a complete digital I/O layer capable of handling both field signal acquisition and actuator command output within the same chassis. For applications requiring analog process variable monitoring — such as pressure, flow, or temperature loops — the 1771-IFE analog input module complements the 1771-IBD by extending the system’s sensing capability into continuous-variable domains.

Power supply integrity is foundational to input module reliability. Voltage sags, surges, and ripple on the 24 VDC field power bus can cause spurious input state changes that trigger false alarms or, more critically, mask genuine process faults. Pairing the 1771-IBD with a regulated, redundant-capable DC power supply — such as the Allen-Bradley 1771-P7 or 1771-P4S power supply modules — ensures that field input signals remain stable even during upstream power disturbances. For installations in environments with significant electrical noise from variable frequency drives (VFDs), motor starters, or arc welding equipment, supplementary surge protection devices and proper cable segregation between signal and power conductors are essential protective measures.

Communication integrity between the PLC-5 processor and remote I/O racks is maintained through the Allen-Bradley 1771-ASB remote I/O adapter, which bridges the backplane to the 1771 Remote I/O network. In distributed control architectures where the 1771-IBD is installed in a remote chassis, the ASB adapter’s health directly affects the module’s data scan reliability. Complementing this, the Allen-Bradley 1785-L40B or 1785-L80B PLC-5 processors provide the scan-cycle management and fault-handling logic that governs how input faults detected by the 1771-IBD are escalated to safety interlocks or operator alarms. For installations requiring communication redundancy or integration with DCS platforms, the 1771-DCM data communication module extends the system’s network reach without compromising the deterministic scan performance of the I/O subsystem.

In safety interlock circuits — particularly emergency shutdown (ESD) systems and fire-and-gas (F&G) detection loops — the 1771-IBD’s optical isolation and fast response time are critical attributes. Field devices such as pressure switches, limit switches, and proximity sensors feed their binary status signals through the 1771-IBD into the PLC-5 safety logic. Any degradation in module performance — whether from aging optocouplers, connector corrosion, or backplane communication errors — can compromise the integrity of the entire safety function. SMARTNEXMSK supplies tested, verified 1771-IBD units with full pre-shipment functional validation to ensure that every module entering a safety-critical application meets its original performance specification.

Critical Industrial Safety Applications

The Allen-Bradley 1771-IBD has established a long service record across the most demanding sectors of heavy industry. In petrochemical and refinery operations, it monitors field instrument status signals — including valve position feedback, high-level switches, and emergency isolation valve (EIV) confirmation — within PLC-5-based safety instrumented systems (SIS). Its optical isolation prevents ground loops and common-mode noise from corrupting safety-critical input data in environments where intrinsically safe barriers and Zener diode arrays are standard field wiring practice.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 1771-IBD serves in turbine protection systems, boiler interlock circuits, and auxiliary equipment control panels. The module’s ability to maintain reliable input scanning through the electromagnetic interference generated by large generators, transformers, and high-voltage switchgear makes it a preferred choice for plant electrical engineers managing legacy PLC-5 control systems.

Mining and mineral processing operations rely on the 1771-IBD in conveyor control systems, crusher interlock circuits, and ventilation safety systems. In underground mining environments, where cable runs are long, ambient temperatures fluctuate, and electrical noise from heavy machinery is pervasive, the module’s robust input filtering and surge suppression characteristics are operationally essential. Similarly, in water and wastewater treatment plants, the 1771-IBD monitors pump run/fault status, valve position, and level switch inputs within SCADA-integrated PLC-5 control systems that must operate continuously with minimal maintenance intervention.

In metallurgical and steel production environments — where electric arc furnaces, induction heaters, and rolling mill drives generate extreme electrical transients — the 1771-IBD’s transient suppression and optical isolation provide the signal fidelity required for reliable process control. Port and terminal automation systems use the module in crane control, conveyor interlock, and access safety circuits where continuous operation and rapid fault detection are operationally critical. Across all these applications, the 1771-IBD’s proven compatibility with the PLC-5 platform and its availability as a stocked, tested spare part from SMARTNEXMSK ensures that maintenance teams can execute rapid module replacements without extended lead times or unplanned production losses.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the Allen-Bradley 1771-IBD?
All 1771-IBD units supplied by SMARTNEXMSK carry a 12-month full functional warranty from the date of shipment. If the module fails to perform to its original specification under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund. This warranty applies to new, surplus-new, and tested-refurbished units as specified at the time of order.

Q2: What pre-shipment testing is performed on the 1771-IBD before delivery?
Every 1771-IBD unit undergoes a full functional test prior to shipment. Testing includes verification of all 16 input channels, backplane communication integrity, optical isolation performance, and LED diagnostic indicator operation. Units that do not pass all test criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1771-IBD compatible with all PLC-5 chassis and processor variants?
The 1771-IBD is designed for use with the Allen-Bradley PLC-5 I/O chassis family, including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis. It is compatible with all standard PLC-5 processor variants including the 1785-L11B, L20B, L30B, L40B, L60B, and L80B. For specific compatibility questions related to your existing control system configuration, SMARTNEXMSK’s technical team can provide pre-purchase verification support.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 1771-IBD for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated inventory of Allen-Bradley PLC-5 series I/O modules, including the 1771-IBD, to support planned maintenance programs, emergency spare parts procurement, and capital project builds. For facilities managing aging PLC-5 infrastructure, SMARTNEXMSK can provide blanket order arrangements and reserved stock agreements to ensure module availability throughout your system’s operational lifecycle. Contact our sales team to discuss long-term supply arrangements tailored to your maintenance schedule.
