Allen-Bradley 1771-NBSC Retrofit-Ready Analog Input for PLC-5 Systems

Allen-Bradley 1771-NBSC Retrofit-Ready Analog Input for PLC-5 Systems

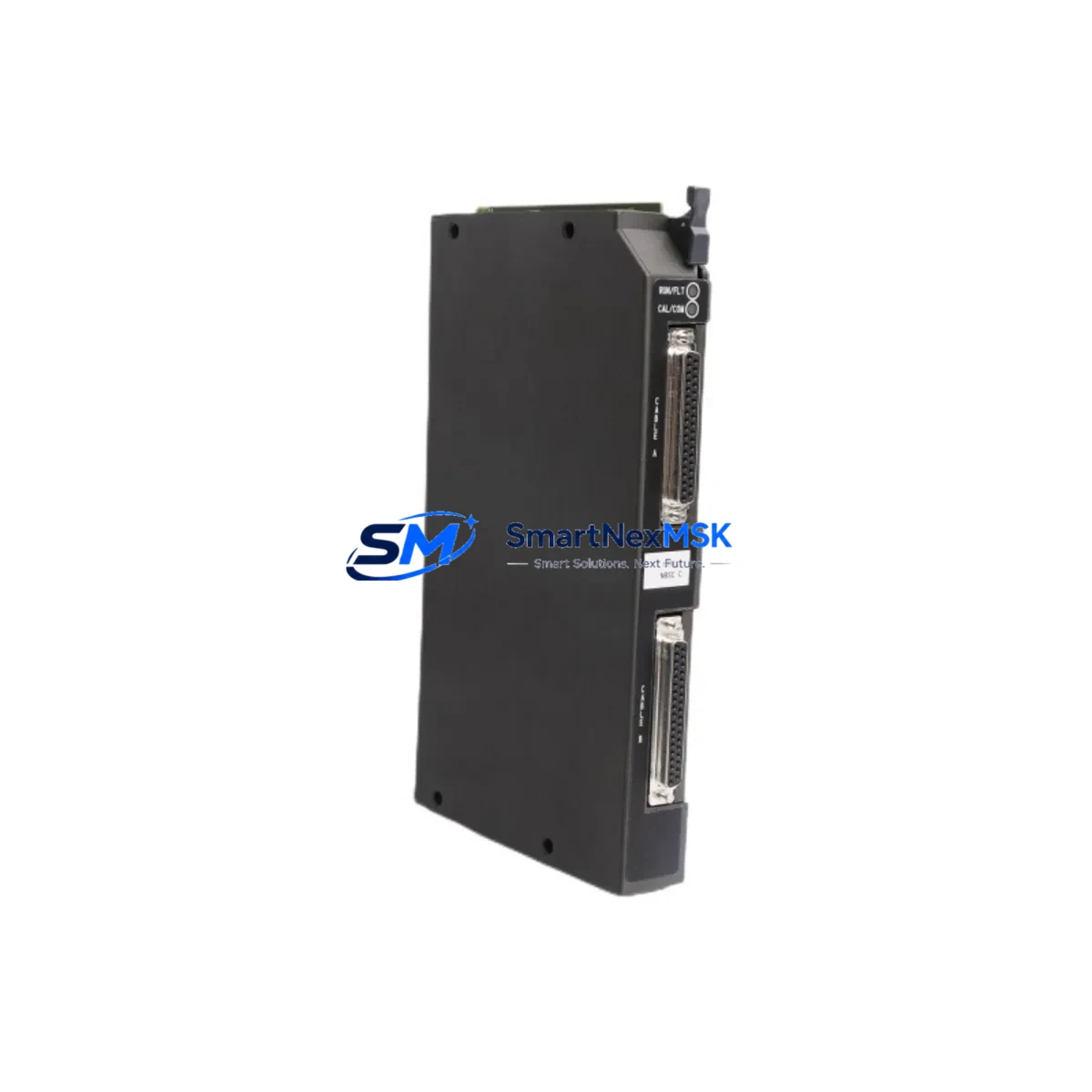

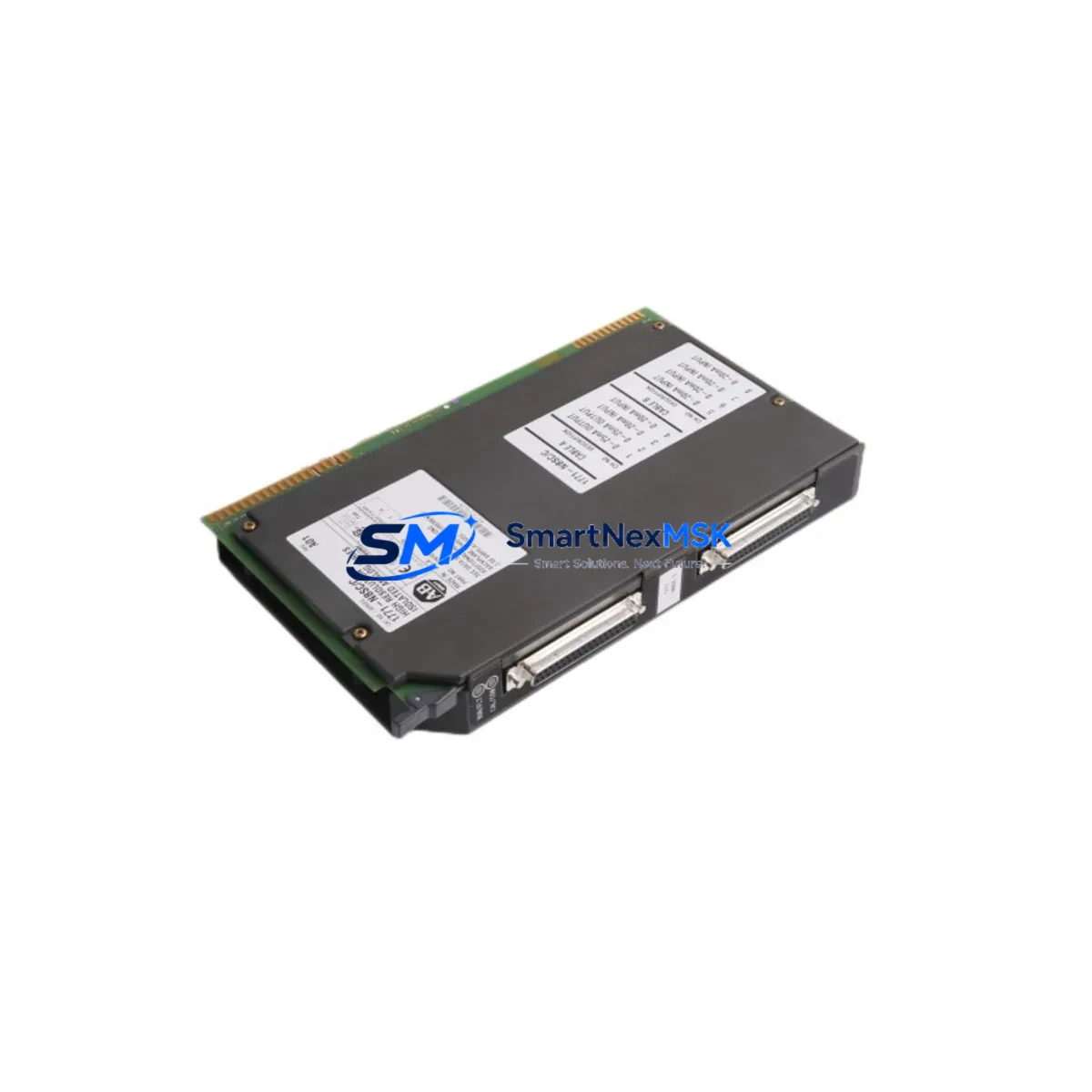

The Allen-Bradley 1771-NBSC is a thermocouple and millivolt analog input module designed for the PLC-5 control platform. As legacy PLC-5 systems approach end-of-life and spare parts become increasingly scarce, the 1771-NBSC remains one of the most sought-after retrofit components for engineers managing aging control infrastructure. Whether you are replacing a failed module in a running production line, upgrading a control cabinet to extend its operational lifespan, or migrating I/O architecture to a more supportable configuration, the 1771-NBSC provides a verified drop-in solution that preserves existing wiring, backplane addressing, and program logic without requiring a full system redesign.

This module slots directly into the 1771 I/O chassis — including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B rack configurations — and communicates over the standard 1771 backplane interface. It supports up to eight differential thermocouple or millivolt input channels, making it suitable for temperature monitoring, process control, and multi-zone thermal management applications. The module is compatible with the full range of PLC-5 processors, including the 1785-L20, 1785-L40, 1785-L60, and 1785-L80 series, and integrates seamlessly with existing ladder logic programs developed in RSLogix 5 without requiring code modification.

For sites running mixed I/O configurations, the 1771-NBSC coexists with other 1771-series modules such as the 1771-OBD discrete output module, the 1771-IFE analog input module, and the 1771-OFE analog output module. Engineers performing a phased retrofit can replace individual failed modules without disrupting adjacent I/O points, preserving control continuity across the entire rack. When the 1771-ASB remote I/O adapter is present, the module can also be addressed as part of a distributed I/O network, supporting installations where the PLC-5 processor is located remotely from the field I/O chassis.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1771-NBSC retrofit begins well before the module arrives on site. Engineers should start by auditing the existing 1771 chassis for available slot capacity and confirming that the power supply — typically the 1771-P4S or 1771-P7 — can support the additional current draw of the replacement module. Backplane current budgets are a common oversight in retrofit projects and can cause intermittent faults if the supply is already operating near its rated output.

Terminal wiring for thermocouple inputs requires careful attention to polarity and cold-junction compensation. The 1771-NBSC uses a dedicated terminal block that must be matched to the correct wiring arm; substituting an incompatible wiring arm from another 1771 analog module such as the 1771-IFE or 1771-OFE will result in incorrect signal mapping. Before disconnecting field wiring, photograph or document all terminal assignments and verify thermocouple type designations against the existing processor configuration file in RSLogix 5.

Module addressing is set via the slot number in the 1771 chassis and must correspond to the I/O image table configuration in the PLC-5 program. If the replacement module is installed in a different slot than the original — for example, due to chassis damage or slot reassignment — the I/O configuration in RSLogix 5 must be updated accordingly, and the program should be reviewed for any direct address references to the affected input file. In installations where the 1771-ASB remote I/O adapter is used, the rack and group addressing must also be verified against the scanner configuration in the host PLC-5 processor.

For sites that have already partially migrated to the ControlLogix platform using a 1756-DHRIO or 1756-RIO bridge module, the 1771-NBSC can continue to operate as part of the legacy remote I/O network while the migration is completed in phases. This approach allows engineers to maintain production continuity while progressively replacing 1771-series I/O with 1756-series equivalents such as the 1756-IT6I2 thermocouple input module.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1771-NBSC replacement requires a structured pre-swap checklist. Before taking the module offline, place the PLC-5 processor in a controlled fault state or use the RSLogix 5 I/O inhibit function to isolate the affected slot without halting the entire program scan. This preserves the last-known-good values in the input image table and prevents downstream logic from triggering spurious outputs during the swap interval.

Once the replacement module is seated and the wiring arm is reconnected, restore the slot to active scanning and monitor the input data table in RSLogix 5 for valid engineering unit values. Compare live readings against the expected process values from the HMI — typically a PanelView 550, PanelView 900, or PanelView Plus terminal connected via DH+ — to confirm that channel scaling, thermocouple type, and filter settings are correctly restored. If the HMI displays out-of-range or frozen values after the swap, verify that the processor file has not reverted to default scaling parameters.

For critical processes where even brief interruptions are unacceptable, consider pre-staging the replacement 1771-NBSC in a bench test fixture using a 1771-A1B single-slot chassis and a portable PLC-5 processor or a 1784-KTX communication card connected to a laptop running RSLogix 5. This allows full functional verification of the module — including channel-by-channel input validation and thermocouple type confirmation — before it is installed in the live system, reducing the in-situ commissioning window to minutes rather than hours.

Retrofit Support FAQ

Q: Is the 1771-NBSC a direct replacement for all thermocouple input modules in the 1771 series?
A: The 1771-NBSC is specifically designed for thermocouple and millivolt inputs and is the correct replacement for modules with the same function in the PLC-5 I/O family. It is not interchangeable with voltage or current analog input modules such as the 1771-IFE. Always verify the original module catalog number before ordering.

Q: Do I need to modify my RSLogix 5 program after installing a replacement 1771-NBSC?
A: In most cases, no program modification is required if the replacement module is installed in the same chassis slot as the original. Channel scaling, thermocouple type, and filter settings are stored in the processor configuration file and will be applied automatically when the slot is re-enabled. However, if the slot number changes or the I/O configuration file was not saved prior to the failure, the configuration will need to be re-entered.

Q: What pre-shipment testing is performed on the 1771-NBSC?
A: Each unit undergoes functional verification prior to shipment, including backplane communication checks and channel input validation. Units are supplied with a 12-month warranty covering defects in materials and workmanship from the date of shipment. Expedited shipping options are available for urgent production recovery situations.

Q: Can the 1771-NBSC be used in a ControlLogix migration project?
A: Yes. During a phased migration from PLC-5 to ControlLogix, the 1771-NBSC can continue to operate in the existing 1771 chassis connected to the ControlLogix system via a 1756-DHRIO or 1756-RIO bridge. This allows the thermocouple inputs to remain active while other parts of the control system are upgraded, deferring the replacement of the analog I/O to a later phase of the project.
