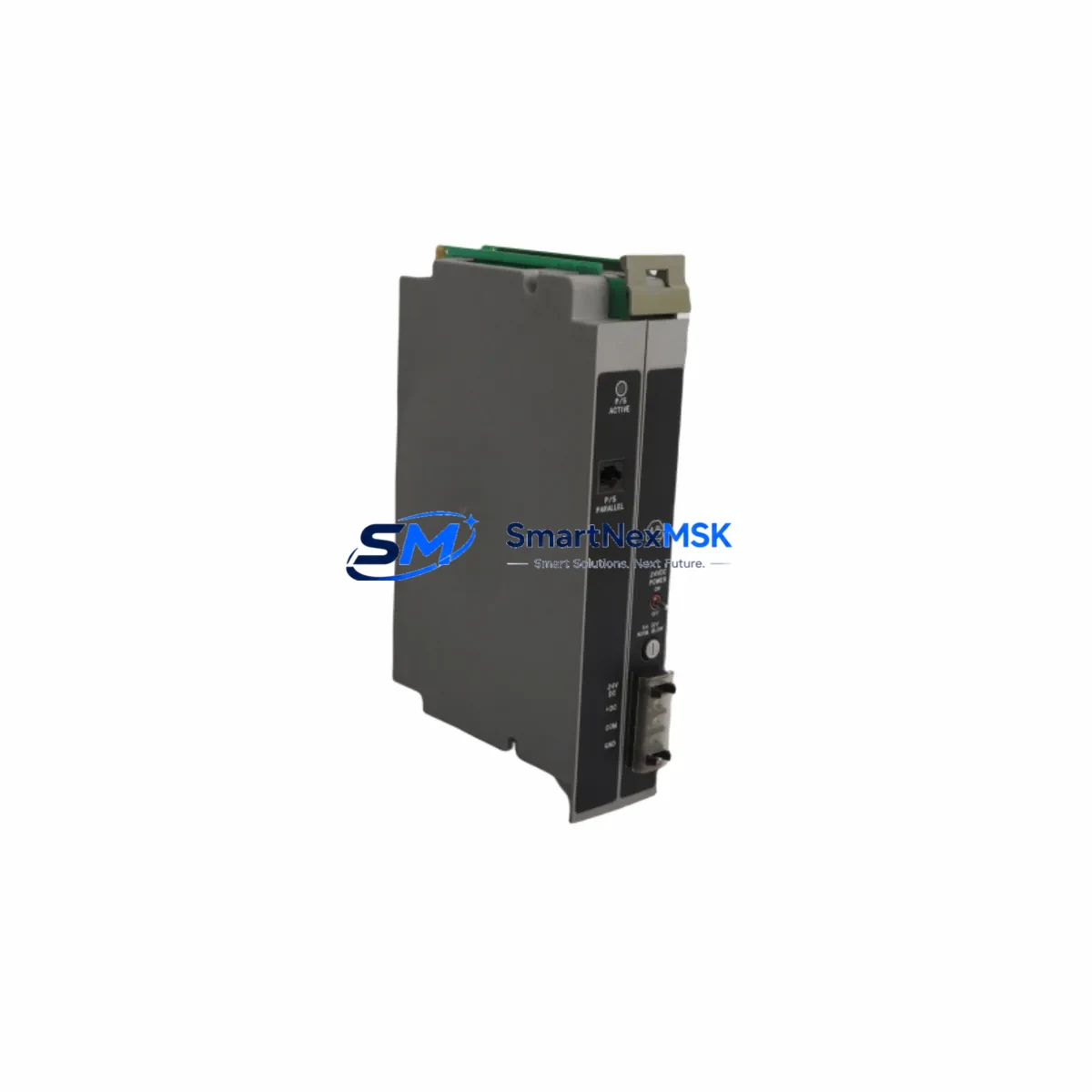

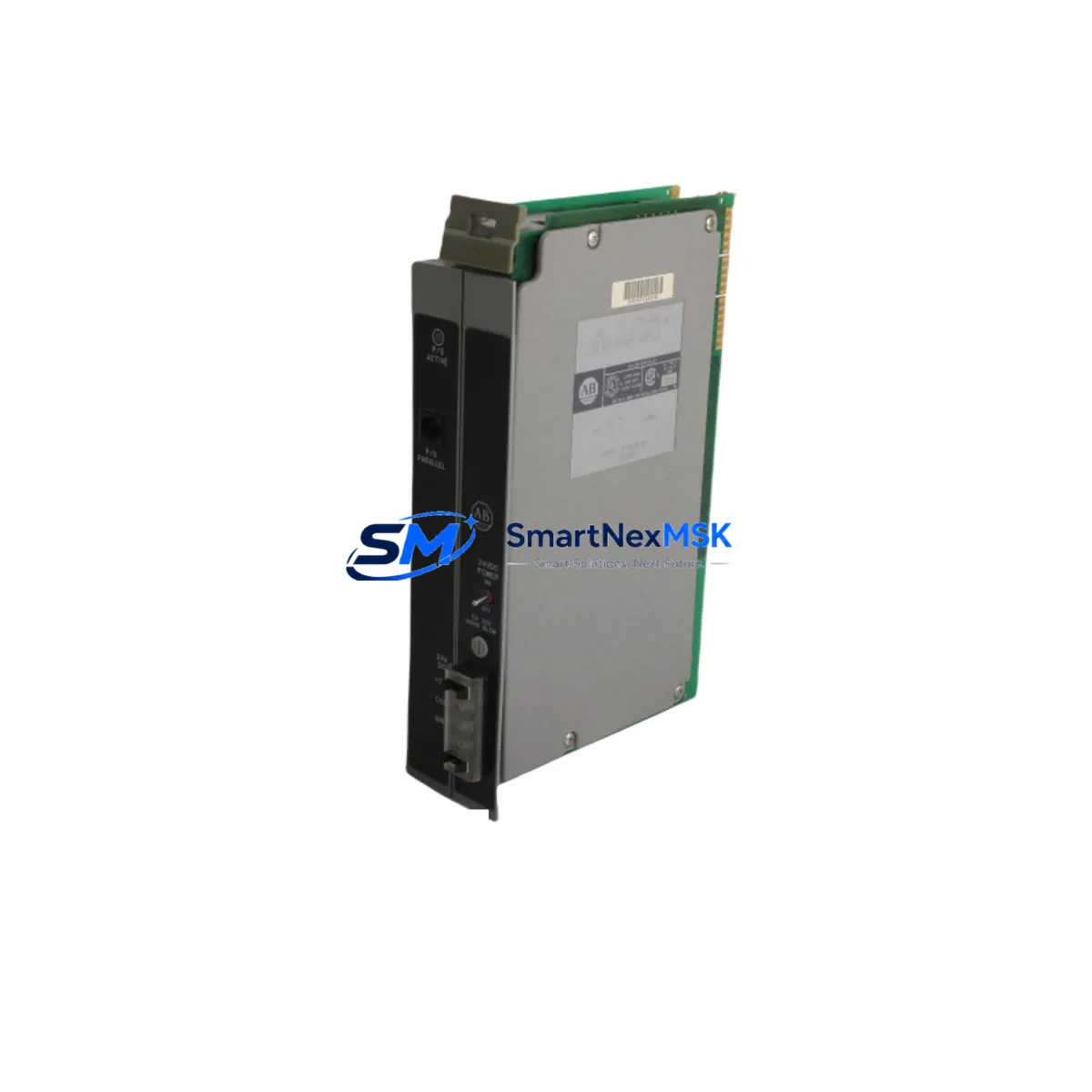

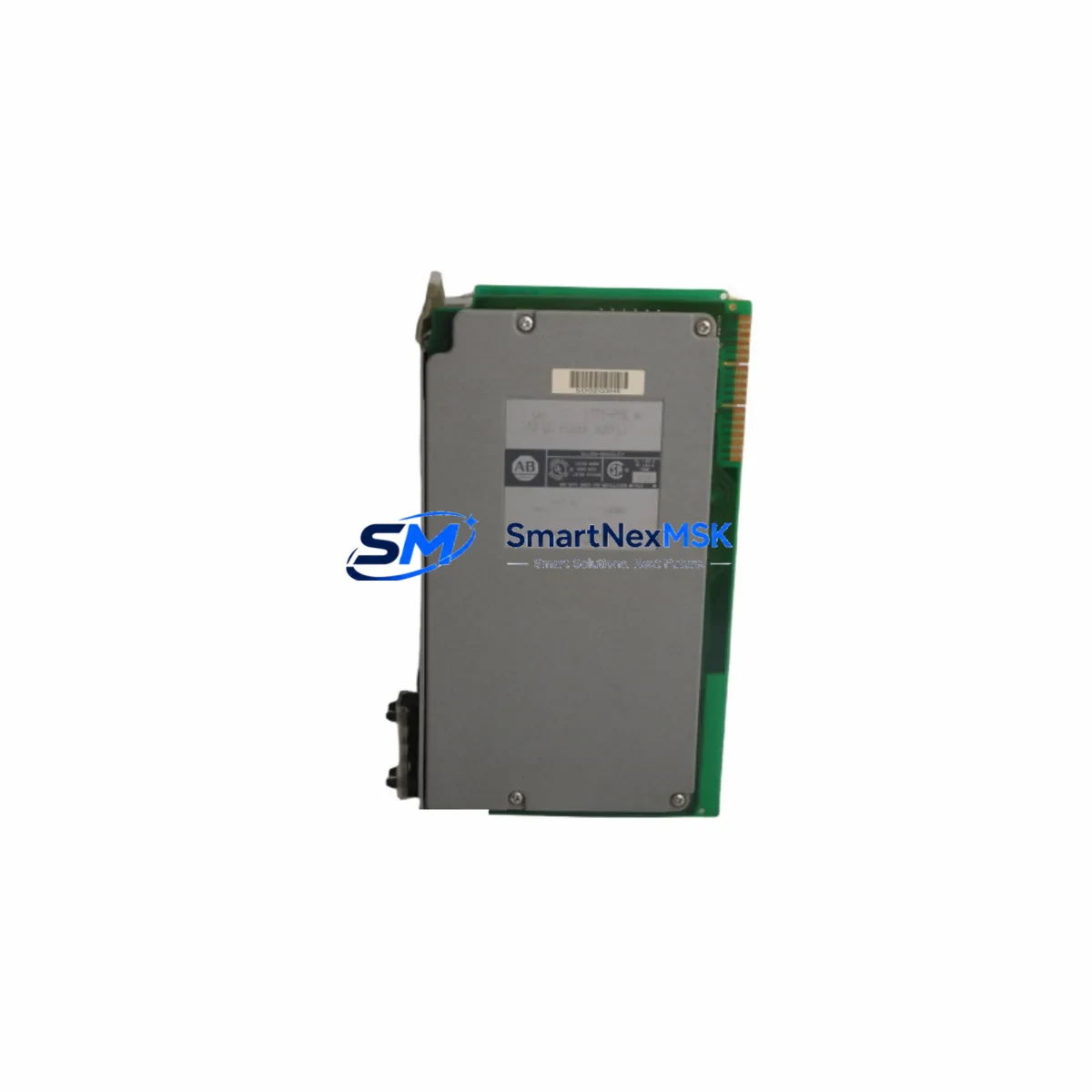

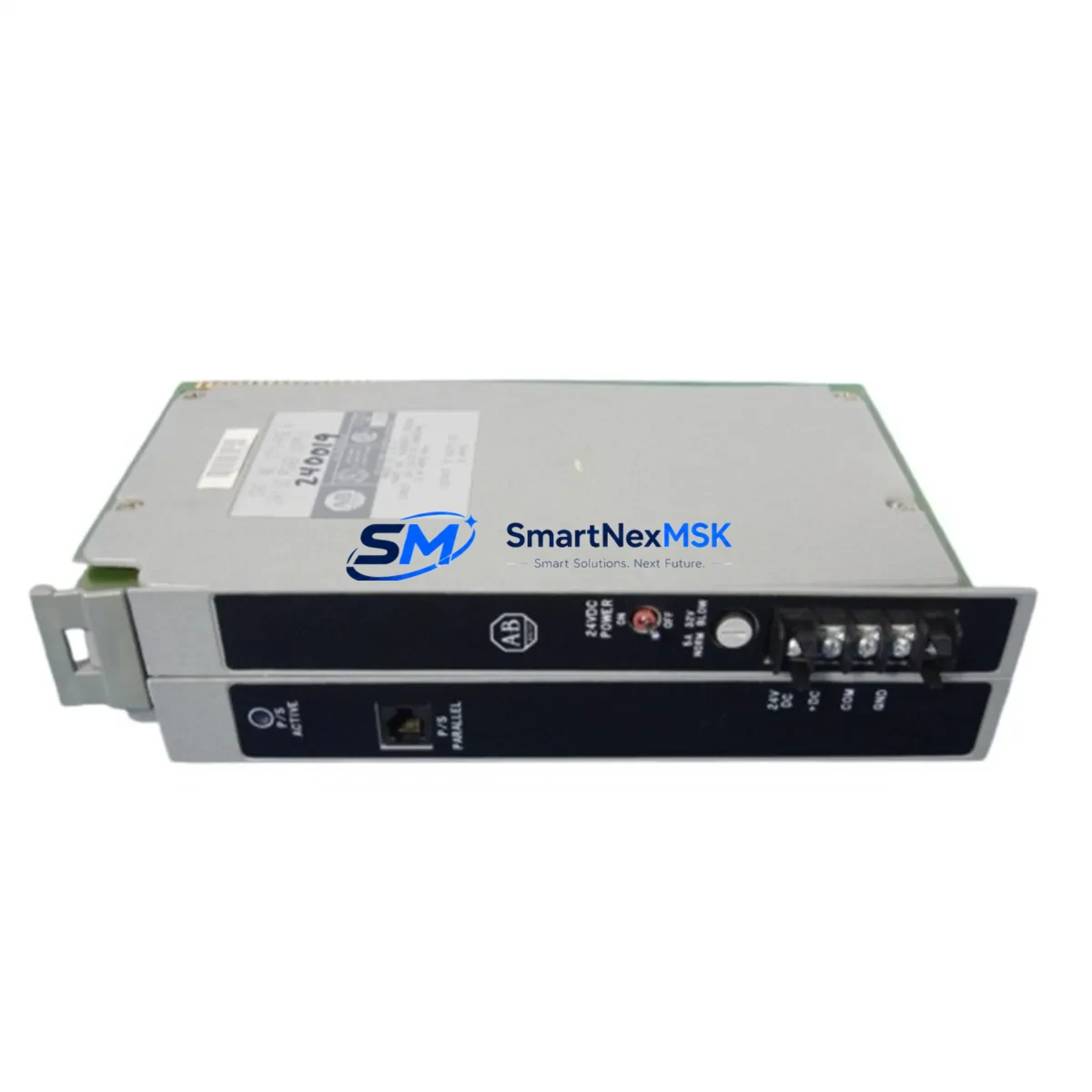

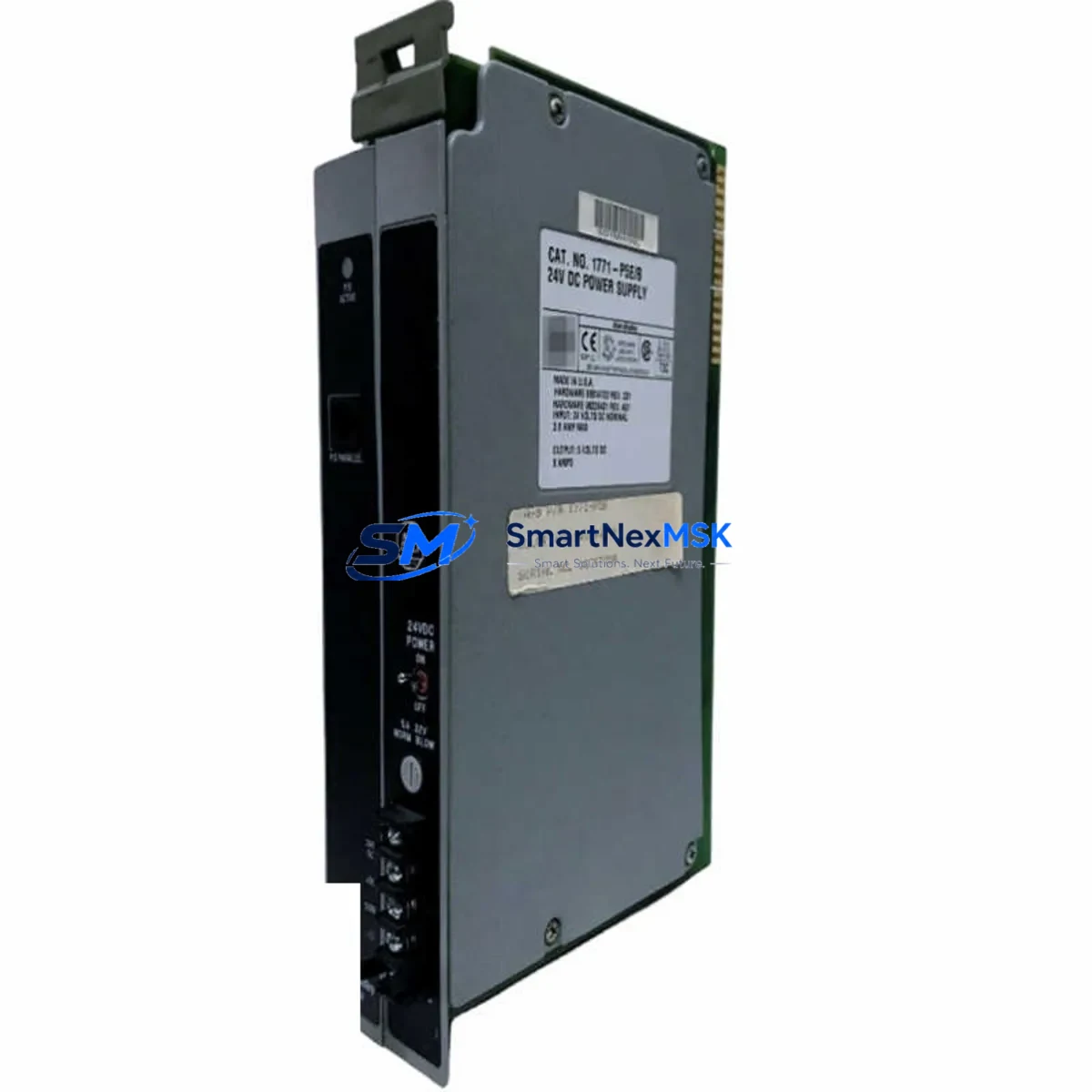

Allen-Bradley 1771-P5E Safety-Enhanced PLC Power Supply

Allen-Bradley 1771-P5E Safety-Enhanced PLC Power Supply: Reliable Control in Harsh Industrial Sites

The Allen-Bradley 1771-P5E is a ruggedized power supply module engineered for the PLC-5 platform, purpose-built to sustain uninterrupted control power in the most demanding industrial environments. In high-load continuous production facilities — petrochemical plants, metal smelting operations, coal preparation lines, port crane systems, and municipal water treatment stations — power supply integrity is the first line of defense against catastrophic control failure. The 1771-P5E addresses this directly, delivering stable, conditioned DC power to the 1771 I/O chassis under conditions that would compromise lesser modules: wide ambient temperature swings, persistent electromagnetic interference, voltage sags, transient surges, and high-humidity enclosures.

Where control interruption carries safety consequences — emergency shutdown systems, motor interlock circuits, critical valve actuation loops — the 1771-P5E provides the foundational power stability that keeps the entire PLC-5 rack operational. Its internal regulation circuitry suppresses input voltage fluctuations before they propagate to logic modules, preventing the signal drift and spurious output trips that lead to unplanned downtime or, worse, unsafe process states. Engineers specifying power architecture for safety-instrumented systems (SIS) and high-availability control cabinets consistently select the 1771-P5E as the backbone supply for PLC-5-based safety loops.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the 1771-P5E does not rely on the power supply alone. In practice, the 1771-P5E operates as the regulated power core within a layered protection architecture. Upstream, a dedicated isolation transformer or line reactor conditions incoming AC power, absorbing voltage spikes before they reach the module’s input terminals. Alongside the power supply, the Allen-Bradley 1771-P4S and 1771-P6S power supply variants serve as hot-standby or redundant supply options in high-availability chassis configurations, ensuring that a single supply fault does not interrupt the control loop.

Within the same 1771 chassis, Allen-Bradley 1771-OBD digital output modules and 1771-IFE analog input modules depend entirely on the 1771-P5E’s stable 5 VDC backplane rail for accurate signal processing. Any ripple or dropout on this rail translates directly into analog measurement error or false digital output transitions — both unacceptable in safety-critical applications. The Allen-Bradley 1771-ASB adapter module, which bridges the PLC-5 processor to remote I/O drops, also draws its logic power from the chassis supply, making the 1771-P5E’s output quality directly relevant to communication integrity across the entire remote I/O network.

For surge protection at the cabinet entry point, engineers commonly pair the 1771-P5E installation with Phoenix Contact TRABTECH or equivalent DIN-rail surge protective devices (SPDs) on the AC feed. On the DC side, Allen-Bradley 1606-XLP series SMPS units are often deployed in parallel cabinets to power 24 VDC field devices — sensors, solenoid valves, and safety relays — keeping the 1771-P5E dedicated to PLC backplane power without cross-loading. The Allen-Bradley 1492-SP supplementary protector series provides branch circuit protection for individual I/O module power feeds, preventing a single wiring fault from collapsing the entire cabinet power bus. Together, these components form a defense-in-depth power protection strategy that keeps the 1771-P5E — and the PLC-5 system it powers — running continuously through electrical disturbances that would otherwise cause nuisance trips or unsafe shutdowns.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation columns, catalytic crackers, and compressor trains — the PLC-5 platform with 1771-P5E power supplies manages emergency shutdown (ESD) valve sequencing and burner management system (BMS) interlocks. Power supply failure in these environments is not merely a production loss event; it is a process safety event. The 1771-P5E’s wide-input tolerance and internal surge suppression ensure that the ESD logic remains powered and responsive even during utility grid disturbances common in heavy industrial zones.

Electric Power Generation and Transmission: Thermal power stations and hydroelectric facilities use PLC-5 systems for turbine governor control, excitation system monitoring, and protection relay coordination. The 1771-P5E sustains the control rack through the voltage transients generated by large rotating machinery starting and stopping on the same bus — a scenario that routinely causes failures in standard-grade power supplies.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature cycling. The 1771-P5E’s ruggedized construction and vibration-rated design make it a preferred replacement supply for aging PLC-5 systems controlling conveyor drives, crusher interlocks, and ventilation fan safety circuits in these environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on PLC-5 systems for pump sequencing, chemical dosing control, and SCADA interface. The 1771-P5E provides the stable backplane power needed to maintain continuous communication between the PLC-5 processor and remote I/O drops distributed across large treatment plant footprints, where cable runs introduce noise and ground potential differences that stress power supply regulation.

Metallurgy and Steel Production: Electric arc furnace (EAF) control systems and rolling mill automation generate some of the most severe electromagnetic interference found in any industrial setting. The 1771-P5E’s EMI-hardened design allows PLC-5 systems to operate reliably in close proximity to high-current bus bars, induction heating equipment, and large variable-frequency drives — environments where unshielded or under-rated power supplies fail prematurely.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1771-P5E?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period, we provide repair, replacement, or full credit — at our discretion. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each 1771-P5E unit?
Every 1771-P5E unit undergoes a full functional power-on test before dispatch. This includes verification of regulated output voltages (+5 VDC, ±12 VDC), load regulation performance, and visual inspection for physical damage or connector wear. Units that do not pass all test criteria are quarantined and not shipped. A test record is retained for each unit.

Q3: Is the 1771-P5E compatible with all 1771 I/O chassis configurations?
The 1771-P5E is compatible with standard Allen-Bradley 1771 I/O chassis in 4-, 8-, 12-, and 16-slot configurations. It is designed as a direct form-fit-function replacement for the original Rockwell Automation 1771-P5E and is interchangeable with other 1771-P5 series power supplies in the same chassis slot. Always verify chassis power budget against total I/O module load before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated safety stock of the 1771-P5E to support planned maintenance programs, scheduled turnarounds, and emergency replacement requirements. For customers with multi-site PLC-5 installations, we offer reserved inventory agreements to guarantee availability. Lead times for standard orders are typically 1–3 business days from confirmed payment.
