Allen-Bradley 1785-BCM Spare for PLC-5 Automation: Backup Communications & Downtime Risk Control

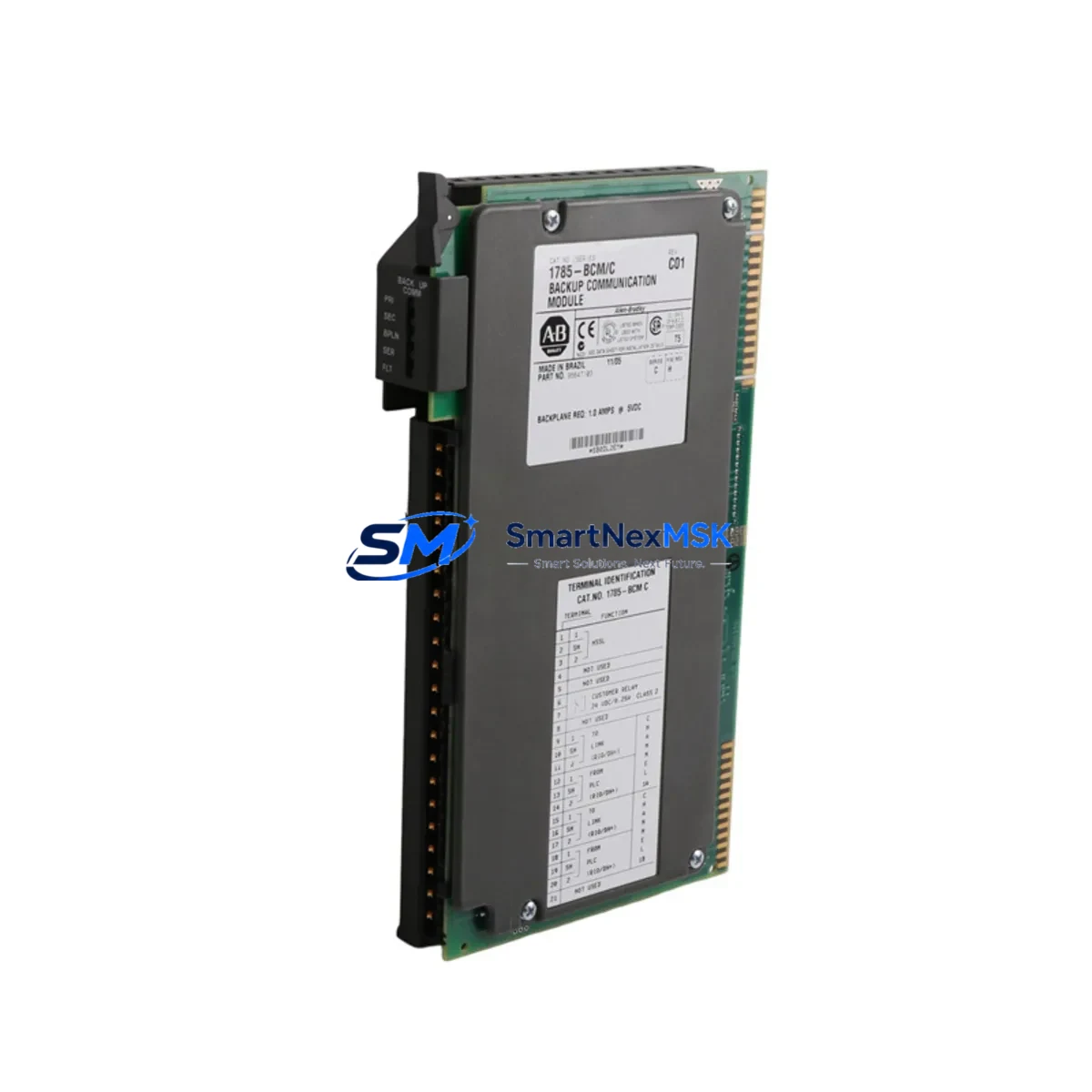

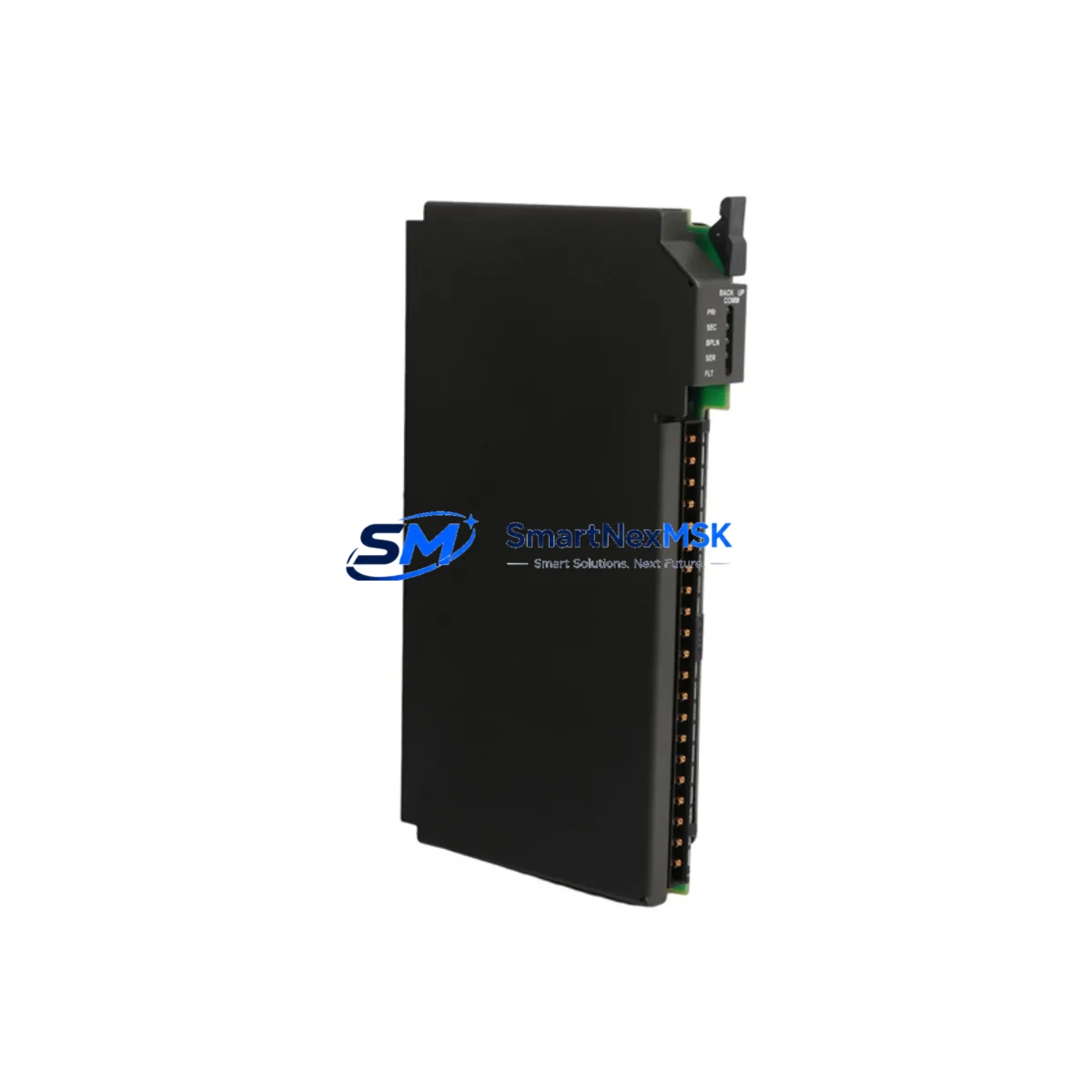

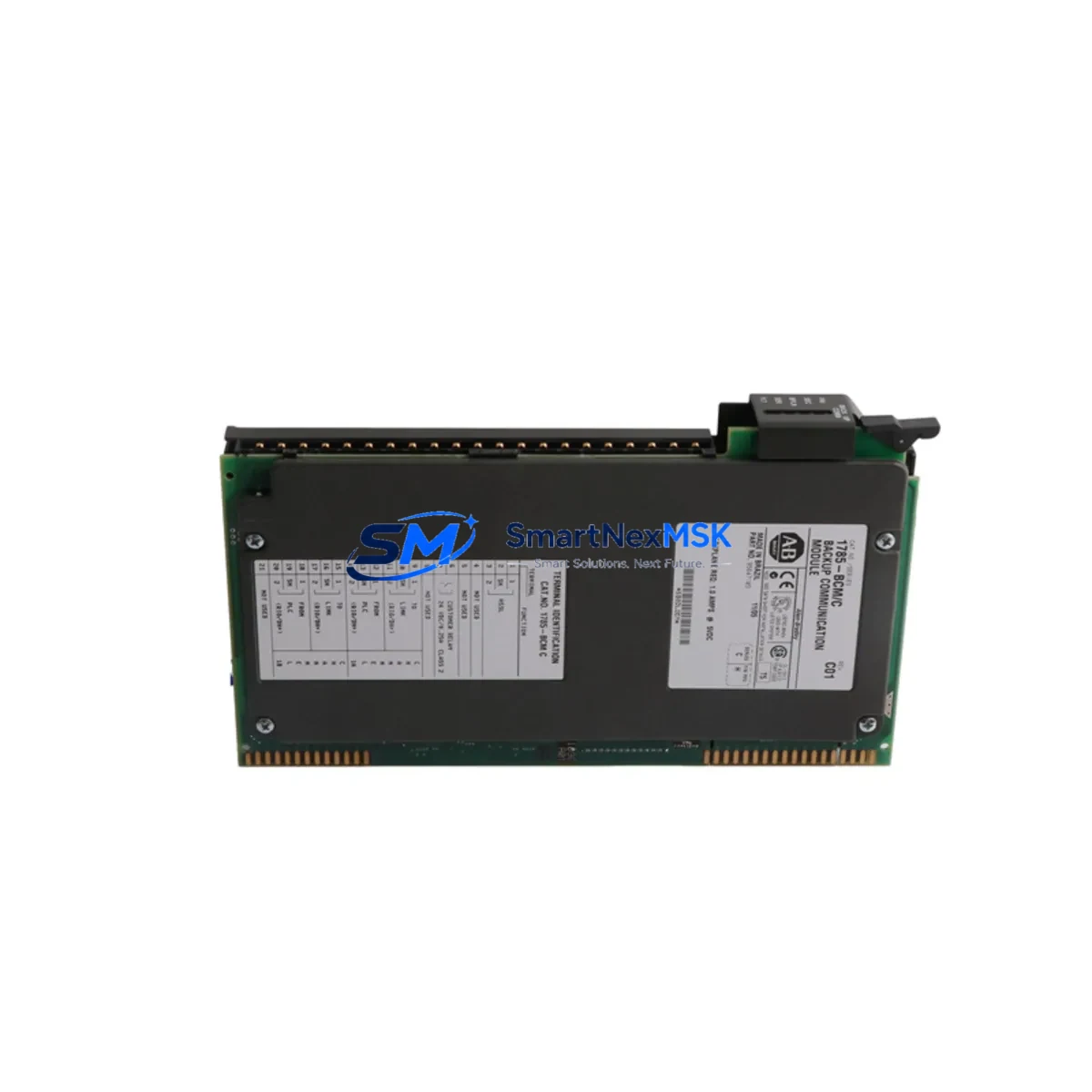

The Allen-Bradley 1785-BCM (Backup Communications Module) is a critical redundancy component within the Rockwell Automation PLC-5 control platform. Designed to maintain continuous communication between redundant processor pairs, the 1785-BCM ensures that a single processor fault does not interrupt production. For maintenance engineers managing aging PLC-5 systems in process plants, utilities, and discrete manufacturing lines, holding a verified spare 1785-BCM in the control room cabinet is a non-negotiable element of any serious spare parts strategy.

At SMARTNEXMSK, every 1785-BCM unit is sourced, inspected, and tested before dispatch. We supply original Allen-Bradley hardware — not refurbished clones — backed by a 12-month warranty and full pre-shipment functional verification. Our stock is maintained to support both planned maintenance windows and emergency breakdown calls, with same-day dispatch available for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PLC-5 redundancy system is flagged during a routine control cabinet inspection or a scheduled plant turnaround, the 1785-BCM is rarely the only component that warrants attention. Experienced maintenance engineers know that the redundancy link is only as reliable as the weakest element in the entire redundant control loop. A thorough inspection and spare parts review should extend to the following associated components:

The 1785-L40B or 1785-L60B redundant processor modules themselves should be checked for firmware revision alignment — a mismatch between primary and secondary processor firmware is a common cause of redundancy switchover failures that initially appear as BCM faults. Alongside the processors, the 1771-P4S or 1771-P7 power supply modules feeding the chassis should be load-tested; a degraded power supply that passes light-load checks can still cause intermittent resets under full I/O load, masking the true fault source.

The 1771-ASB remote I/O adapter and associated 1771-IFM or 1771-OFM field I/O modules in the same chassis should be visually inspected for corrosion on edge connectors and terminal blocks — particularly in humid or chemically aggressive environments. Loose or oxidized terminal connections on 1492-W series terminal blocks are a frequent contributor to intermittent I/O faults that are misdiagnosed as processor or communications issues.

For plants running Data Highway Plus (DH+) networks alongside the PLC-5 redundancy system, the 1785-KA5 or 1784-KTX communication interface cards should be included in the inspection checklist. A degraded DH+ network segment can cause the redundancy system to log spurious switchover events, accelerating wear on the 1785-BCM link. Similarly, any 1770-KF2 or 1785-KE serial communication modules in the cabinet should be checked for firmware currency and connector integrity.

Where the PLC-5 system interfaces with an operator station running RSView32 or FactoryTalk View SE on a PanelView 1400e or PanelView Plus 7 HMI, the communication path between the HMI and the redundant processor pair should be validated after any BCM replacement to confirm that the HMI correctly tracks the active processor. Finally, signal isolators and surge protection devices on analog input channels — particularly on 4–20 mA loops feeding the PLC-5 analog input modules — should be tested for drift, as undetected signal corruption can trigger false process alarms during the post-replacement commissioning phase.

Maintaining a consolidated spare parts kit that includes the 1785-BCM alongside these associated components reduces mean time to repair (MTTR) and eliminates the multi-day lead times that can extend an unplanned outage into a production crisis.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the active processor (primary vs. secondary) via the PLC-5 processor status indicators or RSLogix 5 online diagnostics. Document the current redundancy status before any intervention.

Step 2 — Controlled switchover: Initiate a manual switchover to the secondary processor to ensure the secondary is fully operational before removing the BCM. This validates that the secondary can carry the load independently.

Step 3 — Module removal: With the chassis powered (hot-swap is not supported on 1785-BCM — confirm chassis power-down procedure per site safety protocol), remove the faulty 1785-BCM from its chassis slot. Note the slot address for documentation.

Step 4 — Replacement installation: Seat the new 1785-BCM firmly into the same chassis slot. Verify the module locking tab engages. Restore chassis power.

Step 5 — Redundancy link re-establishment: Monitor the BCM status LEDs and RSLogix 5 redundancy diagnostics to confirm the backup communications link is re-established between the primary and secondary processors. Allow the system to complete its synchronization cycle before returning to automatic redundancy mode.

Step 6 — Post-replacement documentation: Record the replacement date, new module serial number, and redundancy link status in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement BCM unit — maintaining at least one spare on-site at all times is strongly recommended for any PLC-5 redundancy installation.

This workflow applies equally to planned maintenance replacements and emergency breakdown scenarios. The key difference in emergency situations is the pre-verification step — under time pressure, engineers sometimes skip the switchover validation, which risks replacing a functional BCM while the actual fault lies in the processor or power supply. A disciplined workflow prevents this misdiagnosis and avoids unnecessary component expenditure.

Spare Parts Support FAQ

Q1: Is the 1785-BCM still available as a new original part, or only as refurbished?
The Allen-Bradley 1785-BCM has been discontinued by Rockwell Automation as part of the broader PLC-5 platform end-of-life. However, SMARTNEXMSK maintains stock of original new-surplus and tested-serviceable units sourced from verified industrial channels. Each unit undergoes functional verification before shipment. We do not supply uncertified refurbished or counterfeit hardware.

Q2: How do I confirm compatibility between the 1785-BCM and my specific PLC-5 processor revision?
The 1785-BCM is compatible with all PLC-5 redundancy-capable processors (series B suffix: 1785-L20B, L40B, L60B, L80B). Compatibility is determined by the processor series designation, not the firmware revision. If you are unsure of your processor series, provide your processor catalog number and firmware revision when contacting us — our technical team will confirm compatibility before order confirmation.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure of the 1785-BCM under normal operating conditions — correct voltage, temperature within specification, and proper installation per Allen-Bradley guidelines. Physical damage caused by incorrect installation, overvoltage, or environmental contamination is excluded. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, fault description, and site photos. We will arrange return shipping and dispatch a replacement unit within 3 business days of receiving the faulty module.

Q4: Can SMARTNEXMSK support long-term supply agreements for PLC-5 spare parts?
Yes. For facilities running legacy PLC-5 systems with a planned operational life of 5–10 years, we offer long-term supply agreements that reserve stock, lock pricing, and guarantee availability for critical spare parts including the 1785-BCM and associated PLC-5 components. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss your site’s spare parts requirements and annual consumption forecast.
