Allen-Bradley 1785-L30B Spare for PLC-5 Automation

Allen-Bradley 1785-L30B Spare for PLC-5 Automation: Downtime Recovery & Spare Parts Replacement

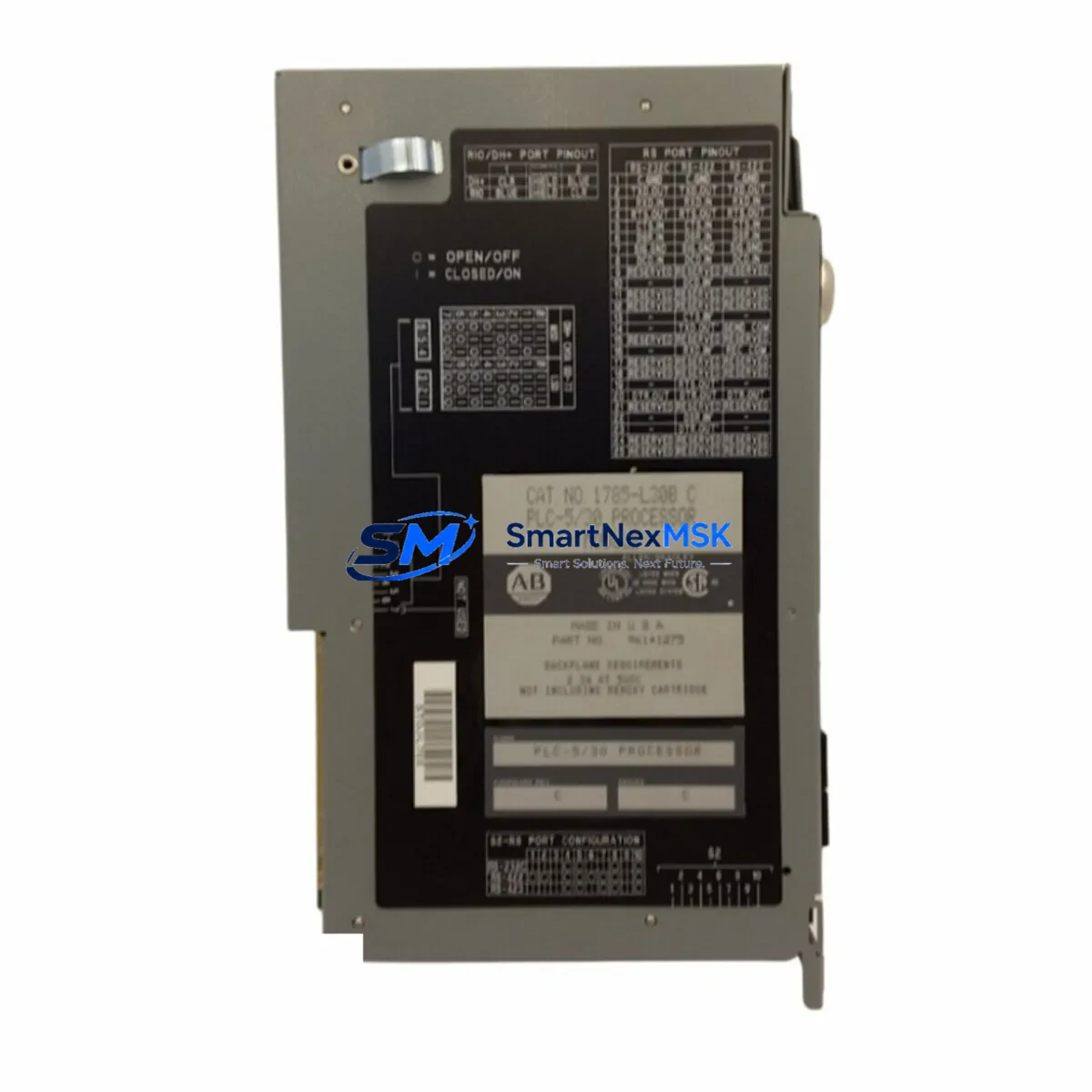

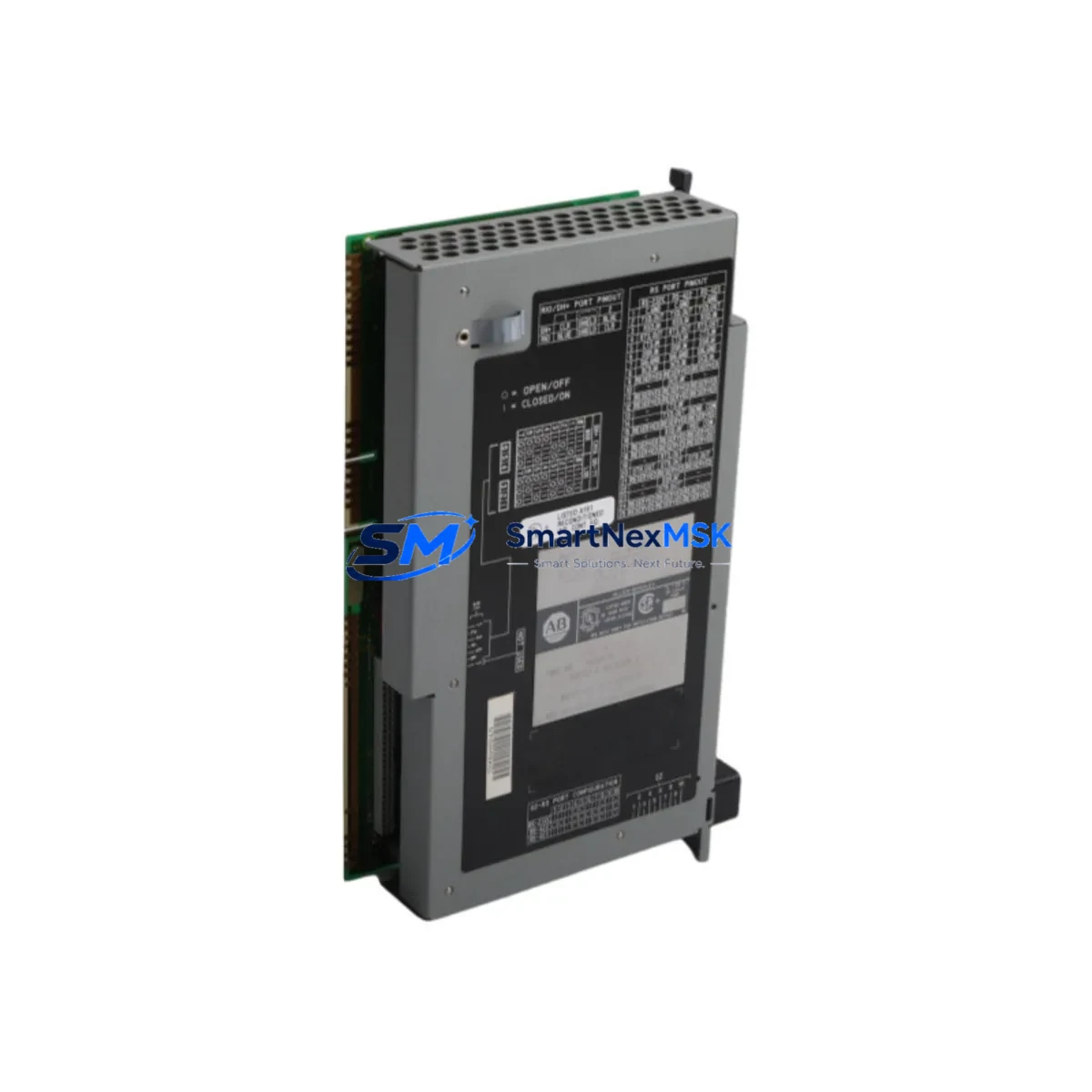

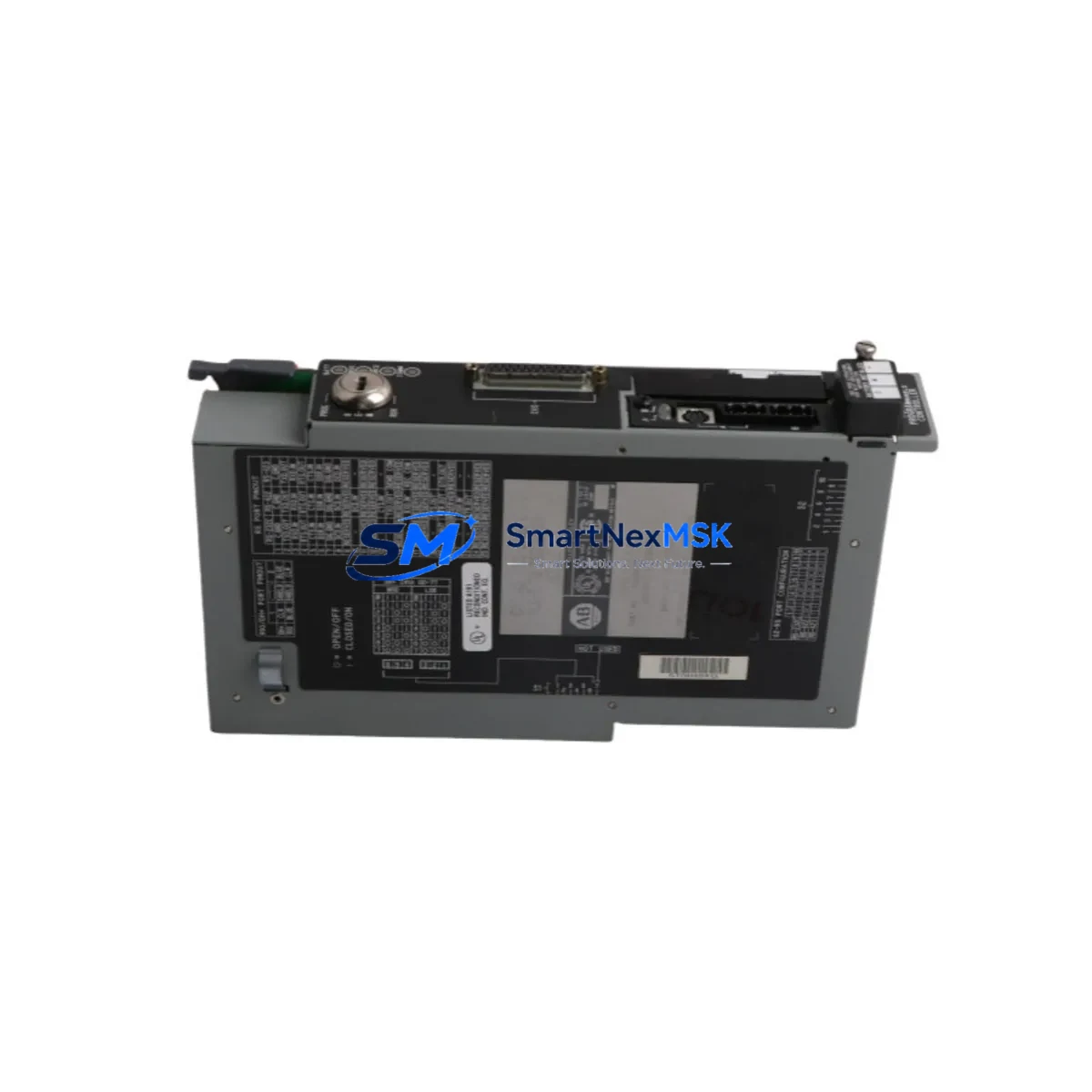

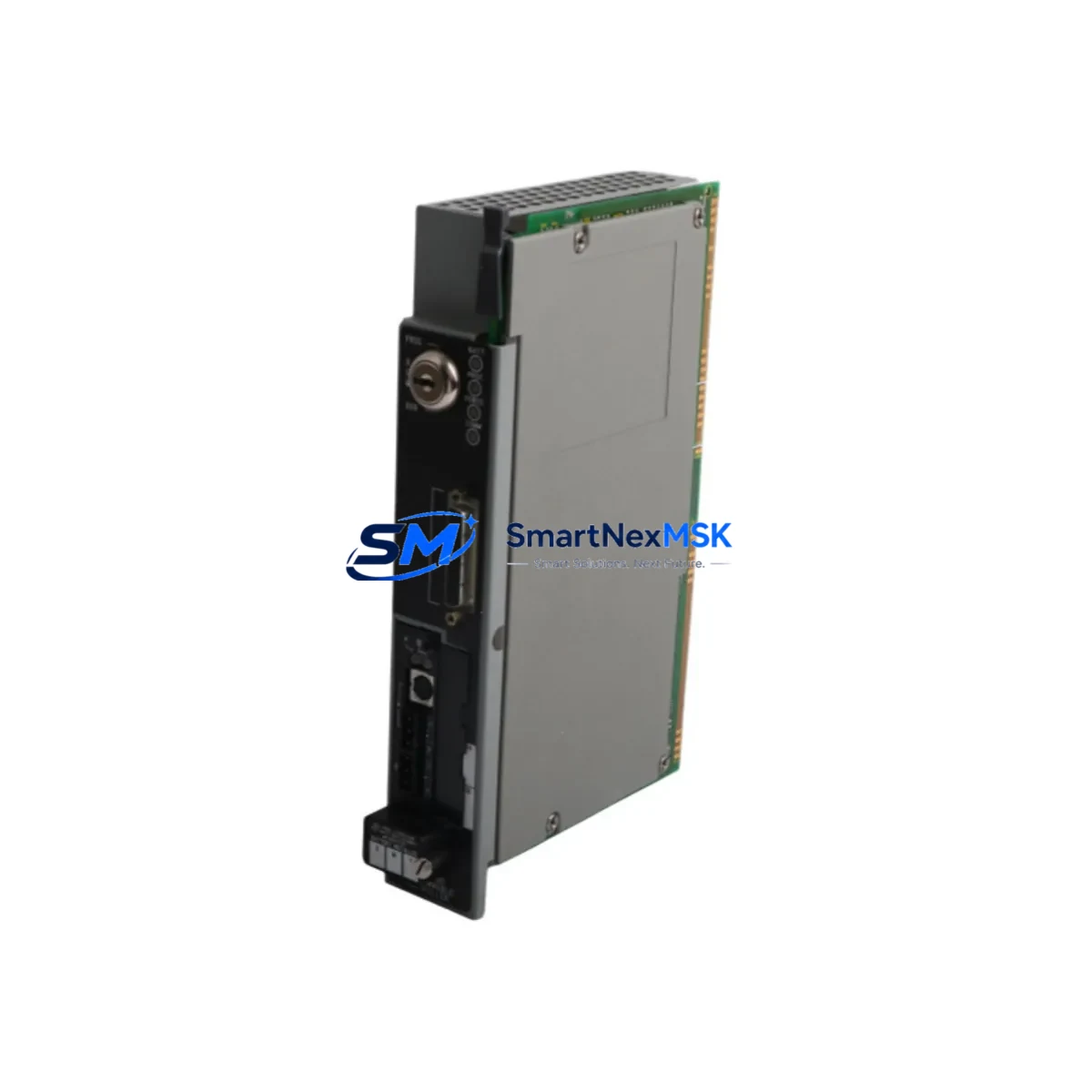

The Allen-Bradley 1785-L30B is a PLC-5/30 Enhanced Processor designed for continuous industrial automation environments where unplanned downtime carries significant operational and financial risk. As a maintenance-ready original spare, the 1785-L30B supports rapid fault isolation, processor swap-out, and system restoration in legacy Rockwell Automation PLC-5 control architectures. Whether your facility operates batch processing lines, material handling conveyors, or continuous process control loops, maintaining a verified 1785-L30B in your spare parts inventory is a proven strategy for minimizing mean time to repair (MTTR).

For maintenance engineers managing aging PLC-5 systems, the 1785-L30B represents a critical node in the control cabinet. Its failure typically manifests as a complete loss of I/O scan, communication faults on the Data Highway Plus (DH+) network, or processor fault codes that cannot be cleared without hardware replacement. Having a pre-tested, shelf-ready unit eliminates the procurement lead time that often extends emergency shutdowns from hours into days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A 1785-L30B processor replacement is rarely an isolated event. Experienced maintenance engineers understand that a processor fault in a PLC-5 system often signals stress across adjacent components in the same control cabinet or electrical loop. When executing a planned or emergency replacement of the 1785-L30B, a thorough inspection of the surrounding hardware is essential to prevent repeat failures and ensure stable system restoration.

Begin with the 1771-P4S or 1771-P6S power supply module — voltage ripple or output degradation is a common root cause of processor resets and memory corruption. Verify DC bus voltage under load before inserting the replacement processor. Next, inspect the 1771 I/O chassis backplane for bent pins, corrosion, or loose card-edge connections, as backplane integrity directly affects I/O scan reliability.

Review all 1771-OBD or 1771-IBD discrete I/O modules in the chassis for blown fuses, failed output drivers, or input signal anomalies that may have contributed to the original fault condition. For analog loops, check 1771-IFE or 1771-OFE analog I/O modules for calibration drift or channel failures that could cause process upsets after processor restoration.

On the communication side, inspect the 1785-KA5 or 1785-KE DH+ communication adapter and verify network termination resistors are correctly installed. A degraded DH+ network can cause intermittent processor communication faults that mimic hardware failure. If the system includes remote I/O drops, confirm the 1771-ASB remote I/O adapter is responding correctly after the processor swap.

For facilities using HMI integration, verify that the PanelView 550 or PanelView 900 terminal re-establishes its DH+ connection after the processor is restored. Check the 1747-SN remote I/O scanner if SLC-500 subsystems are networked to the PLC-5 host. Additionally, inspect signal isolators and surge suppressors on field wiring terminals — these are frequently overlooked during emergency repairs but are critical for long-term signal integrity in high-noise industrial environments.

Finally, review the 1785-MJ memory module or EEPROM backup to confirm the application program is current and matches the restored processor configuration. A complete spare parts kit for a PLC-5/30 system should include the processor, power supply, at least one I/O module of each type in use, communication adapters, and terminal block assemblies to support full system recovery from a single cabinet failure event.

Site Replacement Workflow

Replacing the 1785-L30B in the field follows a structured sequence designed to minimize downtime and eliminate configuration errors. Before removing the faulted processor, document the current fault codes displayed on the processor status LEDs and record the DH+ node address configured via the front-panel switches — this address must be replicated exactly on the replacement unit to avoid network conflicts.

Power down the 1771 chassis using the correct lockout/tagout procedure. Remove the faulted 1785-L30B by releasing the top and bottom locking tabs and sliding the module straight out of the backplane slot. Inspect the backplane connector for damage before inserting the replacement unit. Set the DH+ node address switches on the new 1785-L30B to match the documented configuration, then seat the module firmly until both locking tabs engage.

Restore power and observe the processor status indicators. The RUN LED should illuminate after the processor completes its self-test and loads the application program from the 1785-MJ memory module or from a connected programming terminal running RSLogix 5. Verify all I/O modules return to normal scan status and confirm DH+ communication is re-established with all network nodes before releasing the system to production.

This workflow supports direct replacement of obsolete or end-of-life PLC-5 processor variants, including the 1785-L20B, 1785-L40B, and 1785-L60B, where memory capacity and I/O point count are compatible with the installed application. The 1785-L30B is a proven upgrade path for systems originally equipped with earlier PLC-5/30 non-enhanced processors, offering expanded memory and improved communication performance without requiring chassis or wiring modifications.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for a spare 1785-L30B?
When stored in original anti-static packaging in a climate-controlled environment (10°C–30°C, relative humidity below 70%, non-condensing), the 1785-L30B maintains full operational readiness for 5–10 years. Inspect the unit annually for capacitor health and battery backup status if applicable. Rotate spare stock on a first-in, first-out basis to ensure the oldest unit is deployed first.

Q2: How is compatibility verified before shipment?
Each 1785-L30B unit undergoes functional testing prior to dispatch, including power-on self-test verification, DH+ port communication check, and I/O scan simulation where applicable. A test report is available upon request. Compatibility with the 1771 chassis family and standard PLC-5 application programs is confirmed as part of the pre-shipment inspection process.

Q3: Can the 1785-L30B replace other PLC-5 processor variants on-site?
The 1785-L30B is directly interchangeable with other PLC-5/30 Enhanced processors and is compatible with the broader 1785 processor family in terms of chassis and backplane interface. Cross-variant replacement (e.g., substituting for a 1785-L20B or 1785-L40B) requires verification that the application program memory size and I/O configuration fall within the 1785-L30B’s supported capacity. Consult the Rockwell Automation 1785 processor selection guide or contact our technical team for compatibility confirmation before installation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers hardware defects, functional failures under normal operating conditions, and DOA (dead on arrival) units. Warranty claims are processed with priority dispatch of a replacement unit. The warranty period begins from the date of confirmed delivery. Units damaged by incorrect installation, overvoltage events, or environmental exposure outside specified limits are assessed on a case-by-case basis. Extended warranty and long-term supply agreements are available for facilities managing large PLC-5 installed bases.
