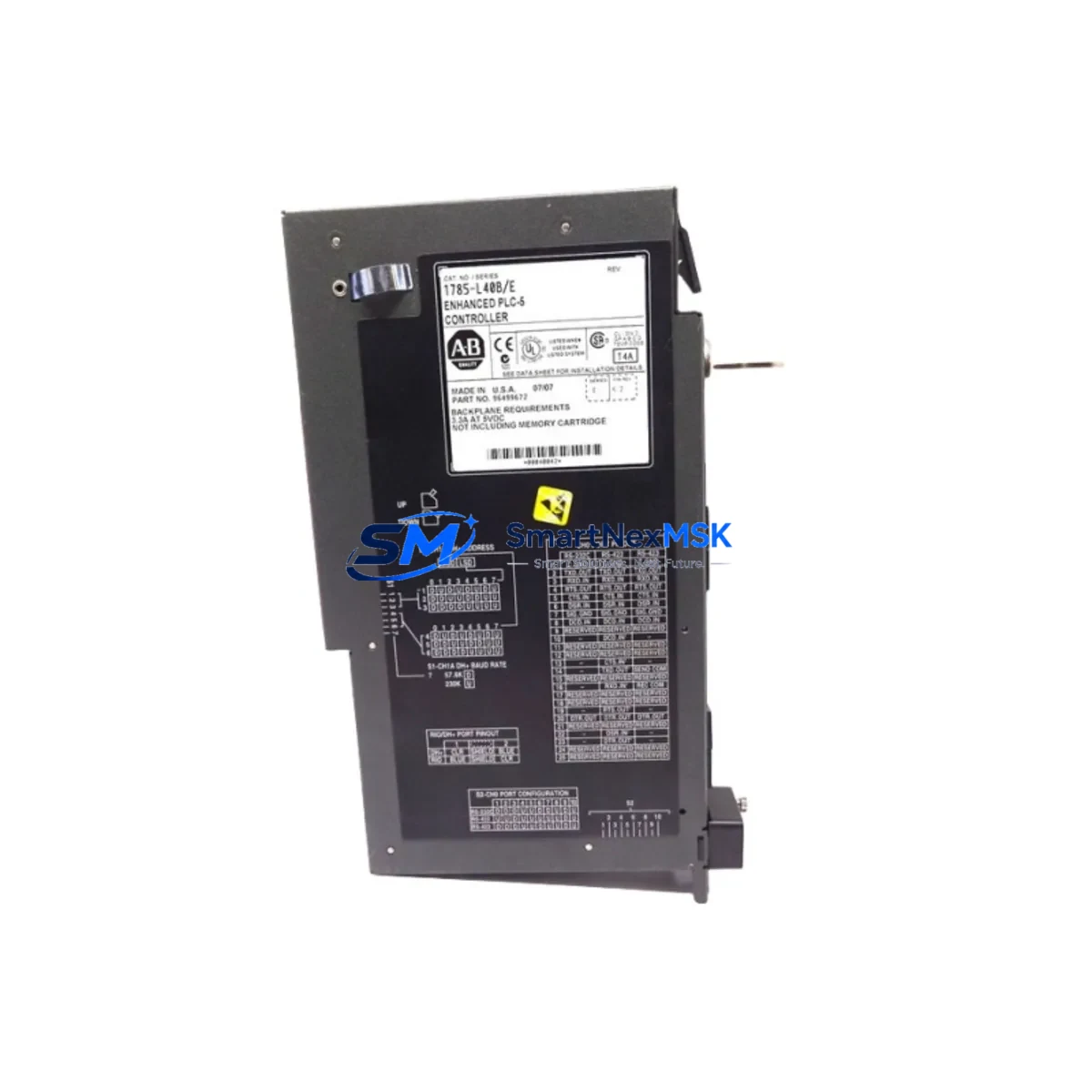

Allen-Bradley 1785-L40B/E Safety-Enhanced PLC Processor

Allen-Bradley 1785-L40B/E Safety-Enhanced PLC Processor: Reliable Control for Harsh Industrial Sites

In high-stakes industrial environments — where continuous production, hazardous area classification, and critical interlock circuits demand absolute control reliability — the Allen-Bradley 1785-L40B/E PLC-5 Enhanced Processor stands as a proven backbone of safety-grade automation architecture. Engineered for demanding applications across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities, this processor module delivers the deterministic scan-cycle performance and fault-tolerant communication architecture that modern industrial safety strategies require.

The 1785-L40B/E provides 40K words of user memory with battery-backed CMOS retention, ensuring program integrity is maintained through power interruptions, voltage transients, and surge events that are common in heavy industrial switchgear environments. Its dual Data Highway Plus (DH+) communication ports enable redundant network topologies, reducing the risk of communication anomalies that could trigger unplanned shutdowns or interlock misoperation in critical safety loops.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1785-L40B/E within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and thermal management simultaneously. In high-load production environments, the processor is typically paired with the 1771-P4S or 1771-P6S chassis power supply modules, which provide regulated DC power with built-in surge suppression to protect the processor backplane from voltage spikes originating in motor drive circuits or capacitor bank switching events.

For I/O signal conditioning, the 1771-OBD DC output modules and 1771-IB DC input modules are commonly deployed alongside the 1785-L40B/E to ensure clean, debounced signal transitions in environments with high electromagnetic interference from variable frequency drives, arc furnaces, or high-current bus systems. Analog signal integrity is further protected through the use of 1771-IFE analog input modules with differential input configurations, which reject common-mode noise that would otherwise cause signal drift in process measurement loops.

Communication network protection is achieved by integrating 1770-KF2 DH+ to RS-232 communication interface modules, which provide galvanic isolation between the processor’s DH+ network and external SCADA or HMI systems. This isolation barrier prevents ground loop currents — a frequent cause of communication anomalies in large industrial facilities with distributed grounding systems — from corrupting data packets or triggering spurious fault conditions in the PLC program.

For facilities requiring remote I/O expansion across large plant footprints, the 1771-ASB remote I/O adapter module extends the 1785-L40B/E’s control reach without introducing additional scan-cycle latency that could compromise interlock response times. Surge protection on remote I/O cabling is further reinforced through the use of 1492-SP series terminal block surge suppressors at field junction boxes, limiting transient energy from lightning strikes or switching surges from reaching the processor backplane.

Thermal management within the control cabinet is addressed through proper chassis spacing and the use of 1771-A4B series I/O chassis with adequate slot capacity, preventing thermal accumulation that degrades processor MTBF in high-ambient-temperature environments such as outdoor substations, desert processing facilities, or enclosed motor control centers.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants, the 1785-L40B/E is deployed in emergency shutdown (ESD) pre-logic and permissive interlock systems where deterministic scan performance is essential. Its battery-backed memory ensures that safety-critical ladder logic programs survive power interruptions without requiring manual program reload, a requirement in facilities operating under IEC 61511 functional safety management frameworks.

Power Generation and Substation Control: In thermal and hydroelectric power plants, this processor manages turbine governor permissive logic, generator protection relay coordination, and auxiliary system sequencing. Its dual DH+ ports allow simultaneous connection to both the plant DCS gateway and a local operator interface panel, maintaining control visibility during network segment failures.

Mining and Mineral Processing: In underground and surface mining operations, the 1785-L40B/E controls conveyor interlock systems, crusher sequencing, and ventilation safety logic. Its wide operating temperature range and vibration resistance make it suitable for installation in mobile equipment control panels and surface-mounted enclosures exposed to dust, humidity, and mechanical shock.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 1785-L40B/E for pump station sequencing, chemical dosing interlock control, and SCADA-integrated process monitoring. Its reliable DH+ communication architecture supports long-distance network runs between pump stations and central control rooms without signal degradation.

Metallurgy and Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the processor manages high-speed interlock logic for electrode positioning, cooling water flow permissives, and emergency stop circuits. Its EMI immunity is critical in these environments, where high-current switching generates intense electromagnetic fields that can disrupt less robust control hardware.

Port and Material Handling Logistics: Container crane control systems, ship loader sequencing, and bulk material conveyor networks in port facilities use the 1785-L40B/E for coordinated motion interlock and safety zone monitoring, where reliable communication between multiple PLC nodes across the DH+ network is essential for safe crane and conveyor operation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1785-L40B/E?
The 12-month warranty covers manufacturing defects, component failures, and functional performance issues under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing, including power-on verification, memory integrity checks, and communication port validation. If a unit fails within the warranty period under normal use, we provide replacement or repair support with priority processing for critical production applications.

Q2: What pre-shipment testing is performed on each 1785-L40B/E unit?
Every 1785-L40B/E is tested prior to shipment using Allen-Bradley compatible test fixtures that verify processor initialization, DH+ communication port functionality, memory read/write integrity, and I/O chassis communication handshake. Units that do not pass all functional checkpoints are quarantined and not shipped. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 1785-L40B/E compatible with existing PLC-5 chassis and I/O modules in my facility?
Yes. The 1785-L40B/E is fully compatible with the 1771-series I/O chassis (1771-A1B through 1771-A4B), all standard 1771-series I/O modules, and existing DH+ network infrastructure. It supports the full PLC-5 instruction set, allowing direct program migration from other PLC-5 processor variants without modification. Compatibility with 1771-series power supplies and remote I/O adapters is maintained across the Enhanced processor family.

Q4: Can you guarantee long-term supply and replacement support for this legacy processor?
Yes. We maintain dedicated inventory of PLC-5 series processors, including the 1785-L40B/E, to support facilities with long equipment lifecycle requirements. Our sourcing network covers multiple supply channels to ensure continued availability even as original manufacturer production has ended. For facilities requiring guaranteed spare parts availability over multi-year maintenance contracts, we recommend contacting our sales team to discuss reserved inventory arrangements and scheduled delivery programs.
