Allen-Bradley 1785-L40L Spare for PLC-5 Automation: Spare Replacement & Industrial Downtime Risk Control

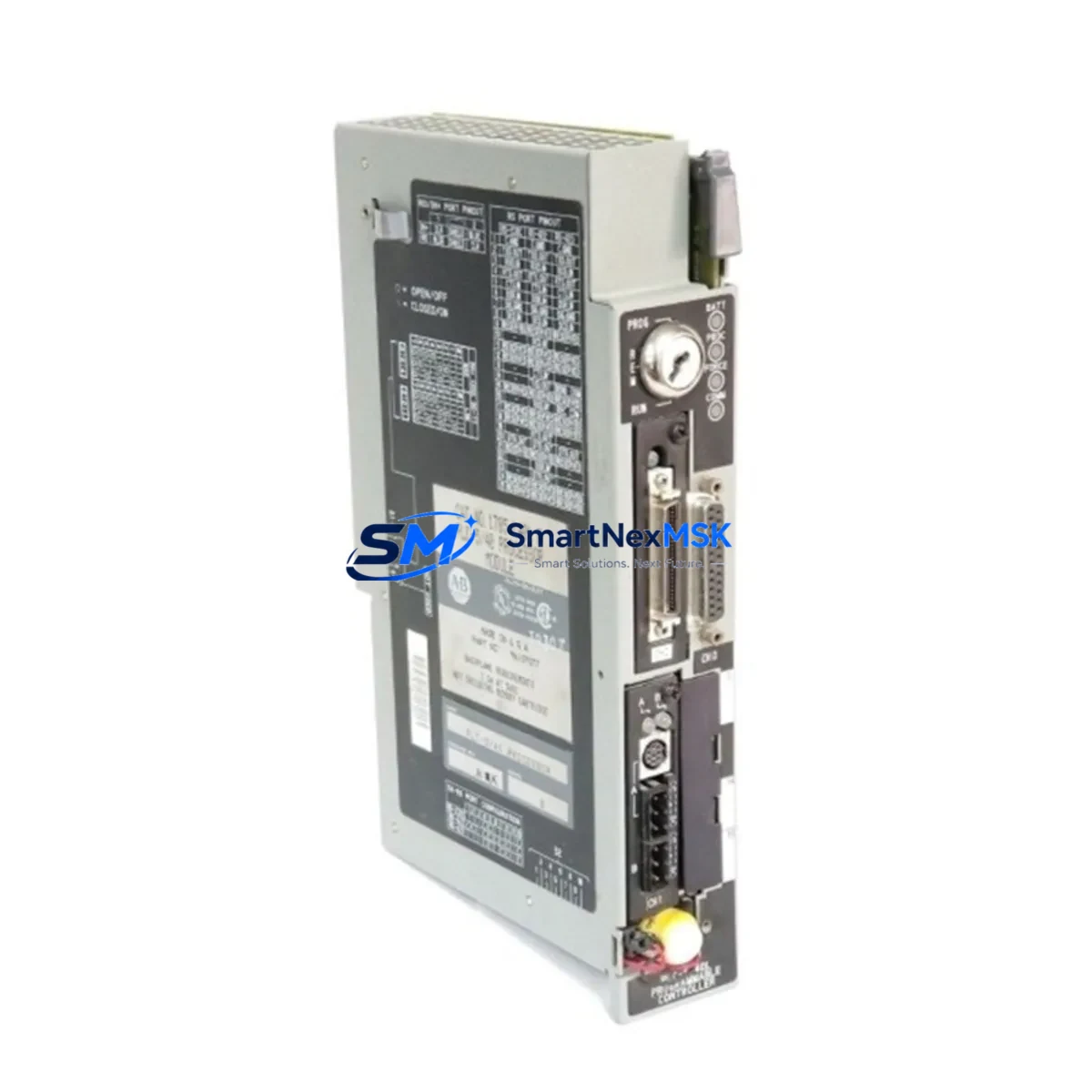

The Allen-Bradley 1785-L40L is a standard PLC-5 processor manufactured by Rockwell Automation, designed for demanding industrial control environments including discrete manufacturing, process control, and legacy automation systems. As a maintenance-ready spare, the 1785-L40L enables maintenance and procurement engineers to execute rapid processor replacements, minimize unplanned downtime, and sustain continuous operation in aging PLC-5-based control architectures.

Sourced as an original Rockwell Automation component, this unit is fully compatible with the PLC-5 platform and supports the standard I/O chassis, communication backplanes, and programming environments associated with the series. Whether you are managing a planned shutdown, responding to an emergency processor fault, or building a strategic spare parts inventory for a legacy control cabinet, the 1785-L40L provides a direct, specification-matched replacement path without requiring system redesign or software migration.

Each unit undergoes functional verification and electrical testing prior to shipment, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply availability is maintained to support extended asset life programs and multi-site maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1785-L40L processor fault is identified during routine inspection or emergency response, the replacement procedure should be treated as a system-level maintenance event rather than a single-component swap. Maintenance engineers are advised to inspect the surrounding control cabinet components concurrently to prevent repeat failures and ensure restored system stability.

The 1771-series I/O chassis backplane should be inspected for corrosion, loose connectors, and backplane bus integrity before seating the replacement processor. The chassis power supply — commonly a 1771-P4S or 1771-P7 — should be load-tested to confirm it can sustain the processor and all installed I/O modules under full operating conditions. A degraded power supply is a frequent root cause of processor faults in aging PLC-5 systems and should be stocked as a companion spare.

All 1771-series I/O modules installed in the chassis — including digital input modules, digital output modules, and analog I/O modules — should be visually inspected and functionally verified during the maintenance window. Particular attention should be paid to 1771-OBD output modules and 1771-IBD input modules, which are common failure points in high-cycle discrete applications.

The DH+ communication network connecting the 1785-L40L to remote I/O adapters, HMI panels, and peer PLCs should be verified for correct termination resistance and cable continuity. A faulty DH+ segment can cause the replacement processor to report communication faults immediately after startup. The 1771-ASB remote I/O adapter and associated 1770-CD DH+ cable assemblies are recommended inspection points.

If the control system includes a PanelView HMI terminal — such as the PanelView 550 or PanelView 900 — the DH+ node address and baud rate configuration should be confirmed against the replacement processor’s channel settings before going live. Signal isolation barriers and 1492-series terminal blocks on the field wiring side should also be checked for loose terminations and insulation degradation, particularly in high-vibration or high-temperature environments.

For facilities operating multiple PLC-5 systems, a structured spare parts inventory should include at minimum: one 1785-L40L processor, one chassis power supply, a selection of critical I/O modules, DH+ cable assemblies, and a set of 1492-IFM interface modules for field wiring continuity. Procurement engineers should also consider stocking the 1785-ME32 memory module as a backup for program retention during extended power outages.

Site Replacement Workflow

The 1785-L40L is a direct slot-compatible replacement for existing PLC-5 standard processor installations. The replacement workflow is designed to minimize downtime and preserve system configuration integrity:

Step 1 — Pre-replacement preparation: Back up the existing processor program using RSLogix 5 or an equivalent programming terminal connected via DH+ or RS-232. Confirm the backup file against the last known-good revision. Document all I/O module slot assignments and channel configurations.

Step 2 — Safe de-energization: Follow site lockout/tagout (LOTO) procedures. Remove the faulty 1785-L40L from the chassis slot. Inspect the slot connector and backplane for physical damage.

Step 3 — Replacement installation: Insert the replacement 1785-L40L into the correct chassis slot. Secure the module latch. Restore power and observe the processor status indicators — the RUN, FLT, and BATT LEDs provide immediate diagnostic feedback.

Step 4 — Program restore and verification: Download the backed-up program to the replacement processor. Verify I/O forcing is disabled. Perform a controlled test run with field devices in a safe state before returning the system to full production.

Step 5 — Post-replacement documentation: Record the replacement date, unit serial number, and any observed anomalies in the maintenance log. Update the spare parts inventory to trigger reorder of the consumed spare.

This workflow supports compatibility with legacy PLC-5 architectures without requiring firmware upgrades, network reconfiguration, or HMI reprogramming, making the 1785-L40L one of the most operationally efficient spare choices for aging Rockwell control systems.

Spare Parts Support FAQ

Q1: Is the 1785-L40L still available as a new or surplus-new unit, and what is the expected supply continuity?
The 1785-L40L has been discontinued by Rockwell Automation as part of the broader PLC-5 platform end-of-life program. However, surplus-new and professionally refurbished units remain available through authorized industrial spare parts distributors. Supply continuity for maintenance purposes is expected to remain viable for the foreseeable future given the large installed base of PLC-5 systems globally. Long-term procurement contracts and multi-unit stocking agreements are available for facilities with ongoing maintenance requirements.

Q2: How is compatibility verified before shipment, and what does the 12-month warranty cover?
Each 1785-L40L unit is functionally tested prior to shipment using standard PLC-5 test bench procedures, including processor initialization, memory verification, and communication port validation. The 12-month warranty covers manufacturing defects and operational failures arising under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with replacement or repair at no additional cost.

Q3: Can the 1785-L40L be used as a direct replacement for other PLC-5 standard processor variants?
The 1785-L40L is specifically rated for 48K words of user memory and is compatible with the standard PLC-5 chassis and I/O architecture. It is not a direct drop-in replacement for enhanced PLC-5 variants such as the 1785-L80E or 1785-L46E, which feature Ethernet ports and expanded memory. Compatibility should always be verified against the original system documentation and I/O configuration before installation. Our technical team can assist with compatibility confirmation prior to order placement.

Q4: What is the recommended spare parts stocking strategy for a facility running multiple PLC-5 systems?
For facilities with two or more PLC-5 systems, a minimum stocking level of one 1785-L40L processor per system cluster is recommended, supplemented by at least one chassis power supply and a rotating stock of high-wear I/O modules. Annual inventory audits aligned with planned maintenance shutdowns help ensure spare availability without excessive capital tied up in slow-moving stock. Bulk procurement pricing is available for multi-unit orders, and consignment stocking arrangements can be discussed for high-volume maintenance programs.
