Allen-Bradley 1785-ME64 Retrofit-Ready Memory for PLC-5

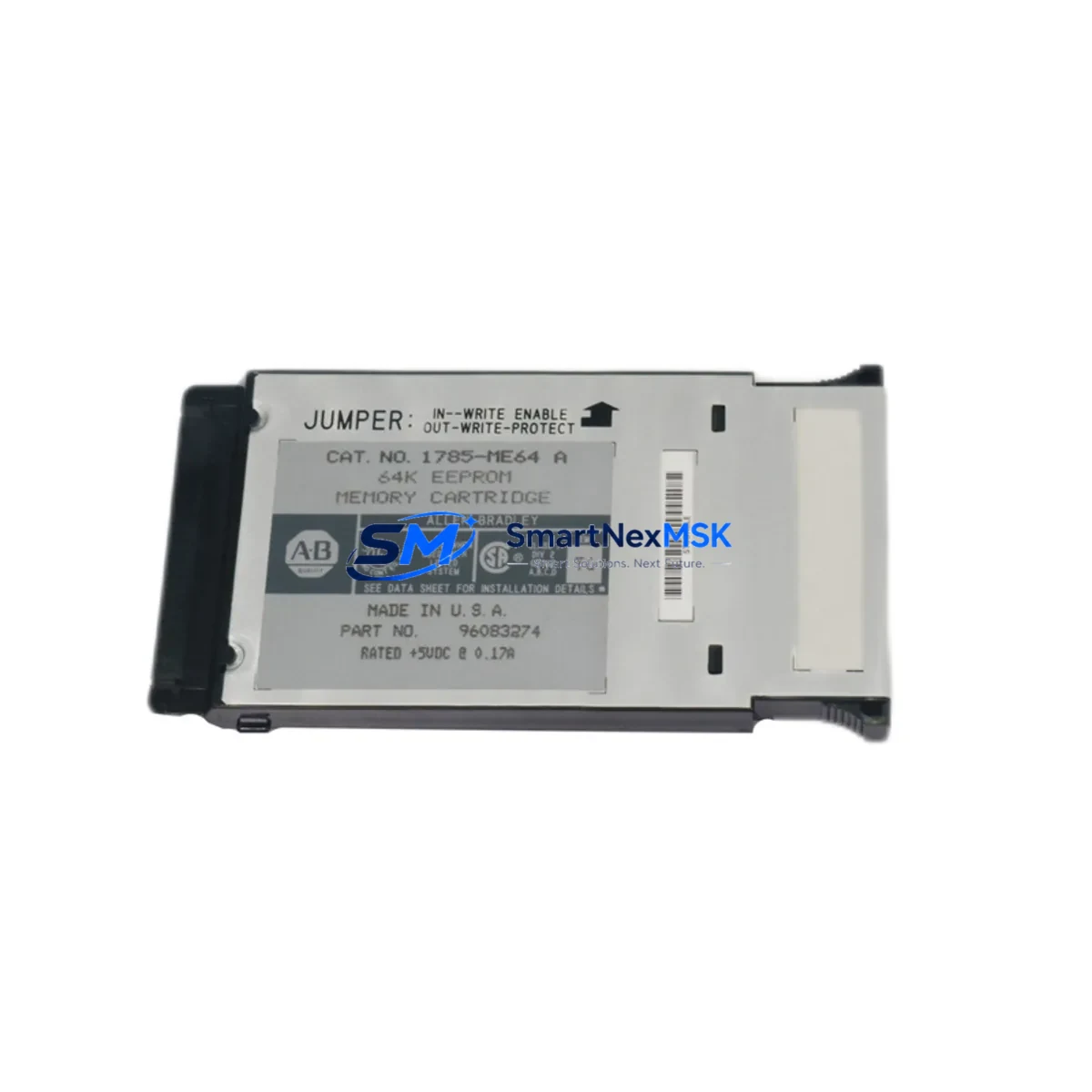

Allen-Bradley 1785-ME64 Retrofit-Ready Memory Cartridge for PLC-5 Control Systems

The Allen-Bradley 1785-ME64 is a 64K EEPROM Memory Cartridge engineered for the PLC-5 programmable controller family — one of Rockwell Automation’s most widely deployed legacy control platforms. As PLC-5 processors approach end-of-life and original memory cartridges become increasingly scarce, the 1785-ME64 remains a critical retrofit component for facilities that must maintain production continuity without committing to a full migration to the ControlLogix or CompactLogix platforms.

This module slots directly into the PLC-5 processor’s memory cartridge bay, providing non-volatile program storage that retains ladder logic, data tables, and configuration parameters through power cycles and battery failures. For plants running PLC-5/10, PLC-5/12, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, or PLC-5/60 processors, the 1785-ME64 is a verified drop-in replacement that eliminates the risk of program loss during unplanned shutdowns or battery depletion events.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 1785-ME64 into an existing PLC-5 control system requires a structured approach to avoid program loss and unplanned downtime. Before beginning any retrofit, engineers should use RSLogix 5 to perform a full online upload of the existing ladder logic program and save a verified backup to a secure workstation. This backup serves as the recovery baseline if the cartridge swap triggers a processor fault or if the EEPROM load sequence encounters a checksum error.

Power supply capacity is the first hardware checkpoint. The PLC-5 chassis — typically housed in a 1771 I/O chassis with a 1771-P4S or 1771-P7 power supply — must be verified to have sufficient headroom to support the memory cartridge alongside all installed I/O modules. In dense configurations where the chassis is populated with analog input modules such as the 1771-IFE, high-density digital output modules like the 1771-OBD, or specialty modules including the 1771-ASB remote I/O adapter, the power budget must be recalculated before adding or swapping any processor-side component.

Terminal wiring and backplane connections do not change with a memory cartridge swap — the 1785-ME64 interfaces exclusively through the processor’s cartridge bay and does not affect field wiring terminations on the 1771-series I/O modules. However, if the retrofit is part of a broader control cabinet upgrade that includes replacing the PLC-5 processor itself with a newer 1785-Lxx variant, engineers must verify that the replacement processor’s firmware supports the existing program’s instruction set, particularly if the program uses PID blocks, message instructions (MSG), or block transfer read/write (BTR/BTW) routines communicating with remote I/O drops over a 1771-ASB link.

Communication link integrity is especially important in systems where the PLC-5 serves as the master on a Data Highway Plus (DH+) network, coordinating with operator interface panels such as the PanelView 550 or PanelView 900. After the memory cartridge is loaded and the processor is placed back online, the DH+ node address must be confirmed and all HMI screen tags should be verified against the restored data table addresses. Any mismatch between the HMI tag database and the PLC-5 data file structure will result in display errors or failed write commands from the operator panel.

For systems that include a 1785-CHBM chassis interconnect module or a 1785-KA5 DH+ communication adapter, the module address assignments stored in the EEPROM must be validated post-load. Similarly, if the control system includes a 1771-SDN DeviceNet Scanner module managing distributed I/O on the plant floor, the scanner’s configuration file — stored separately from the PLC-5 program — must be re-verified to ensure node mapping remains intact after the memory cartridge replacement.

Downtime Control During System Migration

Minimizing production downtime during a PLC-5 memory cartridge replacement or processor retrofit begins with pre-staging. The 1785-ME64 should be pre-loaded with the verified program image using RSLogix 5’s EEPROM load function before the maintenance window opens. This allows the cartridge to arrive at the machine ready for immediate insertion, reducing the in-cabinet work time to a physical swap and a processor restart sequence.

During the maintenance window, the recommended sequence is: place the PLC-5 processor in Program mode via the keyswitch, remove the existing memory cartridge or failed battery-backed RAM module, insert the pre-loaded 1785-ME64, cycle processor power, and confirm the processor transitions to Run mode without faults. The entire sequence, when pre-staged correctly, can be completed in under 15 minutes for a single-processor system.

To protect original program logic, never perform a memory cartridge swap while the processor is in Run mode. If the system cannot be taken offline due to safety interlocks or continuous process requirements, coordinate with the process control team to implement a manual bypass or shadow control arrangement using a portable controller before proceeding. After the swap, perform a full program compare between the EEPROM-loaded version and the RSLogix 5 backup file to confirm bit-for-bit integrity before returning the system to automatic operation.

For multi-processor systems where the PLC-5 communicates with remote chassis over a 1771-ASB remote I/O link, the remote I/O drops will fault during the processor restart. Ensure that all remote I/O modules — including any 1771-OW relay output modules controlling critical actuators — are in a safe de-energized state before initiating the swap sequence. Document the expected fault behavior and recovery steps in the site’s maintenance procedure to prevent operator confusion during restart.

Retrofit Support FAQ

Q: Is the 1785-ME64 a direct replacement for the 1785-ME32?
A: Yes. The 1785-ME64 is physically and electrically compatible with all PLC-5 processors that accept the 1785-ME32. The 64K capacity is a superset of the 32K version, providing additional headroom for program expansion. No hardware modification is required — simply insert the 1785-ME64 into the same cartridge bay and load your program via RSLogix 5.

Q: What commissioning steps are required after installing the 1785-ME64?
A: After insertion and processor power-up, use RSLogix 5 to perform a Program Verify operation comparing the EEPROM contents against your saved backup file. Confirm all data table values, I/O configuration, and communication parameters. Place the processor in Run mode and monitor the first scan for any unresolved faults. Verify DH+ communication with connected HMI panels and confirm all remote I/O drops come online without errors.

Q: Does the 1785-ME64 require a battery to retain program data?
A: No. EEPROM memory is non-volatile and retains program data without battery backup. However, the PLC-5 processor’s internal RAM — which holds runtime data table values — still requires the 1785-BA lithium battery for data retention during power loss. The 1785-ME64 protects the program image; the battery protects live data values. Both should be maintained as part of a complete retrofit.

Q: What warranty coverage is included with this unit?
A: Every 1785-ME64 shipped by SMARTNEXMSK includes a 12-Month Warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing to verify EEPROM read/write integrity and cartridge connector condition. If a unit fails within the warranty period, we provide direct replacement support with priority processing for production-critical applications.
