Allen-Bradley 1794-ACN15/C Safety-Enhanced ControlNet Adapter for Harsh Industrial Sites

Allen-Bradley 1794-ACN15/C Safety-Enhanced ControlNet Adapter for Harsh Industrial Sites

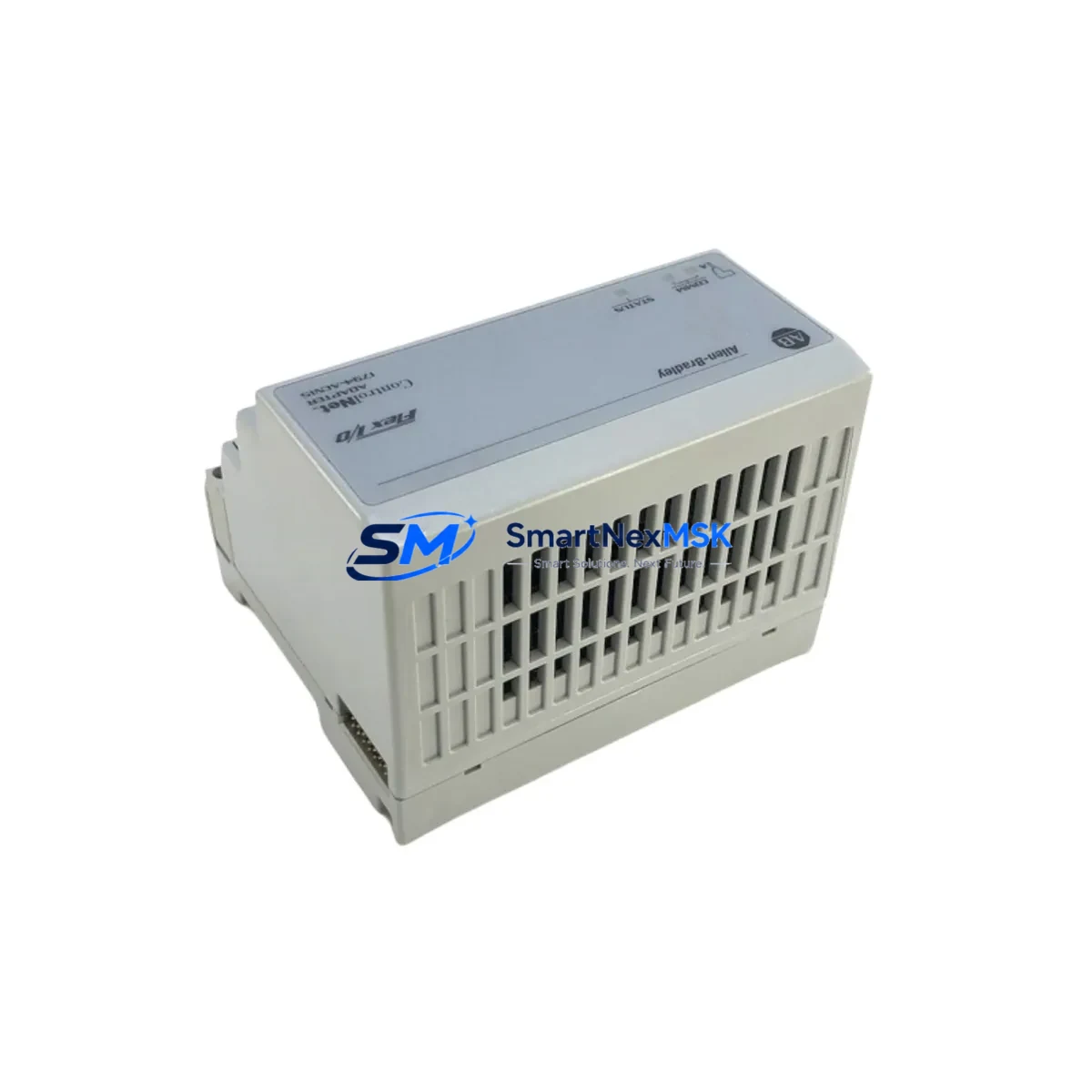

The Allen-Bradley 1794-ACN15/C is a ruggedized Flex I/O ControlNet Adapter (Series C) engineered for mission-critical industrial control environments where communication integrity and operational continuity are non-negotiable. Designed to operate within Rockwell Automation’s 1794 Flex I/O platform, this adapter bridges field-level I/O modules to ControlNet networks with deterministic, high-speed data transfer — making it an essential component in safety-sensitive control cabinets, critical interlock loops, and continuous-process automation systems.

In high-load production environments such as petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines, communication disruptions between the PLC backplane and field devices can trigger unplanned shutdowns, process deviations, or — in worst-case scenarios — safety incidents. The 1794-ACN15/C addresses these risks directly through its robust ControlNet interface, which provides scheduled, unscheduled, and messaging communication on a single coaxial or fiber network segment, eliminating the single-point-of-failure vulnerabilities common in legacy serial architectures.

Paired with a 1794-AENT EtherNet/IP adapter or alongside 1794-TB3 terminal bases, the 1794-ACN15/C integrates seamlessly into mixed-protocol control cabinets. When deployed with 1794-IE8 analog input modules or 1794-OE4 analog output modules, it ensures that process variables — temperatures, pressures, flow rates — are transmitted to the ControlLogix 1756-L7x or CompactLogix 1769-L3x controller without latency or signal drift, even under heavy electromagnetic interference from variable frequency drives, high-current contactors, or arc welding equipment nearby.

The Series C revision of the 1794-ACN15 incorporates firmware enhancements that improve network recovery time after transient faults, reducing the risk of module mis-operation during power fluctuations or surge events. When installed alongside a 1794-PS13 or 1794-PS1 power supply module, the adapter maintains stable backplane communication even when input voltage sags occur — a common failure mode in facilities with large motor starting loads. For applications requiring redundant power architectures, the adapter is compatible with dual-rail 24 VDC distribution schemes supported by Allen-Bradley 1606-XLP series power supplies.

In safety interlock and emergency shutdown (ESD) circuits, the 1794-ACN15/C supports deterministic scan-cycle communication that is critical for SIL-rated loop integrity. When integrated with GuardLogix 1756-L7xS safety controllers and 1794-IB16 digital input modules monitoring safety switches, pressure relief valves, or flame detectors, the adapter ensures that safety-critical signals reach the controller within the required response time — a fundamental requirement for IEC 61511 and IEC 62061 compliance in process and machinery safety applications.

For facilities operating in dusty, humid, or chemically aggressive atmospheres — such as cement plants, water treatment stations, or offshore platforms — the 1794-ACN15/C’s conformal-coated PCB and IP20-rated housing (when installed in a sealed enclosure) provide reliable protection against corrosion and particulate ingress. Its operating temperature range of 0°C to 55°C and storage range of -40°C to 85°C make it suitable for both climate-controlled control rooms and field-mounted junction boxes in temperate and tropical climates alike.

Replacement and spare-parts planning is straightforward: the 1794-ACN15/C is a direct drop-in replacement for Series A and Series B variants in existing 1794 Flex I/O racks, requiring no hardware modifications to terminal bases or power supplies. This backward compatibility significantly reduces planned maintenance downtime and simplifies spare-parts inventory management for multi-site industrial operators. SMARTNEXMSK maintains ready stock of this adapter to support urgent breakdown replacements and scheduled preventive maintenance programs globally.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the 1794-ACN15/C requires a layered protection strategy that addresses power quality, signal integrity, and network resilience simultaneously. At the power layer, a 1794-PS13 Flex I/O power supply module provides regulated 24 VDC to the backplane, while an upstream Allen-Bradley 1606-XLP100E SMPS ensures clean, stable DC power even when the facility’s AC supply experiences voltage dips during large motor starts. Transient voltage suppressors and DIN-rail mounted surge protection devices — such as those from the Phoenix Contact TRABTECH series — should be installed at the cabinet’s incoming power terminals to prevent surge energy from propagating to sensitive I/O modules.

At the network layer, the ControlNet coaxial cable connecting the 1794-ACN15/C to the 1756-CNB ControlNet bridge module in the ControlLogix chassis must be properly terminated with 75-ohm BNC terminators at both ends of each trunk segment. Improper termination is one of the most common causes of intermittent ControlNet communication faults in field installations. For high-vibration environments such as mining conveyors or steel mill rolling lines, locking BNC connectors and armored coaxial cable are strongly recommended to prevent connector loosening under mechanical stress.

At the I/O module layer, pairing the 1794-ACN15/C with 1794-IB16 16-point 24 VDC digital input modules and 1794-OB16 16-point digital output modules provides a complete discrete I/O solution for motor control centers, valve actuators, and limit switch monitoring. For analog process control loops, 1794-IE8 8-channel analog input modules with 4–20 mA signal conditioning eliminate ground loop interference — a persistent problem in long cable runs across large industrial facilities. Shielded, twisted-pair signal cables with single-point grounding at the control cabinet further reduce common-mode noise pickup from adjacent power cables.

Critical Industrial Safety Applications

The Allen-Bradley 1794-ACN15/C is deployed across a wide spectrum of heavy industrial and process industries where control system reliability directly impacts personnel safety and production continuity.

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 1794-ACN15/C serves as the communication backbone for distributed I/O racks monitoring pressure transmitters, temperature sensors, and emergency shutdown valve positions. Its deterministic ControlNet communication ensures that the safety PLC receives accurate field data within the required process safety time, supporting SIL 2 interlock functions for high-pressure reactor protection and flare system control.

Power Generation and Substation Automation: In coal-fired, gas turbine, and hydroelectric power plants, the adapter connects Flex I/O racks monitoring generator protection relays, cooling water flow switches, and turbine vibration sensors to the plant DCS or SCADA system. Its immunity to high-frequency electromagnetic interference from high-voltage switchgear and bus bars makes it a preferred choice for substation automation panels.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, and mechanical vibration. The 1794-ACN15/C’s robust construction and wide operating temperature range make it suitable for conveyor belt control systems, crusher automation, and ventilation fan control in these demanding environments. Rapid spare-parts availability from SMARTNEXMSK minimizes production losses during unplanned equipment failures.

Water and Wastewater Treatment: Municipal and industrial water treatment plants rely on the 1794-ACN15/C for reliable communication between pump control panels, chemical dosing systems, and SCADA workstations. Its compatibility with existing ControlLogix and CompactLogix infrastructure allows plant operators to expand I/O capacity without replacing the existing control system architecture.

Metallurgy and Steel Production: In electric arc furnaces, continuous casting lines, and rolling mills, the adapter operates reliably in environments with intense electromagnetic fields, high ambient temperatures, and airborne metallic particulates. Its scheduled ControlNet communication supports the tight synchronization requirements of multi-axis drive systems and hydraulic press controls in these applications.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the 1794-ACN15/C?
All 1794-ACN15/C units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. This warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are processed promptly with replacement units dispatched from stock to minimize customer downtime.

Q2: How is the 1794-ACN15/C tested before shipment?
Every unit undergoes a full functional test prior to dispatch, including ControlNet communication verification, backplane interface check, and power consumption measurement. Units that do not meet Allen-Bradley’s original performance specifications are quarantined and not shipped. A test report is available upon request for customers with strict incoming inspection requirements.

Q3: Is the Series C (1794-ACN15/C) compatible with existing Series A and Series B installations?
Yes. The 1794-ACN15/C (Series C) is fully backward compatible with 1794 Flex I/O terminal bases and power supply modules used with Series A and Series B adapters. No hardware modifications are required. Firmware updates may be applied using RSLogix 5000 / Studio 5000 if required by the existing controller project.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 1794-ACN15/C?
Yes. SMARTNEXMSK maintains ongoing inventory of the 1794-ACN15/C to support both emergency breakdown replacements and planned preventive maintenance programs. Customers with multi-site operations or annual maintenance contracts are encouraged to contact our sales team to discuss volume pricing, reserved stock arrangements, and priority shipping options.
