Allen-Bradley 1794-IE4XOE2 Safety-Enhanced Analog I/O

Allen-Bradley 1794-IE4XOE2 Safety-Enhanced Analog I/O: Reliable Control for Harsh Industrial Sites

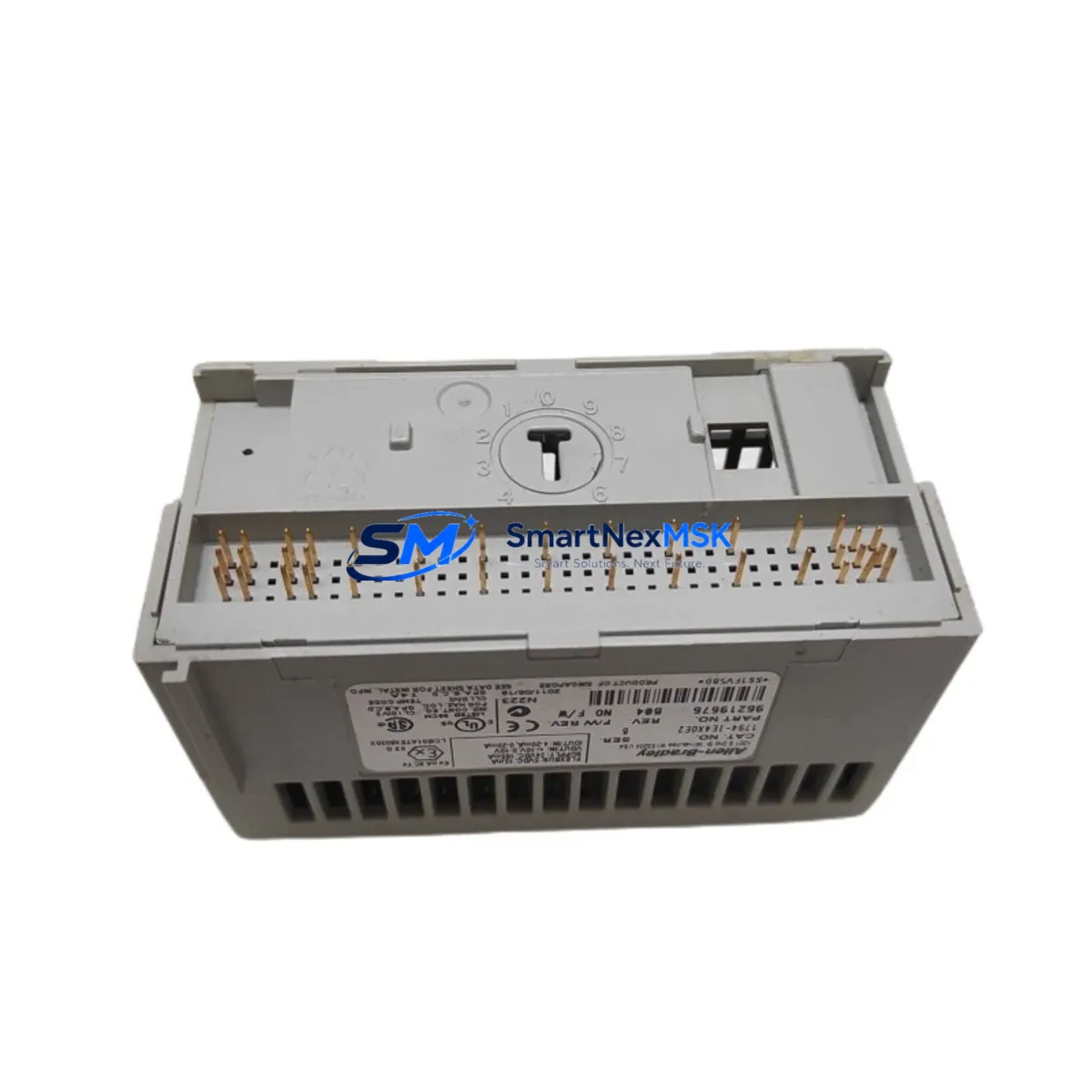

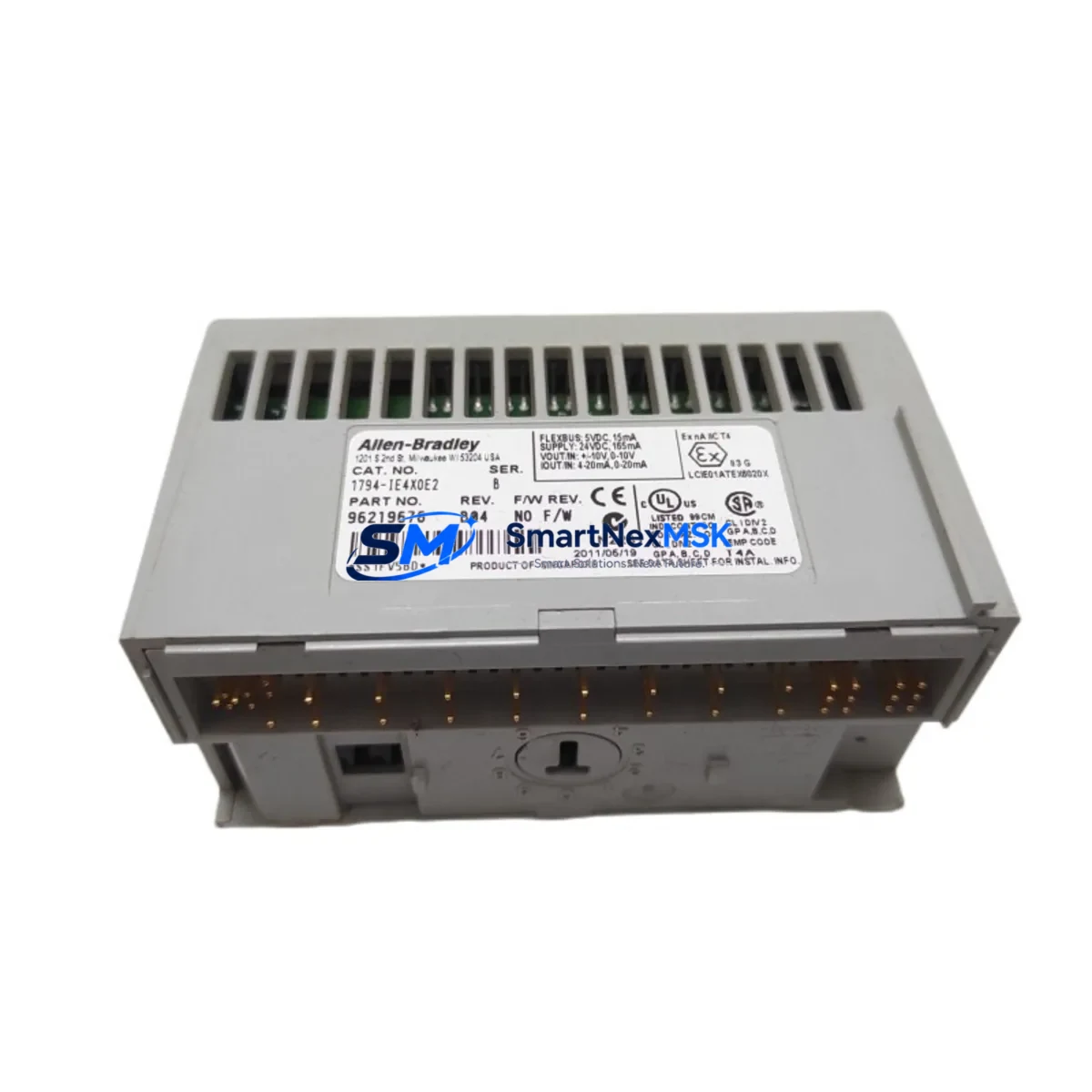

The Allen-Bradley 1794-IE4XOE2 is a ruggedized FLEX I/O analog combination module engineered for demanding industrial environments where control loop integrity and signal accuracy are non-negotiable. Designed to operate within the Allen-Bradley FLEX I/O platform, this module delivers four analog input channels and two analog output channels in a compact, DIN-rail-mounted form factor — making it an ideal choice for control cabinets in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processing lines, and continuous manufacturing environments.

In high-load, high-interference industrial settings, analog signal integrity is one of the most critical — and most vulnerable — elements of a control system. The 1794-IE4XOE2 addresses this challenge with robust signal conditioning circuitry that resists electromagnetic interference (EMI), radio frequency interference (RFI), and common-mode noise. Whether installed adjacent to variable frequency drives, high-current motor starters, or large transformer banks, this module maintains stable 4–20 mA and 0–10 V signal transmission, preventing the signal drift and measurement errors that can trigger nuisance trips, false alarms, or — worse — undetected process deviations in safety-critical loops.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1794-IE4XOE2 as part of a comprehensive control cabinet protection strategy requires careful attention to the surrounding architecture. The module slots into a FLEX I/O terminal base — typically a 1794-TB3 or 1794-TB3S — and communicates upstream through a network adapter such as the 1794-AENT (EtherNet/IP) or 1794-ADN (DeviceNet), ensuring seamless integration with existing plant-wide communication networks. This architecture allows the module’s analog data to be transmitted reliably to a ControlLogix 1756-L73 or CompactLogix 1769-L33ER controller without signal degradation across long cable runs.

Power stability is equally critical. The 1794-IE4XOE2 relies on a stable 24 VDC supply, and in environments prone to voltage fluctuations or surge events — such as those near large inductive loads — pairing it with a 1794-PS13 FLEX I/O power supply and an upstream Allen-Bradley 1606-XLP power supply with surge suppression ensures the module operates within its rated voltage window at all times. Transient voltage spikes that exceed the module’s input tolerance can cause analog channel errors, module resets, or permanent damage to signal conditioning circuitry — risks that are entirely preventable with proper power architecture.

For installations in cabinets that also house digital safety I/O, the 1794-IE4XOE2 can coexist with 1794-IB16 digital input modules and 1794-OB16 digital output modules on the same FLEX I/O backplane, enabling a mixed analog-digital I/O strategy within a single compact rack. In safety interlock circuits, the analog outputs of the 1794-IE4XOE2 can drive control valves, positioners, or variable speed drives, while its analog inputs monitor process variables such as pressure, temperature, flow rate, or level — providing the closed-loop feedback necessary for safe, automated process control. When integrated with a GuardLogix 1756-L71S safety controller, the analog data from this module can feed into safety-rated logic for emergency shutdown (ESD) and safety instrumented system (SIS) applications.

To protect field wiring from surge events and lightning-induced transients — a common risk in outdoor substations, pipeline pump stations, and open-process areas — installing Phoenix Contact TRABTECH surge protection devices or equivalent DIN-rail surge arresters on the analog signal lines upstream of the 1794-IE4XOE2 terminal base is strongly recommended. This single precaution can prevent the most common cause of analog module failure in field-exposed installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units, catalytic crackers, and gas compression stations, the 1794-IE4XOE2 monitors critical process variables — pressure transmitter outputs, thermocouple signal conditioners, and flow meter 4–20 mA signals — feeding real-time data into the DCS or PLC safety logic. Any signal interruption or drift in these loops can trigger unplanned shutdowns or, in worst-case scenarios, unsafe process conditions. The module’s robust EMI immunity and channel isolation make it a dependable choice for these high-stakes applications.

Power Generation & Electrical Substations: Turbine control systems, generator excitation circuits, and transformer monitoring panels demand analog I/O modules that can withstand the intense electromagnetic environment of high-voltage switchgear rooms. The 1794-IE4XOE2’s compliance with IEC 61000-4 immunity standards ensures it maintains signal accuracy even when installed in close proximity to high-current bus bars and switching equipment.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to vibration, dust, humidity, and wide temperature swings. The 1794-IE4XOE2, when properly installed in a sealed control enclosure with appropriate IP-rated cabinet protection, provides reliable analog I/O for conveyor speed control, crusher load monitoring, and ventilation system management — all applications where a control system failure can have immediate safety consequences for personnel.

Water & Wastewater Treatment: Pump station control panels, chemical dosing systems, and filtration process controllers rely on accurate analog measurement of flow, pH, turbidity, and pressure. The 1794-IE4XOE2 supports these measurement loops with stable, repeatable analog input performance, reducing the risk of overdosing, underdosing, or pump cavitation events caused by erroneous sensor readings.

Metallurgy & Steel Production: Rolling mill drives, furnace temperature control loops, and ladle handling systems operate in environments with extreme heat, heavy vibration, and significant electrical noise. The 1794-IE4XOE2’s industrial-grade design and Rockwell Automation’s proven FLEX I/O platform reliability make it a trusted component for these demanding metallurgical control applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 1794-IE4XOE2?
Every 1794-IE4XOE2 module supplied by SMARTNEXMSK carries a 12-month functional warranty from the date of shipment. This warranty covers all electrical and functional defects identified under normal operating conditions. Modules are pre-shipment tested to verify analog channel accuracy, communication bus integrity, and power consumption within factory specifications before dispatch.

Q2: How is the module tested before shipment?
Each unit undergoes a multi-point outgoing quality inspection that includes power-on functional verification, analog channel signal accuracy testing across the full 4–20 mA and 0–10 V ranges, backplane communication check, and visual inspection for physical integrity. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 1794-IE4XOE2 compatible with my existing FLEX I/O system?
Yes. The 1794-IE4XOE2 is fully compatible with the Allen-Bradley FLEX I/O platform and can be used with all standard FLEX I/O terminal bases (1794-TB3, 1794-TB3S, 1794-TB3G) and network adapters including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-ACN15 (ControlNet), and 1794-ASB (Remote I/O). It is programmable via Rockwell Automation’s RSLogix 5000 / Studio 5000 Logix Designer software.

Q4: Can SMARTNEXMSK support long-term and repeat supply of this module?
Yes. SMARTNEXMSK maintains ongoing inventory of the 1794-IE4XOE2 and related FLEX I/O components to support both immediate replacement needs and planned maintenance procurement. For critical infrastructure operators who require guaranteed spare parts availability, we offer reserved stock arrangements and priority fulfillment. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance schedule.
