Allen-Bradley 1794-OF4IXT Safety-Enhanced Analog Output for Harsh Industrial Sites

Allen-Bradley 1794-OF4IXT Safety-Enhanced Analog Output for Harsh Industrial Sites

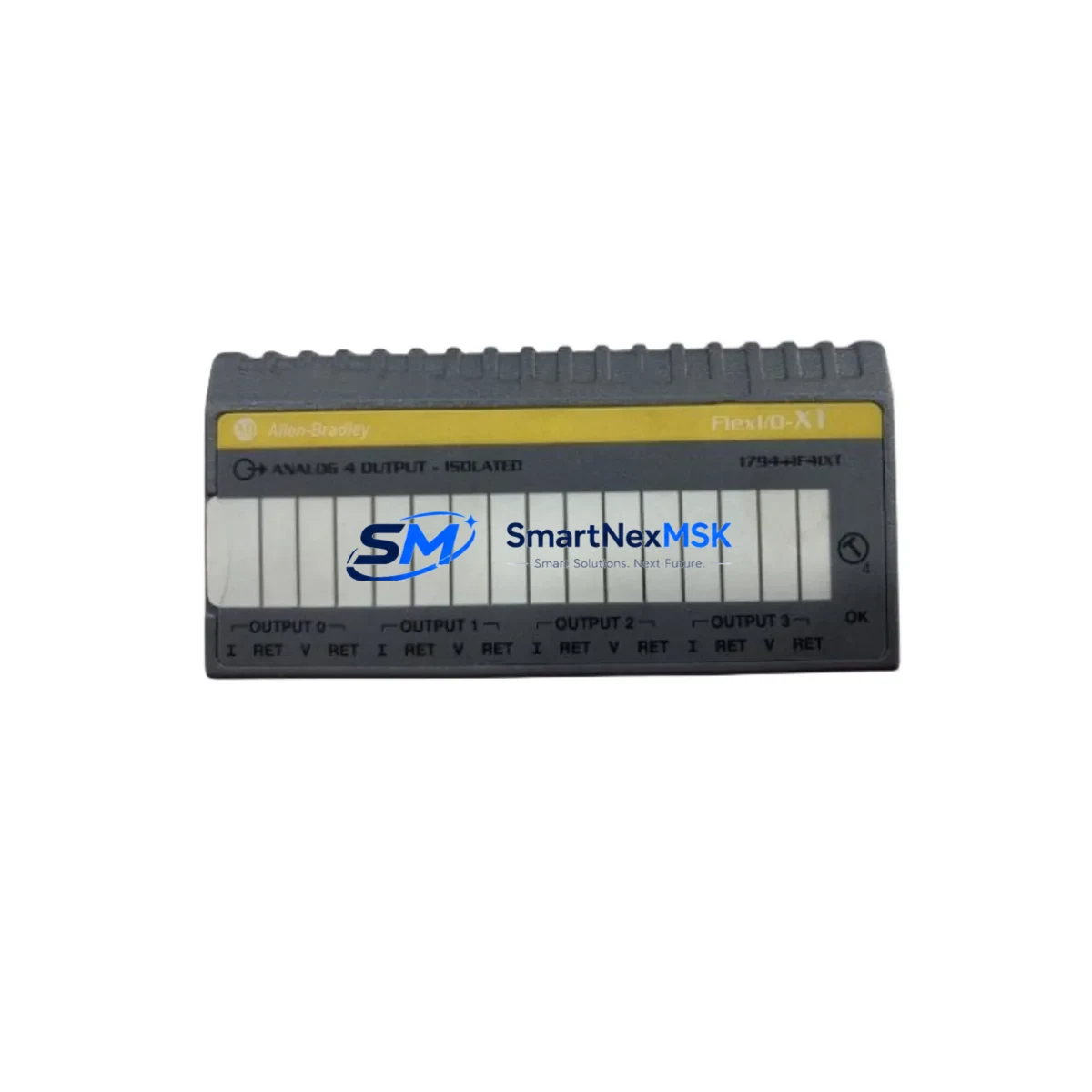

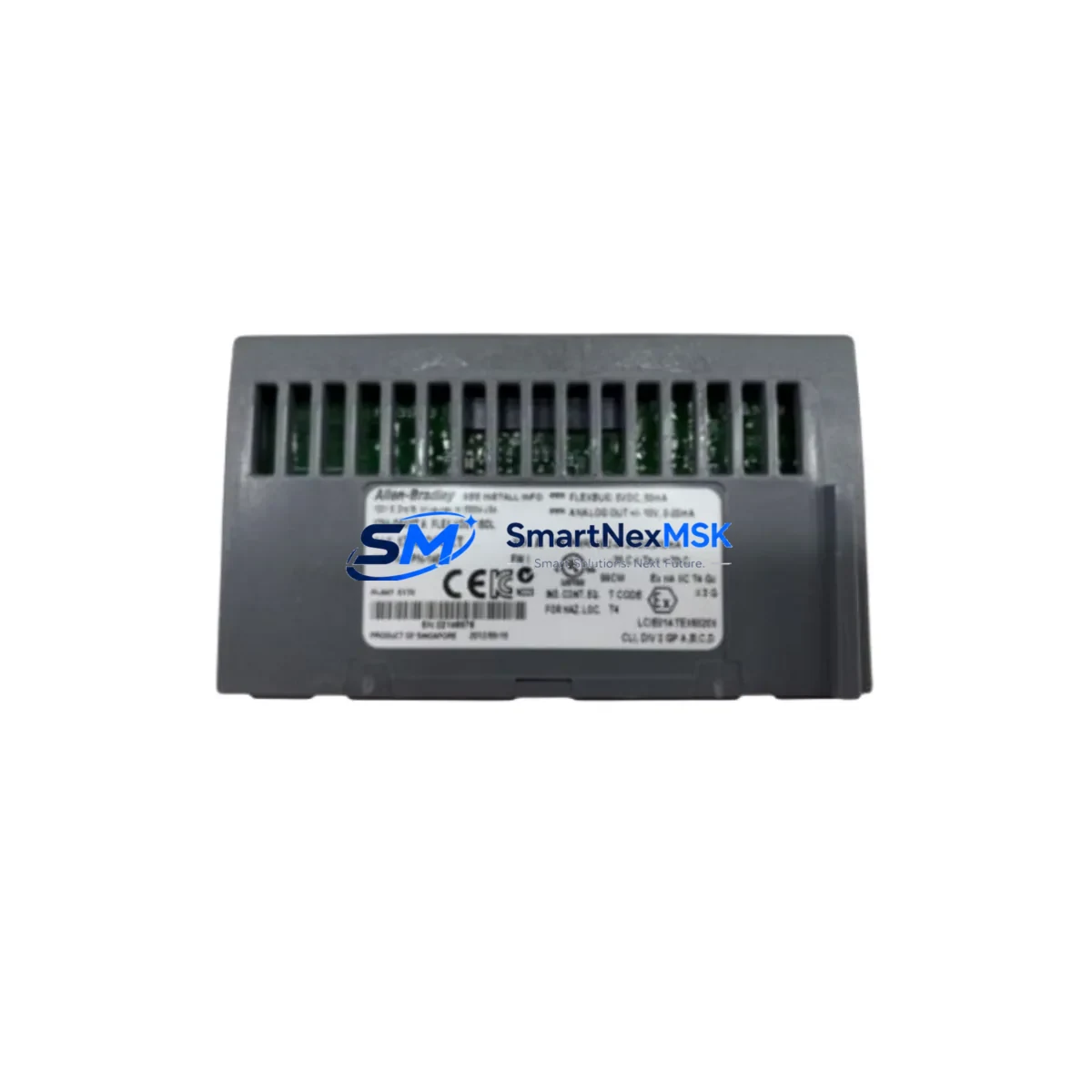

The Allen-Bradley 1794-OF4IXT is a ruggedized 4-channel analog output module from the FLEX I/O XT series, engineered by Rockwell Automation specifically for mission-critical industrial control environments where signal integrity, thermal resilience, and continuous uptime are non-negotiable. Designed to operate reliably across extended temperature ranges and in the presence of severe electrical noise, mechanical vibration, and corrosive atmospheres, the 1794-OF4IXT delivers precision analog output performance in applications where standard I/O modules would fail or degrade.

In high-load continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, mining operations, and port automation systems — analog output accuracy directly governs process safety. A drifting 4–20 mA signal or a voltage output excursion can trigger valve misoperation, drive overspeed, or actuator runaway, all of which carry serious safety and financial consequences. The 1794-OF4IXT addresses these risks through its hardened signal conditioning circuitry, which maintains output accuracy even under significant common-mode interference from variable frequency drives, large motor starters, and high-current bus systems operating in the same control cabinet.

The module integrates seamlessly into FLEX I/O XT backplane assemblies alongside complementary modules such as the 1794-IB16XT digital input module and the 1794-OB16XT digital output module, forming a complete distributed I/O node capable of handling both discrete and analog field signals within a single ruggedized enclosure. When paired with the 1794-AENT/C EtherNet/IP adapter, the 1794-OF4IXT participates in high-speed, deterministic communication with upstream controllers — including the Allen-Bradley ControlLogix 1756-L73 and CompactLogix 1769-L33ER platforms — enabling coordinated, real-time process control across geographically distributed field panels.

Power supply stability is a foundational requirement for reliable analog output performance. In harsh industrial sites, transient surges, brownouts, and ground loops are common threats. The 1794-OF4IXT is designed to operate within the regulated DC bus provided by the FLEX I/O XT power supply, and it is strongly recommended to deploy it alongside a dedicated 1794-PS13 or equivalent XT-rated power supply module to ensure clean, isolated power delivery to the analog output channels. Supplementing the power architecture with a 1783-US5T or similar industrial-grade Ethernet switch further protects the communication backbone from electrical disturbances that could otherwise cause packet loss or controller timeout faults.

In safety instrumented systems and critical interlock loops — such as emergency shutdown (ESD) circuits, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS) — the analog output module plays a key role in driving final control elements including control valves, positioners, and variable speed drives. The 1794-OF4IXT’s ability to maintain calibrated output under thermal stress (rated for operation across an extended industrial temperature range) makes it a preferred choice for outdoor marshalling cabinets, desert-climate substations, and Arctic-rated field junction boxes where ambient conditions fluctuate dramatically across seasons.

For surge and transient protection at the field wiring terminals, it is best practice to install Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices on each analog output channel before the signal reaches field instruments. This protects the 1794-OF4IXT output circuitry from lightning-induced surges and switching transients that propagate through long cable runs in open-air industrial plants. Combined with proper cable shielding, grounding discipline, and separation of analog signal cables from power conductors, this approach eliminates the most common sources of signal drift and output instability in demanding field environments.

Replacement and spare parts availability is a critical consideration for plant maintenance teams operating on long asset lifecycles. SMARTNEXMSK maintains verified stock of the 1794-OF4IXT with full pre-shipment functional testing, ensuring that each unit shipped has been validated for output accuracy, channel isolation, and backplane communication integrity before leaving the warehouse. Every unit is covered by a 12-month warranty from the date of shipment, providing procurement teams and maintenance engineers with the confidence needed for long-term spare parts planning.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet architecture built around the 1794-OF4IXT begins with a well-structured power distribution strategy. The 1794-PS13 FLEX I/O XT power supply provides the regulated 24 VDC backplane bus, while an upstream Allen-Bradley 1606-XLP power supply or equivalent DIN-rail SMPS unit conditions incoming AC power and suppresses conducted interference before it reaches the I/O backplane. For cabinets installed near large motor drives or welding equipment, a Rockwell Automation 1321-3R line reactor or isolation transformer on the incoming AC feed significantly reduces common-mode noise that would otherwise couple into analog signal circuits.

Within the same FLEX I/O XT node, the 1794-IB16XT handles discrete 24 VDC field inputs from limit switches, proximity sensors, and safety relay contacts, while the 1794-OB16XT drives discrete output loads including solenoid valves, pilot lights, and contactor coils. The 1794-IE8XT analog input module completes the closed-loop control picture by reading process variables — pressure transmitters, temperature sensors, and flow meters — that the controller uses to compute the corrective analog output commands sent through the 1794-OF4IXT to final control elements.

EtherNet/IP connectivity is established through the 1794-AENT/C adapter, which bridges the FLEX I/O XT backplane to the plant Ethernet network. To protect this communication link from electromagnetic interference and cable-borne surges, the adapter should be connected through an industrial-managed switch such as the Stratix 2000 or Stratix 5700, which provide IGMP snooping, VLAN segmentation, and port-level diagnostics that help isolate faults before they propagate to the controller. This architecture ensures that a communication anomaly at one field panel does not cascade into a plant-wide control interruption.

For safety interlock applications, the analog output from the 1794-OF4IXT is often used in conjunction with a Allen-Bradley GuardLogix 1756-L71S safety controller, which monitors the output channel health and can initiate a safe-state transition if a channel fault is detected. Pairing the module with a 1794-TB3GS grounding terminal base further reduces ground loop currents that are a primary cause of 4–20 mA signal offset errors in large industrial installations.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 1794-OF4IXT is deployed in distributed control system (DCS) migration projects and safety instrumented system (SIS) upgrades, where it drives control valve positioners in feed/effluent heat exchanger bypass loops, reactor temperature control circuits, and flare header pressure regulation systems. Its extended temperature rating ensures reliable operation in outdoor field junction boxes exposed to direct solar radiation and high ambient temperatures common in Middle Eastern and Southeast Asian refinery environments.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module controls excitation systems, governor valve actuators, and cooling water flow regulators. The ability to maintain calibrated analog output under the intense electromagnetic environment generated by large generators, transformers, and high-voltage switchgear makes the 1794-OF4IXT a preferred choice for turbine control panel upgrades.

In mining and mineral processing operations, the module is used in conveyor speed control, flotation cell reagent dosing, and crusher load management applications. The ruggedized XT construction withstands the high vibration levels generated by crushers, ball mills, and vibrating screens, as well as the conductive dust and moisture ingress that rapidly degrades standard I/O modules in these environments.

In water and wastewater treatment plants, the 1794-OF4IXT controls variable speed pump drives, chemical dosing pumps, and aeration blower systems. Continuous 24/7 operation requirements and the corrosive chemical atmosphere in chlorination and ozone treatment areas demand the extended environmental ratings that the FLEX I/O XT series provides.

In metallurgical and steel production facilities, the module drives hydraulic servo valves in continuous casting machines, rolling mill gap control systems, and furnace atmosphere control circuits, where output accuracy directly affects product quality and process safety. The high thermal mass of steel plant environments — with ambient temperatures regularly exceeding 50°C near furnaces and ladle handling areas — makes the XT temperature rating essential for sustained reliable operation.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 1794-OF4IXT?
Every 1794-OF4IXT shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures, and output accuracy degradation under normal operating conditions. Replacement or repair is provided at no additional cost within the warranty period, ensuring minimal disruption to your maintenance planning and spare parts budget.

Q2: What pre-shipment testing is performed on each unit?
Each 1794-OF4IXT undergoes a comprehensive functional test prior to shipment, including verification of all four analog output channels for accuracy and linearity across the full 4–20 mA and voltage output ranges, backplane communication integrity testing, channel-to-channel isolation verification, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1794-OF4IXT compatible with existing FLEX I/O XT backplanes and adapters?
Yes. The 1794-OF4IXT is fully compatible with all standard FLEX I/O XT backplanes and terminal bases, including the 1794-TB3, 1794-TB3S, and 1794-TB3GS. It operates with all FLEX I/O XT communication adapters, including the 1794-AENT/C (EtherNet/IP), 1794-ACNR15 (ControlNet), and 1794-ADN (DeviceNet). Configuration is performed through Rockwell Automation Studio 5000 Logix Designer or RSLogix 5000 software using the standard FLEX I/O XT module profile.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains dedicated inventory of the 1794-OF4IXT to support long-term spare parts programs for plant maintenance teams. For customers with multi-year maintenance contracts or scheduled turnaround requirements, we offer reserved stock arrangements and priority fulfillment agreements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your plant’s operational schedule.
