Allen-Bradley 20-COMM-E Safety-Enhanced EtherNet/IP Adapter

Allen-Bradley 20-COMM-E Safety-Enhanced EtherNet/IP Adapter: Reliable Control in Harsh Industrial Sites

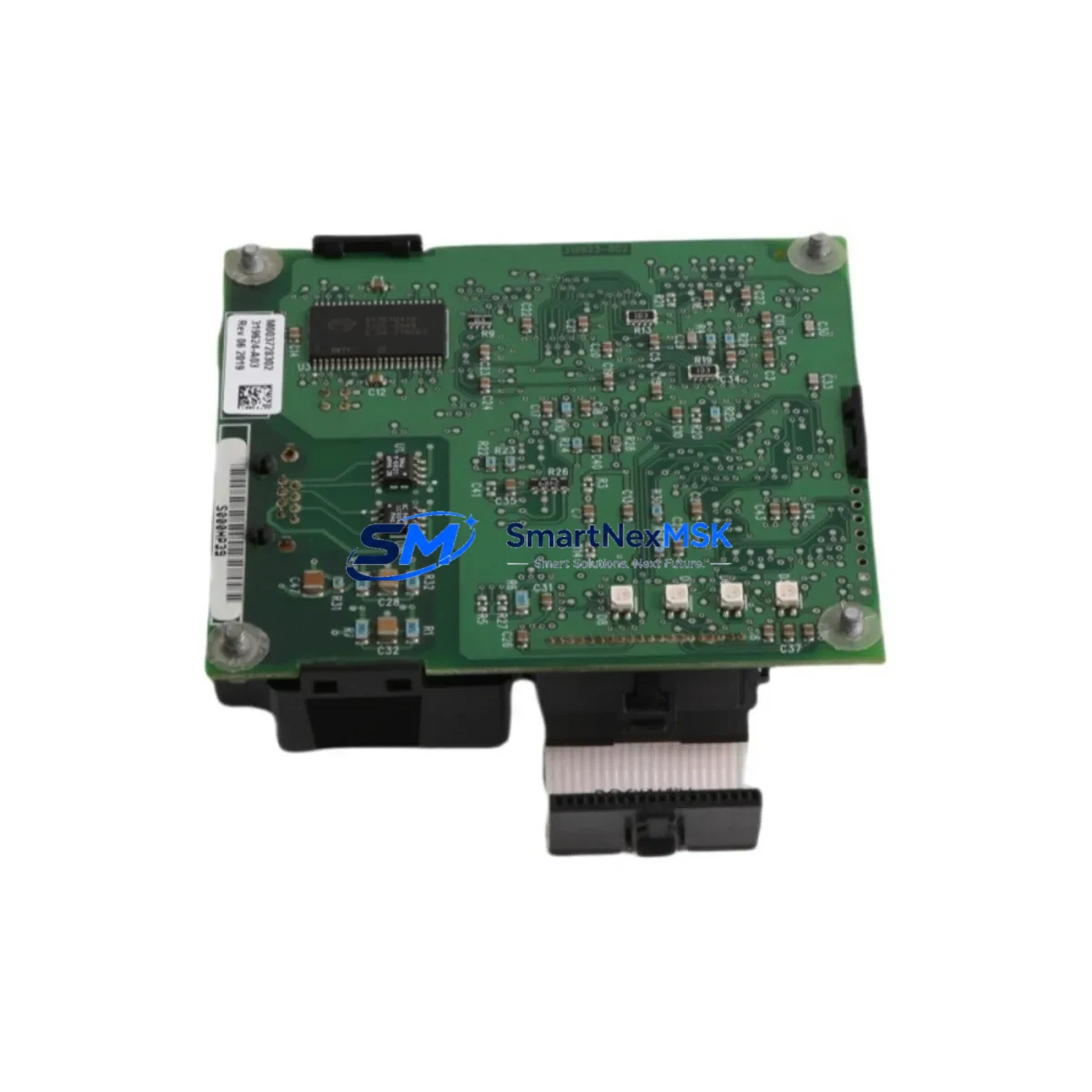

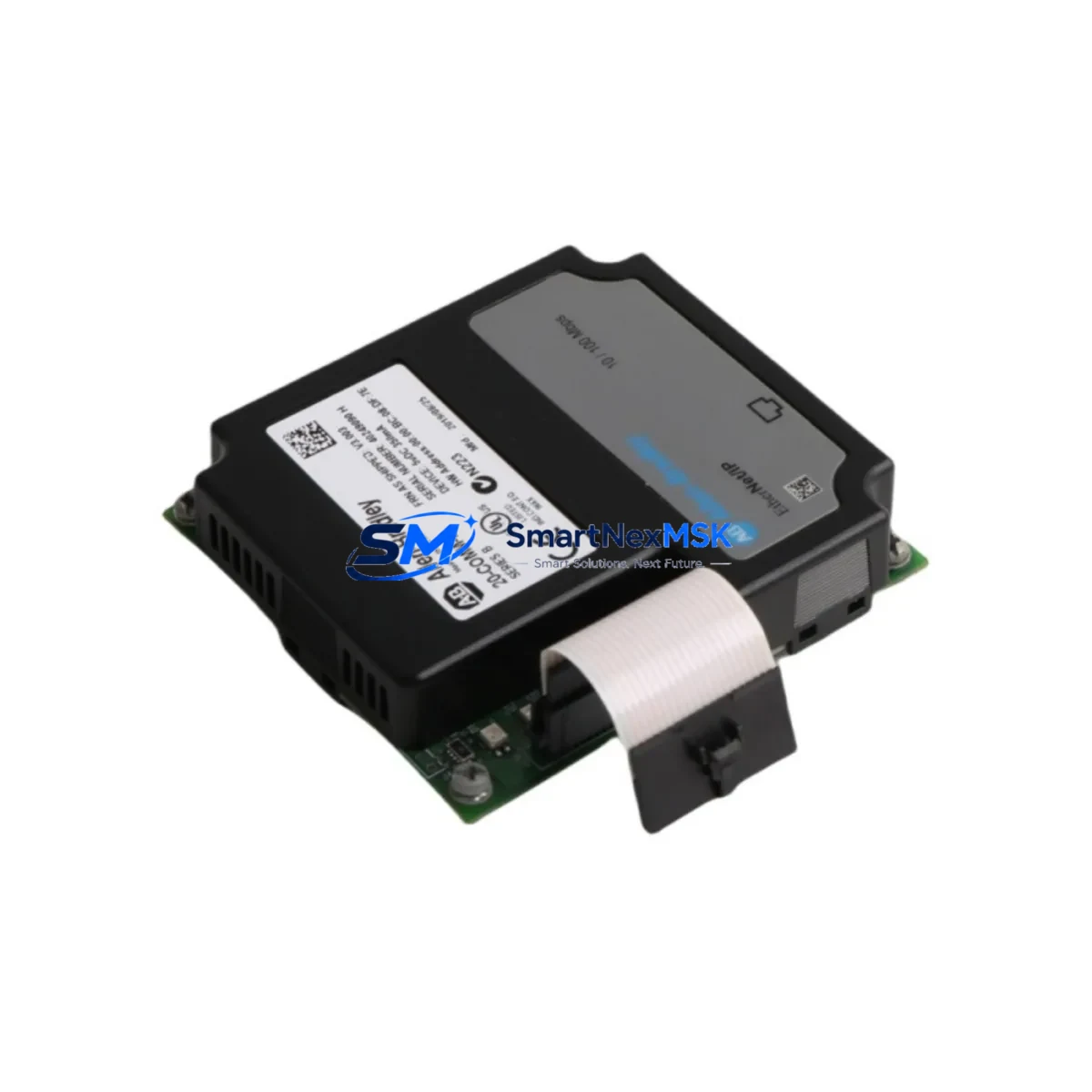

The Allen-Bradley 20-COMM-E EtherNet/IP Communication Adapter is engineered for mission-critical industrial environments where control continuity, signal integrity, and network reliability are non-negotiable. Designed as a plug-in communication module for the PowerFlex 700 and compatible PowerFlex AC drive series, the 20-COMM-E enables seamless EtherNet/IP connectivity between variable frequency drives and plant-wide control architectures — including those governed by Allen-Bradley ControlLogix and CompactLogix programmable automation controllers.

In high-load continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment systems, metallurgical processing lines, and port logistics — communication dropouts between a drive and its controller can trigger unplanned shutdowns, process upsets, or safety interlock failures. The 20-COMM-E addresses these risks through its ruggedized hardware design, EMI-resistant signal path, and deterministic EtherNet/IP protocol stack, which maintains low-latency, high-integrity data exchange even in electrically noisy control cabinet environments.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet integrating the 20-COMM-E adapter must be supported by a coordinated ecosystem of protection and communication components. In a typical PowerFlex 700 drive cabinet deployed in a continuous process plant, the 20-COMM-E works in concert with the Allen-Bradley 20-HIM-A6 Human Interface Module, which provides local parameter access and fault diagnostics without interrupting network communication. Upstream, a Stratix 5700 managed industrial Ethernet switch ensures deterministic EtherNet/IP traffic prioritization, preventing communication latency spikes that could cause the drive to fault on a network timeout.

Power quality is equally critical. Surge events and voltage transients — common in heavy industrial environments with large motor loads — can corrupt drive parameters or damage communication modules. Installing a Allen-Bradley 1606-XLP series DIN-rail power supply with active power factor correction upstream of the control cabinet’s 24VDC bus protects auxiliary circuits including the drive’s control card. For additional surge suppression on the EtherNet/IP network cable entry point, a dedicated industrial Ethernet surge protector rated for IEC 61643 should be installed in series with the RJ-45 connection to the 20-COMM-E.

In safety-critical interlock loops, the 20-COMM-E is often paired with a Allen-Bradley GuardLogix 5570 safety controller, which monitors drive status via EtherNet/IP and executes safe-stop sequences (STO — Safe Torque Off) when process safety conditions are violated. The PowerFlex 755 drive with integrated safety option further complements this architecture by providing on-board SIL 2 safe-stop capability without requiring external safety relays. For legacy installations, the Allen-Bradley 440R-N23132 safety relay module provides hardwired STO backup independent of the network communication path.

On the I/O side, Allen-Bradley 1734 POINT I/O modules distributed across the control cabinet communicate over EtherNet/IP alongside the drive, enabling centralized diagnostics from the ControlLogix controller. Proper cable management — using shielded Cat5e or Cat6 cables with drain wire grounded at one end — minimizes common-mode noise coupling into the 20-COMM-E’s receiver circuitry, a frequent cause of intermittent communication faults in high-EMI environments near large VFDs or transformer banks.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area motor control centers (MCCs) driving pumps, compressors, and agitators, the 20-COMM-E enables real-time drive status monitoring from a central DCS or SCADA system. Any deviation in motor current, speed reference, or fault state is immediately visible to the control room, allowing operators to intervene before a process upset escalates to a safety event. The adapter’s deterministic EtherNet/IP communication ensures that emergency stop commands from a Safety Instrumented System (SIS) reach the drive within the required response time.

Power Generation & Utilities: In coal-fired, gas turbine, or hydroelectric generation facilities, auxiliary motor drives controlling cooling water pumps, induced draft fans, and fuel feed systems must maintain continuous operation. The 20-COMM-E’s ability to sustain EtherNet/IP communication during electrical transients — caused by generator switching, bus transfers, or capacitor bank switching — is essential for preventing nuisance drive trips that could force a unit derating or emergency shutdown.

Mining & Mineral Processing: Conveyor drives, crusher motors, and slurry pump drives in underground or open-pit mining operations are exposed to extreme vibration, dust ingress, and wide temperature swings. The 20-COMM-E’s industrial-grade construction and conformal coating (where applicable) provide resilience against these conditions. Integration with a ControlLogix PAC via EtherNet/IP allows the mine control system to implement load-shedding logic, protecting the electrical infrastructure during peak demand periods.

Water & Wastewater Treatment: Variable speed drives on aeration blowers, centrifugal pumps, and sludge mixers are increasingly networked via EtherNet/IP for energy optimization and predictive maintenance. The 20-COMM-E enables the SCADA system to adjust drive speed setpoints in real time based on flow demand, dissolved oxygen levels, or tank levels — improving process efficiency while reducing mechanical wear on pump impellers and motor bearings.

Metallurgy & Steel Mills: Rolling mill drives, ladle transfer cars, and furnace exhaust fans operate in environments with intense electromagnetic interference from high-current bus bars and induction furnaces. The 20-COMM-E’s EMI-hardened design maintains reliable EtherNet/IP communication in these conditions, ensuring that the mill automation system retains full visibility and control over drive parameters during production campaigns.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the 20-COMM-E fails to perform its specified EtherNet/IP communication function due to a component or assembly defect, we will provide a replacement unit or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every 20-COMM-E unit undergoes a full functional test prior to dispatch. This includes verification of EtherNet/IP communication establishment, parameter read/write via explicit messaging, and physical inspection of the backplane connector and RJ-45 port. Units that fail any test criterion are quarantined and not shipped. A test record is maintained for traceability.

Q3: Is the 20-COMM-E compatible with all PowerFlex drive variants?
The 20-COMM-E is compatible with PowerFlex 70, PowerFlex 400, PowerFlex 700, and PowerFlex 700S drives equipped with a 20-COMM peripheral port. It is not compatible with PowerFlex 750-series drives, which use a different port architecture (requiring the 20-750-ENETR adapter). Always verify the drive’s firmware version and peripheral port type before installation. Our technical team can assist with compatibility confirmation prior to purchase.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of the 20-COMM-E and related PowerFlex communication adapters to support both planned maintenance schedules and emergency replacement requirements. For customers operating large fleets of PowerFlex drives, we recommend establishing a consignment stock arrangement to eliminate lead-time risk during critical production periods. Contact our sales team to discuss volume pricing and supply agreements.
