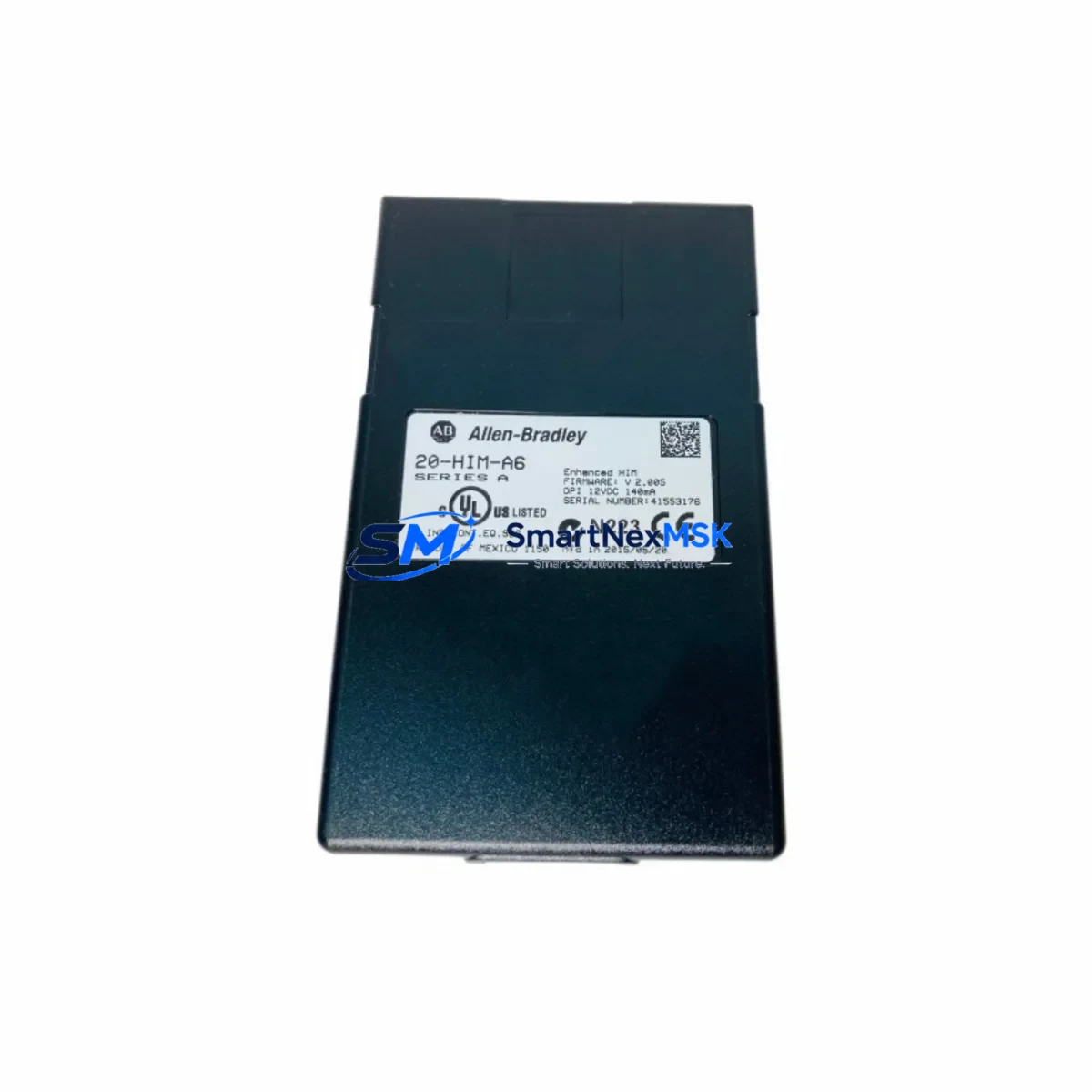

Allen-Bradley 20-HIM-A6 Safety-Enhanced HMI Module

Allen-Bradley 20-HIM-A6 Safety-Enhanced HMI Module: Reliable Control in Harsh Industrial Sites

The Allen-Bradley 20-HIM-A6 is a ruggedized Human Machine Interface (HMI) module engineered for the PowerFlex 70 and PowerFlex 700 AC drive families. Designed by Rockwell Automation to meet the demanding requirements of continuous industrial production, this module delivers stable, real-time parameter access and drive diagnostics even in environments characterized by high electromagnetic interference, voltage fluctuation, mechanical vibration, and extreme ambient temperatures. For engineers and maintenance teams operating in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines, the 20-HIM-A6 represents a critical safety interface between operator and drive system.

In high-load industrial environments, the integrity of the human-machine interface is not merely a convenience — it is a safety imperative. Signal drift, communication timeouts, and display failures at the HMI layer can mask underlying drive faults, delay operator response, and ultimately contribute to unplanned shutdowns or unsafe operating conditions. The 20-HIM-A6 addresses these risks through its robust hardware design, sealed enclosure rating, and compatibility with the DriveExplorer and Studio 5000 Logix Designer software environments, enabling seamless integration into existing Rockwell Automation control architectures.

When deployed alongside the PowerFlex 70 (20A) or PowerFlex 700 (20B) drive chassis, the 20-HIM-A6 provides local keypad control, parameter editing, and fault history retrieval without requiring a laptop or external programming device on the plant floor. This capability is especially valuable during emergency fault-clearing procedures in hazardous zones where minimizing personnel exposure time is a safety priority. The module’s DPI (Drive Peripheral Interface) communication protocol ensures low-latency, noise-immune data exchange between the HMI and the drive’s internal processor, reducing the risk of communication anomalies that could trigger nuisance trips or mask genuine fault conditions.

In control cabinet protection strategies, the 20-HIM-A6 is typically installed in conjunction with complementary protection and communication components. A well-designed cabinet for a PowerFlex-based motor control system will include a 1606-XLP power supply to provide clean, regulated 24 VDC to the HMI and control logic, isolating the interface layer from power line surges and transients. Surge protection devices such as the 1783-ETAP EtherNet/IP tap or dedicated DIN-rail surge arrestors are installed upstream to protect the DPI communication bus from lightning-induced or switching transients. For multi-drive systems, a 20-HIM-H10 remote mounting kit allows the 20-HIM-A6 to be panel-mounted at a safe operator distance from high-voltage drive components, further reducing exposure risk.

The broader control architecture supporting the 20-HIM-A6 in a safety-conscious installation will typically include a CompactLogix L33ER or ControlLogix L71 PLC as the supervisory controller, communicating with the PowerFlex drive via 20-COMM-E EtherNet/IP adapter or 20-COMM-D DeviceNet adapter. These communication adapters extend the drive’s connectivity to the plant-wide control network, enabling remote monitoring, predictive maintenance data collection, and integration with safety PLCs such as the GuardLogix 5570 for SIL 2 or SIL 3 interlock applications. In such architectures, the 20-HIM-A6 serves as the local operator interface while the safety PLC manages the critical interlock logic — a layered approach that satisfies both operational efficiency and functional safety requirements under IEC 61508 and IEC 62061 standards.

For installations in dusty, humid, or chemically aggressive environments — common in mining, cement production, and chemical processing — the 20-HIM-A6’s sealed front panel and conformal-coated PCB provide meaningful protection against ingress and corrosion. When paired with a PowerFlex 700H (20C) high-power drive and a 1321-3R line reactor for input harmonic mitigation, the complete drive system achieves a level of electrical robustness suitable for the most demanding continuous-duty applications. The line reactor also reduces the rate of voltage rise (dV/dt) seen by the drive’s input rectifier, extending component life and reducing the frequency of nuisance overcurrent faults that can disrupt production.

Field replacement of the 20-HIM-A6 is straightforward: the module connects via a standard DPI port and requires no special tools for removal or installation. Parameter sets stored in the drive’s non-volatile memory are retained during HMI replacement, ensuring that a spare module can be installed and the drive returned to service within minutes — a critical advantage in facilities where every minute of downtime carries significant financial and safety consequences. SMARTNEXMSK maintains ready stock of the 20-HIM-A6 and related PowerFlex accessories to support rapid spare parts fulfillment for maintenance teams worldwide.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust PowerFlex drive cabinet built around the 20-HIM-A6 integrates multiple layers of protection to ensure continuous, safe operation. At the power entry point, a 1321-3R line reactor attenuates input harmonics and limits inrush current, protecting both the drive and upstream distribution equipment. A 1606-XLP24-30E power supply delivers stable 24 VDC to the control and HMI layer, decoupling the interface electronics from the noise-rich power bus. For network connectivity, a 20-COMM-E EtherNet/IP communication adapter bridges the PowerFlex drive to the plant Ethernet backbone, enabling remote parameter monitoring and fault logging through a ControlLogix L71 or CompactLogix L33ER supervisory PLC.

In safety-critical interlock circuits, the drive system is supervised by a GuardLogix 5570 safety PLC, which monitors emergency stop circuits, safety gate inputs, and process interlock signals. The 20-HIM-A6 provides the local operator with real-time drive status and the ability to acknowledge faults and initiate controlled restarts — actions that must be performed locally and safely before the safety PLC re-enables the drive run command. For installations requiring remote HMI access, the 20-HIM-H10 remote mounting kit relocates the 20-HIM-A6 to a panel door or operator station, keeping personnel away from high-voltage drive components during routine parameter checks. Cabinet-level surge protection is completed with DIN-rail mounted surge protective devices on the 24 VDC control rail and the Ethernet communication ports, ensuring that lightning events or switching transients on the plant power system do not propagate to the sensitive HMI and communication electronics.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 20-HIM-A6 is deployed on PowerFlex drives controlling pump and compressor motors in classified hazardous areas. The ability to read fault codes and adjust drive parameters locally — without connecting a laptop — reduces the time personnel spend in Zone 1 or Zone 2 areas, directly supporting site safety protocols. In power generation facilities, the module interfaces with drives on cooling water pumps, induced draft fans, and auxiliary systems where unplanned stops can cascade into turbine trips and grid instability events.

In underground mining operations, where conveyor belt drives and ventilation fan drives must operate continuously in dusty, high-humidity conditions, the 20-HIM-A6’s sealed front panel and conformal coating provide the environmental resilience needed for reliable long-term service. Water and wastewater treatment plants rely on the module for local control of variable-speed pump drives in wet, chemically aggressive pump rooms, where corrosion resistance and ease of maintenance are paramount. In metallurgical and steel mill applications, the 20-HIM-A6 supports drives on rolling mill auxiliary motors, where high ambient temperatures and intense electromagnetic fields from large induction furnaces create a challenging operating environment that demands robust HMI hardware.

For port and bulk material handling systems, the module enables operators to manage drive parameters on ship-loader, stacker-reclaimer, and conveyor drives from local control stations, supporting safe and efficient cargo handling operations. Across all these applications, the 20-HIM-A6’s compatibility with the full PowerFlex 70/700 drive family and its straightforward replacement procedure make it a preferred spare part for maintenance teams committed to minimizing mean time to repair (MTTR) and maximizing plant availability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 20-HIM-A6?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including display failure, keypad malfunction, DPI communication errors, and PCB component failure. Warranty claims are supported by our technical team with rapid replacement dispatch to minimize your downtime.

Q2: What pre-shipment testing is performed on each 20-HIM-A6 unit?
Every unit undergoes a full functional test prior to shipment: display illumination and character rendering, all keypad inputs, DPI communication handshake and data integrity, and parameter read/write operations. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 20-HIM-A6 compatible with both PowerFlex 70 and PowerFlex 700 drives?
Yes. The 20-HIM-A6 is compatible with all PowerFlex 70 (catalog prefix 20A) and PowerFlex 700 (catalog prefix 20B) drives via the standard DPI port. It is also compatible with PowerFlex 700H (20C) and PowerFlex 700S (20D) drives. Always verify the drive firmware version against the HMI compatibility matrix in the Rockwell Automation product documentation before installation.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the 20-HIM-A6?
Yes. SMARTNEXMSK maintains dedicated inventory of the 20-HIM-A6 and related PowerFlex HMI accessories to support ongoing spare parts programs for industrial facilities. We provide sourcing support for both current-production and legacy Allen-Bradley components, ensuring that your maintenance team has access to verified, tested replacement modules when needed — regardless of the original equipment age.
