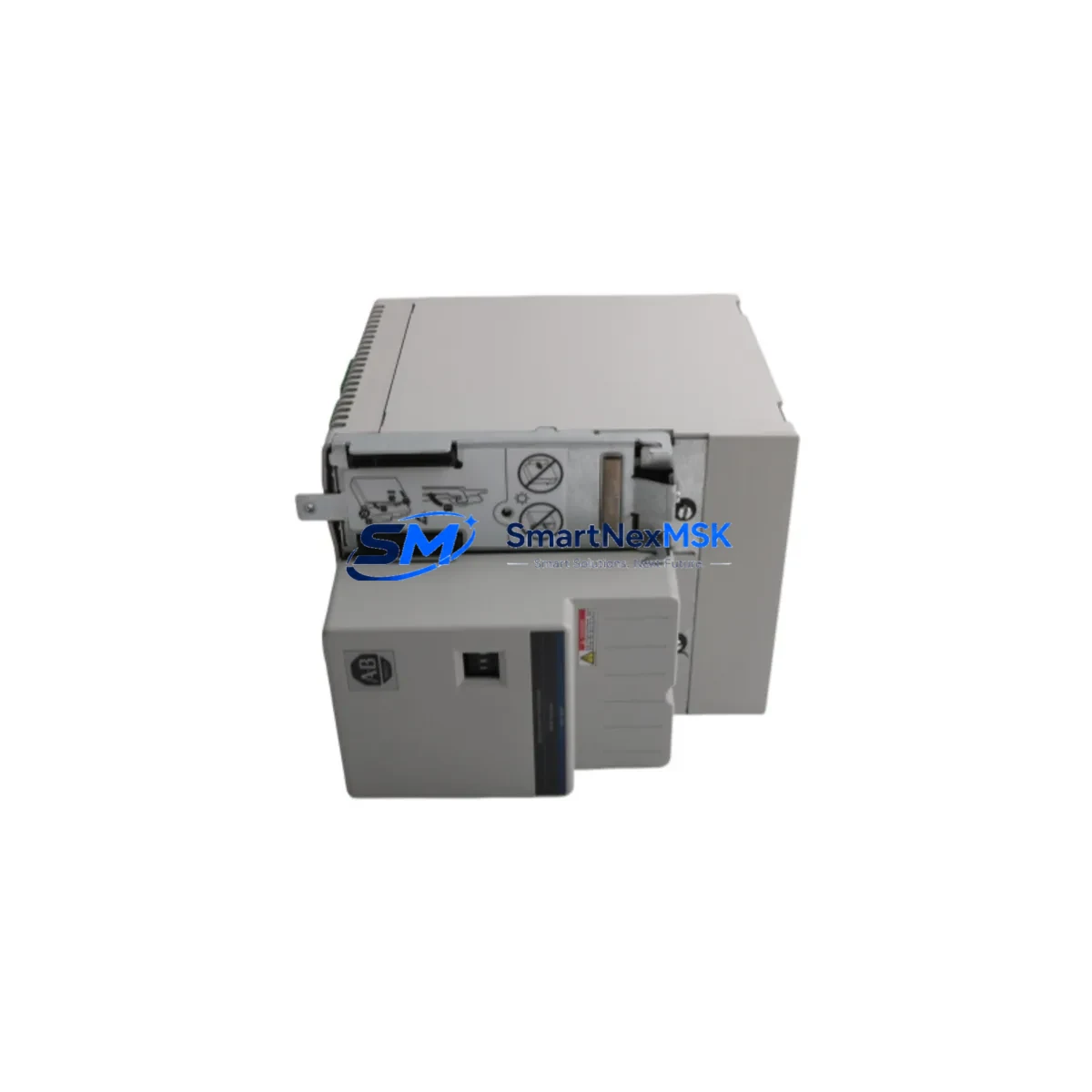

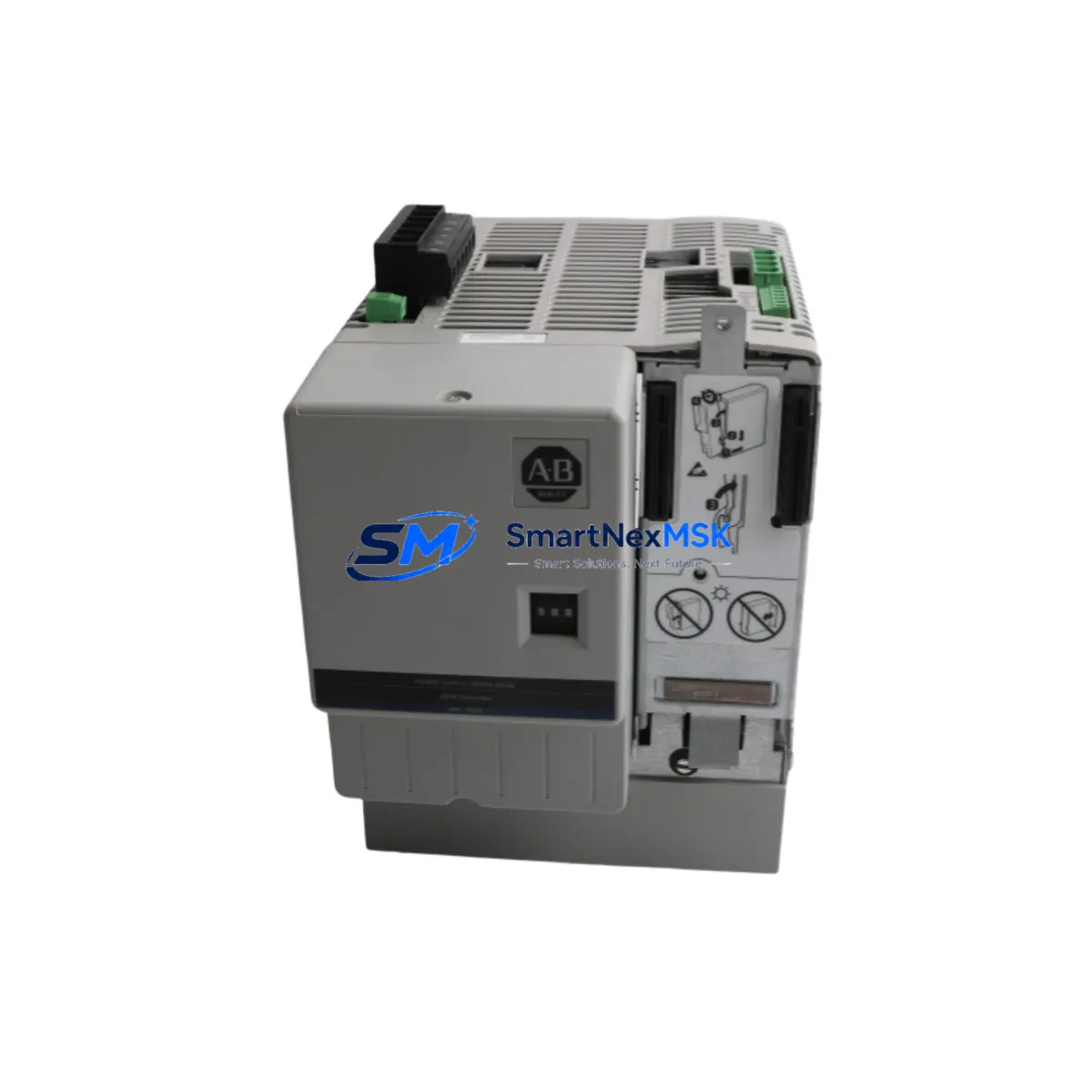

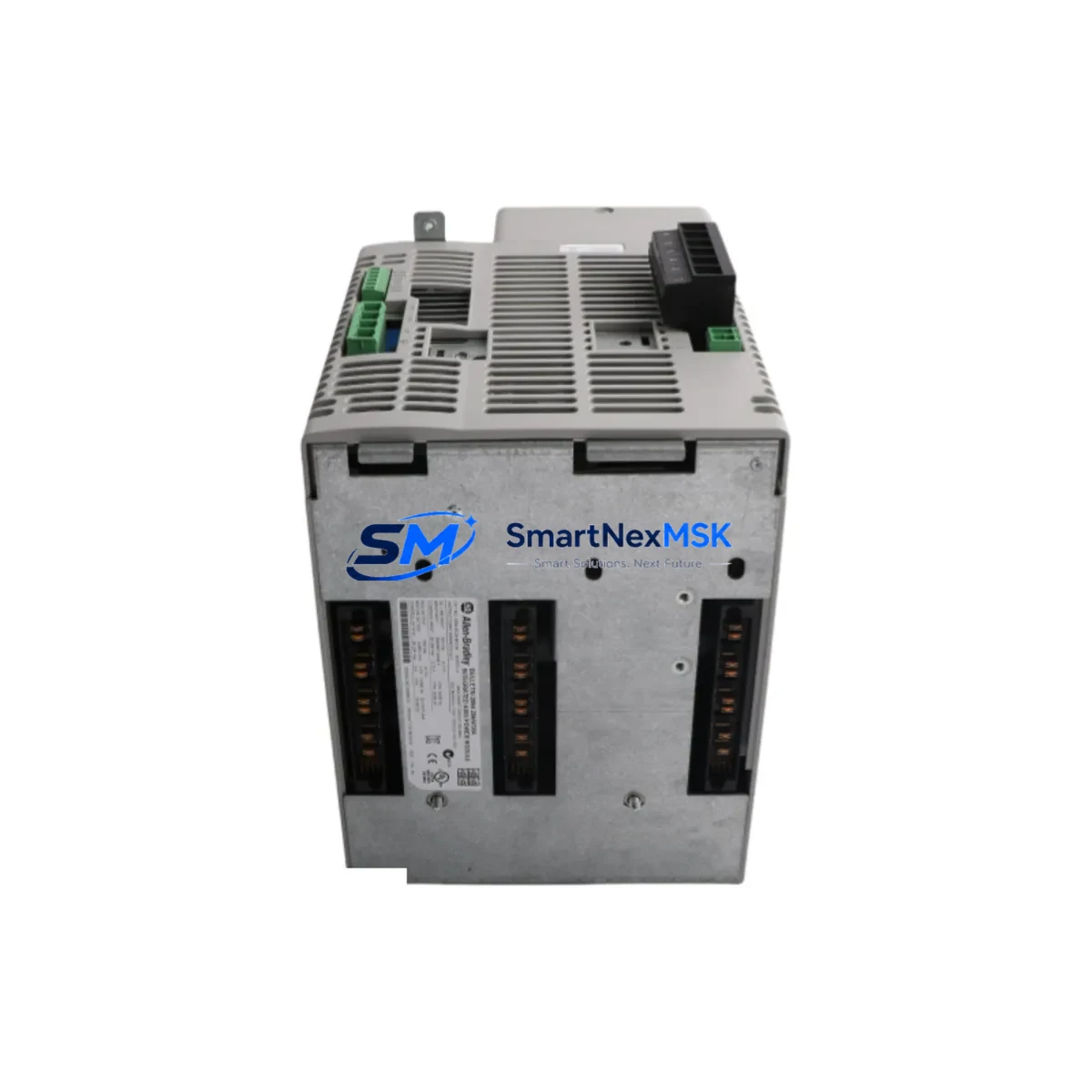

Allen-Bradley 2094-BC04-M03-M Safety Servo Drive

Allen-Bradley 2094-BC04-M03-M Safety Servo Drive: Reliable Control for Harsh Industrial Sites

The Allen-Bradley 2094-BC04-M03-M is a 4-axis servo drive module from the Kinetix 6000 series, engineered for continuous, high-reliability motion control in demanding industrial environments. Operating at 460V AC with a 3A continuous output current rating per axis, this module is purpose-built to sustain precise servo loop integrity under high electrical noise, fluctuating supply voltages, and thermally aggressive cabinet conditions. Whether deployed in petrochemical processing lines, metallurgical rolling mills, port crane systems, or continuous manufacturing cells, the 2094-BC04-M03-M delivers the deterministic motion response and fault-tolerant architecture that safety-critical applications demand.

In high-load production environments where control interruption carries significant safety and financial consequences, the Kinetix 6000 platform’s integrated axis module design minimizes inter-axis wiring complexity and reduces potential failure points within the control cabinet. The 2094-BC04-M03-M shares a common DC bus with the Kinetix 6000 2094-BC07-M05-M power rail and associated axis modules, enabling coordinated multi-axis shutdown and regenerative energy sharing — both critical features for safe deceleration during emergency stop events. This architecture directly reduces the risk of uncontrolled axis runaway during power transients or E-stop sequences.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet strategy for multi-axis servo systems built around the 2094-BC04-M03-M begins with a properly rated power infrastructure. The Kinetix 6000 2094-XL75S-C15 line interface module (LIM) provides upstream surge filtering, line conditioning, and soft-start protection, shielding the servo bus from voltage spikes and grid-side transients that are common in heavy industrial facilities. Paired with a 2094-PRS8 power rail, the axis module integrates cleanly into a shared DC bus topology that supports coordinated fault response across all connected axes.

For communication integrity, the SERCOS fiber-optic interface used by the 2094-BC04-M03-M is inherently immune to electromagnetic interference — a critical advantage in environments where variable frequency drives, arc welders, or high-current switching equipment operate in proximity. The ControlLogix L7x series controller, connected via a 1756-M08SE SERCOS interface module, provides the supervisory motion coordination layer, executing synchronized multi-axis profiles with deterministic scan times that prevent positional drift and signal latency under load.

Surge and transient protection at the cabinet level is further reinforced by installing 1492-SPM series supplementary protectors on individual axis feed circuits, limiting fault propagation between axes. For applications requiring safe torque off (STO) functionality, the 2094-BC04-M03-M is compatible with safety relay modules such as the MSR127RP, enabling hardwired safety loop integration without sacrificing motion control responsiveness. Cabinet thermal management — often overlooked in dense servo installations — should include properly sized 2094-series fan kits or external heat exchanger units to maintain the module within its rated thermal envelope, preventing thermally induced derating or nuisance faults during peak production cycles.

On the feedback side, Kinetix 6000 axis modules support multi-turn absolute encoders via the 2090-series feedback cables, ensuring accurate position retention through power cycles and eliminating the homing sequences that can introduce safety risks during restart after an unplanned shutdown. Maintaining a stocked spare of the 2094-BC04-M03-M alongside compatible 2090-XXNFMF-S23 motor power cables and 2094-EN02D-M01-S1 Ethernet-based drive variants in the same cabinet family ensures rapid mean-time-to-repair (MTTR) when field replacement is required.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 2094-BC04-M03-M is deployed in multi-axis valve actuator control systems and compressor anti-surge control loops, where precise, repeatable positioning under continuous duty is non-negotiable. Any axis fault or communication dropout in these applications can trigger process upsets with significant safety implications, making the Kinetix 6000 platform’s integrated fault diagnostics and deterministic SERCOS communication essential.

In electric power generation and transmission facilities, the module supports turbine governor auxiliary control and excitation system positioning, where sub-millisecond response to load changes is required. The shared DC bus architecture enables coordinated regenerative braking across multiple axes, reducing energy dissipation and preventing DC bus overvoltage faults during rapid deceleration — a common failure mode in high-inertia rotating machinery applications.

Mining and mineral processing operations rely on the 2094-BC04-M03-M in conveyor drive synchronization, crusher feed control, and flotation cell agitator systems. These environments impose severe vibration, dust ingress, and wide ambient temperature swings on control hardware. The module’s robust construction and Rockwell Automation’s proven Kinetix 6000 platform reliability make it a preferred choice for sites where unplanned downtime carries both safety and production cost consequences.

Water and wastewater treatment facilities use multi-axis servo control for precision dosing pump systems, filter press automation, and UV disinfection positioning systems. The 2094-BC04-M03-M’s ability to maintain accurate torque and velocity control across varying load profiles ensures consistent process outcomes in these critical public infrastructure applications. Port and terminal automation — including ship-to-shore crane hoisting and trolley drives — also benefits from the module’s high dynamic response and integrated safety architecture, where load swing control and anti-collision interlocks depend on precise, fault-free servo operation.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 2094-BC04-M03-M?
All units ship with a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Replacement or repair is provided at no additional cost within the warranty period, with expedited processing for critical production applications.

Q2: What outgoing inspection and testing is performed before shipment?
Each 2094-BC04-M03-M unit undergoes a full functional test prior to dispatch, including power-on verification, communication interface check, and axis output validation. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for traceability purposes.

Q3: Is the 2094-BC04-M03-M compatible with existing Kinetix 6000 power rail assemblies and ControlLogix systems?
Yes. The 2094-BC04-M03-M is a standard Kinetix 6000 series axis module and is fully compatible with 2094-series power rails, line interface modules, and ControlLogix motion controllers using the 1756-M08SE or equivalent SERCOS interface. It is a direct form-fit-function replacement for units of the same part number in existing installations.

Q4: Can long-term supply and field replacement support be guaranteed?
Yes. We maintain dedicated inventory of the 2094-BC04-M03-M and related Kinetix 6000 components to support ongoing spare parts programs and emergency replacement requirements. For facilities operating continuous production lines, we recommend establishing a consignment or blanket order arrangement to ensure zero lead-time availability for critical spare modules.
