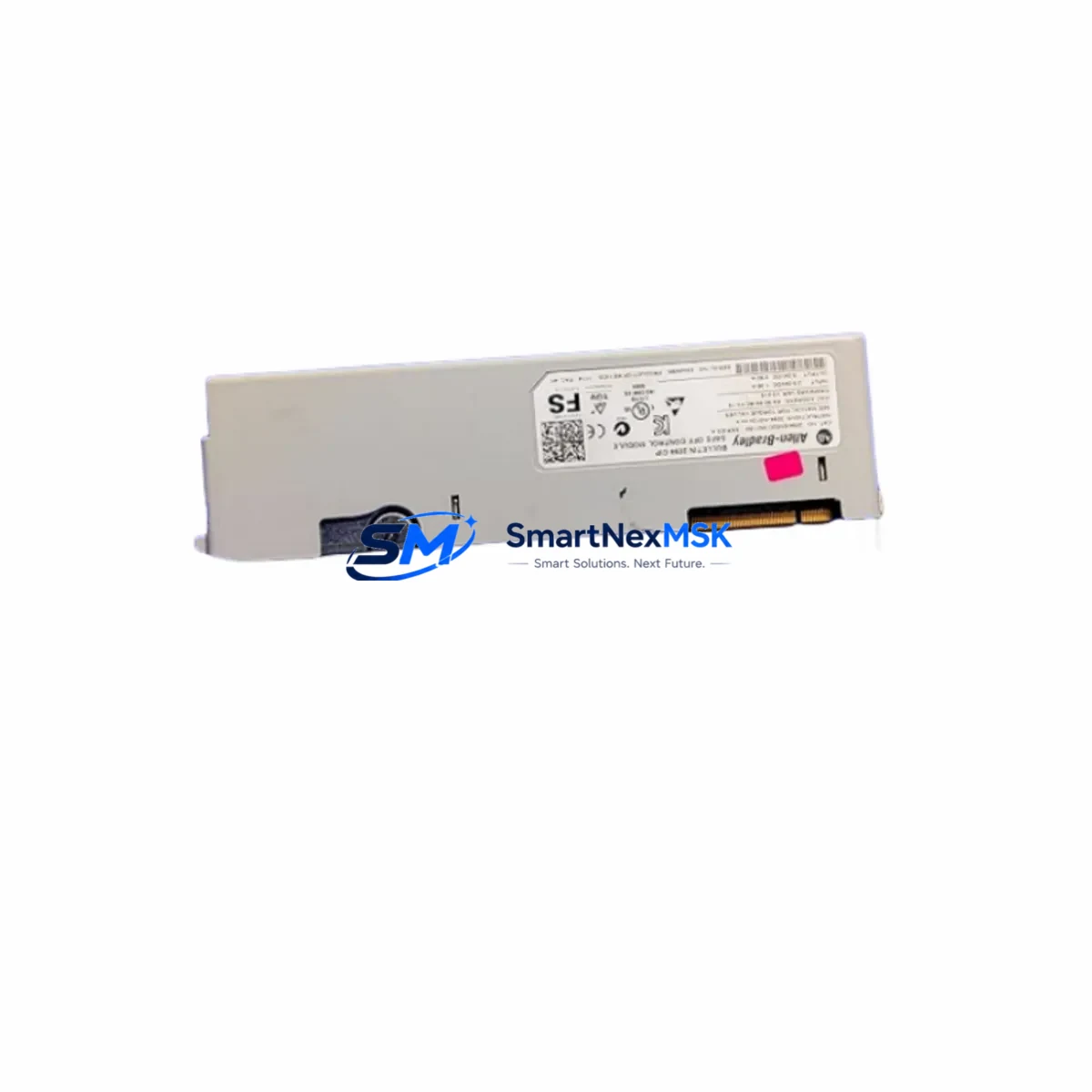

Allen-Bradley 2094-EN02D-M01-S0 Safety Servo Drive

Allen-Bradley 2094-EN02D-M01-S0 Safety Servo Drive: Hardened Motion Control for Harsh Industrial Sites

The Allen-Bradley 2094-EN02D-M01-S0 is a dual-axis EtherNet/IP servo drive control module from the Kinetix 6500 series, engineered by Rockwell Automation for demanding industrial environments where control continuity, personnel safety, and process reliability are non-negotiable. Designed to operate within integrated motion control architectures, this module delivers precise torque and velocity regulation across high-load servo axes while maintaining robust immunity to electrical noise, power transients, and harsh ambient conditions found in petrochemical plants, metal processing facilities, mining operations, and continuous manufacturing lines.

In critical production environments, servo drive failures cascade rapidly — a single axis fault can trigger emergency stops, damage downstream equipment, and expose personnel to hazardous uncontrolled motion. The 2094-EN02D-M01-S0 addresses these risks through its integrated Safe Torque-Off (STO) capability, which removes rotational energy from connected servo motors without requiring a full system power-down. This function is essential in safety-rated interlock circuits where operators must access machine zones without initiating a full production halt. When paired with a GuardLogix safety PLC or a 1756-L8xES safety controller, the STO channel can be integrated directly into a SIL 2-rated safety loop, ensuring that motion hazards are eliminated in compliance with IEC 62061 and ISO 13849 functional safety standards.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 2094-EN02D-M01-S0 within a well-engineered control cabinet requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. At the power entry point, a 2094-BSP2 Kinetix 6500 bus power supply provides regulated DC bus voltage to the drive rail, buffering the servo axes from upstream voltage sags and harmonic distortion common in heavy industrial facilities. Upstream of the bus supply, a 1321-3R line reactor attenuates high-frequency switching noise and limits inrush current during drive enable sequences, protecting both the 2094-EN02D-M01-S0 and adjacent control equipment from conducted interference.

For communication integrity, the EtherNet/IP port on the 2094-EN02D-M01-S0 connects to a managed industrial Ethernet switch — such as a Stratix 5700 — which provides VLAN segmentation, port-level diagnostics, and ring topology redundancy. This prevents a single cable fault or network storm from disrupting motion commands to the servo axes. The drive’s CIP Motion connection to the 1756-M08SE motion controller is maintained with deterministic cycle times, ensuring that velocity and position loop closures are not interrupted by network congestion or communication anomalies.

Within the safety circuit, the STO input of the 2094-EN02D-M01-S0 is wired through a 440C-CR30 safety relay or directly to a GuardLogix 1756-L8xES safety output, forming a hardwired interlock that removes drive enable signals when a light curtain, emergency stop button, or gate switch is actuated. A 1734-IB8S Point Guard I/O safety input module can aggregate multiple field safety devices and report their status to the safety PLC over EtherNet/IP, enabling centralized safety diagnostics without additional field wiring. For power conditioning upstream of the entire panel, a 1606-XLP power supply provides stable 24 VDC control rail voltage, preventing logic-level brownouts from propagating into the drive’s enable and feedback circuits. For thermal protection, the control cabinet should incorporate proper wiring duct and maintain adequate clearance around the Kinetix 6500 power rail to allow the drive’s internal cooling fans to circulate air effectively, preventing thermal derating in high-ambient environments.

Critical Industrial Safety Applications

The 2094-EN02D-M01-S0 is deployed across a wide range of safety-critical industrial sectors where servo motion control must remain reliable under continuous, high-demand operating conditions.

In petrochemical and refinery facilities, the module controls servo-driven valve actuators and compressor inlet guide vanes in classified hazardous areas. The STO function ensures that actuator motion is immediately arrested when a gas detection interlock is triggered, preventing uncontrolled valve movement that could escalate a process upset into a safety incident. The drive’s IEC 61800-3 Category C3 EMC compliance ensures stable operation in environments with high levels of radio frequency interference from wireless instrumentation and variable frequency drives on large rotating equipment.

In electric power generation and transmission facilities, the 2094-EN02D-M01-S0 drives servo axes on turbine blade pitch control systems and transformer tap changer mechanisms. Power quality in these environments is subject to voltage swells, sags, and momentary interruptions caused by grid switching events. The drive’s integrated bus capacitance and compatibility with the 2094-BSP2 bus supply provide ride-through capability during brief supply interruptions, preventing nuisance trips that would require manual restart procedures and reduce generation availability.

In mining and mineral processing operations, the module controls servo-driven feeders, screen drives, and conveyor positioning systems in environments with high levels of airborne dust, vibration, and electrical noise from large crusher motors. The drive’s robust EtherNet/IP communication maintains motion synchronization across multiple axes even in the presence of conducted and radiated EMI, reducing the risk of material spillage or conveyor misalignment caused by axis desynchronization.

In water and wastewater treatment plants, the 2094-EN02D-M01-S0 provides precise flow control on servo-driven pump and valve systems where dosing accuracy directly affects effluent quality and regulatory compliance. The STO safety function supports safe maintenance access to pump stations without requiring full system shutdown, reducing the operational impact of routine maintenance activities.

In metallurgical and steel processing facilities, the module drives servo axes on rolling mill gap control systems and coiler tension regulators, where position accuracy and dynamic response directly affect product dimensional tolerances. The drive’s high-bandwidth current loop and compatibility with Studio 5000 Logix Designer motion tuning tools allow engineers to optimize servo performance for the specific inertia and friction characteristics of each axis.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 2094-EN02D-M01-S0?
Every 2094-EN02D-M01-S0 supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure from the date of shipment. If the module fails to perform to its published specifications within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Each 2094-EN02D-M01-S0 undergoes a full functional inspection before dispatch, including power-on verification, communication port testing, and visual inspection for physical damage. Units sourced from authorized distribution channels are verified against Rockwell Automation’s serialization records where applicable. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 2094-EN02D-M01-S0 compatible with existing Kinetix 6500 installations?
Yes. The 2094-EN02D-M01-S0 is a direct fit for any Kinetix 6500 power rail that supports dual-axis EtherNet/IP control modules. It is compatible with 1756 ControlLogix and GuardLogix PLCs running Studio 5000 Logix Designer v20 and later. Firmware updates can be applied via the EtherNet/IP port using ControlFLASH or Studio 5000. Always verify firmware revision compatibility with your existing motion project before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains standing inventory of the 2094-EN02D-M01-S0 and related Kinetix 6500 components to support planned maintenance programs, emergency breakdown replacements, and capital project procurement. We can provide volume pricing, reserved stock agreements, and lead-time commitments for customers with recurring demand. Contact our technical sales team to discuss a supply agreement tailored to your maintenance schedule and production criticality requirements.
