Allen-Bradley 2097-V33PR1 Retrofit-Ready Servo Drive for Kinetix 300

Allen-Bradley 2097-V33PR1 Retrofit-Ready Servo Drive for Kinetix 300 Control Systems

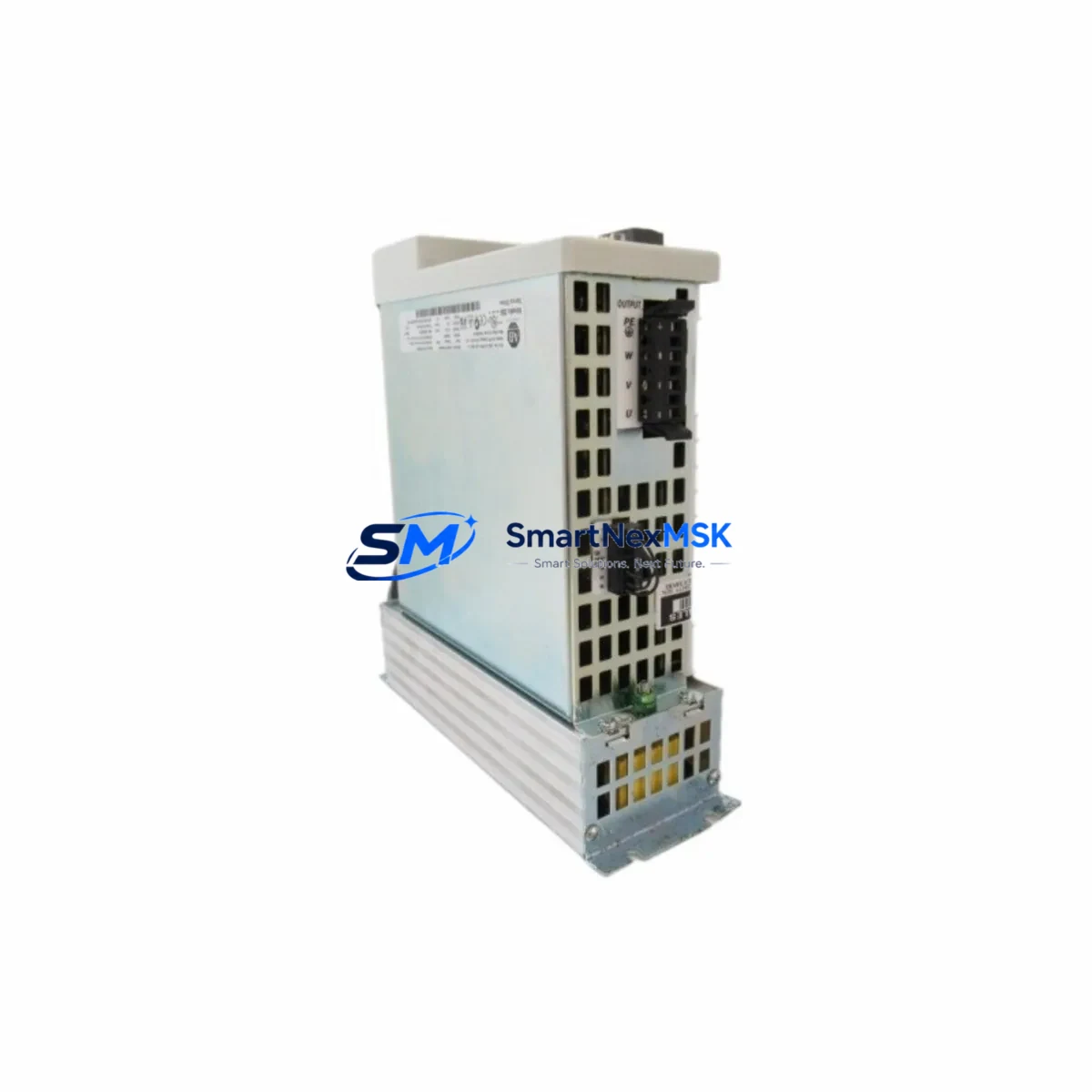

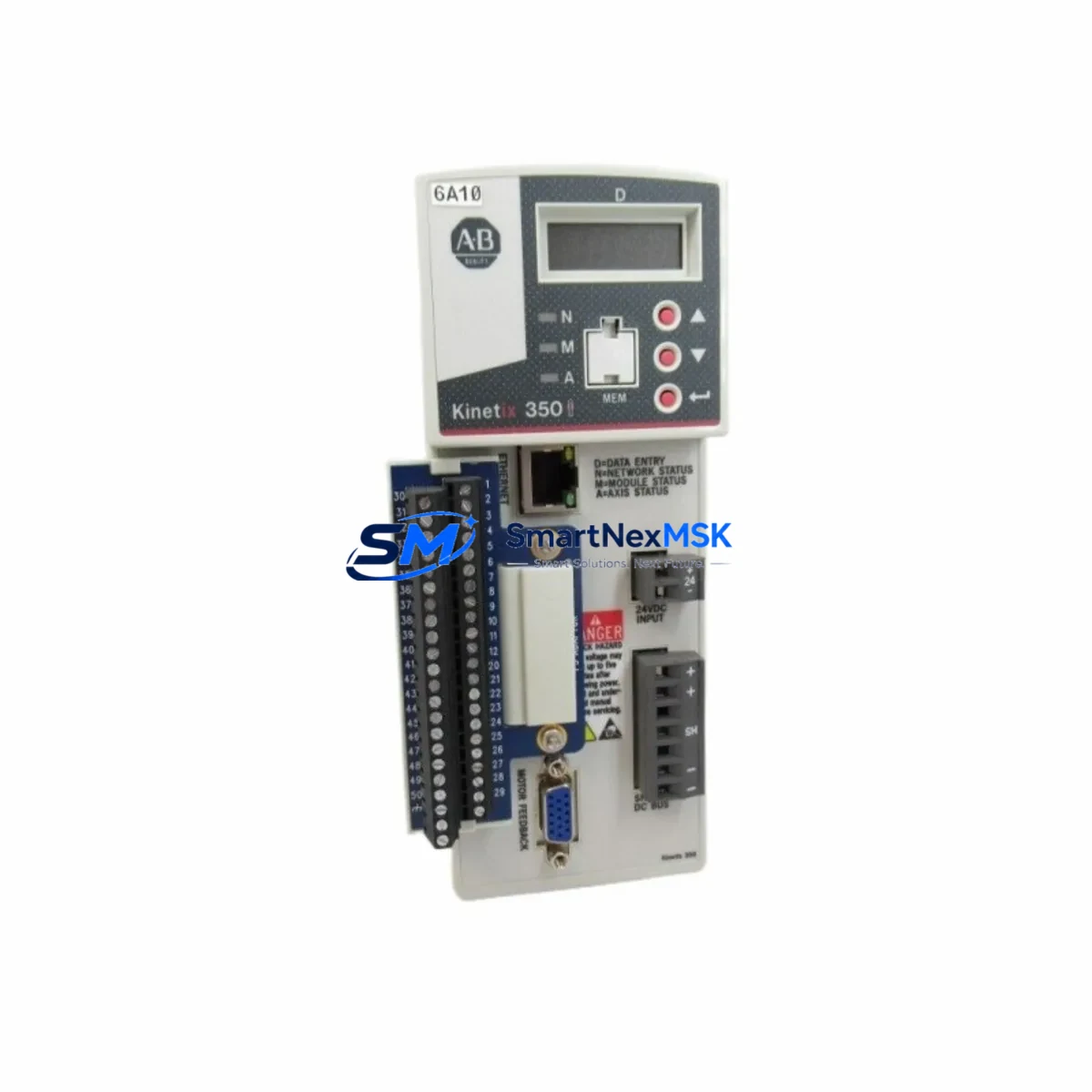

The Allen-Bradley 2097-V33PR1 is a single-phase indexing servo drive from the Kinetix 300 series, designed for compact motion control applications in industrial automation environments. As legacy Kinetix 300 installations age and original components reach end-of-life, the 2097-V33PR1 has become one of the most sought-after retrofit and replacement parts for engineers managing existing servo systems without a full platform migration. Whether you are restoring a failed axis, upgrading a degraded drive, or consolidating spare inventory for a multi-axis production line, this unit delivers the electrical and mechanical compatibility required for a smooth, low-risk changeover.

Sourced from verified supply channels and subject to pre-shipment functional testing, each 2097-V33PR1 unit shipped by SMARTNEXMSK is inspected for output integrity, communication readiness, and terminal condition. Stock is available for immediate dispatch, supported by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 2097-V33PR1 in an active production environment requires careful pre-work to avoid extended downtime and configuration errors. Before removing the failed unit, engineers should document the existing terminal wiring layout, including the 24 VDC control power connections, motor feedback cable routing, and the EtherNet/IP network address assigned to the drive. In multi-axis cabinets where the Kinetix 300 drives share a common control bus with a CompactLogix L3x or L2x controller, it is critical to verify that the replacement drive is assigned the same IP address and axis tag as the original unit before the controller program is re-downloaded.

Power supply sizing is a frequent oversight during Kinetix 300 retrofits. The 2097-V33PR1 draws from a single-phase AC source, and the upstream power distribution — typically a 1606-XLP or equivalent 24 VDC SMPS — must be confirmed to handle the inrush current during drive initialization. If the control cabinet also houses a 1769-L24ER CompactLogix controller, a 1769-IQ16 digital input module, or a 1769-OB16 digital output module on the same rail, the total current budget must be recalculated before the new drive is energized.

For systems that include a PanelView Plus 7 HMI communicating over EtherNet/IP, the drive replacement does not require HMI screen modifications provided the axis tag names and data types remain unchanged in the Logix Designer project. However, if the original drive was running a firmware version older than v2.x, a firmware update on the replacement 2097-V33PR1 may be necessary to maintain compatibility with the controller’s motion instruction set, particularly for MAOC (Motion Axis Output Cam) and MAM (Motion Axis Move) instructions.

In applications where the Kinetix 300 drive interfaces with a 1203-USB or 1203-SSS serial converter for legacy programming or diagnostics, verify that the USB-to-serial adapter drivers are current on the engineering workstation before attempting any parameter backup or restore operation. For systems using a 2090-series motor feedback cable between the 2097-V33PR1 and the servo motor, inspect the connector shell and pin retention before reuse — degraded feedback signals are a leading cause of drive fault codes F004 and F007 on Kinetix 300 platforms.

If the retrofit scope extends beyond a single drive replacement to include I/O expansion or communication protocol migration — for example, moving from DeviceNet to EtherNet/IP — the 2097-V33PR1’s native EtherNet/IP port simplifies integration into modernized network topologies without requiring an additional communication bridge module.

Downtime Control During System Migration

Minimizing unplanned downtime during a Kinetix 300 drive replacement begins with preparation, not execution. Before the maintenance window opens, the engineering team should export the full controller project from Studio 5000 Logix Designer, including all motion group configurations, axis properties, and cam profiles associated with the 2097-V33PR1 axis. This backup should be stored on a local workstation and a network share simultaneously to prevent data loss during the changeover.

During the physical swap, label all terminal connections before disconnecting — particularly the U, V, W motor power terminals and the feedback connector. The 2097-V33PR1 uses a standard Kinetix 300 terminal layout, so a pre-labeled wiring diagram reduces reconnection errors to near zero. Once the replacement drive is mounted and wired, restore the IP address via the drive’s front-panel rotary switches or through the Logix Designer online configuration tool before powering the axis.

After power-up, perform a drive self-test and verify that the axis status in the controller shows “Axis Ready” before issuing any motion commands. Run a low-speed jog test in manual mode to confirm encoder feedback polarity and motor phasing before returning the axis to automatic production mode. For critical production lines, a staged cutover — where the replacement drive is pre-configured and tested on a bench setup mirroring the live system — can reduce the in-plant changeover window to under 30 minutes.

SMARTNEXMSK provides pre-shipment functional testing on all 2097-V33PR1 units, reducing the risk of receiving a non-operational drive during a time-sensitive maintenance event. Each unit ships with a test report confirming output voltage, current response, and EtherNet/IP communication status. The 12-month warranty ensures that any post-installation failure attributable to the drive itself is covered without additional cost to the end user.

Retrofit Support FAQ

Q1: Is the 2097-V33PR1 a direct drop-in replacement for an existing Kinetix 300 installation?
Yes. The 2097-V33PR1 is catalog-identical to the original Allen-Bradley unit and uses the same terminal layout, mounting footprint, and EtherNet/IP communication interface. No hardware modifications to the control cabinet are required. The only configuration step is restoring the original IP address and axis parameters via Studio 5000 Logix Designer before returning the axis to service.

Q2: What commissioning steps are required after installing the replacement drive?
After mounting and wiring, assign the correct IP address to the drive, download the controller project, and perform a drive self-test via the Logix Designer Axis Properties dialog. Run a manual jog test at low speed to verify encoder feedback and motor phasing. If the original axis tuning parameters are available in the project backup, no re-tuning is required. For systems with a PanelView Plus HMI, verify that the axis status tag is visible and updating correctly before resuming automatic operation.

Q3: Does the replacement unit support the same motor feedback types as the original 2097-V33PR1?
Yes. The replacement 2097-V33PR1 supports incremental and absolute encoder feedback via the standard 2090-series feedback cable connector. Compatibility is maintained with Allen-Bradley MPL, MPM, and TLP series servo motors that were originally paired with Kinetix 300 drives. If the existing 2090-series feedback cable shows signs of wear or connector damage, replacement is recommended before commissioning to prevent feedback-related fault codes.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial service conditions, including drive output failure, communication port malfunction, and internal component failure not caused by external electrical events (e.g., overvoltage surges or incorrect wiring). To initiate a warranty claim, contact SMARTNEXMSK at [email protected] with the order number, unit serial number, and a description of the fault. Replacement or repair is processed within 5–7 business days of claim verification.
