Allen-Bradley 2711P-B7C4D1 Safety-Enhanced HMI for Harsh Industrial Sites

Allen-Bradley 2711P-B7C4D1 Safety-Enhanced HMI for Harsh Industrial Sites

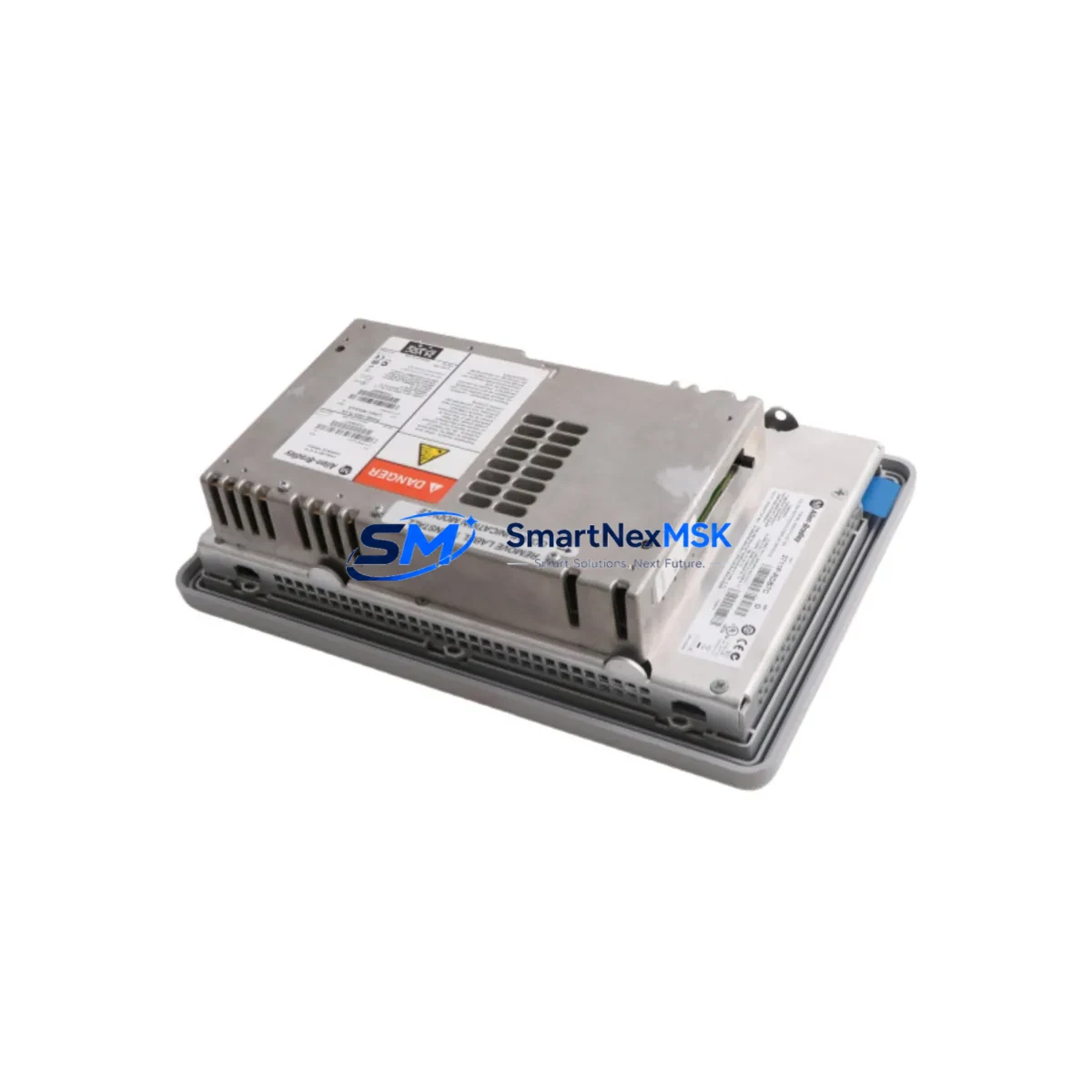

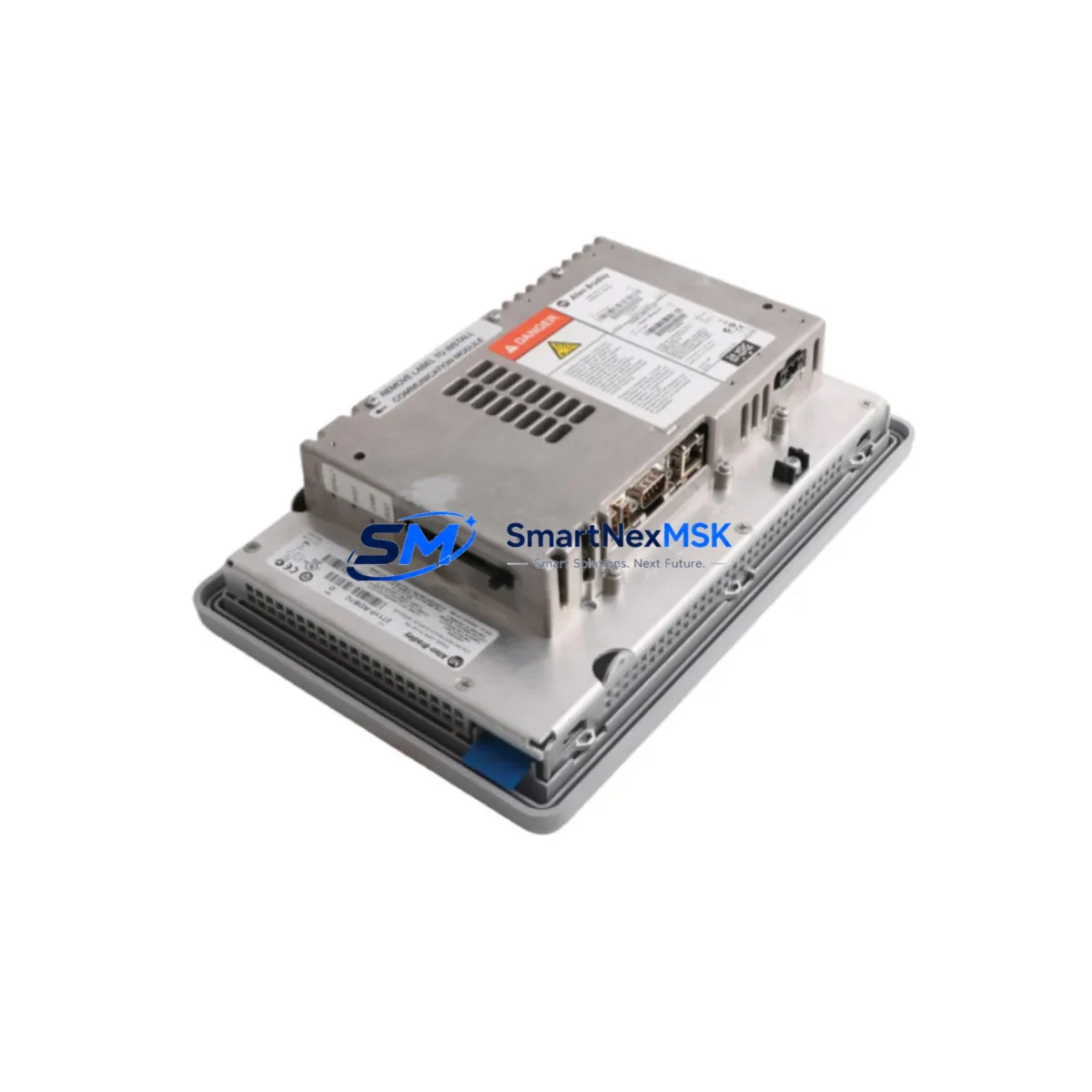

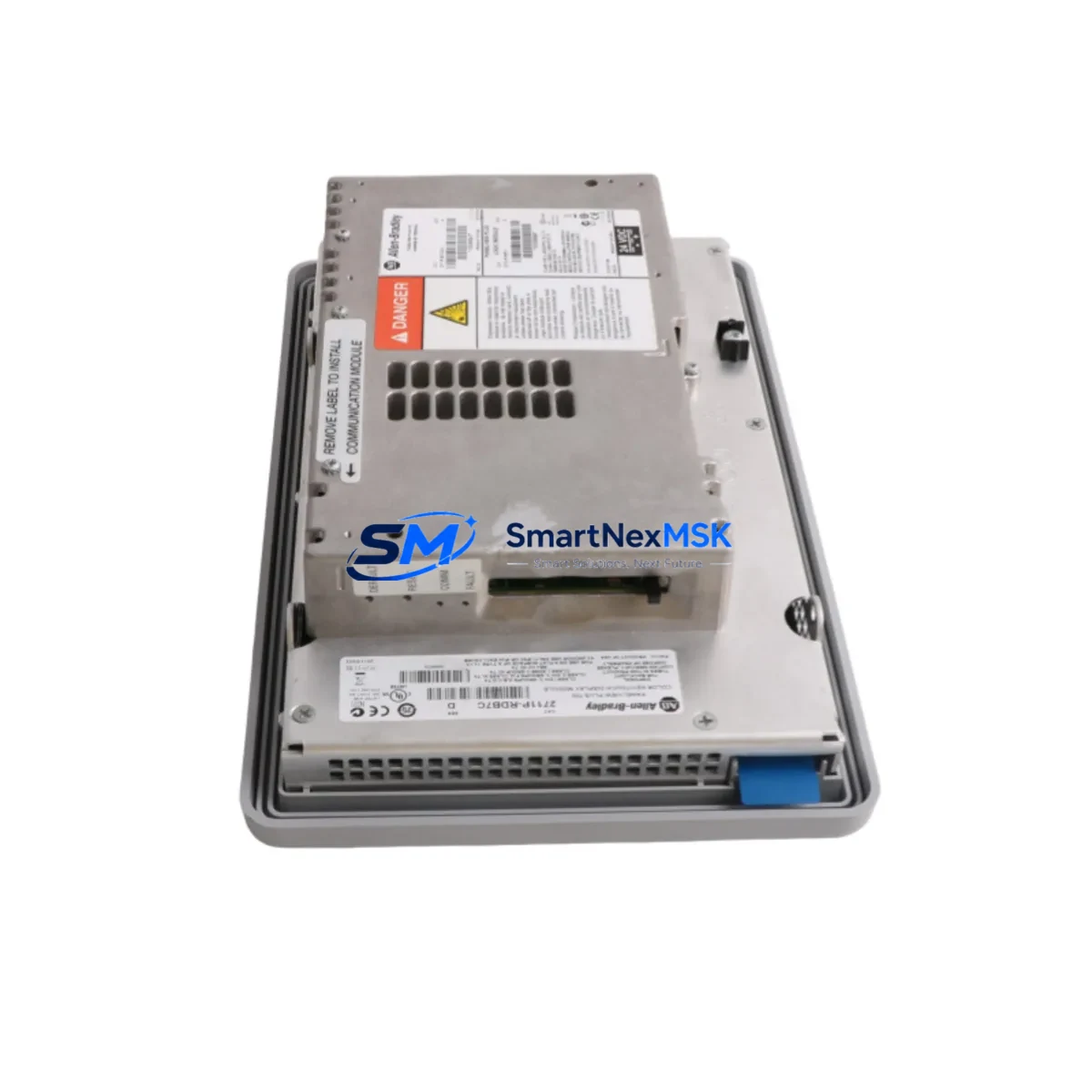

The Allen-Bradley 2711P-B7C4D1 PanelView Plus 7 Standard HMI Terminal is engineered for mission-critical control environments where operator interface reliability directly determines process safety. Deployed across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines, this terminal provides a stable, high-visibility human-machine interface that sustains safe supervisory control even under extreme electrical, thermal, and mechanical stress.

In high-load industrial environments, the integrity of the operator interface is as critical as the controller itself. The 2711P-B7C4D1 is designed to maintain uninterrupted display and input response during power fluctuations, electromagnetic interference surges, and ambient temperature extremes. Its sealed front panel resists dust ingress and fluid splash, making it suitable for installation in open-floor control cabinets, field enclosures, and hazardous-area junction boxes where conventional terminals would fail prematurely.

Signal integrity between the HMI and the host controller — typically a 1756-L73 ControlLogix or 1769-L33ER CompactLogix PLC — is maintained through EtherNet/IP communication with built-in noise rejection. In plants where variable-frequency drives, arc furnaces, or high-current motor starters generate persistent EMI, the 2711P-B7C4D1’s communication stack continues to exchange real-time data without packet loss or screen freeze, preventing operator misjudgment during critical process transitions.

Power supply stability is a foundational safety requirement. When paired with a 1606-XLP power supply or equivalent 24 VDC industrial rail supply, the terminal sustains operation through brief voltage dips that would otherwise trigger nuisance resets. For installations requiring redundant power paths, the terminal integrates cleanly into cabinet designs that include 1734-AENTR POINT I/O EtherNet/IP adapters and distributed I/O racks, ensuring that a single power event does not cascade into a full supervisory blackout.

In safety interlock architectures, the 2711P-B7C4D1 serves as the primary operator acknowledgment interface for alarm management and emergency shutdown sequences. When integrated alongside 440C-CR30 safety relays or 1791DS-IB12 GuardLogix safety I/O modules, operators can confirm interlock states, acknowledge fault conditions, and authorize manual overrides with full audit traceability — reducing the risk of undetected process deviations in SIL-rated loops.

For facilities running continuous production schedules, unplanned HMI downtime translates directly into lost throughput and elevated safety risk. The 2711P-B7C4D1’s industrial-grade LCD panel and resistive touchscreen are rated for extended duty cycles, minimizing the frequency of unscheduled replacements. When maintenance windows do occur, the terminal’s compatibility with 2711P-RN15S EtherNet/IP communication cards and standard 24 VDC wiring simplifies swap-out procedures, reducing mean time to repair and restoring safe supervisory visibility faster than proprietary alternatives.

Surge and transient protection is a persistent concern in heavy industrial sites. The terminal’s internal circuitry is designed to withstand the transient voltages common in environments shared with 1336 PLUS II drives, large transformer banks, and high-voltage switchgear. When additional surge protection is required at the cabinet level, installers typically add 1492-SP series supplementary protectors on the 24 VDC supply rail to clamp transient energy before it reaches sensitive electronics — a best practice that extends terminal service life in harsh sites.

Communication architecture reliability is equally important. In multi-node EtherNet/IP networks where the 2711P-B7C4D1 shares bandwidth with 1783-US8T Stratix managed switches and remote I/O adapters, the terminal’s network stack handles connection timeouts gracefully, displaying last-known values and alarm banners rather than going blank — a critical behavior that prevents operators from losing situational awareness during transient network events.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including power-on self-test, touchscreen calibration check, communication port validation, and visual inspection for physical integrity. Units are shipped in anti-static, shock-absorbing packaging with full documentation. Stocked inventory ensures short lead times for urgent replacement orders, supporting maintenance teams that cannot tolerate extended procurement delays on safety-critical operator stations.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design around the 2711P-B7C4D1 begins with a stable power architecture. Pairing the terminal with a 1606-XLP60E power supply on a dedicated 24 VDC rail isolates the HMI from load-side transients generated by solenoid valves, contactors, and motor starters sharing the same cabinet. A 1492-SP1C060 supplementary protector on the HMI supply branch provides overcurrent protection without introducing nuisance trips during inrush events.

The host controller — typically a 1756-L73 ControlLogix in a 1756-A10 chassis with a 1756-EN2T EtherNet/IP bridge module — communicates with the terminal over a dedicated HMI VLAN managed by a 1783-US8T Stratix 2000 switch. This network segmentation prevents production traffic from competing with HMI polling cycles, maintaining sub-100 ms screen refresh rates even during peak I/O scan loads.

For safety interlock visibility, the cabinet integrates 1791DS-IB12 GuardLogix safety I/O modules whose status is surfaced on the 2711P-B7C4D1 display, giving operators real-time confirmation of E-stop circuit integrity, light curtain status, and safety gate positions without requiring a separate safety HMI panel. Alarm acknowledgment records are logged to the 1756-L73 controller’s non-volatile memory, providing a tamper-evident audit trail for regulatory compliance.

Surge protection at the cabinet entry point — using 1492-CABLE series shielded I/O cables and ferrite-core cable management — further reduces conducted EMI reaching the terminal’s communication ports, a critical measure in facilities where large variable-frequency drives or arc welding equipment operate in adjacent bays.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 2711P-B7C4D1 serves as the primary operator interface for compressor control panels and emergency shutdown (ESD) stations, where its IP65-rated front panel withstands hydrocarbon vapor exposure and its EtherNet/IP link maintains real-time communication with safety PLCs managing pressure relief and blowdown sequences.

Power Generation: In coal-fired and gas turbine plants, the terminal is installed on turbine governor control panels and boiler management systems, providing operators with continuous visibility of temperature, pressure, and flow setpoints. Its wide operating voltage range tolerates the supply fluctuations common in plant auxiliary power systems.

Mining & Mineral Processing: Deployed on conveyor drive control stations and crusher automation panels in underground and open-cut mines, the terminal’s resistive touchscreen operates reliably with gloved hands in dusty, high-vibration environments where capacitive screens fail.

Water & Wastewater Treatment: Used on SCADA-connected pump station control panels and chemical dosing systems, the 2711P-B7C4D1 provides operators with alarm management and setpoint adjustment capability in humid, corrosive enclosure environments.

Metallurgy & Steel: Installed on rolling mill drive control desks and ladle furnace automation panels, the terminal withstands the intense electromagnetic interference generated by high-current induction heating systems and large DC drives.

Port & Logistics Automation: Integrated into crane PLC control cabinets and automated stacking system operator stations, providing reliable supervisory interface in outdoor enclosures subject to wide temperature swings and salt-air corrosion.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults identified under normal operating conditions. SMARTNEXMSK will repair or replace any unit confirmed defective within the warranty period at no additional cost, including return shipping coordination for verified warranty claims.

Q2: What pre-shipment testing is performed on each 2711P-B7C4D1 unit?
Each unit undergoes a structured pre-shipment inspection: power-on self-test to confirm display and OS boot integrity, touchscreen calibration and response verification across the full active area, EtherNet/IP and RS-232 port communication validation, and physical inspection for connector integrity, panel seal condition, and absence of transit damage. Units failing any test are quarantined and not shipped.

Q3: Is the 2711P-B7C4D1 compatible with existing FactoryTalk View ME applications?
Yes. The 2711P-B7C4D1 runs FactoryTalk View Machine Edition and is fully compatible with application files developed for PanelView Plus 6 and PanelView Plus 7 Standard terminals of equivalent or smaller screen size. Most existing .MER application files can be transferred and run without modification, minimizing engineering time during replacement projects.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains stocked inventory of the 2711P-B7C4D1 and related PanelView Plus 7 series terminals to support planned maintenance programs and emergency replacement requirements. For facilities managing multi-site maintenance contracts, volume reservation arrangements are available. Contact our sales team to discuss scheduled supply agreements that align with your planned maintenance windows.
