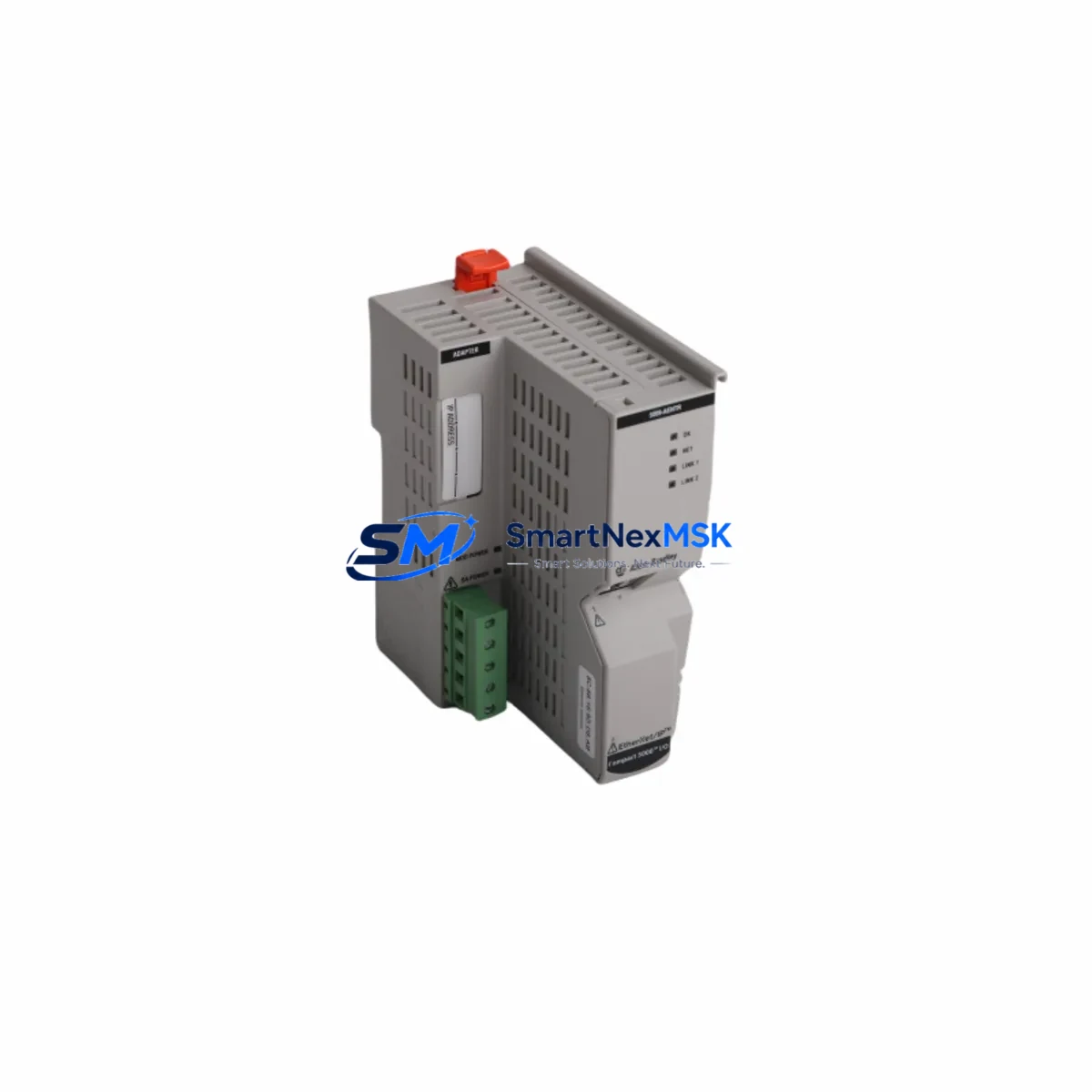

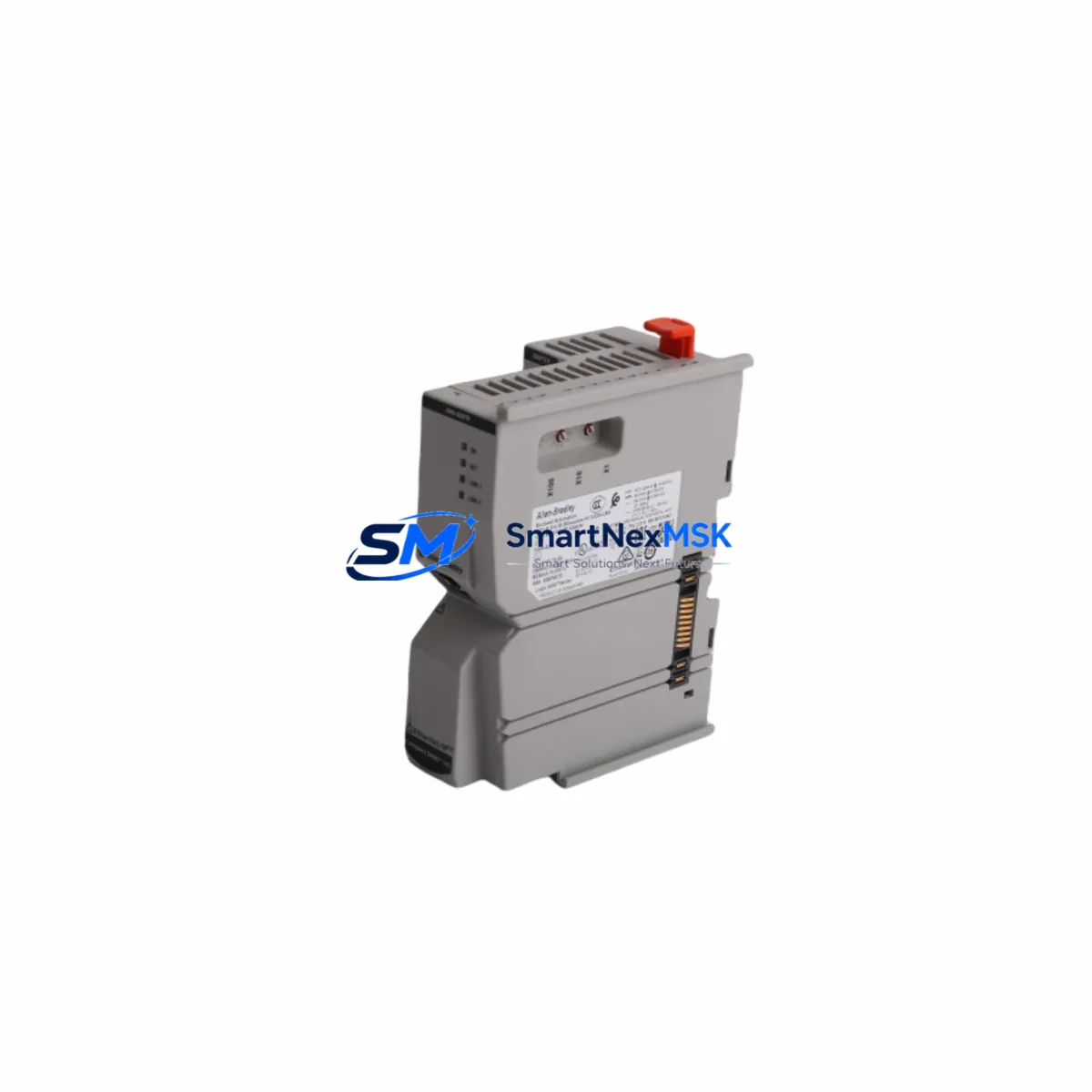

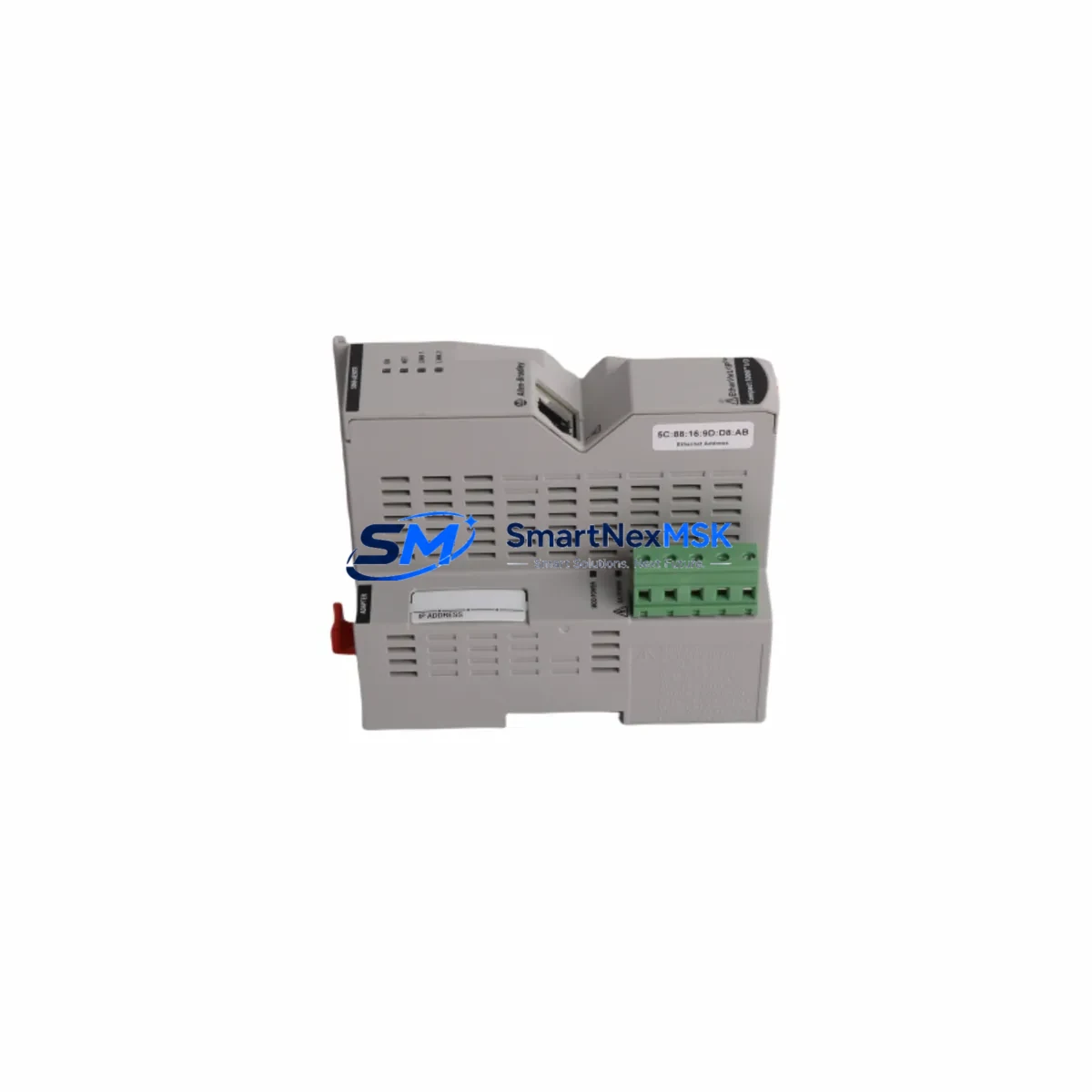

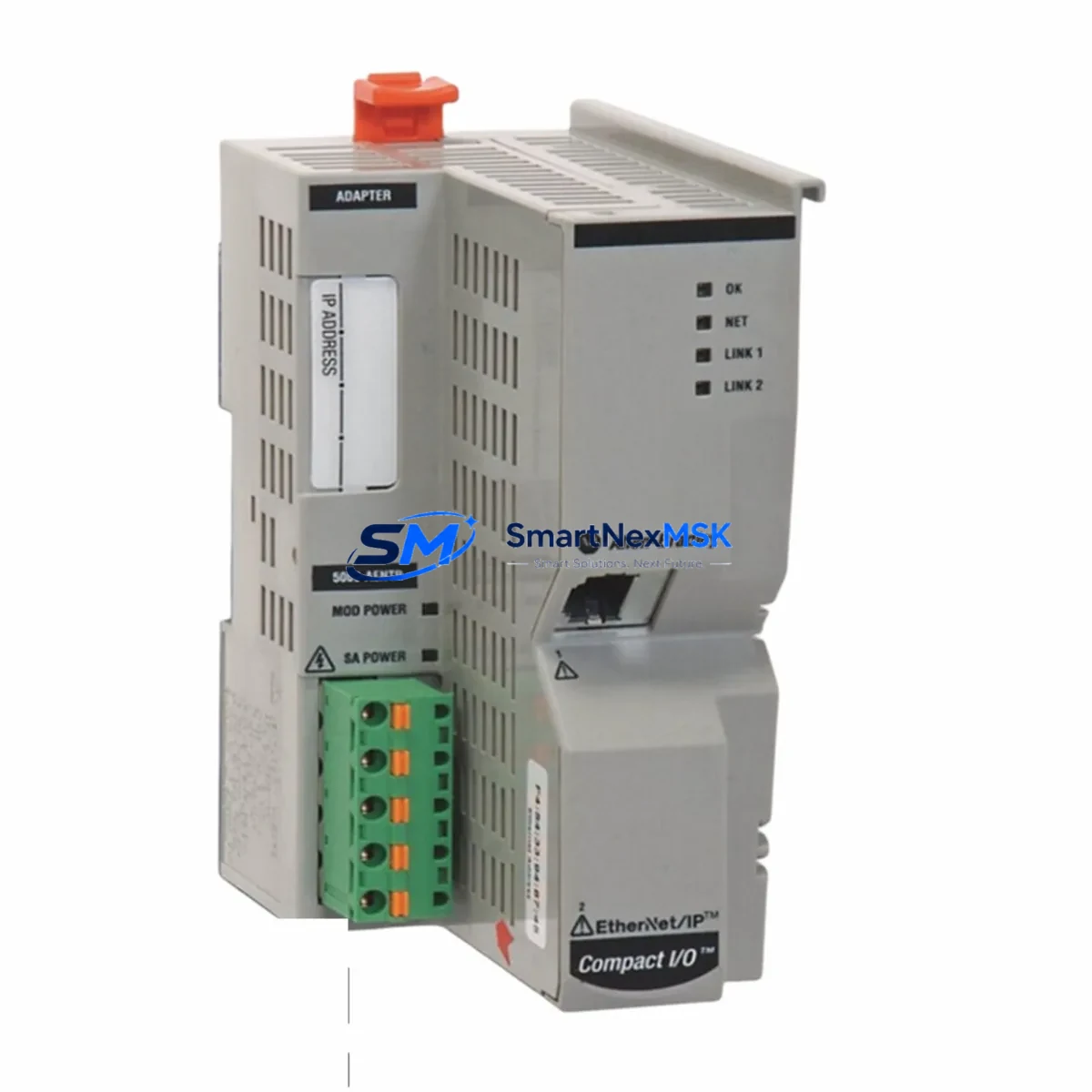

Allen-Bradley 5069-AENTR Safety-Enhanced EtherNet/IP Adapter

Allen-Bradley 5069-AENTR Safety-Enhanced EtherNet/IP Adapter: Reliable Control in Harsh Industrial Sites

The Allen-Bradley 5069-AENTR is a ruggedized EtherNet/IP Adapter Module engineered for the Compact 5000 I/O platform, purpose-built to sustain uninterrupted communication and control integrity in the most demanding industrial environments. Whether deployed in petrochemical processing units, continuous steel rolling mills, underground mining control rooms, high-voltage power distribution substations, or port crane automation cabinets, the 5069-AENTR delivers the network resilience and signal fidelity that safety-critical operations demand. Its dual-port EtherNet/IP topology with Device Level Ring (DLR) support ensures that a single cable fault does not cascade into a full control loop failure — a fundamental requirement in any safety interlock or emergency shutdown architecture.

In high-load production environments where PLCs such as the Allen-Bradley ControlLogix 5580 or CompactLogix 5380 manage hundreds of I/O points simultaneously, the 5069-AENTR maintains deterministic scan-cycle communication without packet loss or latency spikes. This is critical in applications where millisecond-level response times govern actuator commands, valve positioning, or motor drive coordination. The module’s embedded DLR capability allows it to operate within ring-topology networks alongside other Compact 5000 I/O modules — including the 5069-IB16 digital input module and 5069-OB16 digital output module — ensuring that the entire I/O bank remains online even during partial network disruptions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest communication link. The 5069-AENTR addresses this by anchoring the EtherNet/IP backbone of the Compact 5000 I/O system with DLR fault tolerance, eliminating single points of network failure. In practice, this means that even when a cable is accidentally severed during maintenance on an adjacent 5069-IB16 input module or a 5069-OB16 output module, the ring self-heals within milliseconds — preserving the scan cycle of the connected CompactLogix 5380 controller without triggering a fault condition.

For cabinets operating in environments with significant electrical noise — such as those adjacent to variable frequency drives (VFDs), large motor starters, or high-current bus bars — the 5069-AENTR’s EMI-hardened design prevents signal drift and communication timeouts that could otherwise cause nuisance trips or, worse, undetected control errors. Pairing the adapter with a 1606-XLP power supply ensures that the entire Compact 5000 rack receives clean, regulated DC power with built-in surge protection, further reducing the risk of module resets caused by voltage transients on the incoming AC supply.

In safety interlock architectures, the 5069-AENTR is frequently deployed alongside GuardLogix 5580 safety controllers and 5069-IB8S safety input modules to form a certified safety network segment. The adapter’s deterministic EtherNet/IP communication ensures that safety-rated I/O data reaches the controller within the required response time, supporting SIL 2 and SIL 3 loop integrity requirements. For installations requiring additional network segmentation, a Stratix 5700 managed Ethernet switch is commonly integrated to isolate safety traffic from standard process control data, preventing bandwidth contention that could compromise safety response times.

Surge protection at the field wiring level is equally important. Transient voltage suppressors and DIN-rail mounted surge protection devices — such as those in the Phoenix Contact TRABTECH series — are recommended at all field cable entry points to prevent surge energy from propagating into the 5069-AENTR’s communication ports. Combined with proper cabinet grounding and shielded Ethernet cabling, this layered protection strategy ensures that the adapter operates within its rated electrical environment even in facilities with frequent lightning events or heavy switching loads.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking plants, the 5069-AENTR supports real-time monitoring of pressure, temperature, and flow I/O across distributed Compact 5000 racks. Its DLR capability ensures that a cable fault in a hazardous area junction box does not interrupt the emergency shutdown system (ESD) communication path, maintaining SIL-rated interlock integrity at all times.

Electric Power Generation & Substation Automation: Power plants and grid substations demand zero-tolerance for communication dropouts during load-switching events. The 5069-AENTR’s EMI immunity and dual-port ring topology make it the preferred adapter for Compact 5000 I/O racks monitoring generator protection relays, transformer tap changers, and bus coupler breaker status — environments where a single missed I/O update can trigger cascading protection trips.

Mining & Mineral Processing: Underground and surface mining operations expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The 5069-AENTR’s compliance with IEC 60068 vibration and shock standards ensures reliable operation in conveyor drive control panels, crusher automation cabinets, and ventilation safety systems where continuous uptime is a regulatory requirement.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on uninterrupted SCADA communication to manage pump stations, chemical dosing systems, and filtration controls. The 5069-AENTR’s stable EtherNet/IP connectivity ensures that remote I/O racks at pump lift stations maintain synchronization with the central CompactLogix controller, preventing overflow events caused by communication-induced control gaps.

Metallurgy & Steel Production: Hot rolling mills and electric arc furnace (EAF) control systems generate intense electromagnetic interference. The 5069-AENTR’s IEC 61000-4 series EMC compliance allows it to maintain error-free communication in these high-noise environments, supporting precise tension control, speed synchronization, and cooling system interlocks that are essential for product quality and worker safety.

Port & Terminal Automation: Container crane PLCs and automated guided vehicle (AGV) control systems require high-availability network adapters capable of sustaining communication during rapid load cycles and outdoor temperature extremes. The 5069-AENTR’s ruggedized design and DLR support make it a reliable choice for port automation cabinets where downtime directly translates to vessel delay costs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 5069-AENTR?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions that occur under normal operating conditions within the module’s rated specifications. If the unit fails to establish or maintain EtherNet/IP communication, exhibits abnormal power consumption, or shows physical defects attributable to manufacturing, a replacement or repair will be provided at no additional cost. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each 5069-AENTR unit?
Every 5069-AENTR unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test confirmation, dual-port EtherNet/IP communication verification, DLR ring topology handshake testing, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for traceability.

Q3: Is the 5069-AENTR compatible with existing CompactLogix and ControlLogix systems?
Yes. The 5069-AENTR is designed for the Compact 5000 I/O platform and is fully compatible with CompactLogix 5380 and ControlLogix 5580 controllers running Studio 5000 Logix Designer v31 or later. It is not backward-compatible with the earlier Compact I/O (1769 series) platform. If you are upgrading from a 1769-AENTR adapter, a system architecture review is recommended to confirm rack and power supply compatibility before installation.

Q4: Can long-term supply and replacement support be guaranteed for the 5069-AENTR?
Yes. We maintain dedicated stock of the 5069-AENTR to support both new project deployments and ongoing spare-parts programs for existing installations. For facilities with critical uptime requirements, we recommend establishing a consignment or blanket-order arrangement to ensure immediate availability of replacement units. Our team can also assist with cross-referencing compatible Compact 5000 I/O modules to support phased system expansions or emergency substitutions.
