Allen-Bradley 80190-600-01-R Retrofit-Ready OIBB Backplane for PLC-5 Control Systems

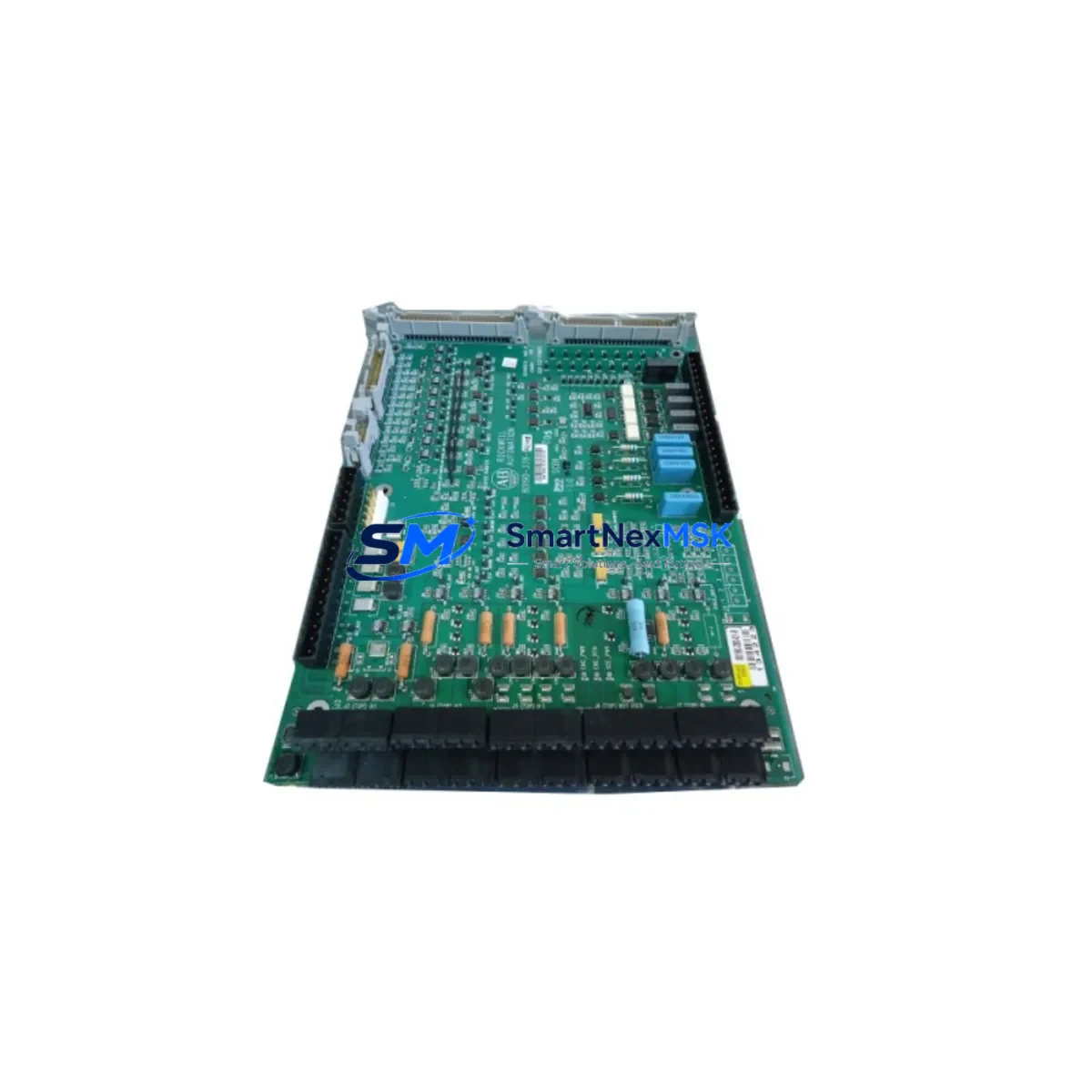

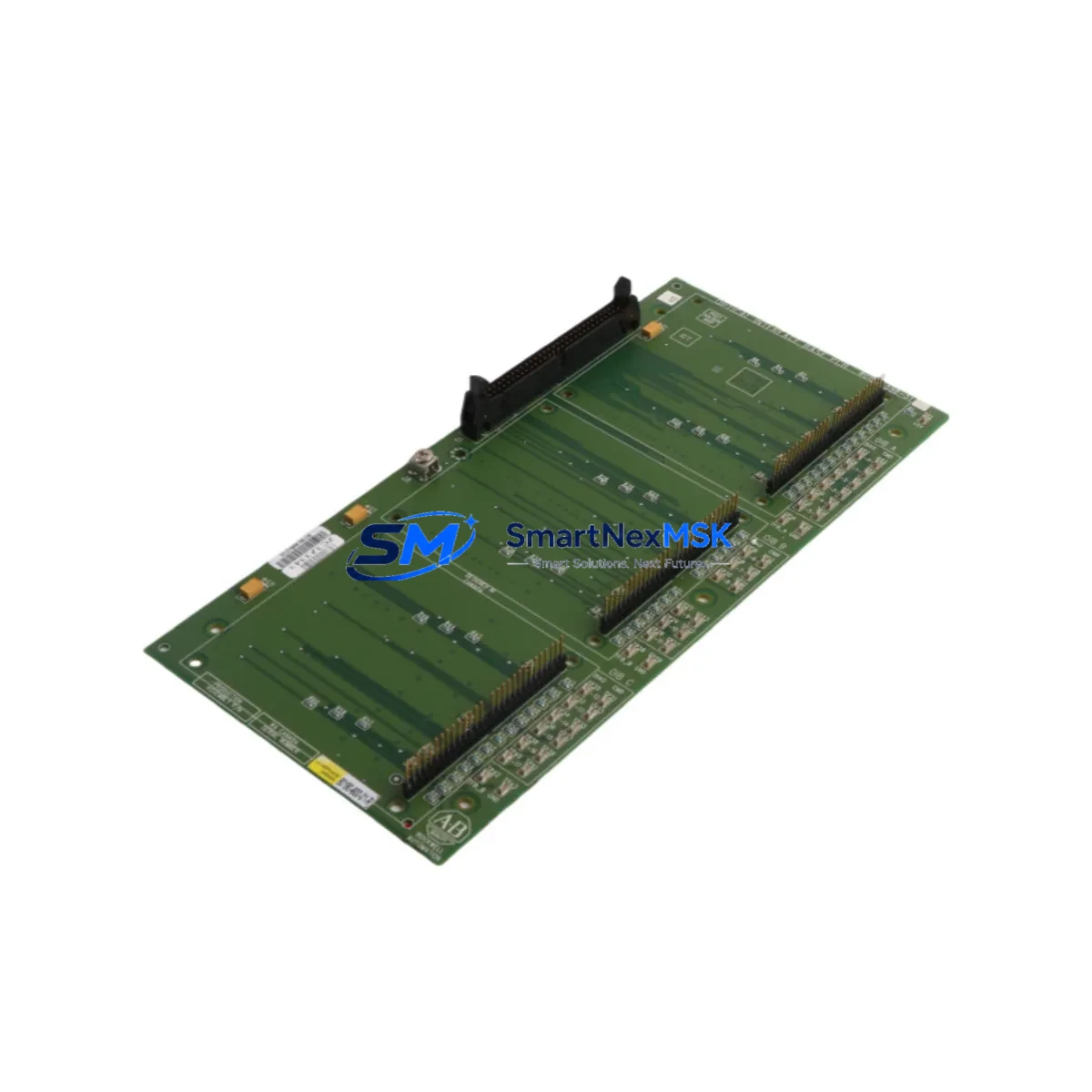

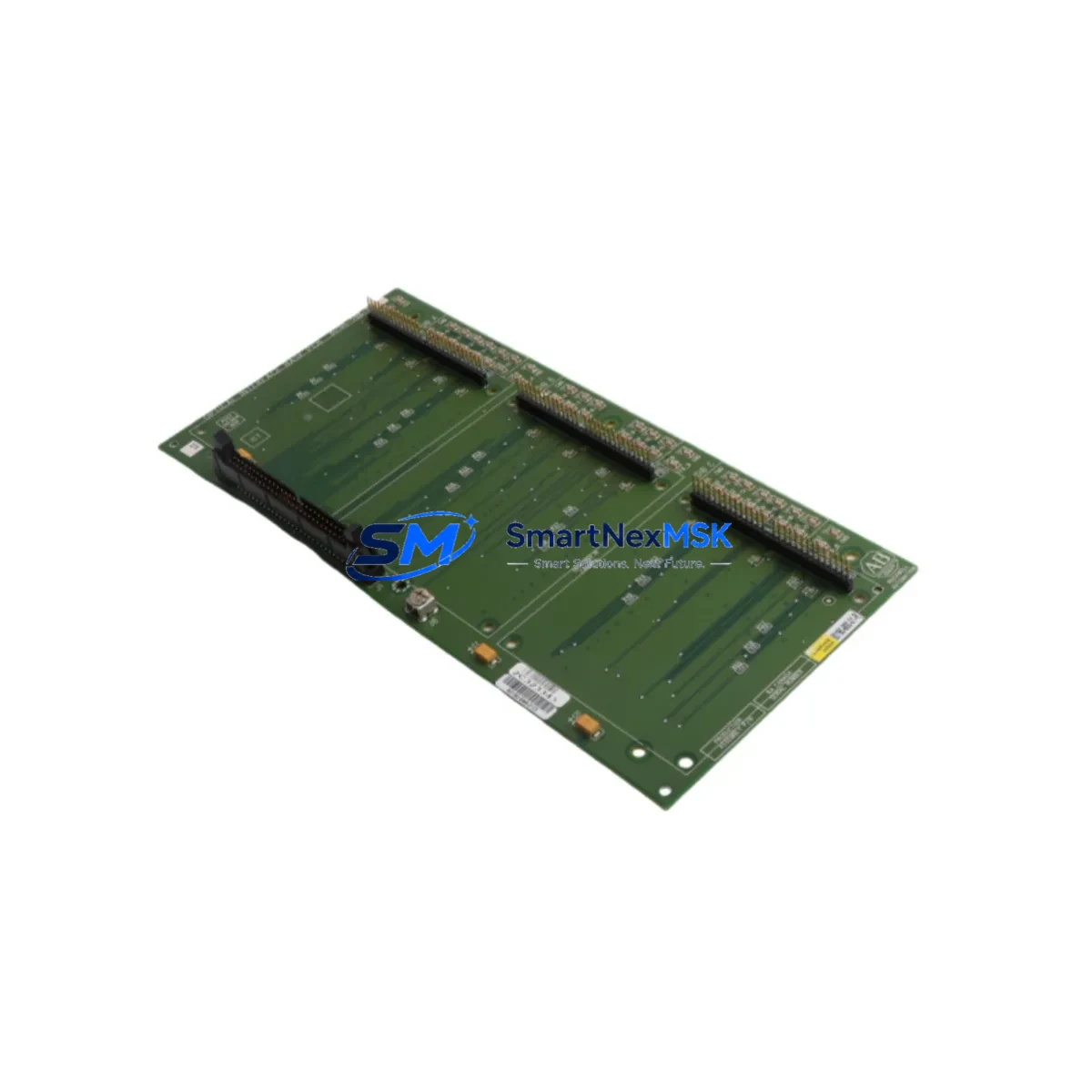

The Allen-Bradley 80190-600-01-R is an OIBB (Output Interface Backplane Board) designed for the 1771 I/O chassis platform used extensively in PLC-5 control systems. As legacy PLC-5 installations approach end-of-life and original spare parts become increasingly scarce, the 80190-600-01-R has become a critical retrofit component for engineers tasked with extending the operational life of existing control cabinets, upgrading aging I/O infrastructure, or executing a phased migration toward ControlLogix or CompactLogix architectures.
This backplane board interfaces directly with the 1771 I/O chassis backplane, providing the electrical and mechanical foundation for I/O module seating, addressing, and communication with the PLC-5 processor. When replacing a failed or degraded OIBB, engineers must verify the chassis slot count, the backplane revision level, and the compatibility of installed I/O modules — including digital input modules such as the 1771-IB and 1771-IA, digital output modules such as the 1771-OB and 1771-OW, and analog modules such as the 1771-IF and 1771-OF. Mismatched backplane revisions can cause addressing conflicts or prevent the processor from scanning the I/O rack correctly.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | 80190-600-01-R |
| Board Type | OIBB – Output Interface Backplane Board |
| Compatible Platform | Allen-Bradley PLC-5 / 1771 I/O Chassis |
| Chassis Compatibility | 1771-A1B, 1771-A2B, 1771-A3B, 1771-A4B series |
| Communication Interface | 1771 Parallel Backplane Bus |
| Installation Requirement | Power-off installation; verify chassis slot addressing before reinsertion |
| Replacement Recommendation | Direct drop-in for failed or end-of-life OIBB boards in PLC-5 racks |
| Migration Path | Compatible with phased ControlLogix migration using 1756-DHRIO or ENBT bridge modules |
| Commissioning Note | Verify I/O module addresses, force lists, and program logic after replacement |
| Warranty | 12-Month Warranty — functional test included prior to shipment |
Retrofit Planning for Existing Automation Systems
Replacing the 80190-600-01-R in an active production environment requires careful pre-outage planning. Before scheduling the maintenance window, engineers should document the full rack configuration: chassis model, slot assignments, module catalog numbers, and the I/O addressing scheme used in the PLC-5 program. The 1771 I/O chassis relies on physical slot addressing, meaning any change in module position or backplane configuration must be reflected in the ladder logic program stored on the PLC-5 processor — typically a 5/20, 5/30, 5/40, or 5/80 model.
Power supply compatibility is a frequent oversight during backplane retrofits. The 1771-P4S or 1771-P7 power supply must be rated for the total current draw of all installed I/O modules. When upgrading to a new backplane board, it is advisable to audit the power budget and replace aging power supplies concurrently to avoid nuisance trips after restart. Similarly, the 1771-ASB remote I/O adapter — if used for distributed rack communication — must be re-initialized after a backplane swap to re-establish the DH+ or Remote I/O link with the host processor.
For facilities running Data Highway Plus (DH+) networks, the 1784-KTX or 1784-PCMK programming cable is required to reconnect RSLogix 5 or RSLogix 500 to the processor after the retrofit. Engineers should upload the existing program before the outage, verify the program checksum, and perform a controlled download after the backplane replacement is complete. If the control system includes a PanelView 550 or PanelView 900 HMI terminal communicating over DH+, the HMI communication parameters must be verified post-replacement to ensure tag mapping and screen navigation remain intact.
In multi-rack configurations, the 1771-SN scanner module or the 1771-DCM direct communication module may need to be re-addressed if the backplane replacement alters the rack’s logical identity on the network. Technicians should also inspect the 1771-WB wire-wrap backplane connectors and terminal block wiring for corrosion or fatigue, as these are common failure points in systems that have been in service for 15 or more years.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any PLC-5 backplane retrofit. The recommended approach is to pre-stage the 80190-600-01-R replacement board, verify its functional test documentation, and schedule the swap during a planned maintenance window — ideally during a shift change or scheduled production break. Before powering down the chassis, technicians should capture a full program backup from the PLC-5 processor using RSLogix 5, save all force lists and data table values, and photograph or document the physical wiring at each I/O module terminal block.
After installing the new backplane board, power the chassis in a controlled sequence: energize the 1771 power supply first, confirm the backplane bus is stable, then allow the PLC-5 processor to perform its I/O scan. Monitor the processor status indicators and the I/O fault table for any unresolved faults before returning the system to RUN mode. If the system includes a 1771-ASB remote adapter or a 1756-RIO bridge for ControlLogix integration, verify the remote I/O link status before releasing the line to production.
For facilities executing a longer-term migration from PLC-5 to ControlLogix, the 80190-600-01-R can serve as a bridge component — maintaining 1771 I/O rack functionality while the ControlLogix chassis, 1756-L6x or 1756-L8x processor, and 1756-DHRIO communication module are commissioned in parallel. This phased approach protects existing program logic and HMI configurations while the new platform is validated, reducing total migration risk and keeping the production line operational throughout the transition.
Retrofit Support FAQ
Q1: Is the 80190-600-01-R a direct replacement for all 1771 OIBB backplane boards?
The 80190-600-01-R is designed as a direct replacement for OIBB boards in the 1771 I/O chassis family. Compatibility should be verified against the specific chassis model and revision. Our technical team can confirm compatibility based on your chassis catalog number and current board revision prior to shipment.
Q2: What wiring or terminal changes are required during installation?
The 80190-600-01-R is a backplane board — it does not require field wiring changes. I/O module terminal blocks remain in place. However, all I/O modules should be removed and reseated after backplane replacement, and module addressing should be verified against the PLC-5 program before returning to RUN mode.
Q3: How is the board tested before shipment?
Every 80190-600-01-R unit undergoes functional testing prior to shipment, including backplane bus continuity verification and visual inspection for component integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q4: Can this board support a migration from PLC-5 to ControlLogix?
Yes. The 80190-600-01-R can maintain 1771 I/O rack operation during a phased ControlLogix migration. When used with a 1756-DHRIO or 1756-RIO bridge module in the ControlLogix chassis, existing 1771 I/O racks can be retained and scanned by the new processor, protecting your I/O wiring investment and reducing migration scope.
