Allen-Bradley D31705-1 A26491-A Spare for PLC-5 Automation

Allen-Bradley D31705-1 A26491-A Spare for PLC-5 Automation: Spare Replacement & Industrial Downtime Risk Control

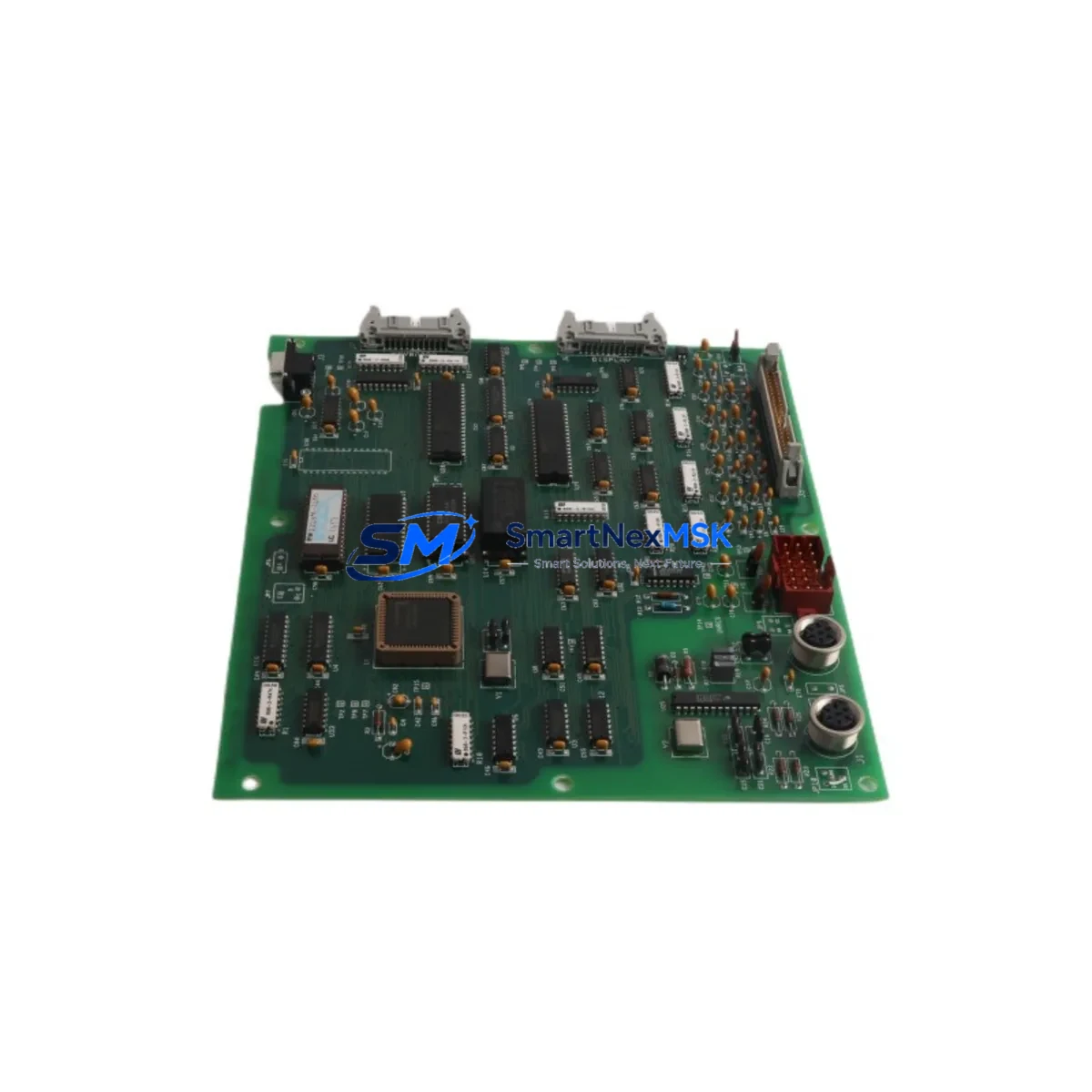

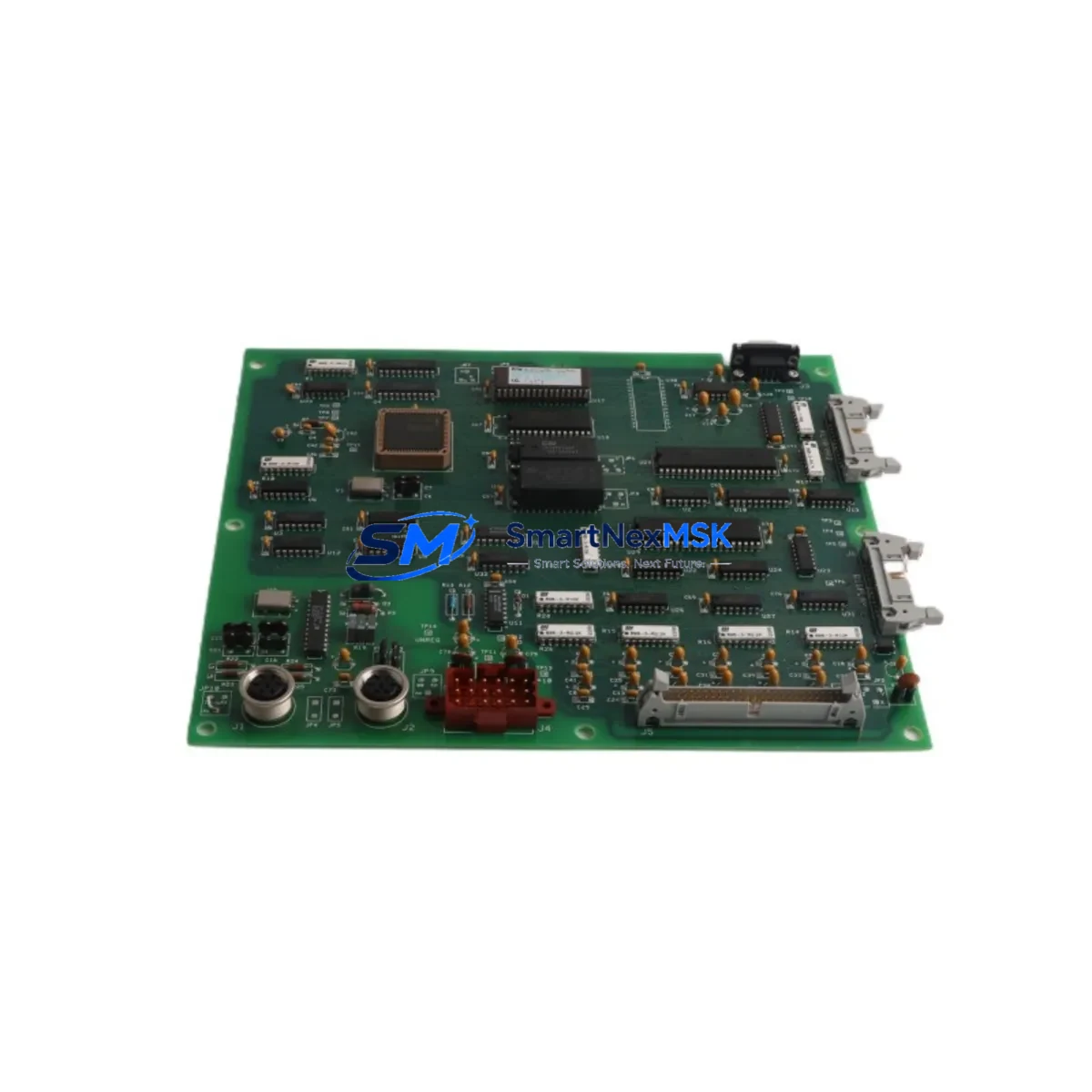

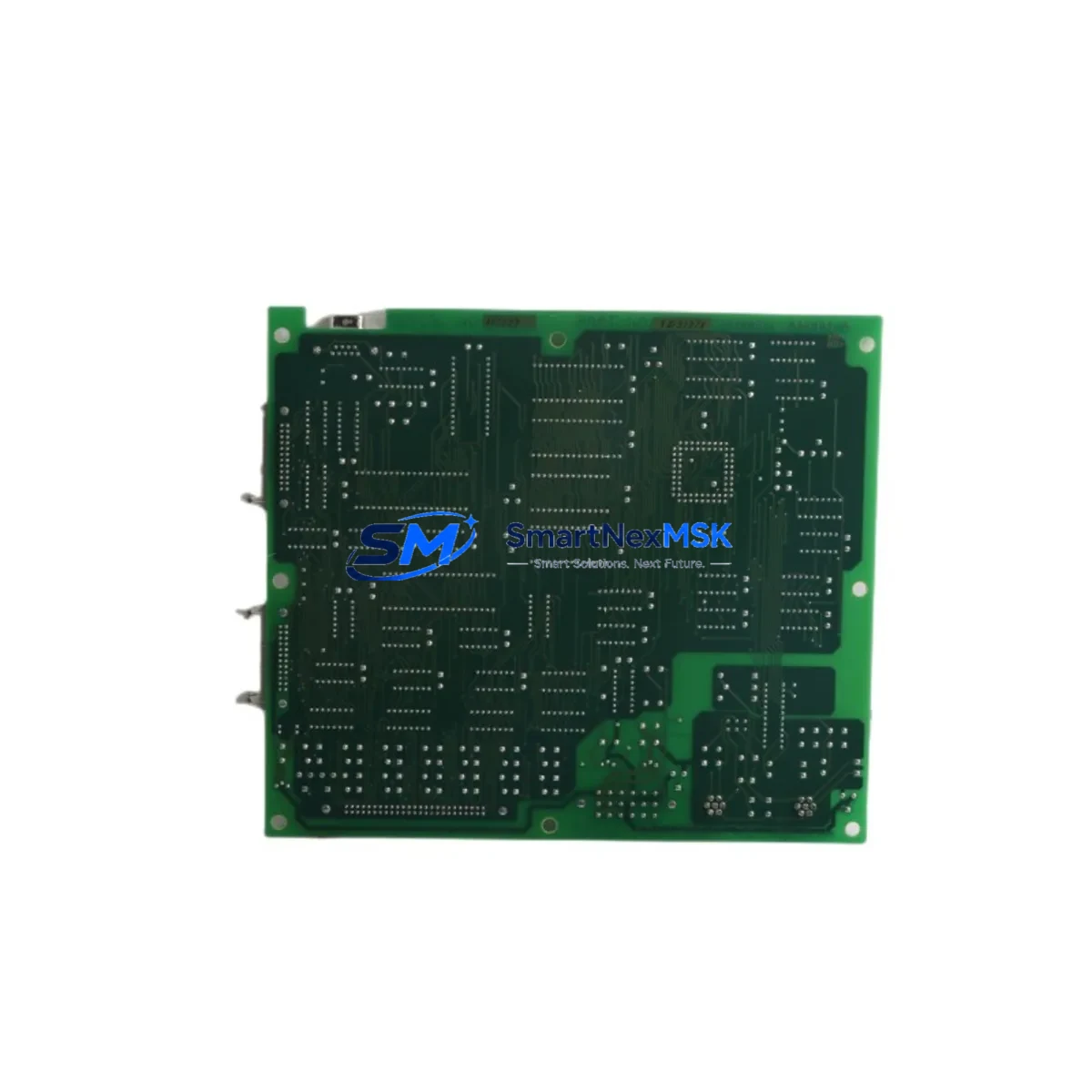

The Allen-Bradley D31705-1 A26491-A is an original circuit board spare designed for PLC-5 series programmable logic controllers operating within the 1771 I/O chassis architecture. For maintenance engineers managing aging control systems in process plants, discrete manufacturing lines, or utility infrastructure, this board represents a critical stocking item — one whose absence during an unplanned fault can translate directly into hours of production downtime and costly emergency procurement delays.

This spare is sourced as an original Allen-Bradley component, fully tested prior to shipment, and backed by a 12-month warranty. It is intended for facilities that operate PLC-5 platforms and require a verified, drop-in replacement that preserves system compatibility without requiring firmware reconfiguration or chassis redesign.

Maintenance and procurement engineers working with legacy 1771-series racks understand that the D31705-1 A26491-A does not operate in isolation. Its reliable function depends on the health of surrounding components in the same control cabinet — and a replacement event is the ideal moment to conduct a broader inspection of the electrical environment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the D31705-1 A26491-A in a PLC-5 system, a disciplined maintenance engineer will treat the event as a cabinet-level inspection opportunity rather than a single-component swap. The 1771-series rack environment involves tightly integrated electrical subsystems, and a fault in one area often signals stress in adjacent components.

Begin with the 1771-P4 or 1771-P7 power supply module — verify output voltage stability under load before re-energizing the replaced board. Unstable DC rails are a leading cause of premature circuit board failure and can damage a newly installed spare within hours of commissioning. If the power supply is original to the system and has not been serviced in several years, stocking a replacement unit alongside the D31705-1 A26491-A is strongly advisable.

Next, inspect the 1771-series I/O modules seated in the same chassis. Discrete input modules (such as the 1771-IAD or 1771-OBD output modules) should be checked for contact wear, blown fuses, and terminal block integrity. A failed I/O module can generate fault codes that are misdiagnosed as processor board failures, leading to unnecessary replacements.

The 1771-ASB remote I/O adapter, if present, should be verified for communication integrity. Remote I/O link faults are a common source of intermittent system errors in aging PLC-5 installations. Similarly, any 1785-KE or 1784-KT communication interface cards used for DH+ or DH-485 network connectivity should be inspected for firmware currency and connector condition.

For facilities running PanelView 550 or PanelView 900 HMI terminals connected to the PLC-5 via DH+ or RS-232, confirm that the HMI communication parameters remain aligned after the board replacement. A board swap can occasionally reset communication settings, causing the HMI to lose contact with the processor.

Terminal blocks and 1492-series wiring duct and terminal assemblies within the cabinet should be torque-checked and visually inspected for oxidation or loose conductors — particularly on analog signal circuits where high-impedance connections introduce measurement drift. If signal isolation is required between field devices and the PLC input cards, verify that any installed signal isolators or loop-powered transmitter barriers are functioning within specification.

Finally, review the cabinet’s 24VDC auxiliary power distribution — including fuse blocks, miniature circuit breakers, and surge protection devices. These components are frequently overlooked during board-level maintenance but are critical to protecting the newly installed spare from transient overvoltage events common in industrial environments.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the faulty board, photograph the chassis slot configuration, record all I/O module addresses, and export the current PLC-5 program from the processor using RSLogix 5 or an equivalent programming terminal. This ensures a complete restore baseline if the replacement introduces unexpected behavior.

Step 2 — Power isolation: De-energize the 1771 chassis via the main disconnect. Verify zero-voltage on the backplane using a calibrated multimeter before handling any circuit board. Ground yourself with an ESD wrist strap — the D31705-1 A26491-A contains static-sensitive components.

Step 3 — Physical replacement: Remove the faulty board by releasing the locking tabs and sliding it from the chassis slot. Insert the D31705-1 A26491-A into the same slot, ensuring the backplane connector is fully seated. Secure the locking tabs.

Step 4 — Power-up and verification: Re-energize the chassis and observe the processor status LEDs. A healthy PLC-5 processor should indicate RUN or PROG mode within seconds. If fault LEDs illuminate, consult the PLC-5 fault code table and cross-reference with the I/O module status indicators before assuming the replacement board is defective.

Step 5 — System compatibility confirmation: Reload the saved program if required, verify all I/O points are scanning correctly, and confirm HMI communication is restored. Document the replacement in the site maintenance log with the new board’s serial number and installation date.

This workflow minimizes downtime, preserves system compatibility, and creates an auditable maintenance record — essential for facilities operating under ISO 9001 or IEC 62443 compliance frameworks.

Spare Parts Support FAQ

Q1: Is the D31705-1 A26491-A compatible with all 1771-series chassis configurations?
The D31705-1 A26491-A is designed for PLC-5 processor applications within the 1771 I/O rack architecture. Compatibility depends on the specific chassis model and slot assignment. We recommend cross-referencing your chassis part number and slot configuration against the Allen-Bradley PLC-5 hardware compatibility matrix before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes functional testing prior to shipment to verify board-level integrity. Testing includes power-on verification and basic operational checks consistent with industrial spare part standards. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should this spare be stored if not immediately installed?
Store the D31705-1 A26491-A in its original anti-static packaging in a dry, temperature-controlled environment (typically 0–50°C, <85% RH non-condensing). Avoid storing near strong electromagnetic fields or in environments with airborne contaminants. Proper storage preserves the board’s operational life and maintains warranty validity.

Q4: Can this board replace other Allen-Bradley PLC-5 circuit board variants?
The D31705-1 A26491-A is a specific part number and should only be used as a direct replacement for the same SKU. Cross-substitution with other Allen-Bradley circuit board variants is not recommended without engineering review, as differences in firmware revision, I/O addressing, or backplane interface may cause system faults. Contact our team for guidance on alternative part numbers if the exact SKU is required for a different chassis configuration.
