Allen-Bradley SP-145472 Safety-Enhanced PLC Board for SLC 500

Allen-Bradley SP-145472 Safety-Enhanced PLC Board for SLC 500: Reliable Control in Harsh Industrial Sites

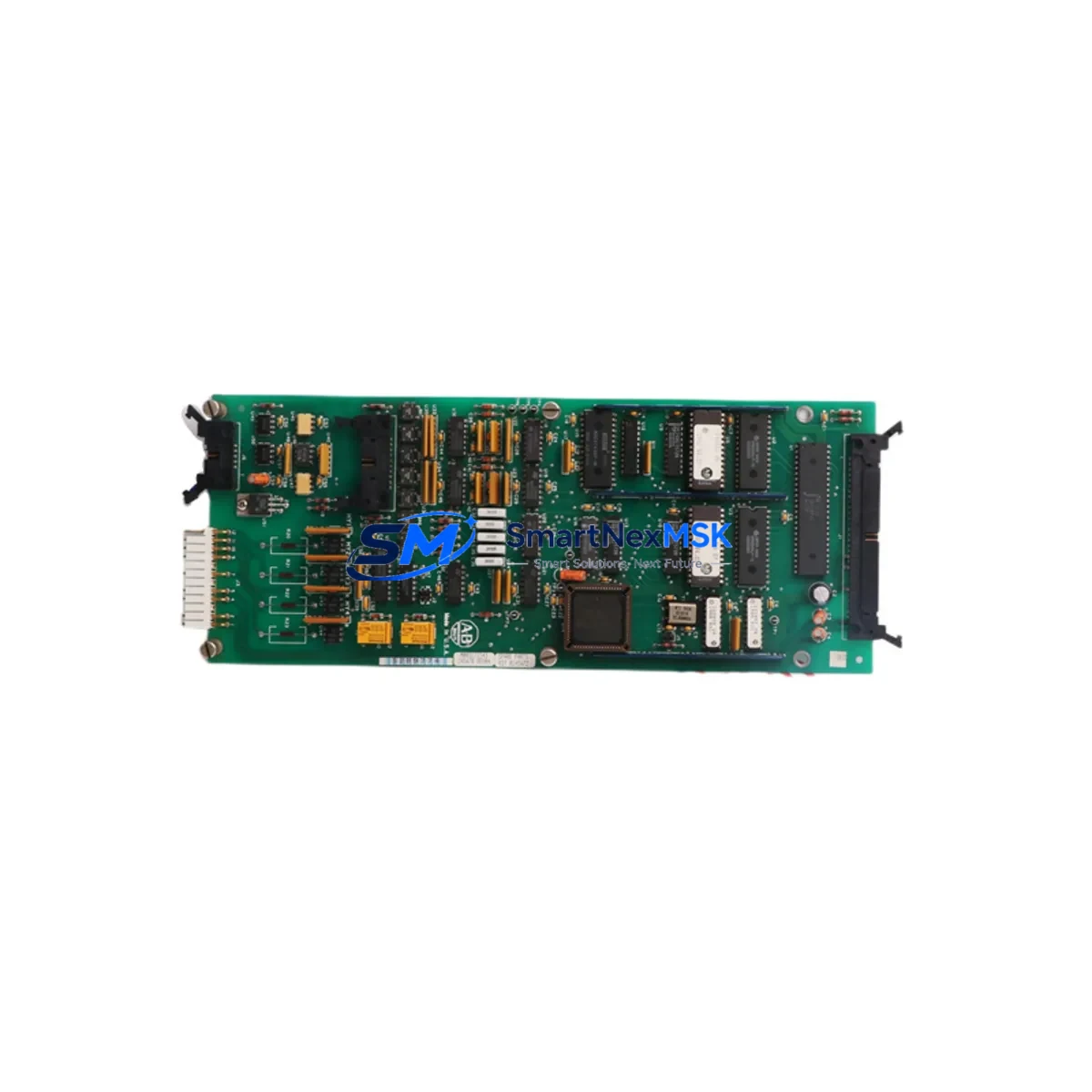

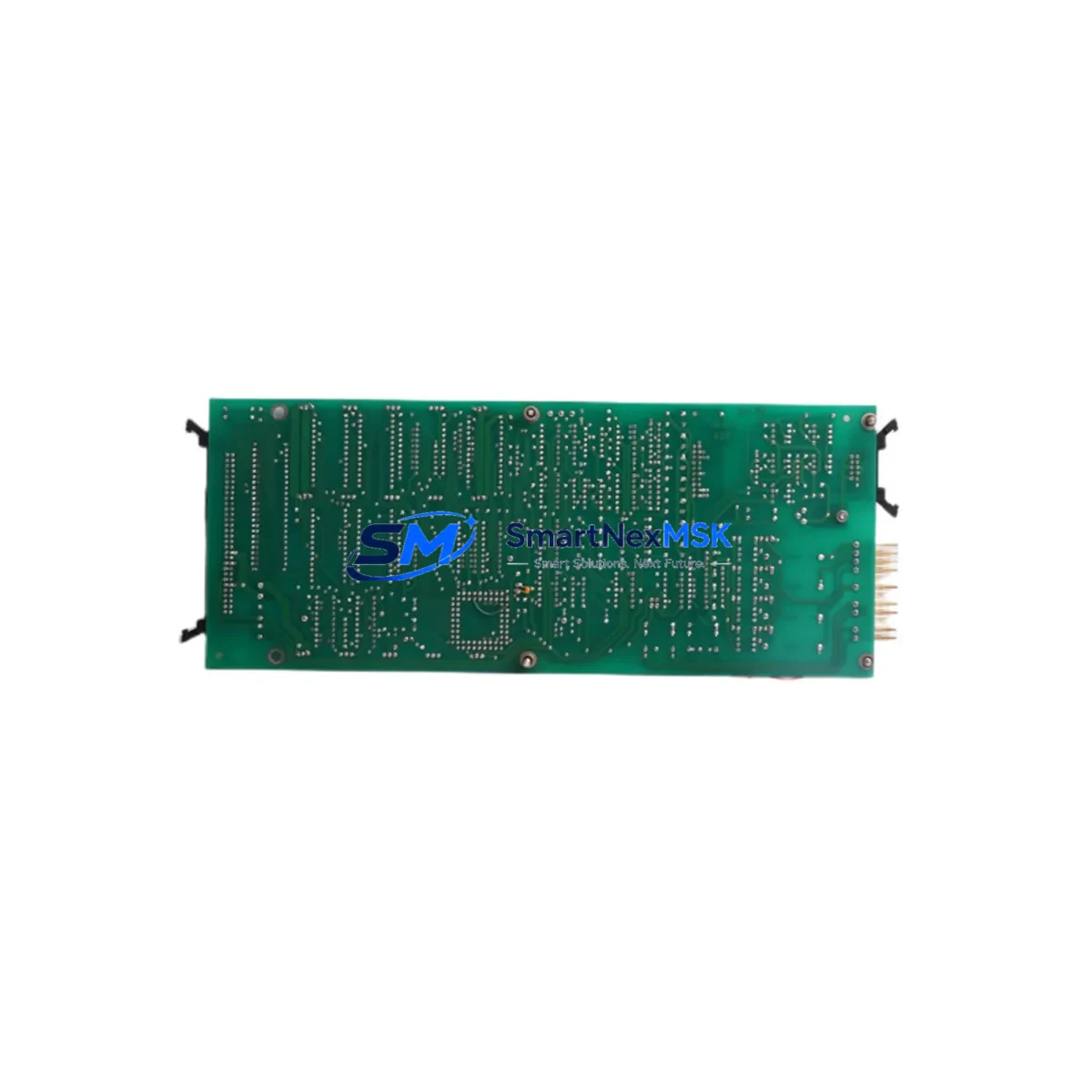

The Allen-Bradley SP-145472 (also cross-referenced as 145470 and 119711-02) is a ruggedized PC board assembly engineered for mission-critical SLC 500 programmable logic controller systems operating in demanding industrial environments. Designed to sustain continuous, uninterrupted control loop integrity, this board delivers the electrical resilience and signal stability that heavy-industry automation demands — from petrochemical processing lines to high-cycle discrete manufacturing cells.

In high-load control cabinets where power fluctuations, electromagnetic interference, and thermal stress are constant threats, the SP-145472 provides a hardened foundation for safe, predictable PLC operation. Its robust PCB construction minimizes the risk of control interruption, signal drift, and module mis-operation — three of the most common root causes of unplanned downtime in industrial automation systems. Whether installed in a safety interlock circuit, a motor control center, or a distributed I/O rack, this board is built to perform where reliability is non-negotiable.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust SLC 500 control cabinet is only as reliable as its weakest component. The SP-145472 PC board assembly serves as the processing backbone within the rack, but its safe operation depends on a well-coordinated system of complementary components. In high-availability installations, engineers pair this board with the Allen-Bradley 1746-P4 power supply module to ensure clean, regulated DC power delivery — eliminating the voltage sag and ripple that can cause board-level resets or data corruption during peak load cycles.

For I/O signal protection, the SP-145472 is commonly deployed alongside 1746-IB16 digital input modules and 1746-OB16 digital output modules, forming a complete discrete control loop capable of handling field device signals from proximity sensors, limit switches, and solenoid valves in harsh environments. In analog-intensive applications such as pressure regulation or temperature control, the 1746-NI4 analog input module provides the precision signal conditioning needed to prevent measurement drift — a critical safety concern in process industries.

Communication integrity is equally vital. The Allen-Bradley 1747-SDN DeviceNet Scanner module is frequently installed in the same rack to maintain deterministic fieldbus communication with distributed I/O nodes, ensuring that a single communication anomaly does not cascade into a system-wide control failure. For installations requiring EtherNet/IP connectivity, the 1747-AENTR Ethernet adapter provides network-layer redundancy and remote diagnostics capability.

Surge protection at the cabinet entry point is handled by dedicated DIN-rail mounted surge protective devices (SPDs), which shield the entire rack — including the SP-145472 — from lightning-induced transients and switching surges originating from large motor starters or variable frequency drives (VFDs). Proper grounding of the 1746-A13 SLC 500 chassis further reduces common-mode noise that can induce false I/O states or corrupt program execution. Together, these components form a layered protection strategy that keeps the SP-145472 operating safely across the full production lifecycle.

Critical Industrial Safety Applications

The Allen-Bradley SP-145472 PC board assembly has proven its reliability across a wide spectrum of critical industrial sectors:

Petrochemical & Refining: In continuous process plants where a control loop failure can trigger emergency shutdowns or safety system activations, the SP-145472 maintains stable PLC execution even under sustained high-temperature ambient conditions and aggressive chemical atmospheres. It is commonly used in burner management system (BMS) auxiliary control panels and compressor sequencing logic.

Electric Power Generation & Utilities: Power plant auxiliary systems — including cooling water pumps, fuel handling conveyors, and switchgear control panels — rely on SLC 500 platforms for their proven determinism. The SP-145472 ensures that these systems remain responsive and fault-free during grid disturbances and load-shedding events.

Mining & Mineral Processing: Underground and surface mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the SP-145472 makes it a preferred replacement board in conveyor drive control panels, crusher sequencing systems, and ventilation safety interlocks.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities depend on uninterrupted PLC control for dosing pumps, aeration blowers, and UV disinfection systems. The SP-145472 supports 24/7 continuous operation in high-humidity environments where board-level corrosion is a persistent maintenance challenge.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate intense electromagnetic interference from high-current switching equipment. The SP-145472’s EMI-resistant design ensures that PLC scan cycles remain consistent and that safety interlock responses are not delayed by noise-induced communication errors.

Port & Material Handling Automation: Container crane control systems and automated stacker-reclaimer PLCs require boards that can withstand the mechanical shock and vibration of heavy-duty lifting cycles. The SP-145472 provides the structural and electrical durability needed for reliable operation in these high-cycle, safety-critical applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the SP-145472?
Every SP-145472 PC board assembly supplied by SMARTNEXMSK is backed by a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options available to minimize your system downtime.

Q2: What pre-shipment testing is performed on each unit?
Each SP-145472 undergoes a comprehensive functional test protocol before dispatch, including power-on verification, I/O signal integrity checks, and visual inspection for PCB damage, cold solder joints, or component anomalies. Only units that pass all test criteria are released for shipment, ensuring you receive a field-ready board.

Q3: Is the SP-145472 compatible with all SLC 500 chassis and firmware versions?
The SP-145472 is designed as a direct form-fit-function replacement for the original Allen-Bradley 145470 and 119711-02 assemblies within the SLC 500 platform. It is compatible with standard SLC 500 chassis configurations. For specific firmware revision compatibility or application-critical installations, our technical team can provide pre-sale verification support.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply?
Yes. SMARTNEXMSK maintains dedicated inventory of the SP-145472 and related SLC 500 spare components to support both planned maintenance programs and emergency breakdown situations. We offer fast global shipping with express options available for critical downtime scenarios, ensuring your production line is restored to safe operation as quickly as possible.
