B&R X67BC7321-1 Maintenance-Ready Spare for X67 Automation

B&R X67BC7321-1 Maintenance-Ready Spare for X67 Automation

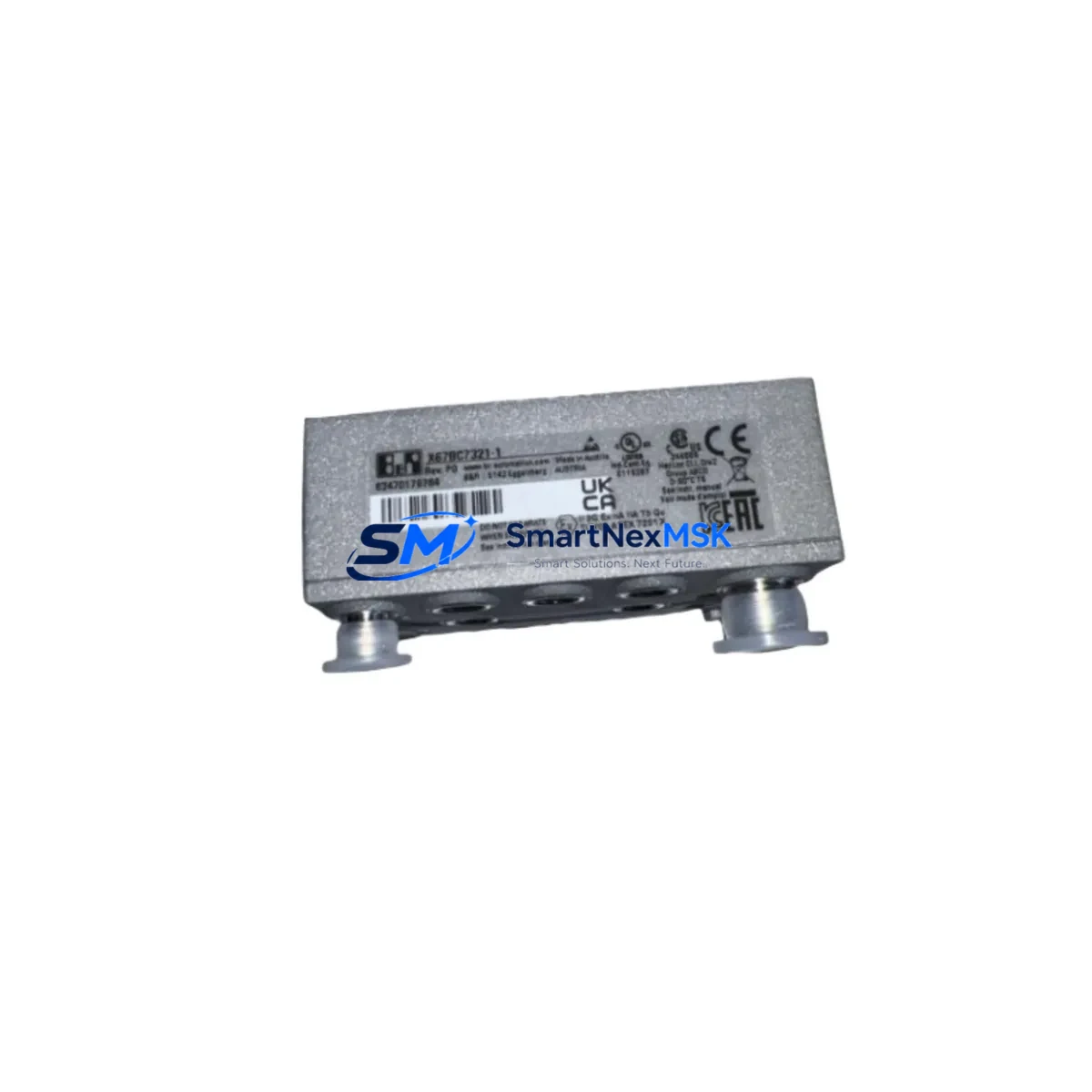

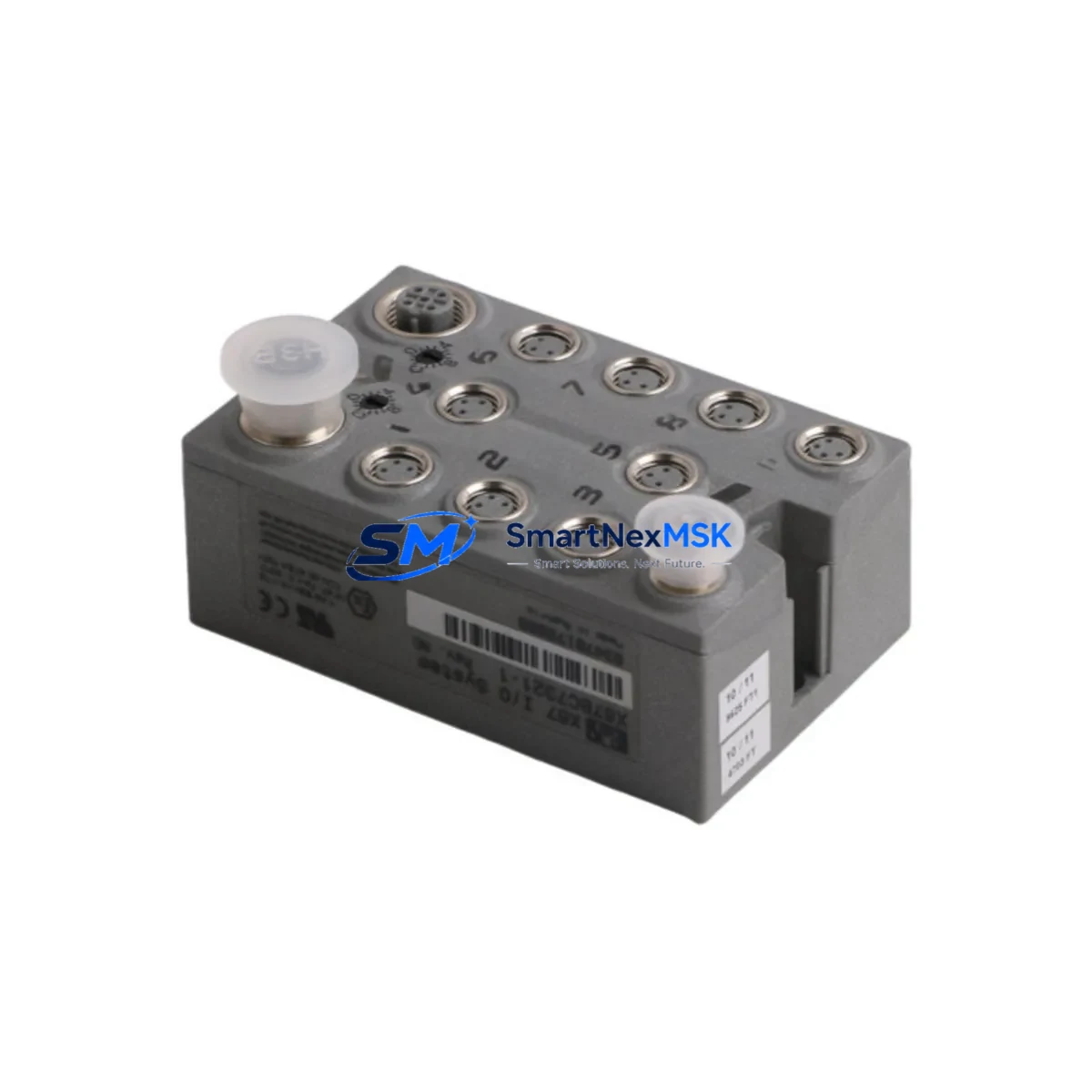

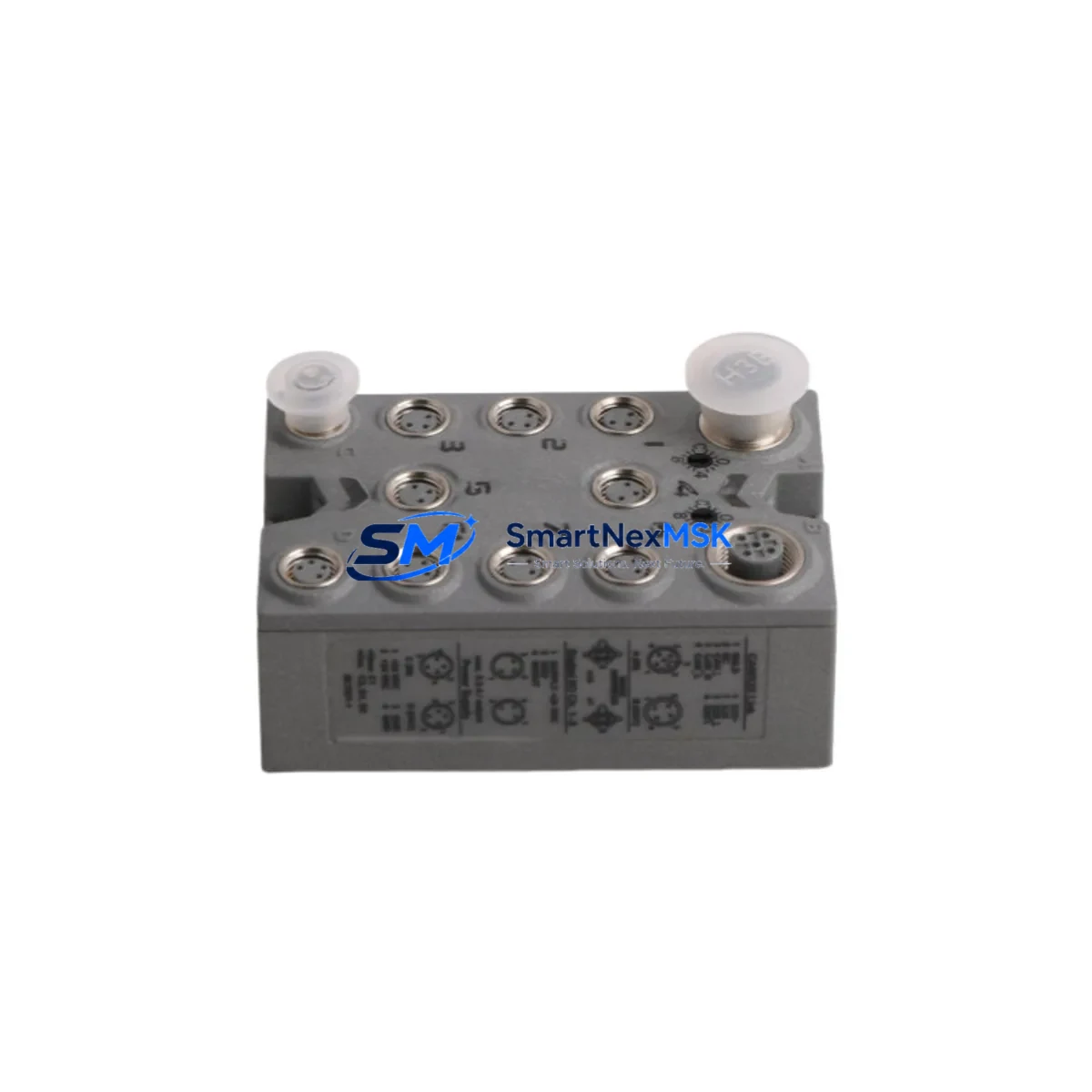

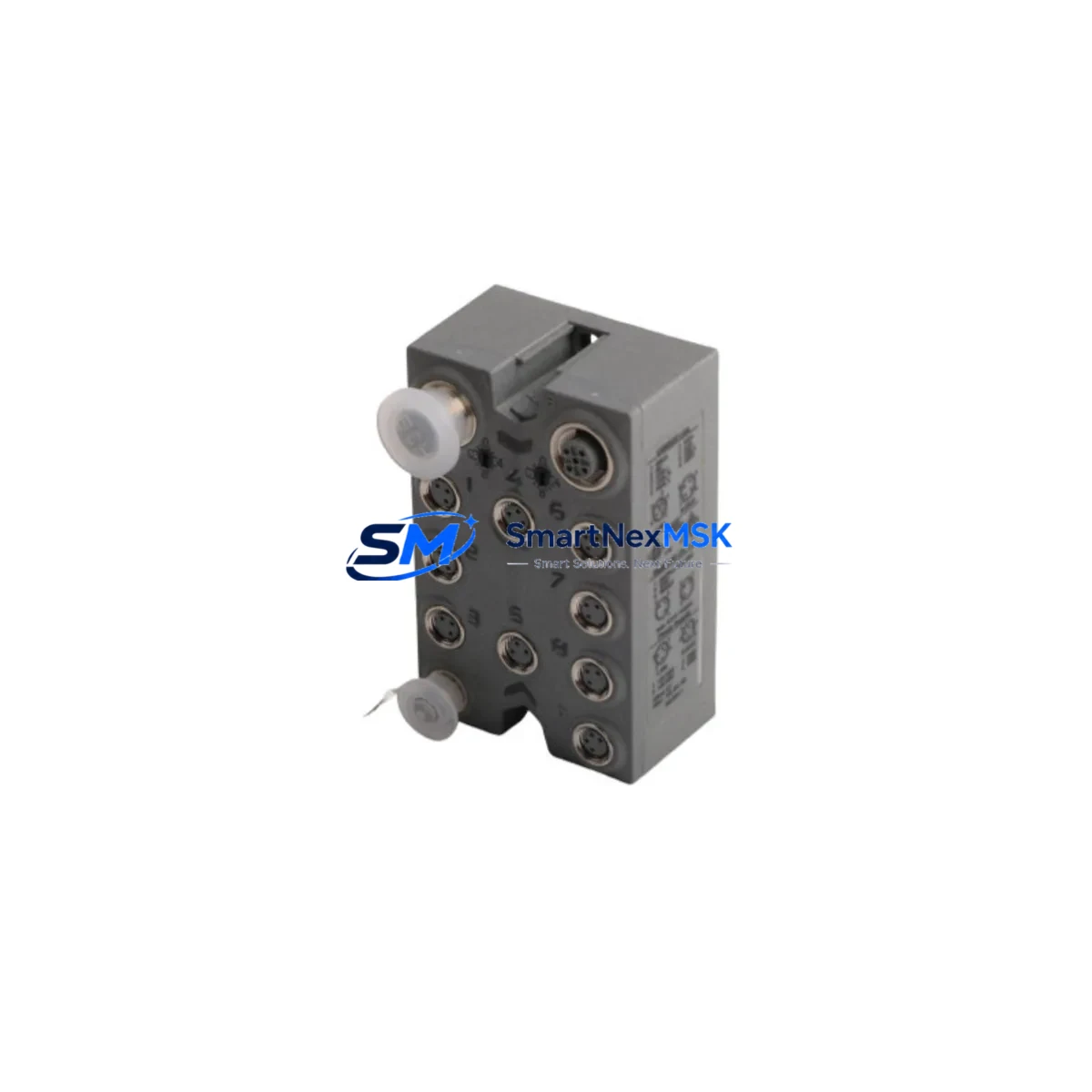

The B&R X67BC7321-1 is an original POWERLINK Bus Controller module designed for the X67 distributed I/O system — one of the most widely deployed field-level automation platforms in machine building, packaging, and process control. When this module fails or reaches end-of-service life, the entire X67 node it governs goes offline, halting I/O communication across the POWERLINK network segment. Sourcing a verified, tested replacement unit is the fastest path to restoring production uptime. This listing provides an original B&R X67BC7321-1 spare, pre-tested, packaged for safe transit, and backed by a 12-month warranty.

Maintenance engineers working on B&R X67-based control architectures understand that the bus controller is the nerve center of each remote I/O station. It manages POWERLINK cycle communication, synchronizes I/O data exchange with the CPU, and provides the physical interface between the field wiring and the automation network. A degraded or failed X67BC7321-1 typically manifests as node dropout errors in Automation Studio diagnostics, intermittent I/O response, or complete loss of the remote station. Having a spare unit on the shelf — pre-verified and ready to swap — is the difference between a 20-minute recovery and a multi-hour production loss event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the X67BC7321-1 bus controller is rarely an isolated task. A thorough maintenance engineer will treat this event as an opportunity to audit the entire X67 station and its associated control circuit. Begin by inspecting the X67PS1300-1 or X67PS2100-1 power supply module feeding the station — bus controller failures are sometimes downstream symptoms of an unstable or under-rated supply. Verify that the 24 VDC rail is within tolerance before commissioning the replacement unit.

Next, check all X67 digital and analog I/O modules installed on the same rail — modules such as the X67DI1321-1 digital input and X67AO1321-1 analog output should be inspected for connector corrosion, seal integrity, and correct LED status after the bus controller is restored. In IP67 field environments, moisture ingress at module junctions is a common secondary fault that surfaces during bus controller replacement.

Review the POWERLINK network cabling — specifically the M12 D-coded Ethernet connectors at the bus controller’s network ports. Damaged or intermittently connected cables are a leading cause of node instability that is often misdiagnosed as a bus controller fault. If the station uses a X67BC0087-1 or similar POWERLINK hub/repeater upstream, inspect that device as part of the same maintenance window.

For stations that include X67 safety I/O modules (e.g., X67SI1321-1 safe digital inputs), confirm that the SafeLOGIC or SafeMC safety controller re-establishes its safe communication channel after the bus controller swap. Safety nodes require re-validation after any bus controller replacement — do not skip this step in safety-rated applications.

Procurement engineers building a spare parts inventory for X67-based lines should consider stocking the X67BC7321-1 bus controller alongside X67 power supply modules, representative digital I/O modules, and M12 field connector sets. A minimum recommended kit for a single X67 station covers the bus controller, one power module, and a set of field-side connectors — this kit supports recovery from the three most common field failure modes without waiting for expedited freight.

Site Replacement Workflow

Step 1 — Safe Isolation: De-energize the X67 station at the field power disconnect. Do not rely solely on software disable; physically isolate the 24 VDC supply to the station before handling modules.

Step 2 — Node Address Recording: Before removing the failed X67BC7321-1, photograph or record the rotary switch node address setting. The replacement unit must be set to the same address to restore automatic network recognition by the POWERLINK master.

Step 3 — Module Removal: Release the X67 module locking mechanism and slide the bus controller off the rail. Inspect the backplane connector pins for damage or contamination before installing the replacement.

Step 4 — Replacement Installation: Slide the new X67BC7321-1 onto the rail, confirm the locking tab engages, and set the rotary node address switches to match the recorded value. Re-connect all M12 network and power connectors, verifying correct torque on field connectors to maintain IP67 sealing.

Step 5 — Network Re-commissioning: Re-energize the station and observe the bus controller LED indicators. A solid green POWERLINK status LED confirms successful network integration. Open Automation Studio and verify the node appears online in the I/O configuration with no error flags. Perform a brief I/O functional test — cycle each digital output and verify analog channel readings — before returning the station to production.

Step 6 — Documentation: Log the replacement in the maintenance management system, record the new unit’s serial number, and update the spare parts inventory. If the failed unit is to be returned for analysis or warranty claim, retain it in anti-static packaging with the fault description attached.

Spare Parts Support FAQ

Q1: Is this X67BC7321-1 an original B&R component or a compatible substitute?
This is an original B&R X67BC7321-1 sourced from authorized supply channels. It is not a third-party compatible or remanufactured unit. Each unit is tested for basic electrical integrity and POWERLINK communication function prior to shipment. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q2: How do I confirm compatibility with my existing X67 station before ordering?
The X67BC7321-1 is the standard POWERLINK bus controller for the X67 I/O platform. Compatibility is confirmed by matching the module part number on the existing unit’s label. If your station uses a variant such as the X67BC7321-0 (earlier revision) or a different bus controller type, please contact us with your full station configuration and we will advise on the correct replacement. We recommend cross-referencing the B&R hardware description document for your Automation Studio project version.

Q3: What is included in the 12-month warranty and what does the pre-shipment test cover?
The 12-month warranty covers functional failure of the module under normal industrial operating conditions — it does not cover physical damage caused by incorrect installation, overvoltage, or environmental exposure beyond IP67 ratings. Pre-shipment testing includes power-on verification, POWERLINK communication initialization check, and visual inspection of connectors and housing. A test report is available on request for critical applications.

Q4: Can you support long-term or blanket spare parts orders for multi-site maintenance programs?
Yes. We support scheduled spare parts programs for maintenance teams managing multiple X67-based lines or sites. Long-term supply agreements, consignment stock arrangements, and priority allocation for critical spares are available. Contact our sales team to discuss your annual consumption requirements and we will structure a supply plan that minimizes your procurement lead time and inventory carrying cost.
