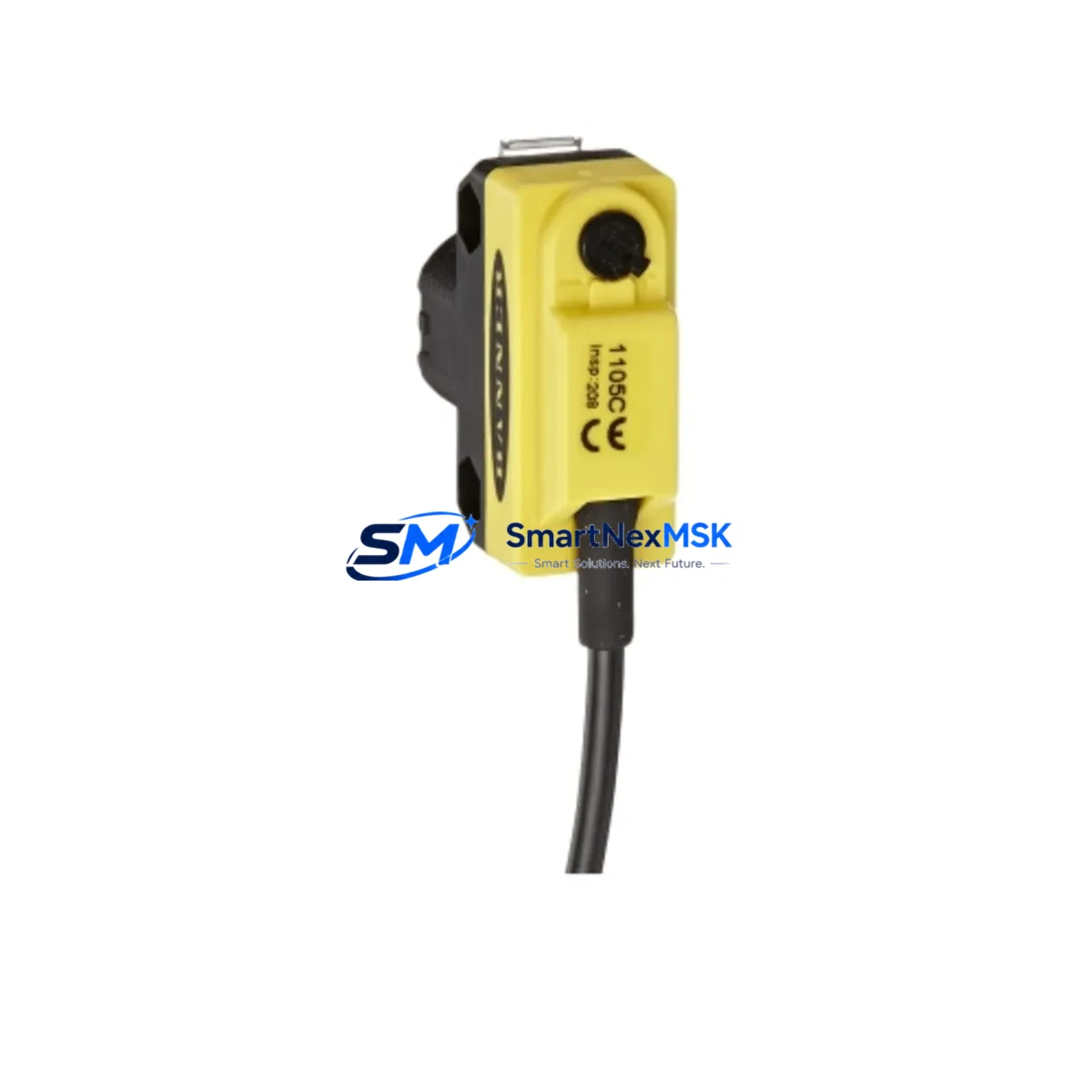

BANNER QS18VN6LP Safety-Enhanced Diffuse Photoelectric Sensor: Reliable Control for Harsh Industrial Sites
The BANNER QS18VN6LP is a ruggedized diffuse-mode photoelectric sensor from BANNER Engineering’s proven QS18 MiniSight Series — engineered for continuous, dependable operation in the most demanding industrial environments. Whether deployed in high-vibration conveyor lines, dusty mining galleries, chemical-laden process areas, or safety-critical interlock circuits, the QS18VN6LP delivers consistent object detection without signal drift, false triggering, or nuisance downtime.
In heavy industrial control cabinets where uptime is non-negotiable, a single unreliable sensor can cascade into a full line stoppage. The QS18VN6LP addresses this risk head-on with its robust polycarbonate housing, IP67 ingress protection, and built-in EMI immunity — ensuring stable NPN output even when co-located with variable-frequency drives, servo amplifiers, and high-current contactors that generate significant electromagnetic interference.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | QS18VN6LP |
| Brand / Series | BANNER Engineering / QS18 MiniSight |
| Sensing Mode | Diffuse (Proximity) |
| Output Type | NPN, Normally Open (NO) |
| Sensing Range | Up to 200 mm (adjustable) |
| Supply Voltage | 10–30 VDC |
| Current Consumption | ≤ 35 mA |
| Output Current (max) | 100 mA |
| Response Time | ≤ 1 ms |
| Ingress Protection | IP67 (dust-tight, immersion-resistant) |
| Operating Temperature | -40°C to +70°C |
| Housing Material | Polycarbonate (impact-resistant) |
| EMI / RFI Immunity | High — suitable for VFD and servo environments |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Connection | 2 m PVC cable (pigtail) |
| Indicator | Yellow LED output indicator |
| Compatibility | BANNER QS18 Series accessories, standard M12 brackets |
| Warranty | 12 Months — covered from date of shipment |
| Origin | USA (BANNER Engineering) |
Control Cabinet Protection Strategy
In a well-engineered industrial control cabinet, the BANNER QS18VN6LP serves as the front-line detection element in object-presence and position-verification circuits. Its low-current NPN output interfaces cleanly with PLC digital input modules — including the Siemens S7-1200 SM 1221 DI 16×24VDC and Allen-Bradley 1769-IQ16 CompactLogix digital input module — without requiring additional signal conditioning, reducing wiring complexity and potential failure points.
Power supply stability is critical for reliable photoelectric sensing. The QS18VN6LP operates across a wide 10–30 VDC range, making it compatible with standard PHOENIX CONTACT QUINT-PS/1AC/24DC/10 DIN-rail power supplies and PULS CP10.241 24VDC stabilized power units. When paired with a WAGO 787-1002 surge protection module on the 24VDC bus, the sensor is shielded from transient voltage spikes common in heavy motor-start environments.
For applications requiring safety-rated interlock verification — such as guard door monitoring or light curtain bypass confirmation — the QS18VN6LP output can feed into a Pilz PNOZ X3 safety relay or SICK UE10-3OS safety monitoring relay, enabling compliant Category 2 or Category 3 safety circuits per ISO 13849-1. Cable routing through Panduit FRX series flame-retardant cable duct further reduces fire propagation risk within the enclosure.
In communication-intensive architectures, where the sensor feeds data upstream via a Siemens ET 200SP distributed I/O station or Beckhoff EK1100 EtherCAT coupler, the QS18VN6LP’s fast ≤1 ms response time ensures that object detection events are captured within a single PLC scan cycle — eliminating missed detections that could compromise machine safety logic.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In continuous process environments where flammable vapors and corrosive atmospheres are present, the QS18VN6LP’s IP67 sealed housing prevents ingress of process gases into the sensor body. It is deployed in drum-fill level detection, valve-position confirmation, and conveyor jam-detection circuits where a missed signal could trigger an unsafe process condition.
Electric Power Generation & Substations: High electromagnetic field environments in power plants demand sensors with proven EMI immunity. The QS18VN6LP maintains stable output in proximity to high-voltage bus bars, transformer rooms, and generator halls — used for turbine blade-pass detection, coal feeder position sensing, and ash conveyor monitoring.
Mining & Mineral Processing: Underground and open-pit mining operations expose sensors to extreme dust, moisture, and mechanical shock. The QS18VN6LP’s polycarbonate housing and IP67 rating allow it to function reliably on belt conveyor systems, crusher feed chutes, and ore-car positioning systems without frequent replacement cycles that increase maintenance downtime.
Water & Wastewater Treatment: In pump stations and filtration plants, the QS18VN6LP detects float positions, valve actuator travel limits, and screen blockage conditions. Its wide operating temperature range (-40°C to +70°C) accommodates both outdoor pump houses in cold climates and enclosed UV-treatment chambers with elevated ambient temperatures.
Metallurgy & Steel Mills: Rolling mill and continuous casting environments subject sensors to radiant heat, metal splash, and intense vibration. The QS18VN6LP is used in billet-end detection, coil-presence verification, and cooling-bed object counting — applications where false triggers or missed detections directly impact product quality and worker safety.
Port & Container Logistics: Crane anti-collision systems, spreader position detection, and container-presence verification in automated port terminals rely on sensors that perform consistently in salt-air, rain, and wide temperature swings. The QS18VN6LP’s ruggedized construction and stable diffuse sensing make it a dependable choice for these outdoor heavy-duty applications.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the BANNER QS18VN6LP?
Every QS18VN6LP unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. If the unit exhibits any functional defect under normal operating conditions within this period, we provide free replacement or full refund. Warranty claims are processed within 5 business days upon receipt of the returned unit.
Q2: What pre-shipment testing is performed on each unit?
All QS18VN6LP sensors undergo a multi-point outgoing inspection before dispatch: supply voltage range verification (10–30 VDC), output switching function test (NPN NO), LED indicator confirmation, cable continuity check, and housing integrity inspection. Units that do not pass all checkpoints are quarantined and not shipped. A test record is available upon request.
Q3: Is the QS18VN6LP compatible with my existing BANNER QS18 Series mounting hardware and accessories?
Yes. The QS18VN6LP is fully dimensionally compatible with the standard BANNER QS18 Series bracket family, including swivel-mount, right-angle, and DIN-rail adapter accessories. It also accepts standard M12 4-pin connector extensions if cable length needs to be increased beyond the factory 2 m pigtail.
Q4: Can long-term supply continuity be guaranteed for critical maintenance and spare-parts programs?
SMARTNEXMSK maintains dedicated safety-stock inventory of high-demand BANNER QS18 Series sensors, including the QS18VN6LP, to support planned maintenance shutdowns, emergency breakdowns, and annual spare-parts procurement programs. For customers requiring guaranteed allocation, we offer forward-purchase agreements with priority fulfillment. Contact our team to discuss your annual volume requirements.
