Bosch Rexroth R901077297 Retrofit-Ready Amplifier for VT-VSPD Series

Bosch Rexroth R901077297 Retrofit-Ready Amplifier for VT-VSPD Series Control Systems

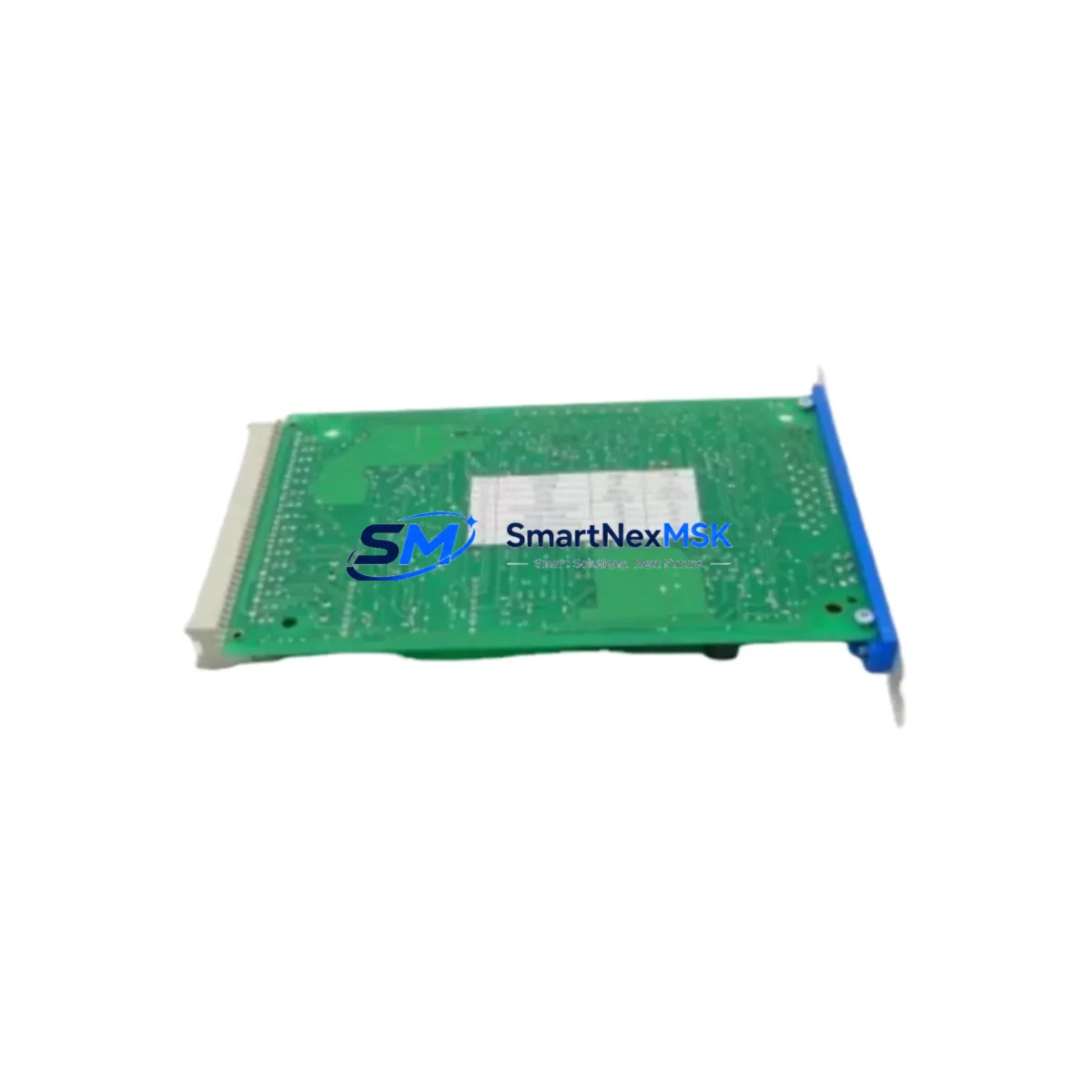

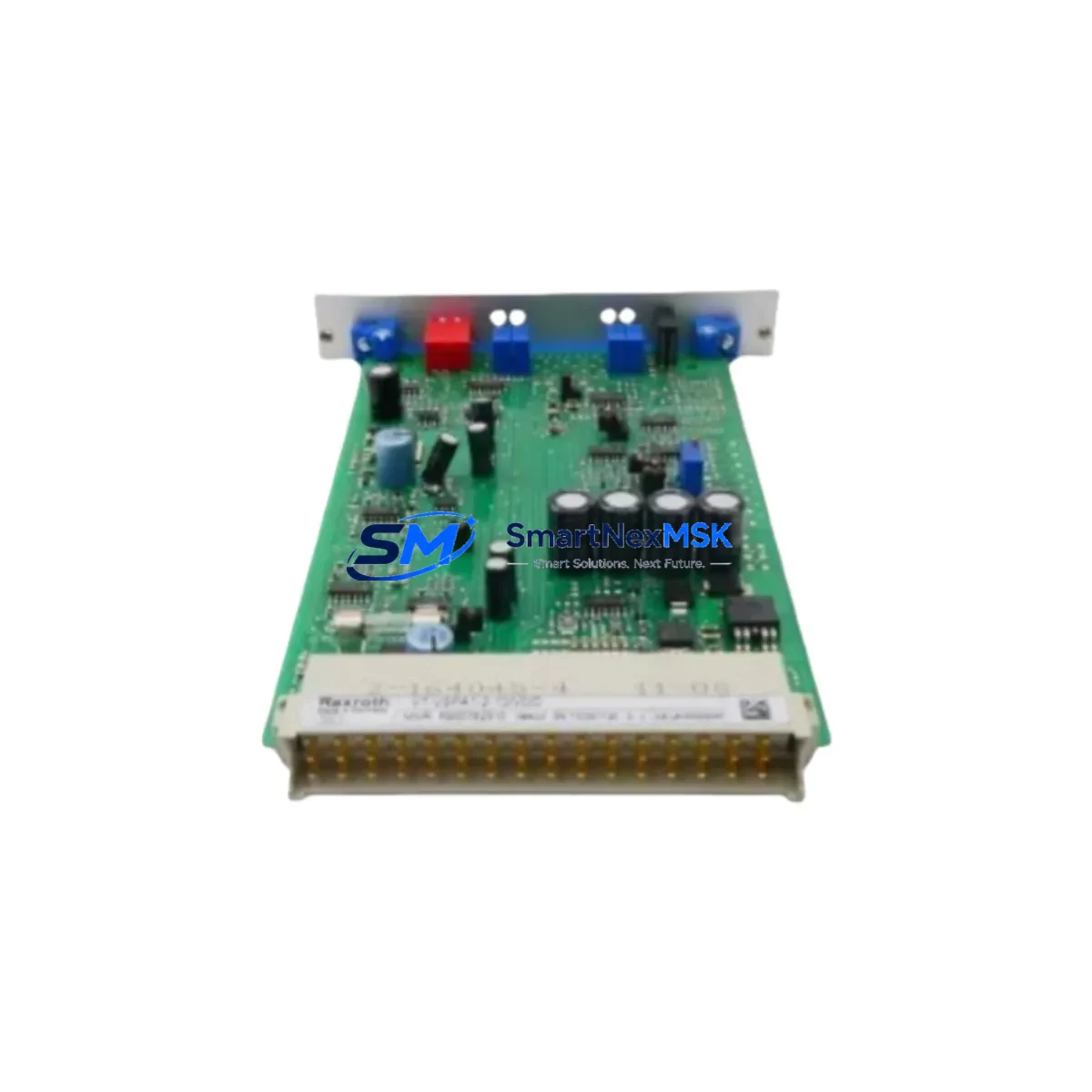

The Bosch Rexroth R901077297 (VT-VSPD-1-20/V0/0-0-1) is a proportional valve amplifier card engineered for seamless integration into existing Rexroth hydraulic control architectures. As legacy VT-VSPD series amplifier cards reach end-of-life or become increasingly difficult to source, this unit provides a verified retrofit path for engineers managing aging proportional valve control systems in press lines, injection molding machines, die-casting equipment, and industrial hydraulic test rigs. With direct wiring compatibility, matched command signal interfaces, and factory-tested output characteristics, the R901077297 minimizes engineering rework and reduces planned downtime during system modernization.

Whether you are replacing a failed card in a running production line or proactively upgrading a control cabinet ahead of a scheduled maintenance window, the R901077297 is stocked and available for immediate dispatch from our Xiamen warehouse. Each unit ships with a 12-month warranty covering component defects and functional performance under rated operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the R901077297 into a legacy control cabinet begins with a systematic review of the existing wiring harness and terminal block assignments. In most VT-VSPD installations, the amplifier card receives its command signal from a PLC analog output module — commonly a Siemens SM 332 AO or equivalent Rexroth IndraControl L40/L65 analog output channel. Before removing the old card, engineers should document the current terminal assignments for the enable signal (pin 14), command input (pins 3/4), and solenoid output (pins 9/10/11), as these are the most frequently misidentified connections during rushed replacements.

In systems where the proportional valve is paired with a Rexroth HM 20-2X pressure transducer or a WS10 linear position transducer for closed-loop feedback, the feedback signal wiring must be verified independently of the amplifier swap. The R901077297 accepts standard ±10 V feedback inputs, but the scaling and zero-offset parameters stored in the PLC program — typically in a Siemens S7 FB or FC block — must be reviewed to confirm they remain valid after the card replacement. If the original system used a VT-VSPD variant with a different ramp time default, the new card’s internal ramp potentiometers or DIP switch settings should be adjusted to match the original commissioning sheet before power-up.

For control cabinets that also house a Rexroth VT-HNC100 axis controller or a VT-HACD-1 hydraulic axis control card, the R901077297 can be installed in the same sub-rack without bus address conflicts, as it operates as a standalone analog amplifier with no fieldbus node assignment. However, if the cabinet includes a Profibus DP or PROFINET network segment connecting to a Siemens ET 200S distributed I/O station or a Rexroth HydraulicDrive fieldbus node, the network topology diagram should be reviewed to confirm that the amplifier’s enable signal is sourced from the correct digital output channel and not shared with another axis.

Power supply capacity is a critical checkpoint in any retrofit. The R901077297 draws up to 2.5 A at 24 VDC under full solenoid drive conditions. In cabinets where a Siemens SITOP PSU100S or equivalent 24 VDC rail powers multiple I/O modules, communication cards, and solenoid drivers simultaneously, the available headroom on the supply rail must be confirmed before commissioning. If the existing supply is already loaded above 80% of rated capacity, a supplementary Rexroth VT-DFP-2 power filter module or a dedicated 24 VDC branch circuit should be considered to prevent voltage sag during simultaneous axis movements.

Backplane and sub-plate mounting should be verified against the existing Rexroth valve manifold interface. The VT-VSPD-1-20 mounts directly to standard Rexroth sub-plates used with 4WRPH, 4WRKE, and 4WRPEH proportional directional control valves. If the existing manifold uses an older sub-plate pattern, a Rexroth VT-VSPA2-1-1X/V0 adapter plate may be required to maintain the correct port alignment and solenoid connector orientation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proportional valve amplifier replacement requires preparation before the maintenance window opens. The recommended approach is to pre-configure the replacement R901077297 on a bench setup using a variable DC power supply and a signal generator to verify enable response, ramp behavior, and solenoid current output before the card is installed in the live cabinet. This pre-commissioning step typically takes 20–40 minutes and eliminates the most common cause of extended downtime: discovering a parameter mismatch after the machine is already offline.

During the actual swap, the PLC program should be placed in STOP mode and the hydraulic system depressurized before the old card is removed. The original card’s DIP switch positions and potentiometer settings should be photographed for reference. After installing the R901077297 and reconnecting all terminals, a controlled power-up sequence — 24 VDC supply first, then enable signal, then command signal — allows the technician to verify solenoid response at low command values before returning the axis to automatic mode. The PLC program can then be restarted in manual mode for a final functional check of valve travel, pressure response, and feedback signal integrity before resuming production.

For systems where continuous operation is critical, a hot-standby strategy using a pre-wired spare amplifier card mounted on a DIN rail adjacent to the active card — with a terminal block changeover arrangement — can reduce the physical swap time to under five minutes. This approach is particularly effective in press and injection molding applications where a single axis failure can halt an entire production cell.

Retrofit Support FAQ

Q: Is the R901077297 a direct drop-in replacement for all VT-VSPD-1-1X and VT-VSPD-1-2X variants?
A: The R901077297 (VT-VSPD-1-20/V0/0-0-1) is functionally compatible with the majority of VT-VSPD-1-1X and VT-VSPD-1-2X installations. Terminal pinout, supply voltage, and command signal interface are identical. Minor differences in default ramp time settings and dither frequency may require adjustment via the card’s DIP switches or potentiometers during commissioning. We recommend comparing the original commissioning sheet with the R901077297 datasheet before installation.

Q: What wiring checks are required before powering up the replacement card?
A: Verify the 24 VDC supply polarity, confirm the enable signal source (typically a PLC digital output), check the command signal cable shielding and grounding, and confirm solenoid coil resistance is within the rated range (typically 20–40 Ω for standard Rexroth proportional solenoids). A wiring continuity check with the supply disconnected takes approximately 10 minutes and prevents the most common commissioning faults.

Q: Does the unit ship pre-tested, and what does the 12-month warranty cover?
A: Yes. Every R901077297 unit is functionally tested prior to dispatch, including enable response, ramp linearity, and solenoid current output verification. The 12-month warranty covers component defects and functional performance deviations under rated operating conditions (24 VDC ±10%, ambient temperature 0–50°C). Damage resulting from incorrect wiring, overvoltage, or mechanical impact is excluded. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q: Can this card be used with non-Rexroth PLCs or third-party HMI systems?
A: Yes. The R901077297 accepts standard ±10 V or 4–20 mA analog command signals, making it compatible with any PLC platform that provides an analog output channel — including Siemens S7-1200/S7-1500, Allen-Bradley CompactLogix, Mitsubishi Q-series, and Omron NJ/NX series controllers. HMI integration requires no card-level configuration; the amplifier responds to the analog command signal regardless of the upstream control platform.
