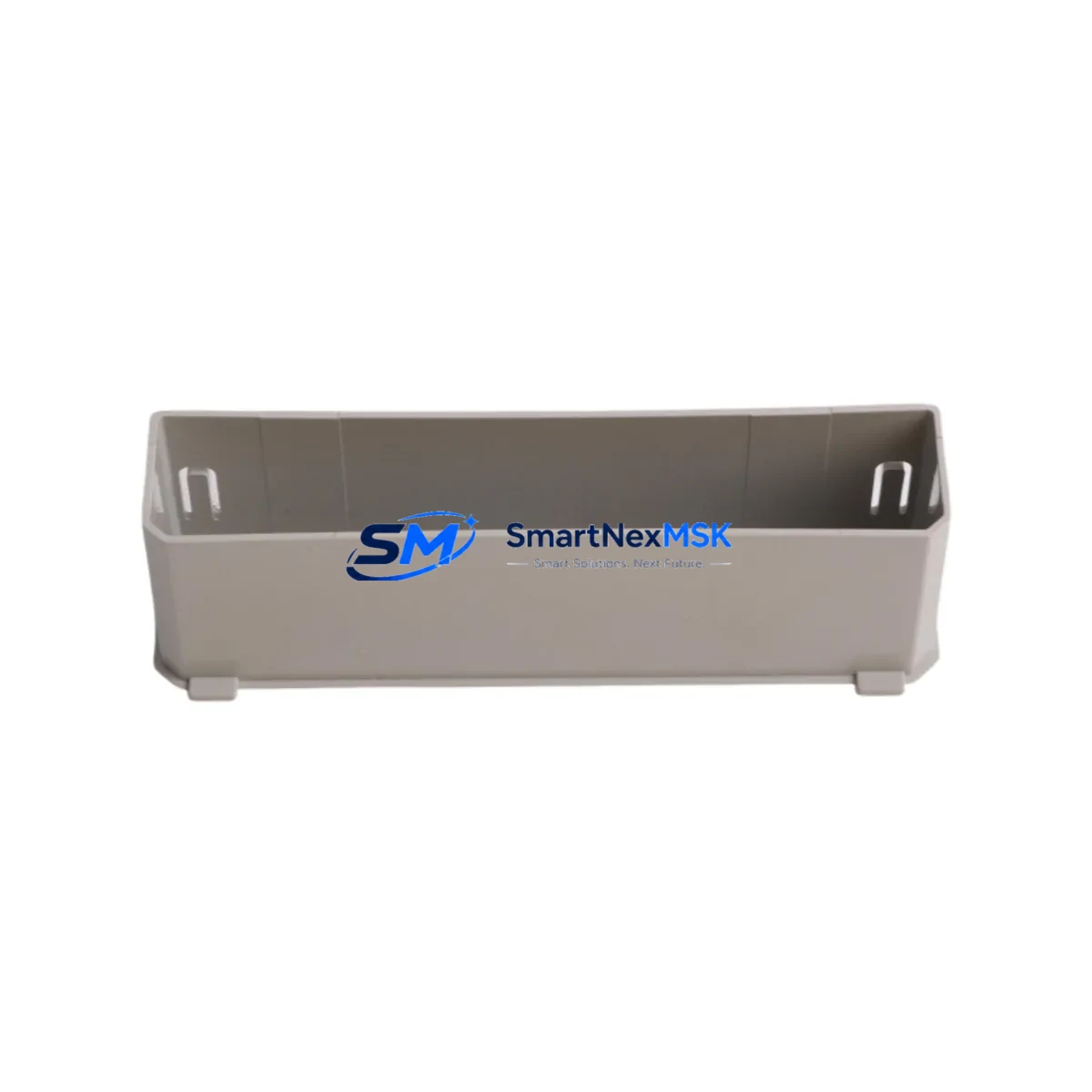

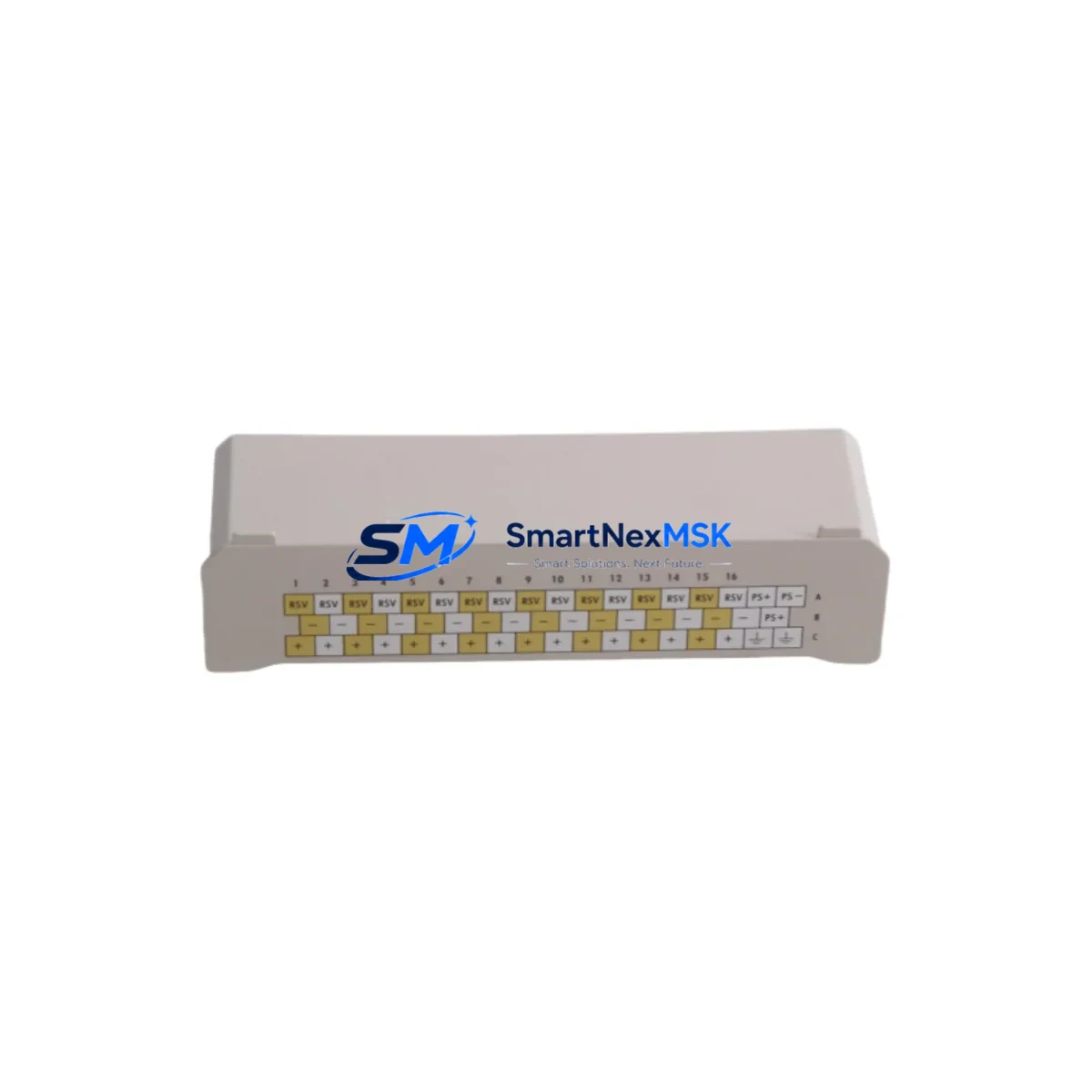

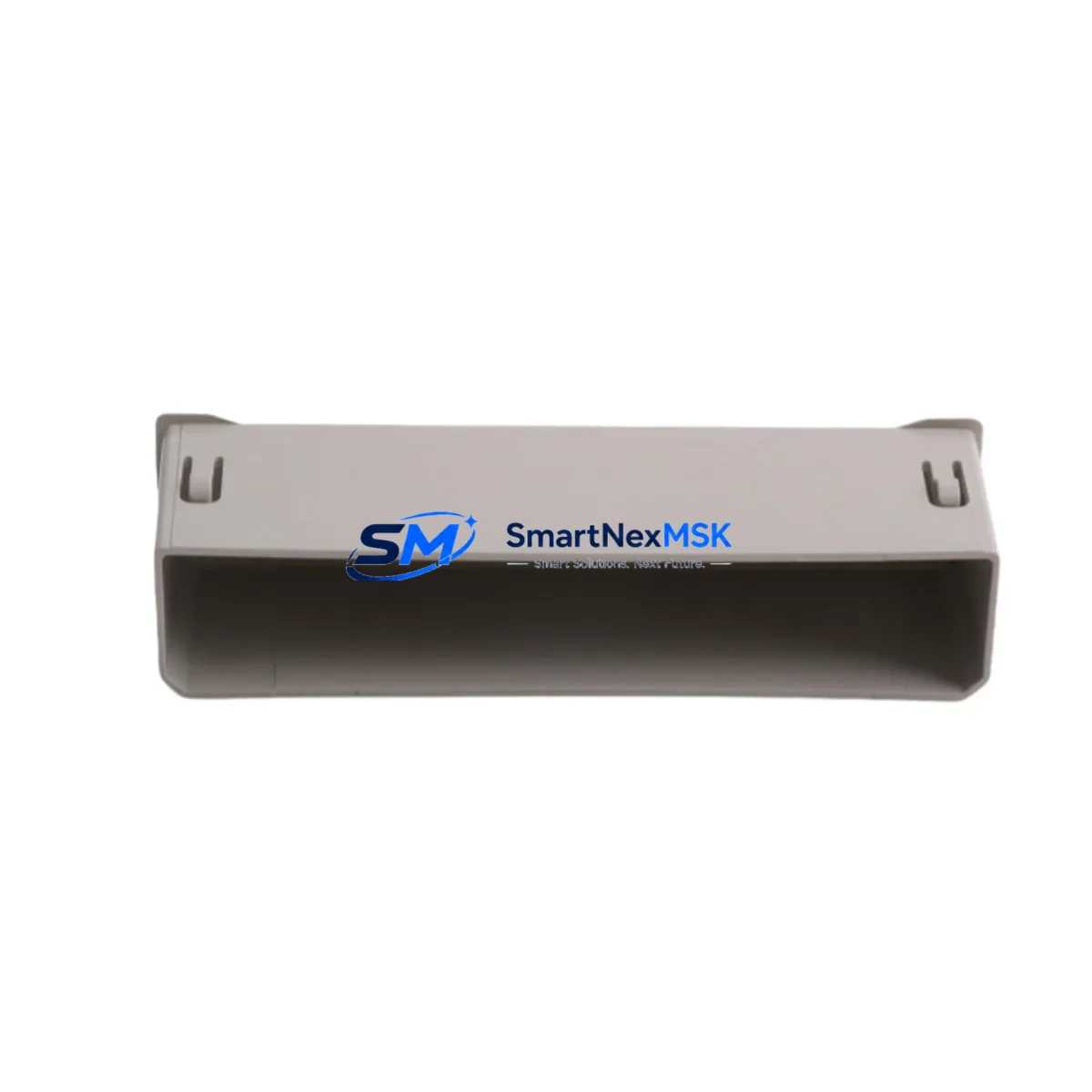

Emerson 1C31238H01 Retrofit-Ready I/O Rack Cover for Ovation DCS Control Systems
The Emerson 1C31238H01 is a precision-engineered I/O Rack Base Cover designed for the Ovation Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, water treatment, and continuous manufacturing facilities. As legacy Ovation installations age and OEM support windows narrow, the 1C31238H01 has become a critical retrofit component for engineers tasked with extending system life, reducing unplanned downtime, and maintaining rack integrity without full cabinet replacement.
This cover module fits directly into the Ovation I/O rack chassis, protecting backplane connectors, terminal wiring, and module slots from contamination, vibration-induced displacement, and accidental contact during maintenance cycles. In retrofit scenarios, it is commonly sourced as a replacement for damaged, missing, or non-OEM covers that compromise the mechanical and electrical integrity of the rack assembly. Procurement teams managing aging Ovation installations — particularly those running on the Ovation 3.x or earlier firmware branches — frequently specify the 1C31238H01 alongside other rack-level components such as the 1C31197G01 I/O module, 1C31116G01 analog input card, and 5X00119G01 power supply module to complete a full rack restoration.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 1C31238H01 |
| Manufacturer | Emerson (formerly Westinghouse / Ovation) |
| Compatible Platform | Ovation DCS — all rack generations |
| Replaces / Supersedes | Discontinued OEM covers; non-standard field-fabricated covers |
| Rack Interface | Standard Ovation I/O rack chassis slot — no backplane modification required |
| Installation Requirement | No tools required; slide-in fit with retention clip |
| Communication Compatibility | Passive mechanical component — no protocol dependency |
| Retrofit Recommendation | Replace in pairs or full rack sets during scheduled outage windows |
| Commissioning Notes | Verify slot alignment and retention clip engagement before rack power-up |
| Warranty | 12 Months — covers manufacturing defects and fit/form/function conformance |
Retrofit Planning for Existing Automation Systems
Successful integration of the 1C31238H01 into an active Ovation DCS retrofit begins well before the physical installation. Engineers should conduct a full rack audit to document the current state of all occupied and empty slots, noting any modules with compromised covers, bent retention clips, or contaminated backplane connectors. In a typical Ovation control cabinet, the I/O rack may house a mix of analog and digital modules — including 1C31116G01 analog input cards, 1C31122G01 digital output modules, and 1C31197G01 I/O interface modules — all of which depend on the mechanical integrity of the rack cover assembly to maintain proper seating and vibration resistance.
Power budget verification is an important pre-installation step even for passive components. The 5X00119G01 or equivalent Ovation rack power supply should be confirmed to be within its rated load capacity before any rack-level work begins, as disturbing module seating during cover replacement can momentarily affect power rail continuity. Similarly, the 1C31234G01 rack termination panel and any associated 1C31107G01 terminal blocks should be inspected for loose wiring before the cover swap proceeds.
For sites running Ovation with a 1C31025G01 or 1C31026G01 controller module, it is advisable to place the affected I/O drop in a maintenance state via the Ovation Workstation before physically accessing the rack. This prevents spurious alarms, protects the active control program from I/O scan interruptions, and allows the field technician to work safely without triggering process interlocks. After cover installation, the I/O drop should be returned to service and all module status indicators verified before releasing the loop to automatic control.
Sites that are simultaneously upgrading their communication infrastructure — for example, migrating from legacy coaxial Ovation network drops to Ethernet-based OCR400 or OCR1100 controller nodes — should treat the 1C31238H01 cover replacement as part of a broader rack standardization effort. Ensuring all rack slots are properly covered and all modules are correctly seated reduces the risk of intermittent I/O faults that can complicate the commissioning of new network nodes and confuse fault diagnostics during the migration window.
Downtime Control During System Migration
Minimizing control system downtime during a rack-level retrofit requires disciplined pre-planning and a clear sequence of work. The 1C31238H01 cover replacement is a low-risk mechanical task, but it must be coordinated with the broader outage schedule to avoid unnecessary exposure of live backplane connectors. Best practice is to batch all rack cover replacements within a single planned maintenance window, working from the bottom of the rack upward to avoid dislodging debris onto lower modules.
Before beginning work, the site engineer should export and archive the current Ovation control program from the Ovation Developer Studio workstation. This ensures that a verified backup of all function block logic, I/O assignments, module addresses, and HMI faceplates is available in the event that a module is inadvertently disturbed during the cover swap. The archived program should be stored on a separate engineering workstation and verified against the last known-good build before the outage begins.
During the cover replacement, all adjacent modules should remain seated and powered where possible. If a module must be removed to access a damaged cover or retention clip, its slot address, wiring terminations, and jumper settings should be photographed and documented before removal. Upon reinstallation, the module address should be confirmed against the Ovation I/O configuration database, and a forced I/O scan should be performed to verify that the module is communicating correctly before the loop is returned to automatic.
Post-installation, a brief functional test of all I/O points associated with the affected rack should be conducted from the Ovation Operator Workstation. Any points showing bad quality or off-scan status should be investigated before the outage window closes. This structured approach — archive, replace, verify, test — keeps the total intervention time under two hours for a standard 16-slot rack and eliminates the risk of carrying latent faults back into normal operation.
Retrofit Support FAQ
Q1: Is the 1C31238H01 a direct drop-in replacement for all Ovation I/O rack generations?
A: Yes. The 1C31238H01 is dimensionally compatible with all standard Ovation I/O rack chassis generations. No backplane modification, adapter bracket, or firmware update is required. Verify the slot width and retention clip style against your specific rack revision before ordering if your installation predates the Ovation 2.x platform.
Q2: What wiring or termination changes are needed during installation?
A: None. The 1C31238H01 is a passive mechanical cover with no electrical connections. Existing terminal wiring, module cabling, and backplane connectors are not disturbed during a standard cover replacement. If adjacent terminal blocks such as the 1C31107G01 show signs of loosening during the work, re-torque to the specified value before closing the rack.
Q3: How is outgoing unit quality verified before shipment?
A: Each 1C31238H01 unit undergoes a dimensional inspection and fit-check against a reference Ovation rack chassis prior to shipment. Units are individually bagged and labeled with the part number and inspection date. A 12-month warranty covering manufacturing defects and fit/form/function conformance is included with every unit.
Q4: What is covered under the 12-month warranty?
A: The warranty covers all manufacturing defects, dimensional non-conformance, and fit/form/function failures under normal installation and operating conditions. It does not cover damage resulting from improper installation, physical impact, or use outside the Ovation rack environment. Warranty claims are processed within 5 business days of receipt of the returned unit.
