Emerson 960177-02 Maintenance-Ready Spare for Unidrive SP Automation

Emerson 960177-02 Maintenance-Ready Spare for Unidrive SP Automation

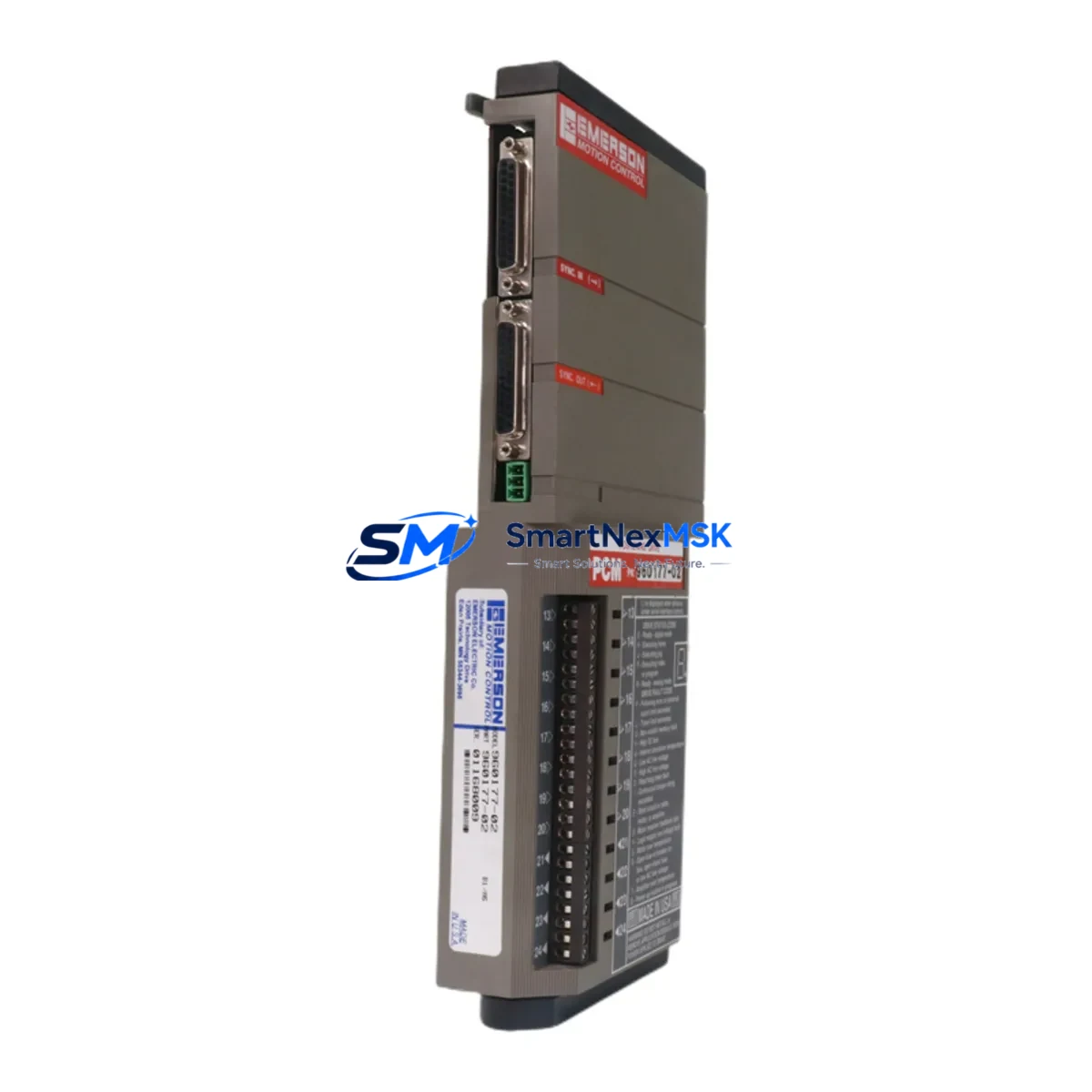

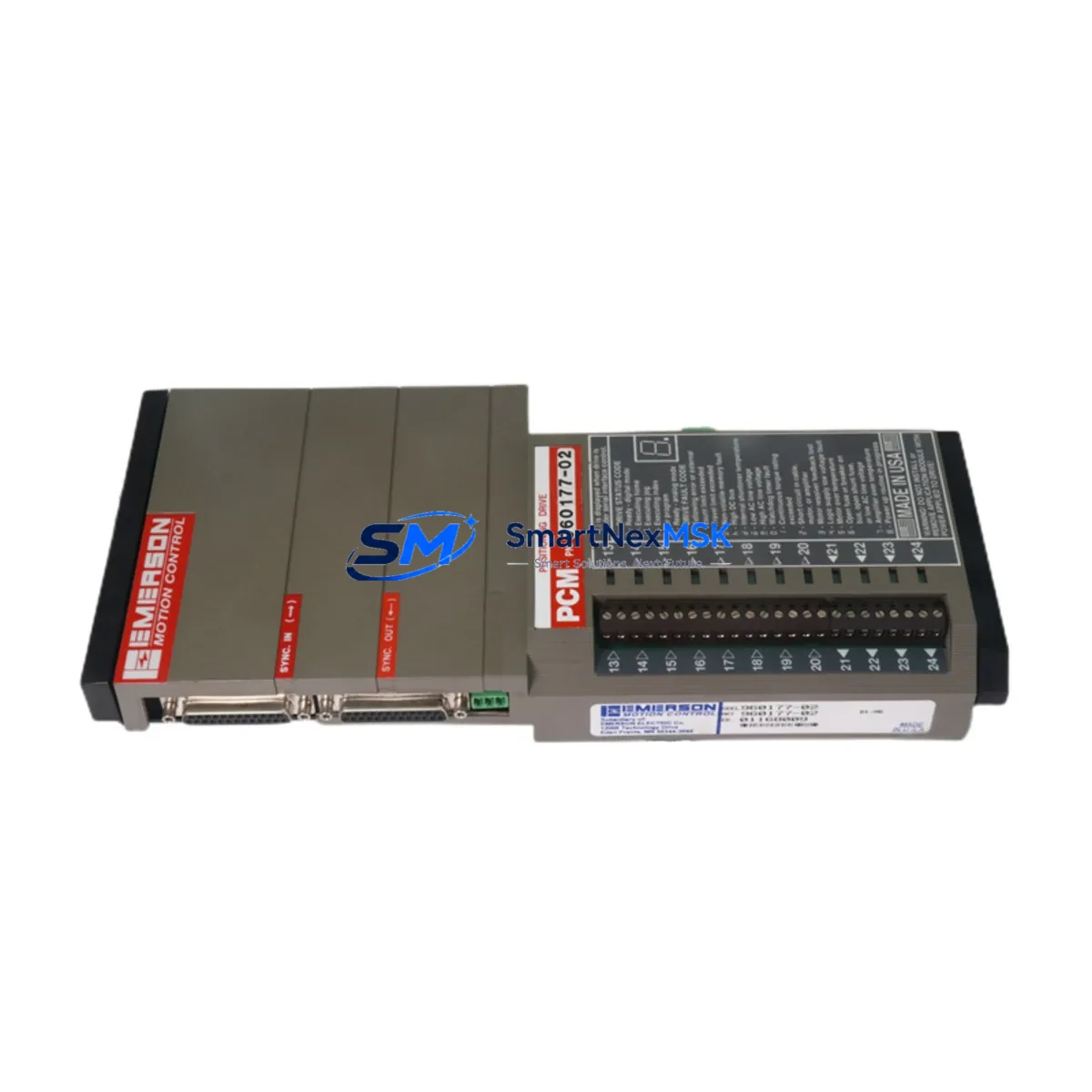

The Emerson 960177-02 is an original Positioning Option Module engineered for the Unidrive SP series variable speed drive platform. Designed to deliver precise encoder feedback, position loop closure, and motion sequencing within demanding industrial automation environments, this module is a critical spare for maintenance engineers managing continuous-process lines, CNC machine tools, winding systems, and multi-axis servo applications. Sourced directly from authorized supply channels, every 960177-02 unit shipped by SMARTNEXMSK is tested, inspected, and backed by a 12-month warranty — ensuring your replacement is production-ready from day one.

For maintenance and procurement engineers responsible for Unidrive SP-based control systems, holding a verified 960177-02 in your spare parts inventory is a proven strategy for minimizing unplanned downtime. Positioning option modules are among the highest-criticality components in closed-loop drive architectures: a failed or degraded module can halt an entire production cell within seconds. Fast access to a tested replacement eliminates the multi-week lead times associated with OEM procurement channels and keeps your mean time to repair (MTTR) within acceptable operational limits.

This module is compatible with the full Unidrive SP drive family, including SP1201, SP2201, SP3201, SP4201, and SP6401 frame sizes, and interfaces directly with the drive’s option slot architecture. It supports incremental and absolute encoder inputs, SinCos feedback, and resolver interfaces depending on firmware configuration — making it a versatile positioning spare across mixed-encoder installations. Compatibility should always be verified against the installed drive firmware version and the encoder specification sheet before commissioning a replacement unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Unidrive SP positioning fault is logged — whether as a trip code Enc1, Enc2, or a position-loop error — the 960177-02 module is the first component to isolate and test. However, experienced maintenance engineers know that a positioning module fault rarely occurs in isolation. A systematic inspection of the surrounding electrical circuit is essential to prevent repeat failures after replacement.

Begin by verifying the encoder cable assembly and shielding integrity. Damaged or unshielded encoder cables are a leading cause of premature positioning module failure in high-EMI environments. Next, inspect the Unidrive SP power supply input — the 24 V DC control supply and the main AC input terminals — to confirm voltage stability within the drive’s rated tolerance. A degraded SM-I/O Plus or SM-I/O 32 option module installed in an adjacent slot can introduce noise that corrupts position feedback signals; these should be checked and reseated or replaced as part of the same maintenance event.

For systems using fieldbus communication, inspect the SM-Profibus, SM-DeviceNet, or SM-CANopen communication option module for loose connectors or firmware mismatches that may have contributed to a positioning command error. If the Unidrive SP is integrated into a broader PLC or DCS architecture — for example, a Siemens S7-300 or Allen-Bradley ControlLogix system — verify that the PLC output module driving the drive’s reference signal is functioning correctly and that signal isolation is maintained between the PLC analog output and the drive input.

Terminal block condition is frequently overlooked during drive maintenance. Inspect the control wiring terminal strip for loose connections, oxidized contacts, or undersized conductors, particularly on the encoder power supply pins (typically +5 V or +15 V depending on encoder type). A faulty SM-Resolver interface or a degraded resolver excitation circuit can produce intermittent positioning errors that mimic a failed 960177-02 module. Confirm resolver or encoder supply voltage at the module connector before condemning the module itself.

For installations where the Unidrive SP drives a safety-critical axis, also verify the status of any SM-Safety option module and associated safety relay outputs. A nuisance trip from the safety circuit can mask an underlying positioning module issue and delay accurate fault diagnosis. Maintaining a documented spare parts kit that includes the 960177-02, a spare SM-I/O module, encoder cable assemblies, and a set of control terminal fuses will reduce your average repair time from hours to minutes.

Site Replacement Workflow

Replacing the 960177-02 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Begin by recording the existing drive parameter set using the Unidrive SP keypad or Control Techniques’ Connect software — this ensures that positioning parameters, encoder resolution settings, and motion profile data are preserved across the module swap.

Power down the drive and isolate the AC supply in accordance with your site’s lockout/tagout (LOTO) procedure. Allow the DC bus capacitors to discharge fully — typically 10 minutes after power removal — before opening the drive enclosure. Remove the faulty 960177-02 from its option slot by releasing the retention clip and disconnecting the encoder cable connector. Insert the replacement module, ensuring the option slot connector is fully seated and the retention clip is engaged. Reconnect the encoder cable, verifying pin-out against the Unidrive SP option module wiring diagram.

On power-up, navigate to the drive’s option module parameter group and confirm that the 960177-02 is recognized by the drive firmware. Re-enter or restore any positioning-specific parameters (position loop gain, encoder lines per revolution, reference source selection) and perform a low-speed jog test before returning the axis to full production speed. This systematic approach eliminates the risk of re-tripping on a parameter mismatch and ensures the replacement module is fully commissioned before the machine is handed back to operations.

For legacy Unidrive SP installations where the original drive firmware is no longer supported, SMARTNEXMSK can advise on compatible firmware versions and cross-reference the 960177-02 against current Nidec (formerly Control Techniques) spare part numbers to confirm ongoing availability. Long-term supply continuity is a core part of our service commitment to industrial maintenance teams managing aging automation infrastructure.

Spare Parts Support FAQ

Q1: Is the Emerson 960177-02 still available as a new original spare, or only as a refurbished unit?
The 960177-02 units supplied by SMARTNEXMSK are original OEM-grade components sourced through authorized industrial supply channels. Each unit undergoes functional testing prior to shipment. Where new stock is available, it is supplied as new; where stock is sourced from verified surplus, it is clearly identified and tested to the same standard. All units carry a 12-month warranty regardless of stock origin.

Q2: How do I confirm compatibility between the 960177-02 and my installed Unidrive SP drive firmware version?
Compatibility is determined by the drive’s option module firmware matrix, which is documented in the Unidrive SP option module user guide (Nidec/Control Techniques publication). As a general rule, the 960177-02 is compatible with Unidrive SP drives running firmware V01.06.00 and above. If you are unsure of your drive’s firmware version, navigate to parameter Pr 11.29 on the drive keypad. Contact our technical team with your drive serial number and firmware version for a definitive compatibility confirmation before ordering.

Q3: What pre-shipment checks are performed on the 960177-02 before dispatch?
Every 960177-02 unit is subject to a pre-shipment inspection protocol that includes visual inspection for physical damage, connector integrity check, and a functional bench test using a compatible Unidrive SP test rig. Units that fail any stage of the inspection are quarantined and not dispatched. A test report is available on request for critical applications requiring documented traceability.

Q4: What is the recommended spare parts inventory strategy for a plant running multiple Unidrive SP drives?
For plants operating five or more Unidrive SP drives, we recommend holding a minimum of one 960177-02 positioning module per ten installed drives, alongside at least one spare SM-I/O option module, a set of encoder cable assemblies, and a spare 24 V DC control supply unit. This inventory profile covers the most common failure modes and supports a same-shift repair capability for the majority of Unidrive SP positioning faults. SMARTNEXMSK offers volume pricing and reserved stock agreements for maintenance teams requiring guaranteed availability.
