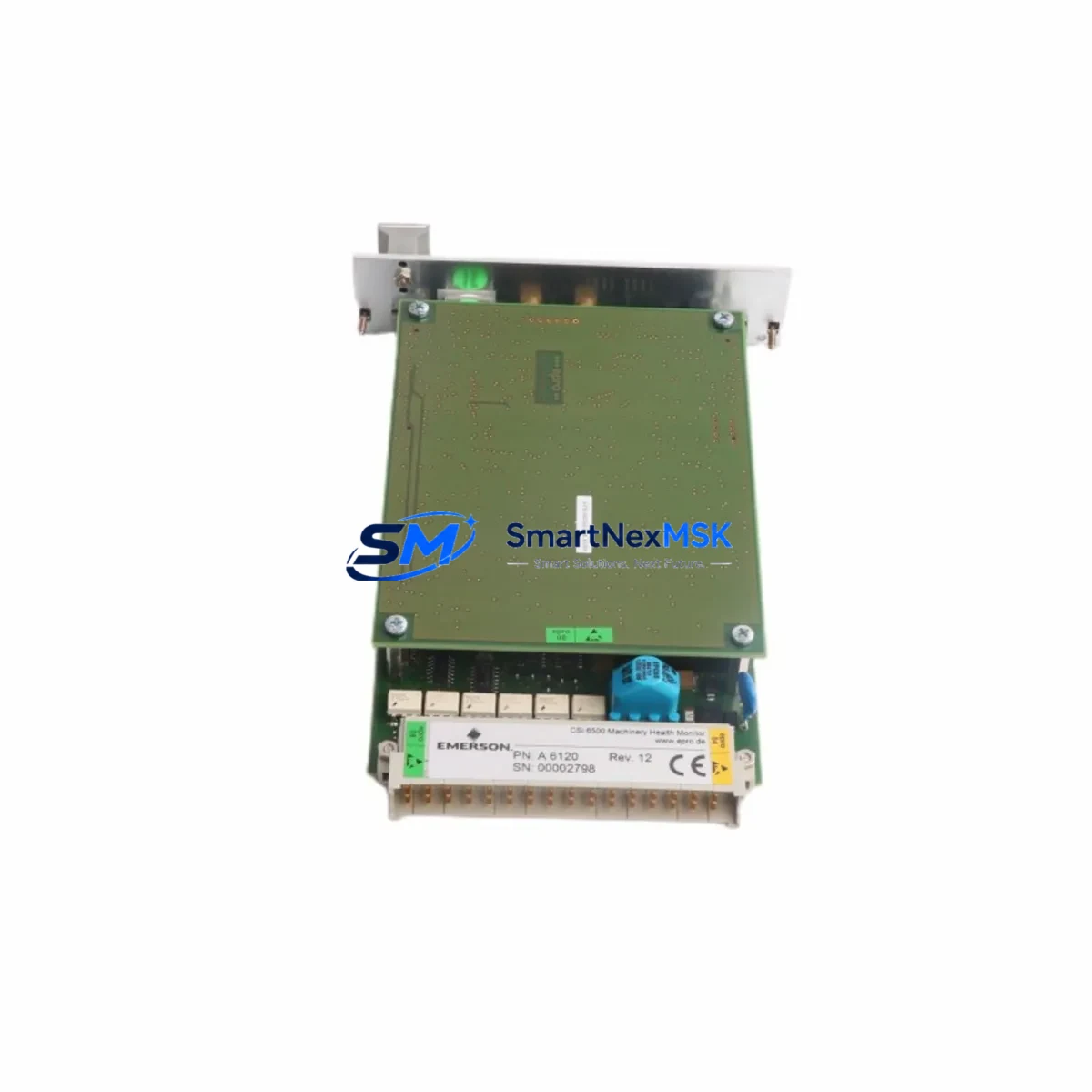

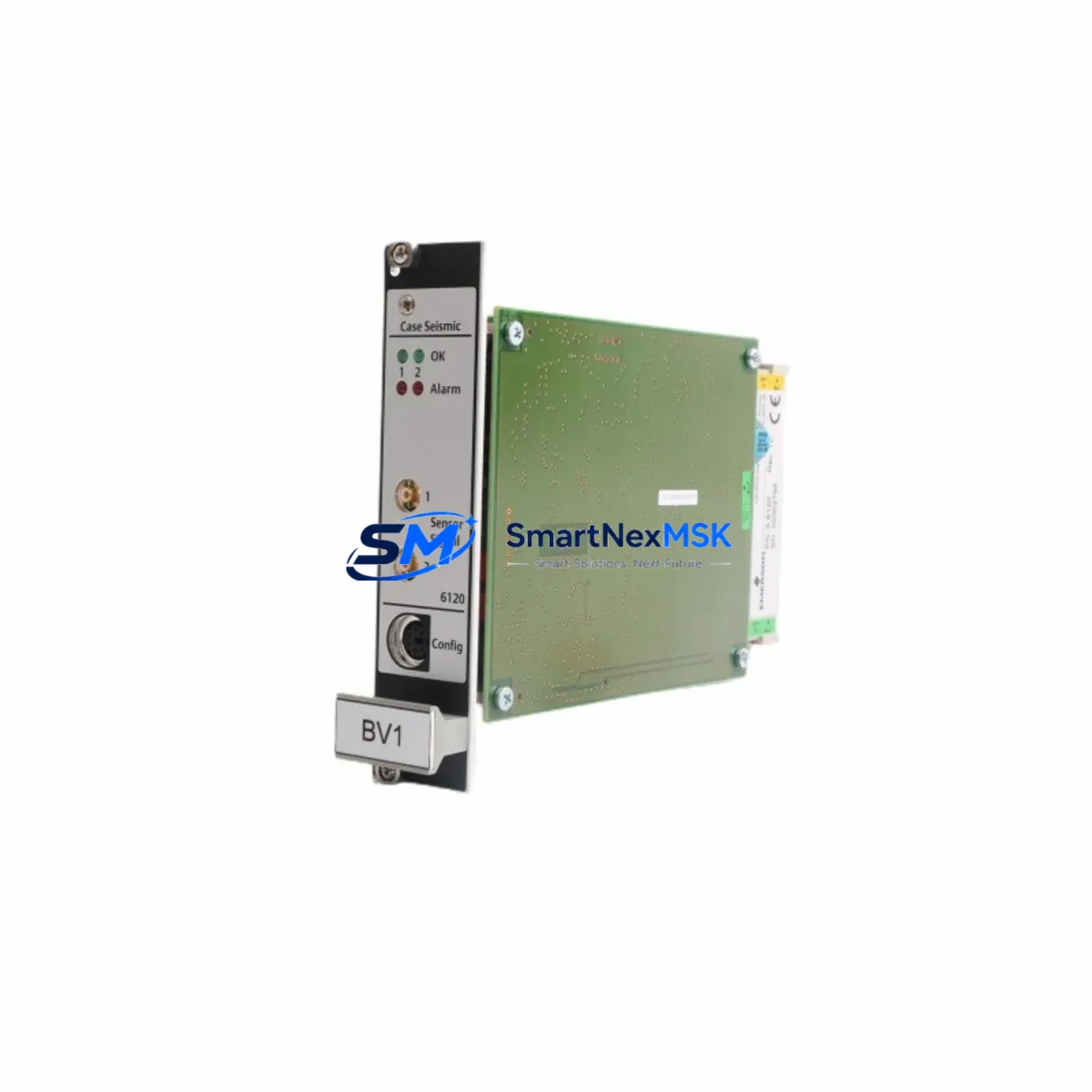

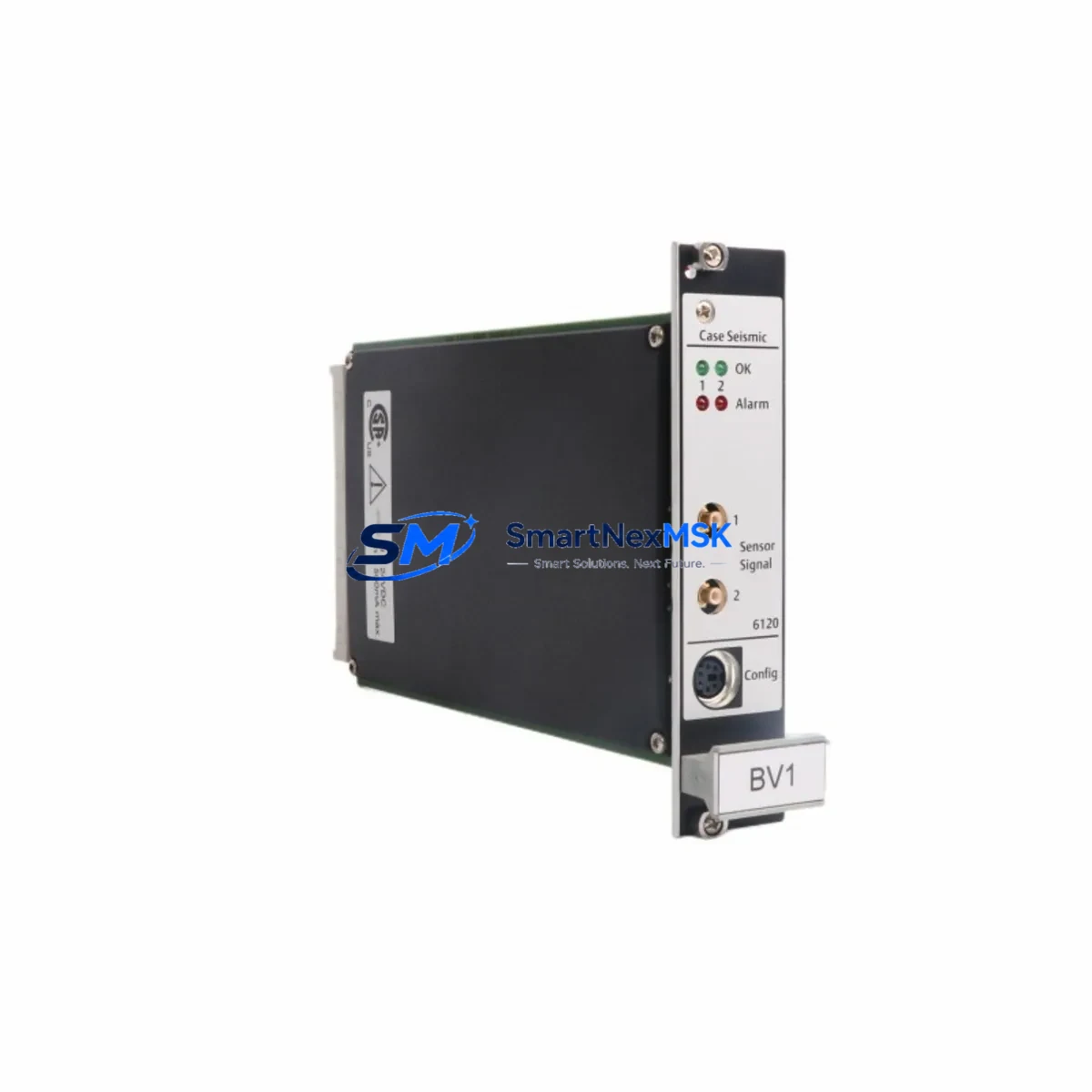

EMERSON A6120 Maintenance-Ready Spare for CSI 6000 Automation
The EMERSON A6120 is a critical vibration monitoring module designed for the CSI 6000 Series continuous machinery protection and condition monitoring platform. For maintenance engineers managing rotating equipment — compressors, turbines, pumps, and motors — the A6120 represents a front-line defense against unplanned downtime. Whether you are executing a planned shutdown, responding to a fault alarm, or building a strategic spare parts inventory, having a verified original A6120 on hand is essential to restoring system integrity quickly and confidently.
The CSI 6000 platform is widely deployed in oil and gas, petrochemical, power generation, and heavy manufacturing facilities. When an A6120 module fails or degrades, the entire vibration monitoring loop for that channel is compromised — leaving critical machinery unprotected. Fast access to a tested, original replacement module is not a convenience; it is a plant reliability requirement.
Each A6120 unit supplied by SMARTNEXMSK is sourced from authorized channels, inspected prior to dispatch, and covered by a 12-month warranty. We support both emergency replacement orders and planned procurement cycles, with stock available for immediate shipment.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | A6120 |
| Brand | EMERSON |
| Series | CSI 6000 |
| Module Type | Vibration Monitoring Module |
| Application | Continuous machinery protection, predictive maintenance, condition monitoring |
| Compatible Platform | EMERSON CSI 6000 Series machinery health monitor |
| Input Signal | Accelerometer / velocity / proximity probe (channel-dependent) |
| Installation | Rack-mount, CSI 6000 backplane compatible |
| Operating Environment | Industrial — suitable for control room and field enclosure installation |
| Origin | USA |
| Condition | Original, new or tested-serviceable |
| Pre-shipment Test | Function verified before dispatch |
| Warranty | 12 Months |
| Lead Time | In stock — ships within 1–3 business days |
| Maintenance Recommendation | Replace at first sign of channel fault, signal drift, or alarm inhibit failure |
Maintenance Planning for Continuous Operation
When a CSI 6000 system flags a channel fault or a vibration alarm is inhibited unexpectedly, the A6120 module is typically the first component to inspect and swap. However, experienced maintenance engineers know that a module failure rarely occurs in isolation. A thorough site inspection should extend to the surrounding system components to prevent repeat failures and ensure the monitoring loop is fully restored.
Begin by verifying the CSI 6000 power supply module — an unstable or under-voltage rack power supply can cause intermittent module resets and false channel faults that mimic A6120 hardware failure. Next, inspect the CSI 6000 backplane and rack chassis for corrosion, loose card-edge contacts, or mechanical damage that could interrupt signal continuity between the A6120 and the system processor.
Check all field wiring and terminal blocks connected to the A6120 input channels. Loose terminations, corroded lugs, or damaged shielded cable can introduce noise that degrades vibration signal quality even after a module replacement. If the system uses proximity probe drivers (Bently Nevada-compatible or EMERSON-standard), verify that the driver output voltage and gap voltage are within specification — a failed driver will produce a fault condition regardless of module condition.
For facilities running the CSI 6000 alongside a broader DCS or safety system, confirm that the 4–20 mA analog output signals from the A6120 are being received correctly at the DCS input cards. A failed analog output on the module — or a failed DCS input channel — can create ambiguity about where the fault originates. Similarly, if the CSI 6000 communicates via Modbus RTU or OPC to a SCADA or historian, verify communication integrity after module replacement to ensure vibration data is flowing correctly to the control room.
During planned shutdowns, it is good practice to also inspect and function-test the CSI 6000 display and operator interface unit, any relay output modules used for machinery trip or alarm annunciation, and the system configuration software backup — ensuring that channel configuration, alarm setpoints, and trip levels are preserved and can be restored quickly if a module swap requires reconfiguration.
For older CSI 6000 installations approaching end-of-support, maintaining a minimum spare inventory of one A6120 per critical machinery train — alongside a spare power supply and a spare relay output module — is a recognized best practice for extending system life and avoiding costly platform migrations.
Site Replacement Workflow
Step 1 — Isolate and document: Before removing the A6120, record the current channel configuration, alarm setpoints, and any active alarms. Use the CSI 6000 configuration software to export the channel setup if possible. Inhibit the affected channel at the system level to prevent spurious trips during the swap.
Step 2 — Physical replacement: Power down the rack or follow the hot-swap procedure if supported by your firmware version. Remove the faulty A6120 by releasing the card latch and sliding the module out of the backplane slot. Insert the replacement A6120, ensuring full card-edge engagement. Restore power and observe the module status LED for normal initialization.
Step 3 — Configuration restore: Re-enter or restore the channel configuration — input type, engineering units, alarm thresholds, and output scaling. Verify that the module is communicating correctly with the CSI 6000 processor and that vibration data is displaying correctly on the operator interface.
Step 4 — Loop verification: Apply a known reference signal or use the system’s built-in self-test function to verify end-to-end signal integrity from the field sensor through the A6120 to the DCS or SCADA output. Confirm alarm relay operation if applicable.
Step 5 — Return to service: Remove channel inhibit, document the replacement in the maintenance management system (CMMS), and update the spare parts inventory record. Tag the removed module for evaluation or return-to-vendor assessment.
This workflow minimizes machinery exposure time and ensures the replacement module is fully verified before the equipment is returned to monitored operation — reducing the risk of a second unplanned event.
Spare Parts Support FAQ
Q: Is the A6120 supplied by SMARTNEXMSK an original EMERSON part?
A: Yes. All A6120 units are original EMERSON components sourced from authorized supply channels. Each unit is inspected and function-tested prior to shipment. A certificate of conformity is available upon request.
Q: What is the warranty coverage and what does it include?
A: Every A6120 is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. We provide replacement or full refund for any unit that fails within the warranty period, subject to inspection.
Q: Can the A6120 replace older or discontinued CSI 6000 module variants?
A: The A6120 is designed for the CSI 6000 platform and is compatible with standard CSI 6000 rack configurations. For cross-compatibility with specific legacy variants or firmware versions, please contact our technical team with your system serial number and current firmware revision before ordering.
Q: How quickly can you ship, and do you support emergency procurement?
A: Stock units ship within 1–3 business days under standard lead times. For emergency plant-down situations, contact us directly at sales@smartnexmsk.com or +86 18259474341 to discuss priority dispatch options. We maintain buffer stock specifically to support unplanned outage recovery.
