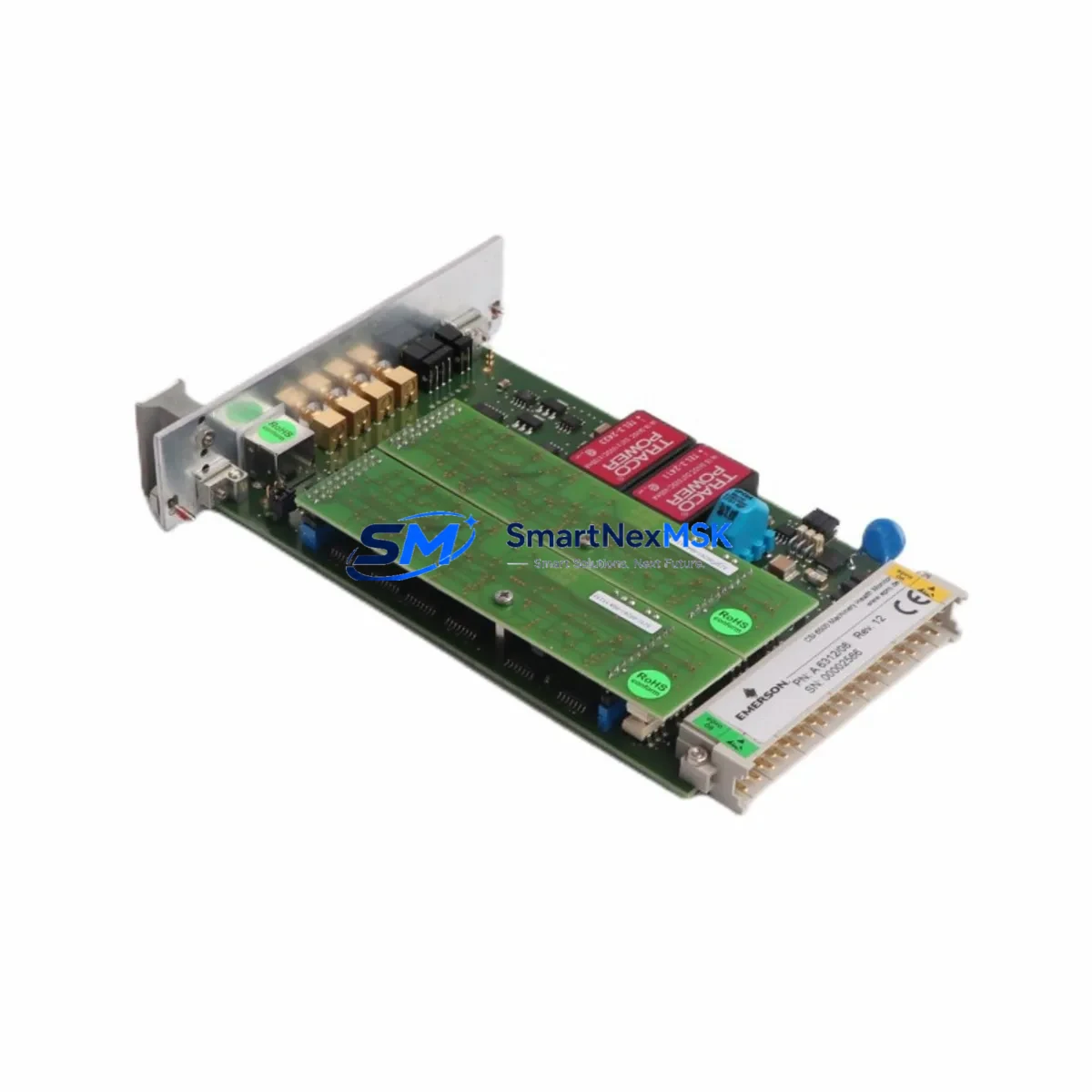

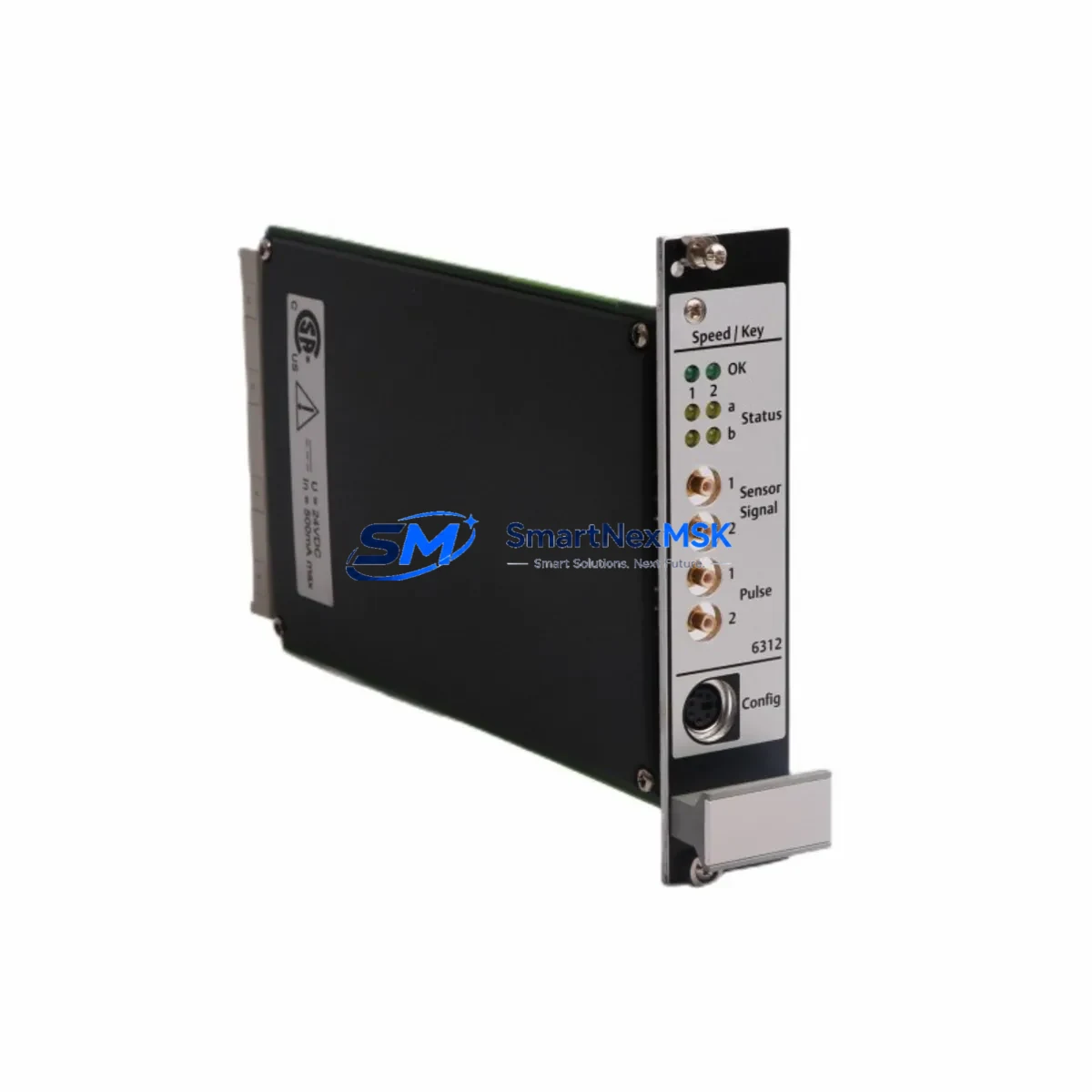

Emerson A6312/06 Retrofit-Ready Speed Key Module for Ovation DCS: Compatible Modernization & Smooth Legacy System Upgrade
The Emerson A6312/06 is a Speed Key Module designed for the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely deployed process control architectures in power generation, water treatment, and continuous manufacturing facilities worldwide. As original Ovation hardware reaches end-of-life and spare parts become increasingly scarce, the A6312/06 serves as a critical retrofit component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full platform migration.
SMARTNEXMSK maintains verified stock of the A6312/06 with full functional testing prior to shipment. Each unit is covered by a 12-month warranty and ships with documentation to support installation, commissioning, and integration into existing Ovation controller cabinets.
Upgrade Compatibility Table
| Parameter | A6312/06 Specification | Retrofit Notes |
|---|---|---|
| Module Type | Speed Key Module | Direct replacement for legacy Ovation speed key positions |
| Platform Compatibility | Emerson Ovation DCS | Compatible with Ovation 3.x and select 2.x controller revisions |
| Backplane Interface | Ovation standard I/O backplane | Verify backplane revision before installation; no adapter required for standard racks |
| Communication Protocol | Ovation proprietary network | No protocol conversion required; native Ovation network compatible |
| Installation Format | Modular card, DIN-rail compatible rack | Fits standard Ovation I/O rack; confirm slot assignment in controller configuration |
| Power Requirement | Supplied via backplane (24 VDC typical) | Verify power supply module (e.g., Ovation PS module) capacity before adding modules |
| Commissioning | Ovation Developer Studio configuration | Module address assignment required; verify I/O map and tag database before go-live |
| Replacement Path | Drop-in for discontinued A6312 variants | Confirm firmware revision compatibility with site controller version |
| Warranty | 12-Month Warranty — functional test certificate included with each shipment | |
Retrofit Planning for Existing Automation Systems
Replacing the A6312/06 in an operating Ovation DCS environment requires careful pre-engineering to avoid unplanned downtime and configuration errors. The retrofit process typically begins with a full audit of the existing I/O rack layout, including the Ovation I/O rack chassis, backplane revision, and the current slot assignments of adjacent modules such as analog input cards, digital output modules, and communication interface cards.
Before physical installation, engineers should document the existing terminal wiring on the A6312/06’s field termination assembly. Many Ovation installations use marshalling panels or dedicated termination boards that connect to the module via pre-wired cables — these connections must be verified against the new module’s terminal map to confirm pin-for-pin compatibility. In cases where the termination assembly differs between the legacy unit and the replacement A6312/06, a wiring adapter or re-termination may be required.
Power budget verification is a frequently overlooked step. The Ovation power supply module serving the affected rack must have sufficient headroom to support the A6312/06 alongside other installed cards, including any recently added Ovation communication modules or expanded I/O cards. If the rack is near its power capacity, a supplemental power supply module may need to be installed in parallel before the retrofit proceeds.
Module address configuration is performed through Ovation Developer Studio. The replacement A6312/06 must be assigned the same module address and I/O tag references as the unit it replaces. Failure to match the address configuration will result in the Ovation controller reporting a hardware fault and may trigger process alarms or safety interlocks. It is strongly recommended to export and archive the current controller configuration before beginning any hardware swap.
For facilities running HMI displays built on Emerson’s Ovation Operator Station, the tag database and graphic faceplates associated with the speed key function should be reviewed to confirm that display bindings remain valid after the module swap. In some cases, older HMI screens reference hardware-specific tag paths that may need to be updated if the replacement module uses a revised firmware addressing scheme.
Communication link integrity should be verified after installation. The Ovation network connecting the controller to the I/O modules uses a deterministic, proprietary protocol — any disruption to the network topology caused by incorrect module seating or backplane connector wear can result in intermittent communication faults. A network diagnostic scan using the Ovation system tools is recommended as part of the post-installation commissioning checklist.
In multi-drop Ovation architectures where the A6312/06 operates alongside Ovation remote I/O nodes, the retrofit plan should also account for the impact on the remote I/O communication chain. Replacing a module in a shared rack may temporarily interrupt communication to downstream remote I/O stations if the rack power is cycled during installation.
Downtime Control During System Migration
Minimizing production downtime during an A6312/06 replacement requires a structured migration plan that preserves the original control logic and field signal continuity throughout the swap window. The recommended approach is to schedule the physical module replacement during a planned maintenance window, with the Ovation controller placed in a safe hold state or with affected control loops transferred to manual mode prior to the hardware change.
Before powering down the rack, the site engineer should capture a full backup of the Ovation controller database, including all control sheets, I/O assignments, alarm configurations, and historian tag mappings. This backup serves as the recovery baseline if the replacement module requires re-commissioning or if the controller fails to recognize the new hardware on first boot.
The physical swap of the A6312/06 is typically completed in under 30 minutes for a prepared team. The critical path items are: safe de-energization of the rack slot, removal of the field termination assembly or wiring harness, insertion of the replacement module, re-connection of field wiring, and power restoration. Following power-up, the Ovation controller should automatically detect the new module if the address configuration matches. If a hardware mismatch alarm appears, the module address must be re-confirmed in Developer Studio before returning loops to automatic control.
For facilities that cannot tolerate any interruption to the speed monitoring function, a hot-standby approach using a redundant Ovation controller configuration may allow the replacement to be performed on the standby controller first, with a controlled switchover before the primary controller is taken offline for the hardware swap. This approach requires that the site’s Ovation architecture supports controller redundancy and that the redundancy switchover has been tested prior to the maintenance event.
SMARTNEXMSK ships all A6312/06 units with a pre-shipment functional test report, reducing the risk of receiving a non-functional module and extending the downtime window. Units are packaged with ESD protection and shock-resistant materials to ensure the module arrives in commissioning-ready condition.
Retrofit Support FAQ
Q1: Is the A6312/06 a direct drop-in replacement for all legacy Ovation Speed Key Module variants?
The A6312/06 is compatible with standard Ovation I/O rack positions designed for the Speed Key Module function. However, compatibility depends on the specific Ovation controller firmware version and backplane revision installed at your site. We recommend confirming your controller version and rack hardware revision before ordering. Our technical team can assist with compatibility verification based on your site’s Ovation system configuration.
Q2: What commissioning steps are required after installing the A6312/06?
After physical installation, the module must be assigned the correct module address in Ovation Developer Studio to match the replaced unit’s configuration. The I/O tag database should be verified to confirm all associated tags are correctly mapped to the new module. A functional test of the speed key input signals is recommended before returning the associated control loops to automatic mode. Terminal wiring continuity should also be confirmed using a loop check procedure.
Q3: Does the A6312/06 support the same communication protocol as the original Ovation Speed Key Module?
Yes. The A6312/06 communicates via the native Ovation I/O network protocol and does not require any protocol conversion or additional communication modules. It is designed to operate transparently within the existing Ovation network topology, including multi-drop and redundant network configurations.
Q4: What does the 12-month warranty cover, and what is included with each shipment?
Each A6312/06 unit is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Every shipment includes a pre-shipment functional test certificate confirming the module passed electrical and communication verification prior to dispatch. In the event of a warranty claim, SMARTNEXMSK provides a replacement unit or repair service with priority handling to minimize site downtime.
