EMERSON EZ1000 Maintenance-Ready Spare EZ-Series Automation

EMERSON EZ1000 Maintenance-Ready Spare for EZ-Series Automation

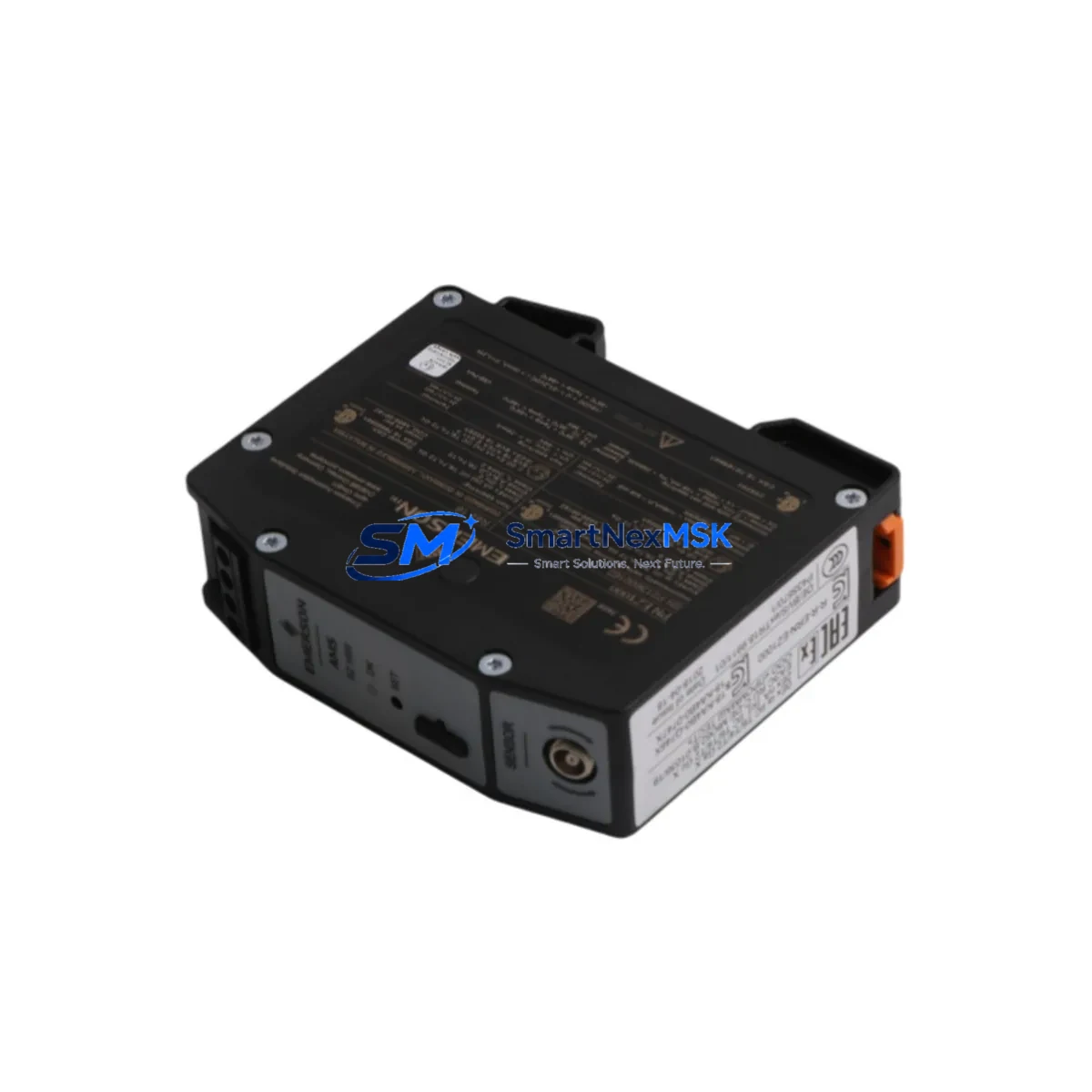

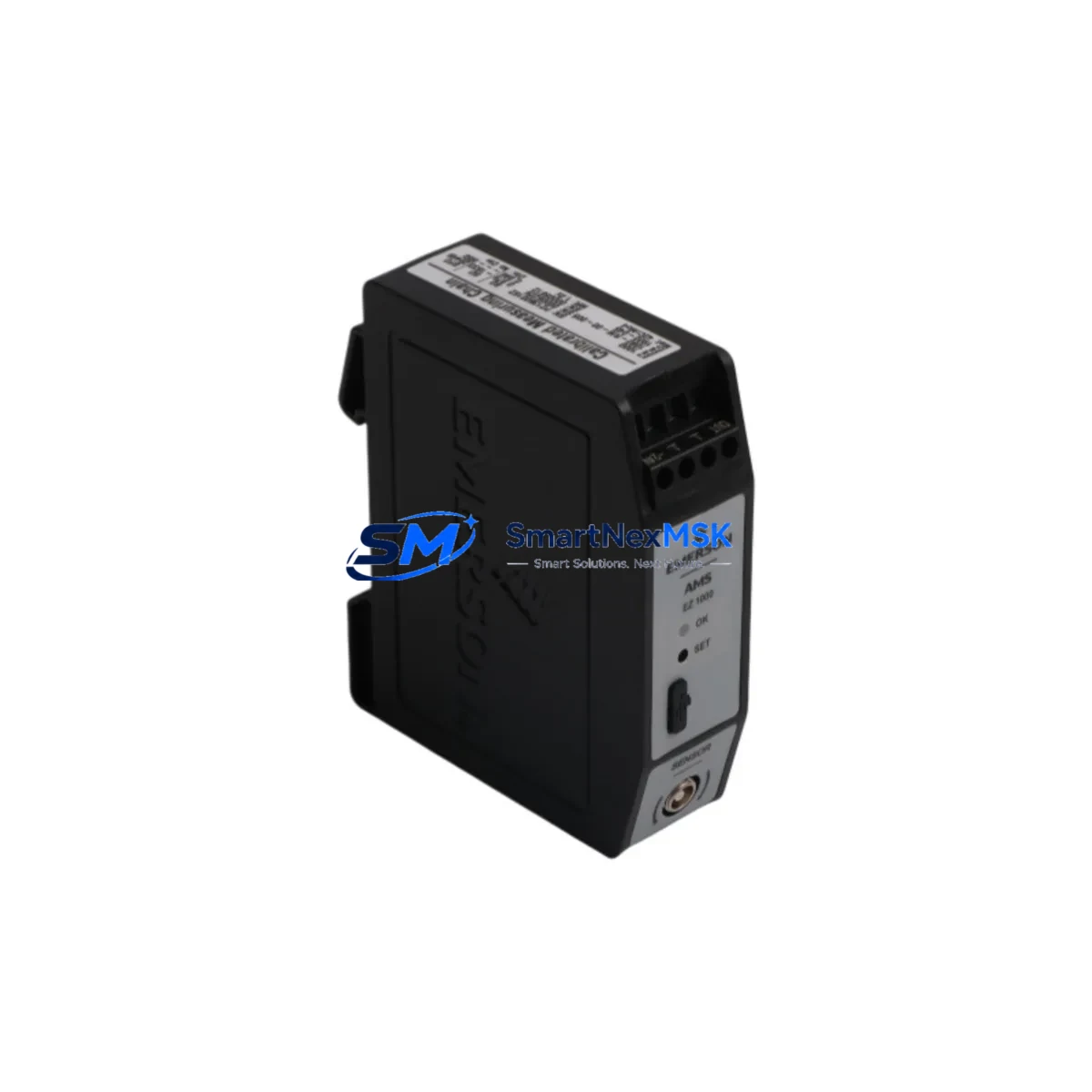

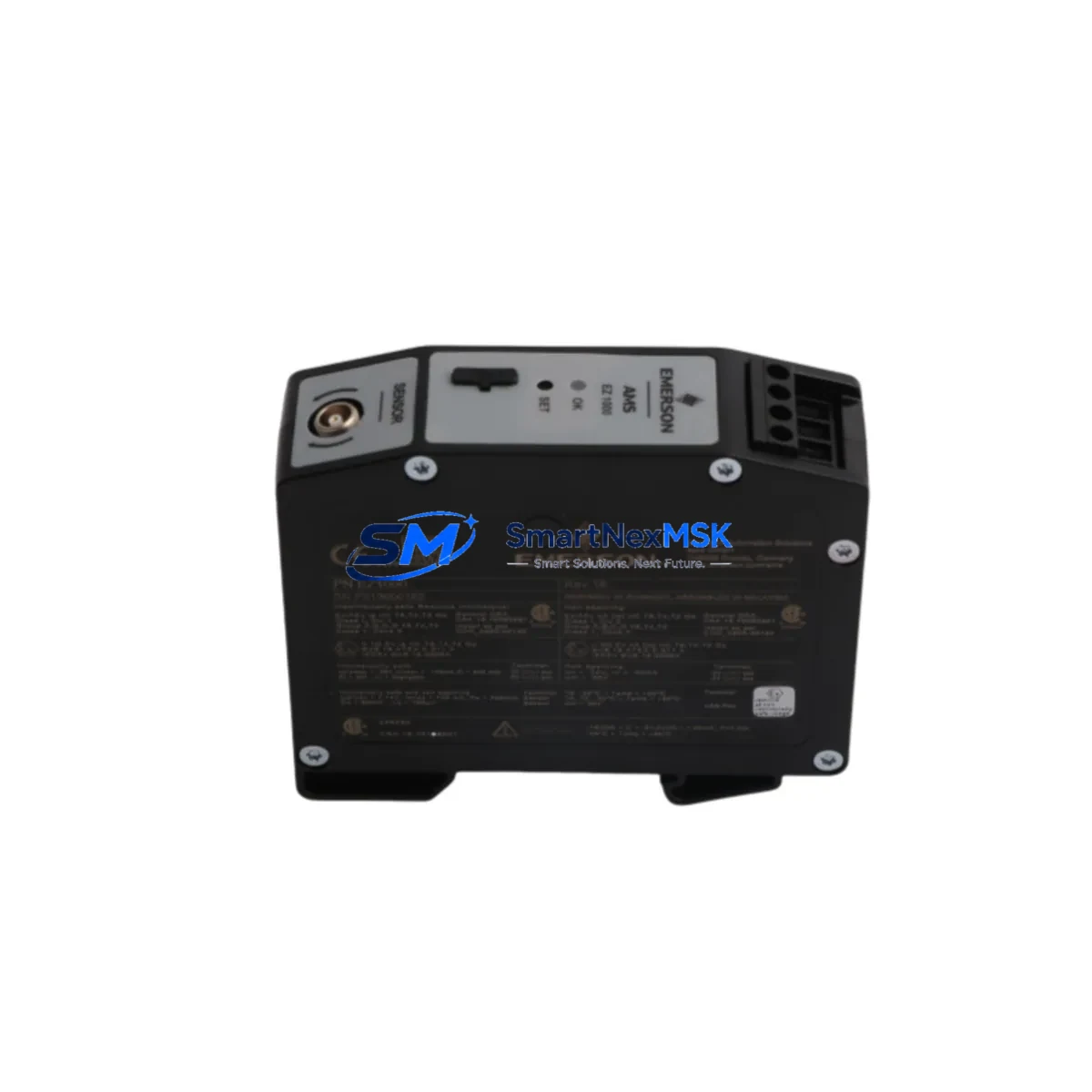

The EMERSON EZ1000 is a precision eddy current proximity probe engineered for continuous shaft vibration and position monitoring in industrial rotating machinery. As a maintenance-ready spare, the EZ1000 is a critical component in any proactive maintenance strategy for turbines, compressors, pumps, and motor-driven equipment operating under the EMERSON EZ-Series platform. Unplanned downtime caused by a failed proximity probe can cascade into costly production losses — having a verified, tested EZ1000 spare on the shelf is the single most effective way to restore system operation within minutes rather than days.

For maintenance engineers managing aging control systems or planning scheduled overhauls, the EZ1000 offers direct drop-in compatibility with standard EZ-Series mounting configurations, eliminating the need for re-engineering or recalibration of the monitoring loop. Procurement engineers will appreciate the consistent availability, factory-tested quality assurance, and 12-month warranty coverage that backs every unit shipped from our inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the EZ1000 proximity probe during a planned or emergency maintenance event, experienced maintenance engineers know that the probe itself is rarely the only component that warrants inspection. A comprehensive site review should include the following associated components to prevent repeat failures and ensure system integrity:

The EZ-Series extension cable (typically 5 m or 9 m armored coaxial) should be inspected for insulation damage, connector corrosion, and continuity — a degraded cable will produce erratic gap voltage even with a new probe installed. The EZ-Series driver/oscillator module (such as the EZ3500 or compatible driver) must be verified for correct bias voltage output, typically –18 VDC to –24 VDC, before the new probe is commissioned.

At the panel level, the EMERSON CSI 6500 or equivalent machinery protection rack should be checked for channel alarm setpoints, OK relay status, and any latched fault conditions that may mask a successful probe replacement. Terminal blocks and field wiring within the junction box should be torqued to specification and inspected for moisture ingress, particularly in outdoor or high-humidity installations.

If the EZ1000 is part of a dual-probe radial vibration channel, the companion proximity probe on the orthogonal axis should be gap-checked and its output compared against baseline trend data. For axial position monitoring applications, the thrust bearing temperature sensor (RTD or thermocouple) should be cross-referenced to confirm that axial displacement readings are consistent with thermal behavior.

In DCS-integrated installations, the 4–20 mA signal isolator or barrier feeding the process historian should be tested for loop integrity. Where the EZ1000 feeds a Modbus RTU or HART-enabled condition monitoring gateway, verify that the channel address mapping and scaling factors remain intact after the replacement. Finally, review the UPS or 24 VDC power supply module serving the monitoring rack — a marginal power supply is a common root cause of intermittent probe faults that are misdiagnosed as probe failures.

Maintaining a matched spare kit — EZ1000 probe, extension cable, and driver module — in your on-site spare parts cabinet reduces mean time to repair (MTTR) for rotating machinery faults from hours to under 30 minutes.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the monitoring channel at the rack. Confirm OK relay has dropped out and alarm is acknowledged in the DCS or PLC historian.

Step 2 — Probe Removal: Loosen the locknut and unthread the EZ1000 probe from the mounting bracket. Disconnect the extension cable at the junction box. Label all connections before removal to preserve wiring polarity and channel assignment.

Step 3 — Inspection of Mounting Hardware: Inspect the probe holder, locknut, and mounting boss for thread damage or corrosion. Replace hardware if worn. Clean the probe tip target area on the shaft to remove oil film or debris that could affect gap calibration.

Step 4 — New Probe Installation: Thread the replacement EZ1000 into the mounting bracket. Set the air gap to the manufacturer-specified nominal gap (typically 1.0 mm or 1.5 mm depending on probe range). Tighten the locknut to the specified torque. Reconnect the extension cable.

Step 5 — Commissioning and Verification: Re-energize the monitoring channel. Measure driver output voltage with a calibrated multimeter. Confirm the gap voltage falls within the linear range of the probe system. Check that the OK relay energizes and the DCS channel returns to normal status. Compare live vibration readings against historical baseline to confirm correct operation before returning the machine to service.

This workflow is applicable to both planned maintenance windows and emergency replacement scenarios, and is designed to minimize total downtime while maintaining full system compatibility with the existing EZ-Series monitoring infrastructure.

Spare Parts Support FAQ

Q1: Is the EZ1000 a direct replacement for older EZ-Series proximity probes?
Yes. The EZ1000 is designed as a direct mechanical and electrical replacement within the EZ-Series platform. It maintains the same thread pitch, probe diameter, cable connector type, and sensitivity factor as the original specification, allowing installation without modification to existing mounting hardware or signal conditioning settings.

Q2: How is the EZ1000 tested before shipment?
Every EZ1000 unit undergoes functional verification prior to dispatch, including output voltage linearity check across the specified gap range, insulation resistance test on the probe cable, and visual inspection of the tip, connector, and housing. A test report is available upon request for critical applications.

Q3: What is the recommended spare parts stocking strategy for the EZ1000?
For facilities operating two or more machines with EZ-Series monitoring, we recommend maintaining a minimum of two EZ1000 probes, one matched extension cable, and one spare driver module in the on-site spare parts cabinet. For critical rotating equipment such as main compressors or turbines, a complete matched probe system (probe + cable + driver) should be held as a cold standby spare.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and out-of-specification output at the time of installation. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the rated temperature and voltage range. Warranty claims are processed with priority turnaround to minimize impact on your maintenance schedule.
