Emerson KC4011X1-BD1 Retrofit-Ready Terminal Block for DeltaV

Emerson KC4011X1-BD1 Retrofit-Ready Terminal Block for DeltaV Control Systems

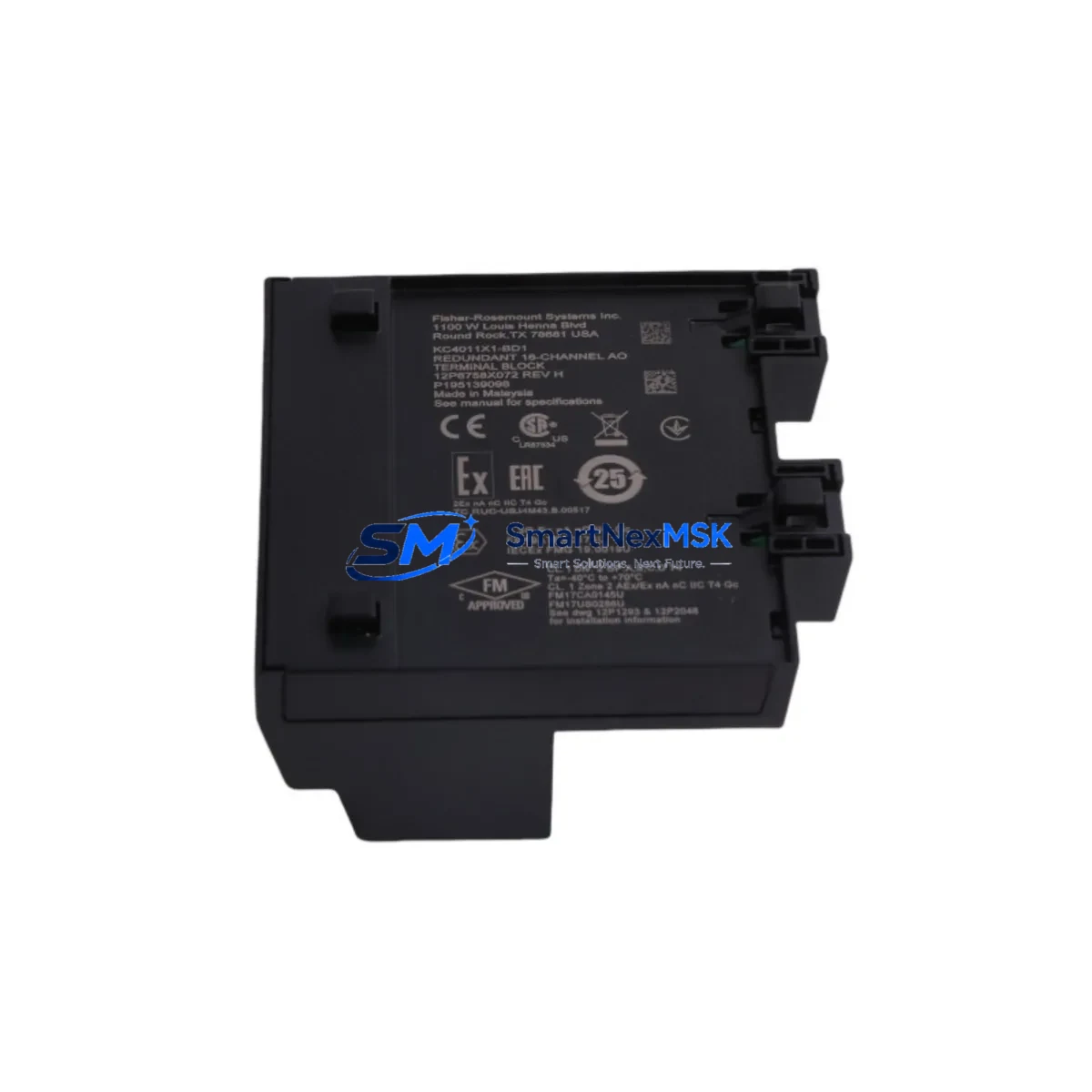

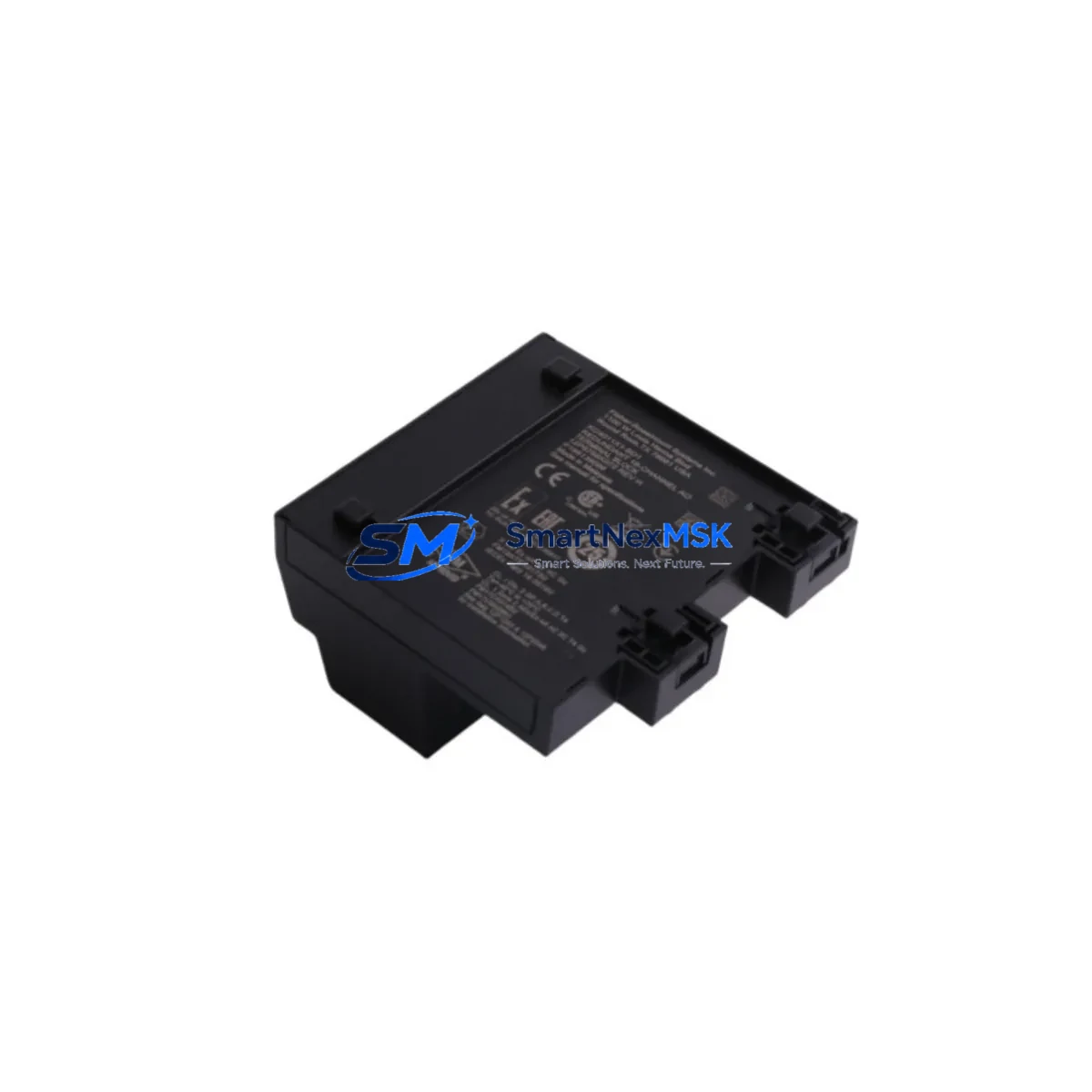

The Emerson KC4011X1-BD1 is a retrofit-ready terminal block engineered for seamless integration into Emerson DeltaV distributed control system (DCS) architectures. As legacy DeltaV installations age and OEM support windows close, plant engineers and system integrators increasingly rely on verified replacement components to sustain production continuity without committing to a full platform migration. The KC4011X1-BD1 addresses this need directly — providing a drop-in compatible terminal interface that preserves existing field wiring, backplane connections, and I/O channel assignments while enabling a controlled, low-risk upgrade path.

Whether you are replacing a failed unit on an active production line, stocking critical spares for a remote facility, or executing a phased DeltaV system modernization, the KC4011X1-BD1 delivers the dimensional accuracy, terminal pitch, and signal integrity required for reliable DCS operation. Each unit ships pre-tested and is backed by a 12-month warranty, giving procurement and maintenance teams confidence in both quality and supply continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DeltaV retrofit begins well before the maintenance window opens. When integrating the KC4011X1-BD1 into an existing control cabinet, engineers must account for the full signal chain — from field instrument through the marshalling panel, into the I/O subsystem, and up to the controller. In a typical DeltaV architecture, the terminal block interfaces directly with analog input/output cards such as the MD Plus Controller or DeltaV S-series I/O cards, which manage channel-level signal conditioning and HART communication.

Before removing the legacy terminal block, document all field wiring labels, terminal assignments, and loop numbers. Cross-reference these against the DeltaV Explorer configuration to confirm that channel-to-tag mappings remain intact after the swap. If the existing installation uses a DeltaV CHARM I/O architecture or a VE4001S2T2B4 carrier, verify that the KC4011X1-BD1 seating geometry matches the carrier slot profile — dimensional mismatches are a common source of commissioning delays in mixed-generation DeltaV cabinets.

Power budget verification is equally critical. The terminal block draws its operating power from the carrier and backplane rail; confirm that the DeltaV Power Supply module (typically a PS2 or PS6 series unit) has sufficient headroom to support the replacement module alongside co-installed I/O cards. In high-density cabinets where multiple 8-channel analog input modules or 16-channel digital output modules share a single power rail, even a marginal increase in draw can trigger nuisance trips.

Communication link integrity should be validated before and after the swap. If the control loop passes through a DeltaV Wireless I/O Gateway or a PROFIBUS DP interface module, confirm that the gateway’s device table and address assignments are preserved. For installations that include a DeltaV Operator Workstation (OWS) or a third-party HMI panel, verify that faceplate graphics and alarm setpoints remain correctly bound to the restored I/O tags following the terminal block replacement.

Finally, if the retrofit is part of a broader migration from an older Fisher PROVOX or Honeywell TDC 3000 legacy platform to DeltaV, the KC4011X1-BD1 can serve as the field-side termination point for newly installed DeltaV I/O cards, eliminating the need to re-pull field cables and significantly reducing total retrofit labor cost.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary constraint in any live-system terminal block replacement. The recommended approach is to pre-stage the KC4011X1-BD1 alongside the existing installation, perform a full visual and dimensional inspection, and confirm terminal labeling before the maintenance window begins. Where process conditions permit, place the affected control loop in manual mode at the DeltaV Operator Workstation and confirm that the downstream actuator — whether a control valve, variable frequency drive, or motor starter — is in a safe hold state.

During the physical swap, avoid disturbing adjacent terminal blocks or carrier-mounted modules. DeltaV carriers are designed for hot-swap I/O in certain configurations, but terminal block replacement typically requires a brief de-energization of the field loop. Use insulated tools, follow site lockout/tagout (LOTO) procedures, and re-torque all screw terminals to the manufacturer’s specified torque value (typically 0.5–0.6 N·m for this terminal class) to prevent intermittent contact faults after restart.

Once the KC4011X1-BD1 is seated and field wiring is reconnected, perform a point-to-point continuity check before re-energizing the loop. In DeltaV, use the Diagnostics tab in DeltaV Operate or the I/O Diagnostics tool in DeltaV Explorer to confirm that the channel is reading a valid signal. Run a full loop test — inject a known 4 mA and 20 mA signal at the field terminal and verify that the DeltaV controller registers the correct engineering-unit values. Only after a successful loop test should the control loop be returned to automatic mode. This structured commissioning sequence typically limits total downtime to under 45 minutes per channel for an experienced technician.

Retrofit Support FAQ

Q1: Is the KC4011X1-BD1 a direct drop-in replacement for the original Emerson part?
Yes. The KC4011X1-BD1 is manufactured to OEM dimensional and electrical specifications, making it a direct replacement for the original Emerson part of the same number. No modifications to the carrier, backplane, or field wiring are required for a like-for-like swap. Always cross-reference the full part number — including the suffix (BD1) — to confirm compatibility with your specific DeltaV carrier generation.

Q2: What commissioning steps are required after installation?
After seating the terminal block and reconnecting field wiring, perform a terminal torque check, a point-to-point continuity test, and a full 4–20 mA loop calibration. In DeltaV, use the I/O Diagnostics tool to confirm channel health and verify that HART device descriptors are correctly recognized. Return the loop to automatic control only after a successful end-to-end loop test.

Q3: Can this terminal block be used in a mixed DeltaV generation cabinet (e.g., S-series alongside M-series I/O)?
The KC4011X1-BD1 is compatible with DeltaV carrier types used across multiple I/O generations. However, mixed-generation cabinets may have differing carrier slot profiles. Confirm the carrier model number on-site before ordering. If you are unsure, contact our technical team with your carrier part number and DeltaV system version for a pre-order compatibility check.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, including terminal contact failure, housing cracking, and labeling defects present at the time of shipment. Dead-on-arrival (DOA) units are eligible for express replacement within 30 days of receipt. The warranty does not cover damage resulting from incorrect installation, over-torquing of terminals, or exposure to voltages outside the rated specification. All units undergo functional testing prior to shipment.
