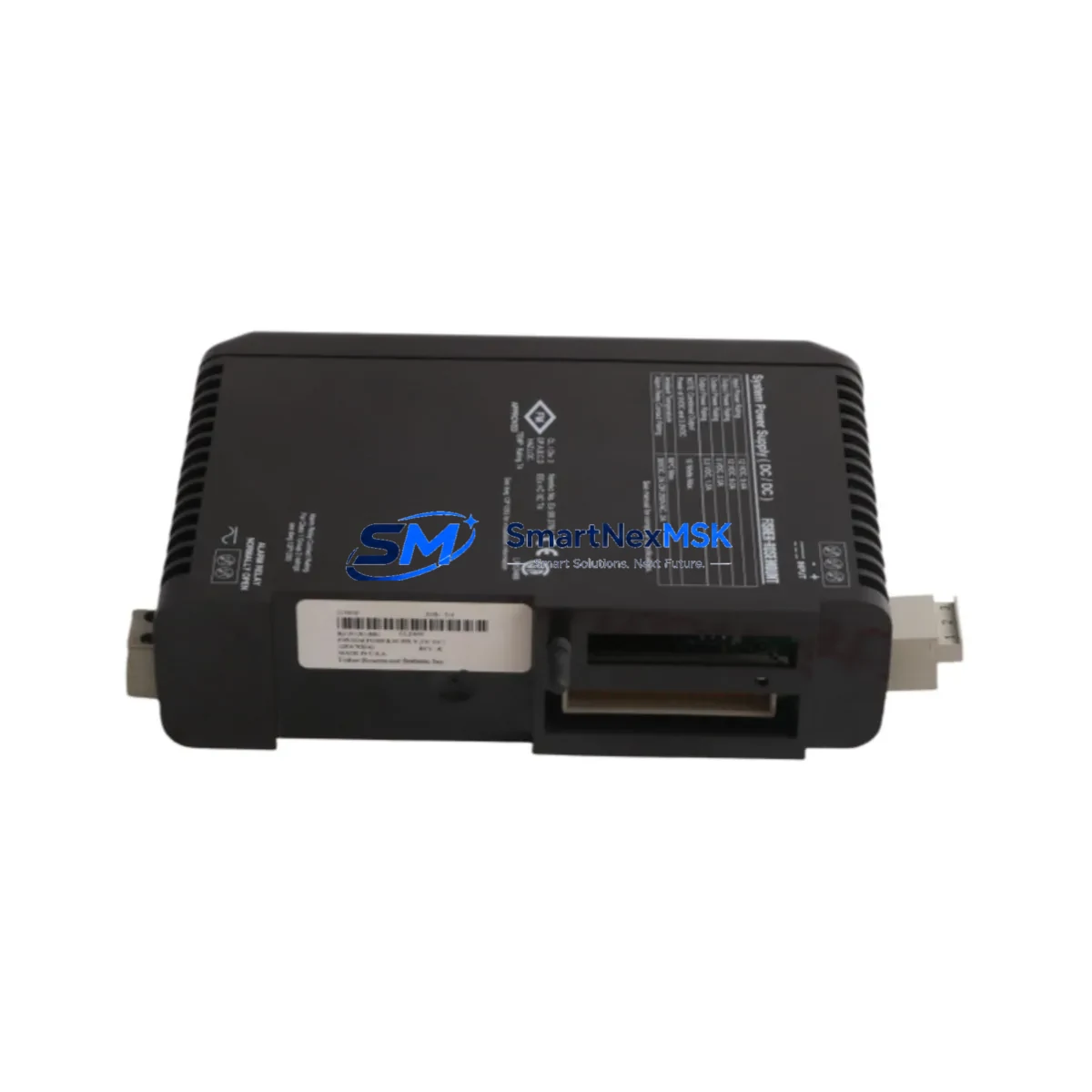

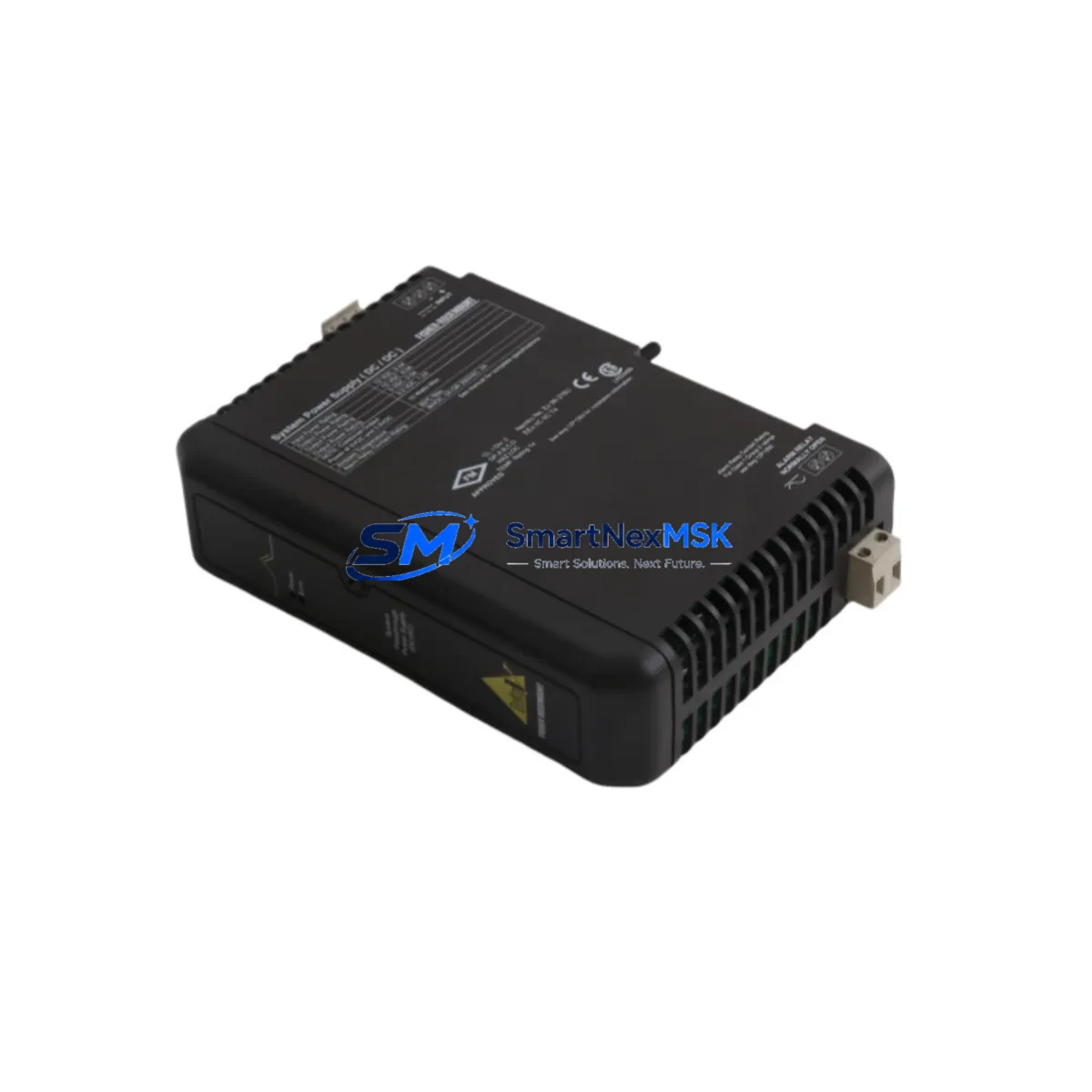

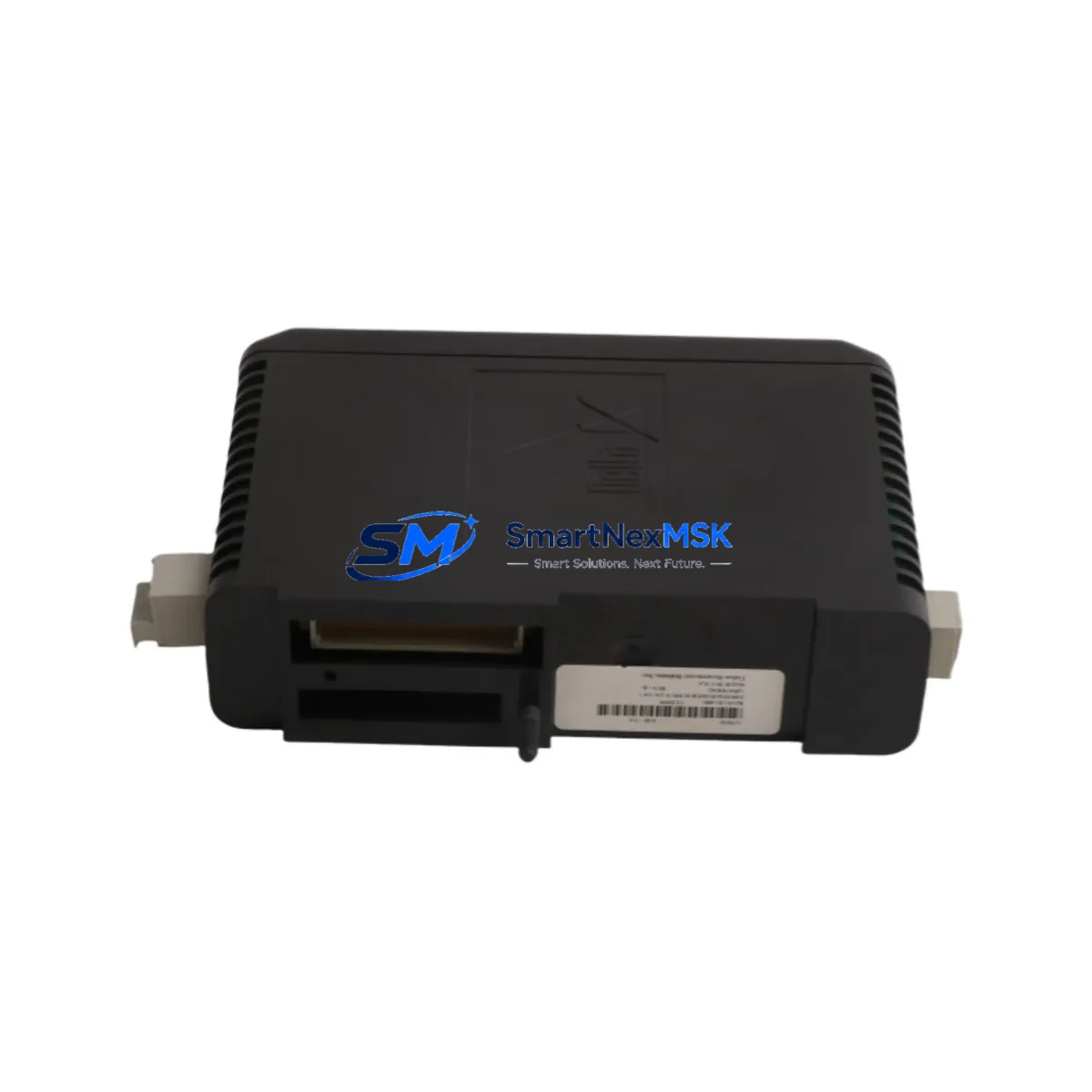

Emerson KJ1501X1-BB1 12P0678X042 Retrofit-Ready Power Supply

Emerson KJ1501X1-BB1 12P0678X042 Retrofit-Ready Power Supply for DeltaV Control Systems

The Emerson KJ1501X1-BB1 12P0678X042 is a retrofit-ready power supply module engineered for seamless integration into existing DeltaV Distributed Control System (DCS) architectures. As legacy DeltaV installations age and original spare parts become increasingly difficult to source, this module provides a verified drop-in replacement path that preserves your existing control logic, field wiring, and operator interface without requiring a full system overhaul. Whether you are managing a planned upgrade cycle or responding to an unplanned failure on a critical production line, the KJ1501X1-BB1 12P0678X042 is designed to minimize engineering risk and reduce total downtime.

This power supply module is compatible with the DeltaV S-series controller chassis and supports the standard 24 VDC backplane power distribution architecture used across a wide range of DeltaV hardware generations. Before installation, engineers should verify the existing power budget of the control cabinet, confirm terminal block wiring assignments against the original loop drawings, and check that the backplane slot assignment does not conflict with adjacent I/O modules such as the KJ3001X1-BA1 analog input card or the KJ2201X1-BA1 digital output module. Proper torque on terminal connections and correct grounding to the cabinet rail are essential steps that directly affect long-term reliability in high-vibration or high-humidity plant environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the KJ1501X1-BB1 12P0678X042 into an operational DeltaV environment requires careful pre-engineering. Begin by auditing the existing control cabinet layout to confirm available slot positions in the DeltaV S-series carrier. In many aging installations, the carrier may already host a full complement of modules including the KJ3002X1-BA1 analog output card, the KJ4001X1-BA1 HART multiplexer, and redundant controller pairs such as the MD Plus or MD Controller. Understanding the load distribution across these modules is critical before introducing a replacement power supply.

Terminal wiring should be mapped against the original as-built drawings. The KJ1501X1-BB1 12P0678X042 uses the same terminal block footprint as its predecessor, which simplifies field rewiring, but engineers must still verify wire gauge compatibility and confirm that ferrule crimping meets the plant’s electrical standards. In facilities where the DeltaV system communicates with third-party SCADA platforms via OPC DA or OPC UA, the communication link should be tested in simulation mode before the live cutover to ensure that tag mapping and data refresh rates are unaffected by the module swap.

For sites running older DeltaV versions where the KJ1501X1-BB1 12P0678X042 is replacing a failed unit in a non-redundant power configuration, it is strongly recommended to pre-stage a second unit as a cold standby. This is particularly important in continuous process industries such as refining, chemical, or power generation, where even a brief loss of DCS power can trigger a plant-wide safety shutdown. Pairing the replacement power supply with a redundant power supply chassis — such as those supported by the KJ1501X1-BC1 revision — provides an additional layer of protection during the transition period.

I/O expansion planning should also be addressed during the retrofit window. If the upgrade roadmap includes adding new measurement points — for example, integrating additional HART-enabled transmitters or expanding the fieldbus segment — this is the optimal time to install additional KJ3001X1-BA1 analog input modules or KJ2201X1-BA1 digital I/O cards into available carrier slots. Doing so during a planned outage avoids the need for a second maintenance window and reduces cumulative production impact. Programming cable connectivity, typically via the DeltaV workstation using a standard Ethernet link to the controller, should be verified before the outage begins to ensure that the DeltaV Explorer and Control Studio tools can communicate with the target controller node without interruption.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a power supply module in a live DeltaV DCS environment. The recommended approach is to perform the swap during a scheduled maintenance window, with the process placed in manual control at the field level wherever possible. Before de-energizing the affected chassis, export a full backup of the controller database using DeltaV Explorer, including all module configurations, control module logic, and alarm setpoints. This backup serves as the recovery baseline if the replacement module requires a firmware update or if the controller fails to recognize the new hardware on first boot.

During the physical swap, the sequence should follow the DeltaV hardware installation guide: remove the failed module with the chassis powered down, seat the KJ1501X1-BB1 12P0678X042 firmly into the carrier slot, and restore power in the correct sequence — backplane first, then controller, then I/O modules. After power restoration, confirm that the DeltaV controller node comes online in the expected state by checking the node status in DeltaV Operate or the system management interface. Verify that all I/O modules, including any connected KJ3001X1-BA1 analog input cards and KJ2201X1-BA1 digital output modules, are reporting correctly before releasing the process back to automatic control.

For sites where a cold standby approach is not feasible and the replacement must be performed under live conditions, coordinate with the process safety team to implement a temporary bypass or manual override on critical control loops. Document all temporary changes in the management of change (MOC) system and ensure that the original control logic is fully restored and verified before closing the work order. Maintaining a detailed commissioning checklist — covering power sequencing, I/O scan confirmation, HMI faceplate verification, and communication link status — is the most effective way to protect control continuity and demonstrate compliance with site safety standards.

Retrofit Support FAQ

Q1: Is the KJ1501X1-BB1 12P0678X042 a direct replacement for the KJ1501X1-BA1?
In most DeltaV S-series installations, the KJ1501X1-BB1 12P0678X042 is a functional replacement for the KJ1501X1-BA1 revision. However, customers should confirm the chassis hardware revision and DeltaV software version with their site engineer before ordering, as minor firmware differences may require a configuration update via DeltaV Explorer.

Q2: What pre-shipment testing is performed on this module?
Each KJ1501X1-BB1 12P0678X042 unit undergoes a functional power-on test and output voltage verification before shipment. Units are inspected for physical damage, connector integrity, and correct labeling. A 12-month warranty covering manufacturing defects is included with every unit.

Q3: Can this module be installed without taking the entire DeltaV system offline?
Power supply replacement in a non-redundant configuration requires a controlled shutdown of the affected chassis. In redundant power configurations, the failed supply can be hot-swapped without interrupting the controller or I/O modules. Always consult the DeltaV hardware installation guide and your site’s electrical safety procedures before attempting any live maintenance.

Q4: What information should I provide when requesting a compatibility confirmation?
Please provide the DeltaV system version, chassis carrier model, current power supply part number, and the list of I/O modules installed in the same carrier. This allows our technical team to confirm compatibility and advise on any wiring or configuration adjustments required for a successful retrofit.
