Emerson KJ2201X1-BA1 Spare for DeltaV SIS Automation

Emerson KJ2201X1-BA1 Spare for DeltaV SIS Automation: Spare Replacement & Industrial Downtime Risk Control

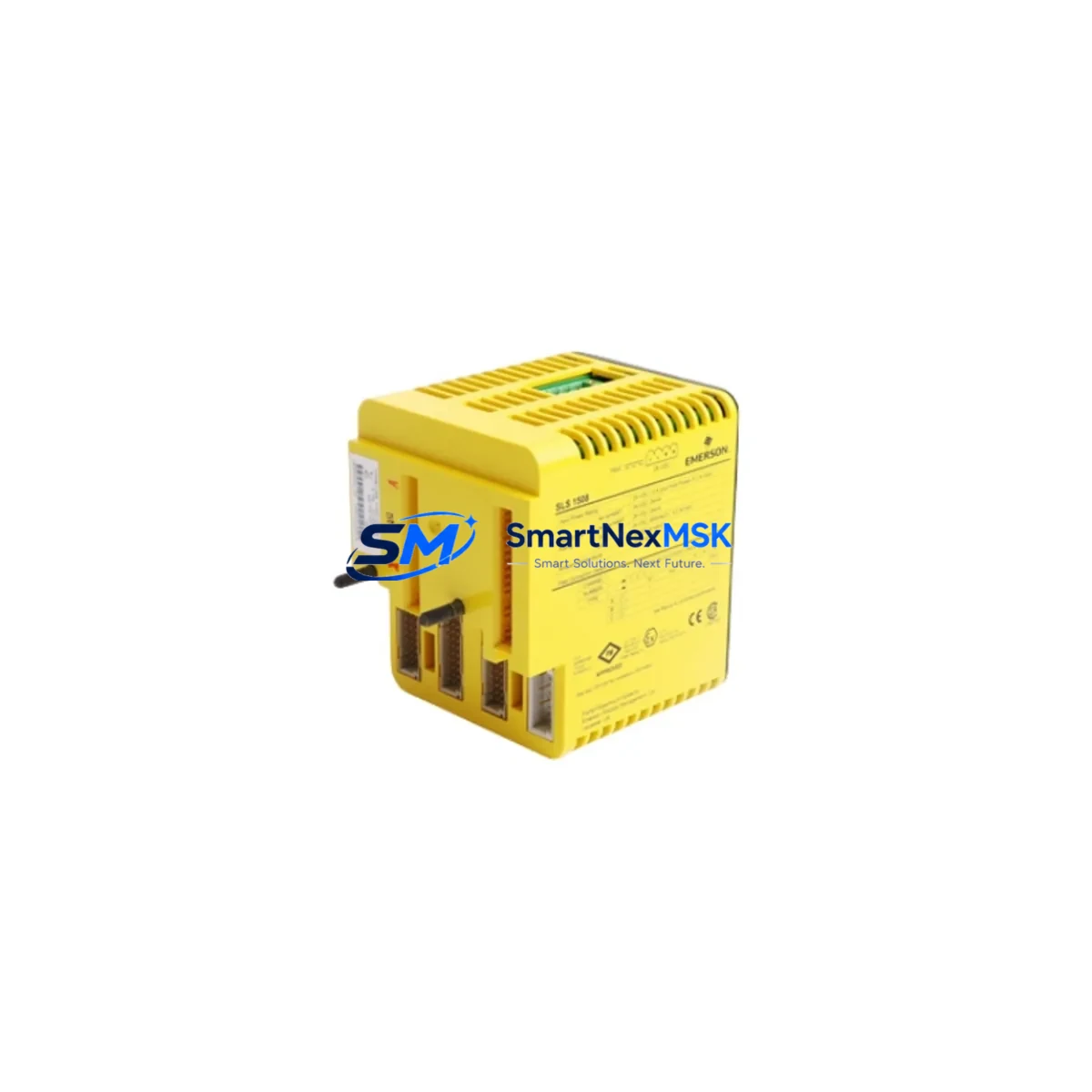

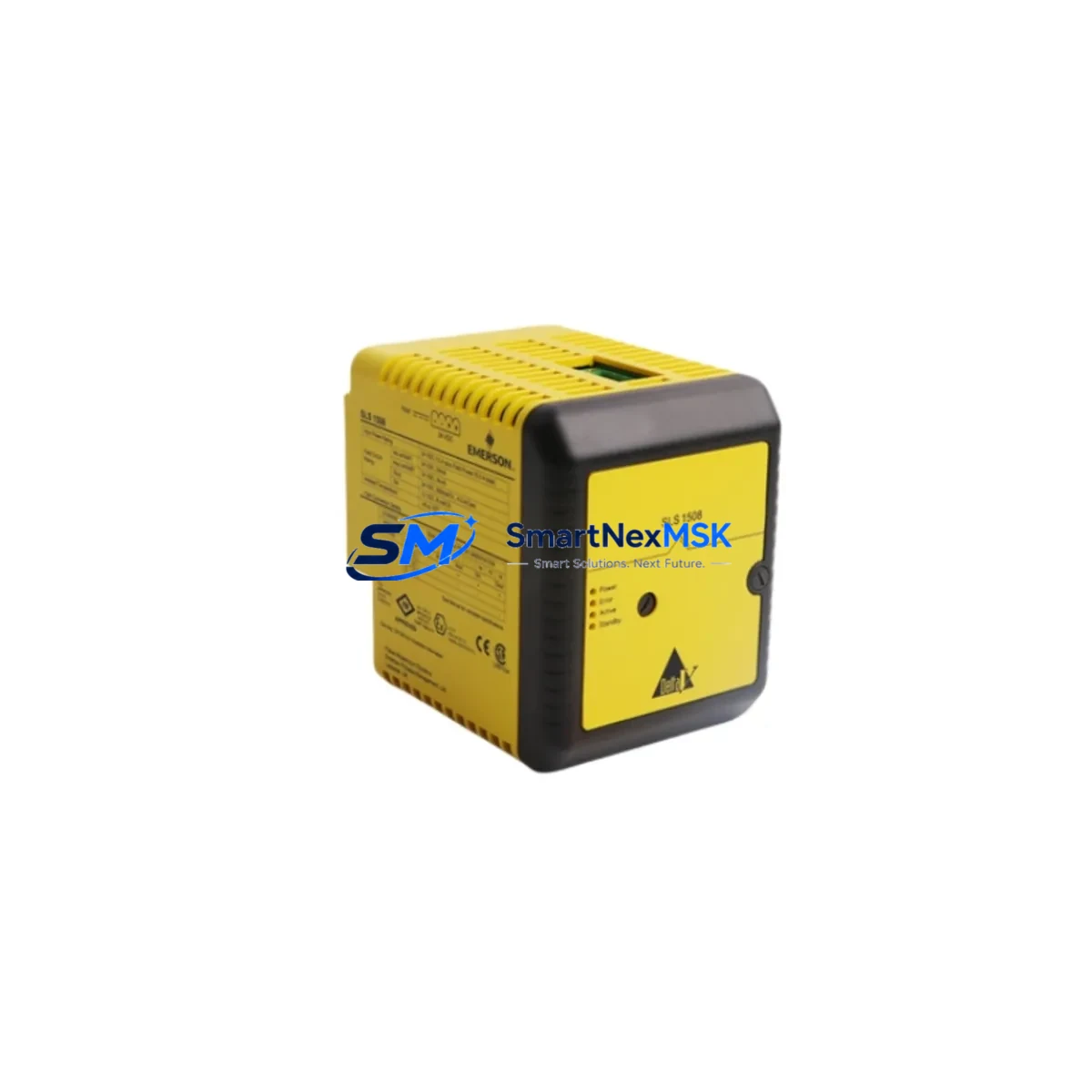

The Emerson KJ2201X1-BA1 (also referenced as 12P3162X122) is an original DeltaV SIS Safety Logic Solver module designed for safety instrumented systems in process automation environments. As a critical component in SIL-rated safety loops, this module executes safety logic, monitors field device inputs, and drives final control elements to bring processes to a safe state during abnormal conditions. Maintaining a verified spare of the KJ2201X1-BA1 is essential for any facility operating a DeltaV SIS architecture — unplanned failure of a safety logic solver can trigger extended process shutdowns, regulatory non-compliance, and costly emergency procurement delays.

This listing provides a maintenance-ready, tested spare unit sourced directly for industrial replacement use. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, supporting your site’s spare parts strategy and minimizing mean time to repair (MTTR) when a fault is detected during routine inspection or emergency response.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ2201X1-BA1 Safety Logic Solver is flagged for replacement — whether during a scheduled turnaround, a periodic proof test, or an unplanned fault event — maintenance engineers should treat the replacement as an opportunity to audit the surrounding system components. A safety logic solver does not operate in isolation: its reliability depends on the integrity of every upstream and downstream element in the safety instrumented function (SIF).

Begin with the DeltaV SIS power supply module feeding the carrier. Power quality issues — voltage sag, ripple, or intermittent supply — are a leading cause of spurious trips and premature module degradation. Inspect the power supply module’s diagnostic LEDs and verify output voltage within specification before installing the replacement KJ2201X1-BA1.

Next, inspect the DeltaV SIS I/O modules on the same carrier or adjacent carriers. Digital input modules receiving signals from field transmitters, pressure switches, or level switches should be checked for channel faults, wiring continuity, and correct termination at the terminal blocks and marshalling panels. Loose or corroded terminations at the field junction box or cabinet terminal strips are a frequent source of intermittent faults that can be misdiagnosed as logic solver failures.

For facilities using HART-enabled analog input modules alongside the SIS logic solver, verify that HART communication is functioning correctly and that field device diagnostics are being received. A faulty HART multiplexer or signal conditioner can mask developing sensor faults that the logic solver would otherwise detect.

The DeltaV SIS backplane or carrier assembly should be visually inspected for signs of heat damage, connector wear, or contamination. A degraded backplane connector can cause intermittent communication faults between the logic solver and its I/O modules, leading to nuisance alarms or, in worst cases, a failure to respond to a demand.

If the installation includes redundant logic solver configurations, confirm that the redundancy switchover mechanism is functioning correctly after installing the replacement module. Test the switchover under controlled conditions before returning the SIF to service.

For sites with aging DeltaV SIS architectures, consider simultaneously reviewing the status of DeltaV SIS communication modules that link the safety controller to the DeltaV DCS supervisory layer. Communication faults between the SIS and DCS can prevent operators from receiving timely safety system status updates. Similarly, HMI workstations running DeltaV Operate should be verified to confirm that safety system faceplates and alarm displays are updating correctly after the module swap.

Finally, review the fuse and surge protection components in the SIS cabinet. A blown fuse or a degraded transient voltage suppressor (TVS) on a field wiring circuit can cause repeated module faults if not identified and replaced before the new KJ2201X1-BA1 is commissioned. Incorporating these checks into your site’s standard replacement workflow ensures that the root cause of the original failure is addressed — not just the symptom.

Site Replacement Workflow

Replacing the KJ2201X1-BA1 in a live DeltaV SIS environment requires adherence to your site’s Management of Change (MOC) and Safety Instrumented System bypass procedures. The following workflow is provided as a general maintenance reference and should be adapted to your site-specific procedures and applicable functional safety standards (IEC 61511 / ISA 84).

Step 1 — Initiate Bypass: Place the affected SIF in bypass mode through the DeltaV SIS operator interface. Document the bypass start time and notify the relevant process safety authority. Confirm that compensating measures (e.g., increased operator monitoring, process rate reduction) are in place per your bypass management procedure.

Step 2 — De-energize and Remove: Follow your site’s lockout/tagout (LOTO) procedure for the SIS cabinet. Remove the faulty KJ2201X1-BA1 from the carrier. Label the removed module with the fault date, cabinet ID, and loop reference for root cause analysis (RCA) tracking.

Step 3 — Inspect Carrier and Connections: Before installing the replacement, inspect the carrier slot connectors, backplane, and adjacent I/O module seating. Clean any contamination and verify that all field wiring terminations are secure.

Step 4 — Install Replacement Module: Seat the new KJ2201X1-BA1 firmly into the carrier. Power up and observe the module’s diagnostic LEDs. Confirm that the DeltaV SIS controller recognizes the module and that no hardware fault alarms are present in the DeltaV Operate display.

Step 5 — Functional Verification: Perform a partial stroke test or end-to-end proof test of the SIF as required by your proof test procedure. Verify that the logic solver correctly reads field device inputs and that the final control element (e.g., shutdown valve) responds correctly to a simulated demand signal.

Step 6 — Remove Bypass and Return to Service: Once functional verification is complete and documented, remove the SIF bypass. Confirm that the DeltaV SIS system shows the SIF as active and healthy. Update your CMMS (Computerized Maintenance Management System) with the replacement record, including the new module serial number and proof test results.

This structured approach minimizes downtime, maintains SIS integrity, and ensures full traceability for functional safety audits. Facilities that maintain a pre-tested KJ2201X1-BA1 spare on-site consistently achieve faster recovery times compared to those relying on emergency procurement — often reducing SIF bypass duration from days to hours.

Spare Parts Support FAQ

Q1: What is the recommended spare parts strategy for the KJ2201X1-BA1 in a DeltaV SIS installation?
For critical SIFs with high demand rates or long proof test intervals, maintaining at least one on-site spare KJ2201X1-BA1 is strongly recommended. Facilities with multiple DeltaV SIS cabinets or geographically remote installations should consider holding two units. Pair the logic solver spare with spares for the associated power supply module and key I/O modules to ensure a complete cabinet-level recovery capability. Review your spare parts list annually against your SIS proof test schedule and any Emerson product lifecycle notifications.

Q2: How do I verify compatibility between a replacement KJ2201X1-BA1 and my existing DeltaV SIS system version?
Compatibility is determined by your DeltaV SIS system version, carrier type, and the firmware revision of the replacement module. Before installation, confirm the module’s firmware version against your site’s qualified hardware list (QHL) or Emerson’s compatibility matrix for your DeltaV SIS release. If the replacement module carries a different firmware revision, a firmware upgrade or downgrade may be required — consult your site’s functional safety engineer and Emerson technical support before proceeding. Our team can assist with pre-shipment firmware verification upon request.

Q3: What pre-shipment testing is performed on this KJ2201X1-BA1 spare?
Each KJ2201X1-BA1 unit is functionally tested prior to shipment to verify power-up behavior, communication interface integrity, and absence of hardware fault indicators. Units are inspected for physical condition, connector integrity, and correct labeling. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Detailed test records are available upon request for quality assurance documentation purposes.

Q4: Can this module replace older or superseded DeltaV SIS logic solver variants?
The KJ2201X1-BA1 is designed for use within the DeltaV SIS platform and is intended as a direct replacement for units of the same part number. For cross-version or cross-revision substitutions, compatibility must be verified against Emerson’s product change notifications (PCNs) and your site’s validated hardware configuration. We recommend consulting your DeltaV SIS system documentation and, where required, performing a re-validation of the affected SIF before returning it to service. Contact our technical team for guidance on specific substitution scenarios.
