Emerson KJ2201X1-JA1 Spare for DeltaV Automation

Emerson KJ2201X1-JA1 Spare for DeltaV Automation: Redundant Terminal Block for Industrial Downtime Control

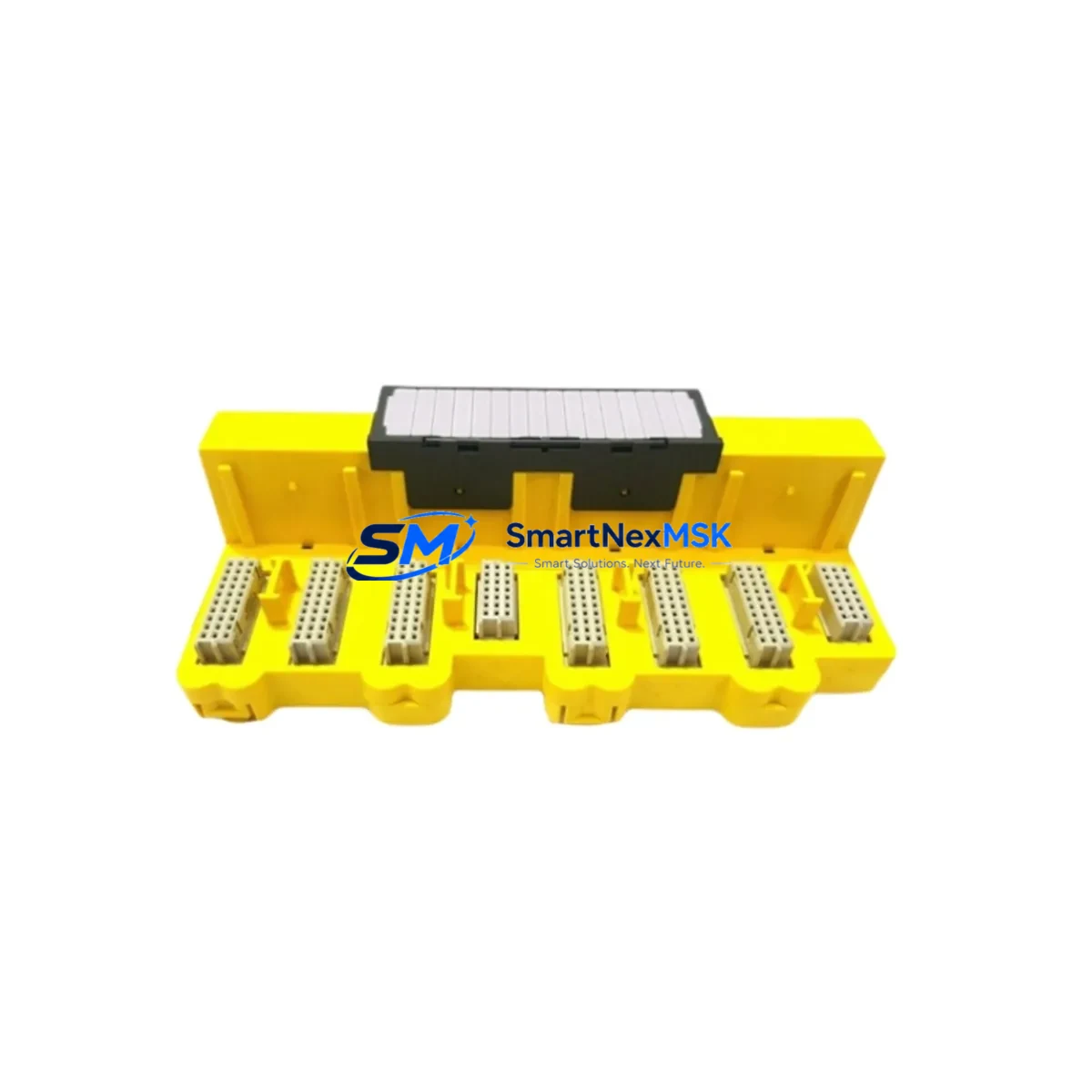

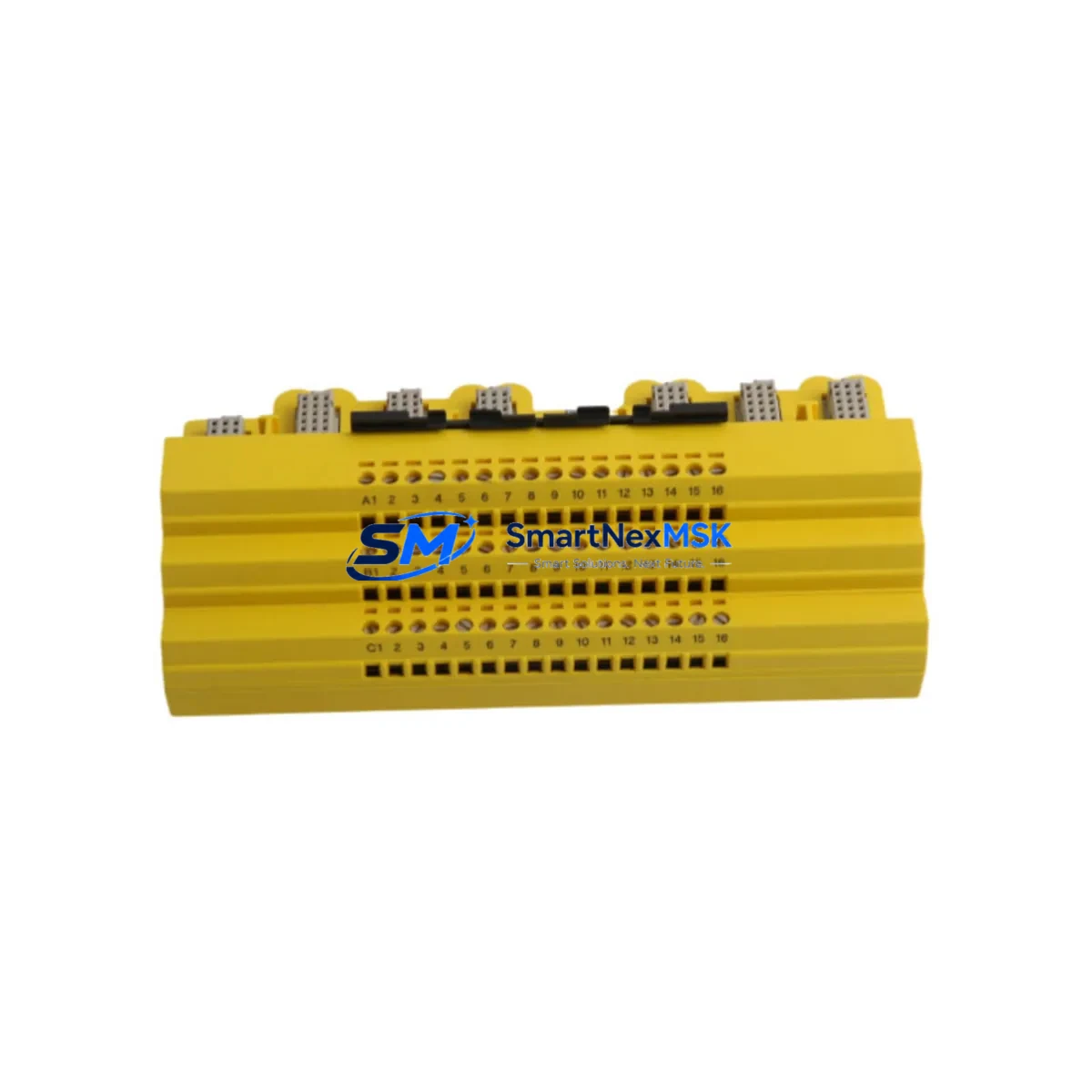

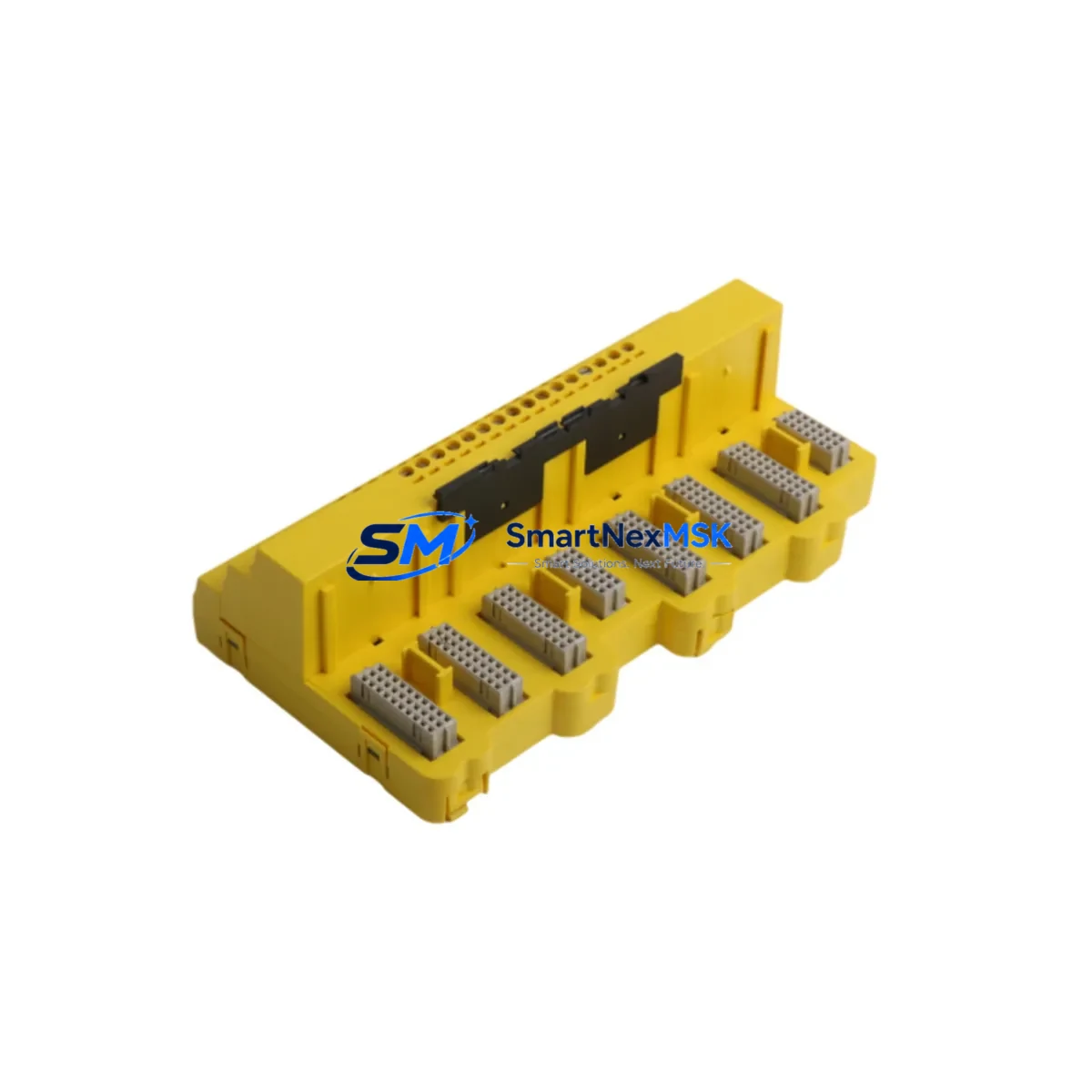

The Emerson KJ2201X1-JA1 (part number 12P3323X042) is an original redundant terminal block designed for use within the Emerson DeltaV distributed control system (DCS) platform. As a critical passive interconnect component in high-availability process control architectures, this terminal block provides the field wiring interface between I/O modules and field instrumentation. Maintaining a ready stock of the KJ2201X1-JA1 is a fundamental element of any proactive maintenance strategy for DeltaV-based control systems in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments.

When a terminal block fails or shows signs of degradation — loose connections, discoloration from heat, cracked housing, or intermittent signal loss — the impact on process continuity can be immediate. The KJ2201X1-JA1 is engineered for direct drop-in replacement without rewiring or reconfiguration, minimizing mean time to repair (MTTR) and restoring system integrity quickly. Each unit is tested before shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams confidence in both quality and long-term supply availability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the KJ2201X1-JA1 terminal block during a planned or emergency maintenance event, experienced DeltaV maintenance engineers know that the terminal block is rarely the only component that warrants inspection. A thorough site assessment should include the following associated components within the same I/O subsystem and control cabinet:

The KJ2201X1-JA1 I/O carrier module that the terminal block interfaces with should be inspected for backplane connector wear and proper seating. If the terminal block has experienced thermal stress, the adjacent KJ3221X1-BA1 power supply module should be checked for output voltage stability and ripple — a degraded power supply is a common root cause of terminal block overheating. The KJ1501X1-BC2 DeltaV controller module should be verified for firmware currency and communication health before returning the loop to service.

Field wiring connected to the terminal block should be inspected for insulation integrity, correct torque on screw terminals, and proper cable labeling. Loose or corroded field wiring is a frequent contributor to intermittent faults that are misdiagnosed as terminal block failures. At the same time, the KJ2201X1-JA1’s associated signal isolators — particularly any galvanic isolators or Zener barriers in intrinsically safe loops — should be tested for correct attenuation and isolation resistance.

For systems with redundant I/O, the redundant I/O interface cable (KJ2201X1 series ribbon or discrete cable) connecting the primary and secondary terminal blocks should be inspected for continuity and connector seating. Communication modules such as the KJ2201X1-series FOUNDATION Fieldbus or HART interface cards installed in the same I/O nest should be checked for active diagnostics and device health alerts.

Fuse holders and DeltaV-compatible terminal fuse blocks within the same marshalling cabinet should be tested for continuity — blown fuses are often masked by redundant paths and only discovered during a full cabinet inspection. Relay output modules such as the KJ3002X1-BA1 DO module sharing the same cabinet section should be exercised through their full switching cycle to confirm contact integrity. Finally, the DeltaV operator workstation or HMI should be used to run a full I/O diagnostic scan after replacement to confirm all field devices are communicating correctly before returning the process loop to automatic control.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the affected I/O channel at the marshalling panel. For redundant systems, confirm the redundant path is active and carrying the process signal before disconnecting the primary terminal block.

Step 2 — Documentation: Photograph the existing wiring layout and record terminal assignments against the loop drawing. The KJ2201X1-JA1 uses a labeled terminal strip; verify field wire assignments match the as-built documentation before removal.

Step 3 — Removal: Release the DIN rail locking tab and slide the terminal block free from the I/O carrier. Inspect the carrier connector for bent pins or contamination before installing the replacement unit.

Step 4 — Installation: Seat the new KJ2201X1-JA1 firmly onto the I/O carrier until the locking tab engages. Reconnect field wiring to the correct terminals per loop drawing, applying correct torque (typically 0.5–0.6 Nm for M3 screw terminals). Restore the redundant cable connection if applicable.

Step 5 — Verification: From the DeltaV workstation, run an I/O channel diagnostic. Confirm the field device is communicating, the process variable is within expected range, and no active alarms are present. Return the loop to automatic control and document the replacement in the maintenance management system (CMMS).

This workflow supports legacy DeltaV system life extension programs, where maintaining a curated spare parts inventory — including terminal blocks, power supplies, I/O modules, and communication cards — is more cost-effective than full system migration. The KJ2201X1-JA1 remains available as a long-term supply item, supporting installed base systems well beyond the original product lifecycle.

Spare Parts Support FAQ

Q1: Is the KJ2201X1-JA1 12P3323X042 compatible with all DeltaV I/O subsystem generations?
The KJ2201X1-JA1 is designed for the Emerson DeltaV S-series and M-series I/O platforms. Compatibility should be verified against your specific I/O carrier model and DeltaV system version. Our technical team can assist with cross-referencing your existing part numbers to confirm a direct fit before shipment.

Q2: What pre-shipment testing is performed on the KJ2201X1-JA1?
Each unit undergoes functional continuity testing and visual inspection prior to dispatch. Units are packaged in anti-static protective packaging to prevent ESD damage during transit. A test report is available upon request for quality-critical procurement requirements.

Q3: How should the KJ2201X1-JA1 be stored as a long-term spare?
Store in a dry, temperature-controlled environment (10°C–40°C, <85% RH non-condensing) in its original anti-static packaging. Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect annually for connector oxidation and housing integrity. Shelf life under proper storage conditions exceeds 5 years.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with a return merchandise authorization (RMA) process and replacement or repair at no additional cost.
