Emerson KJ3001X1-BB1 12P0550X132 Retrofit-Ready DI Module for DeltaV

Emerson KJ3001X1-BB1 12P0550X132 Retrofit-Ready DI Module for DeltaV Control Systems

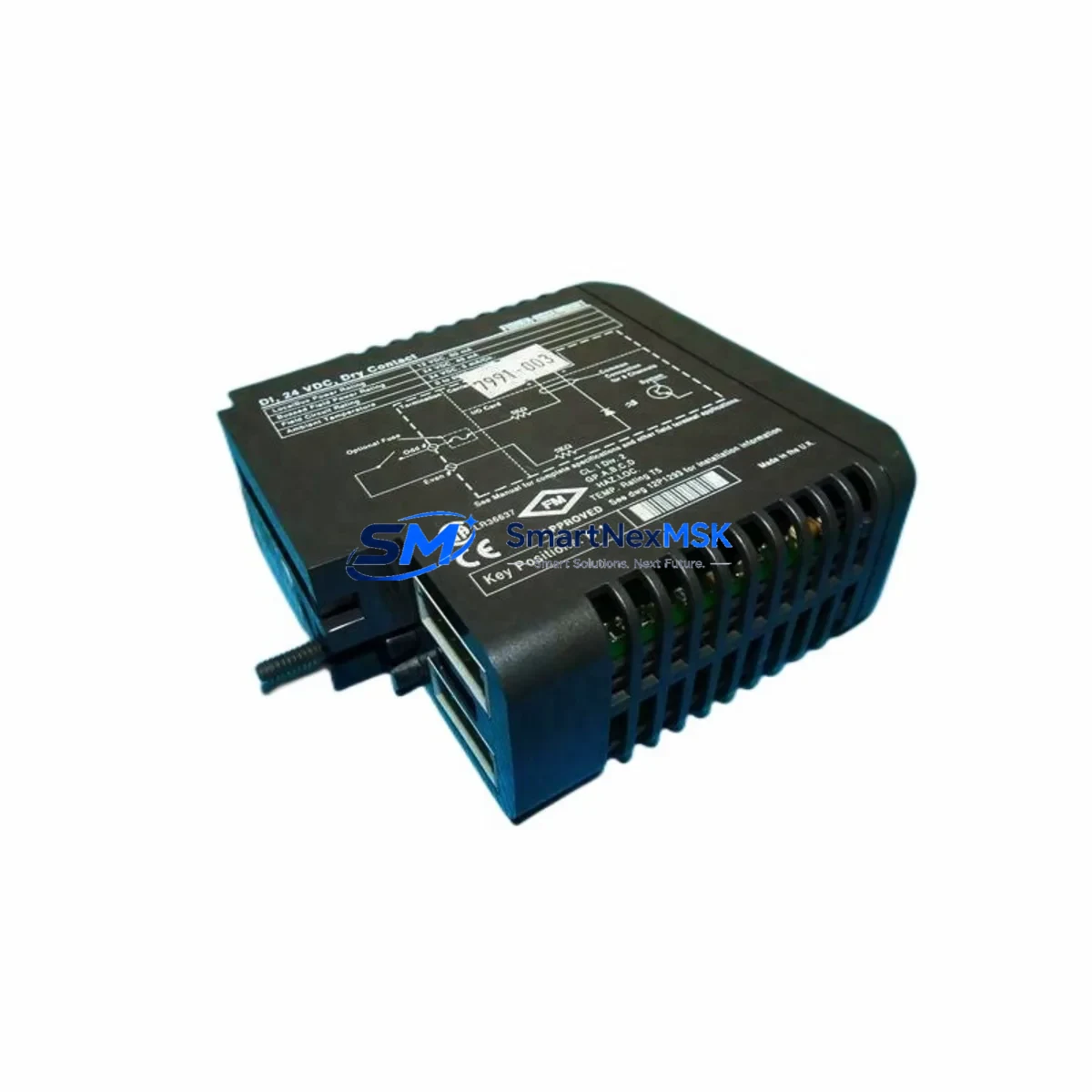

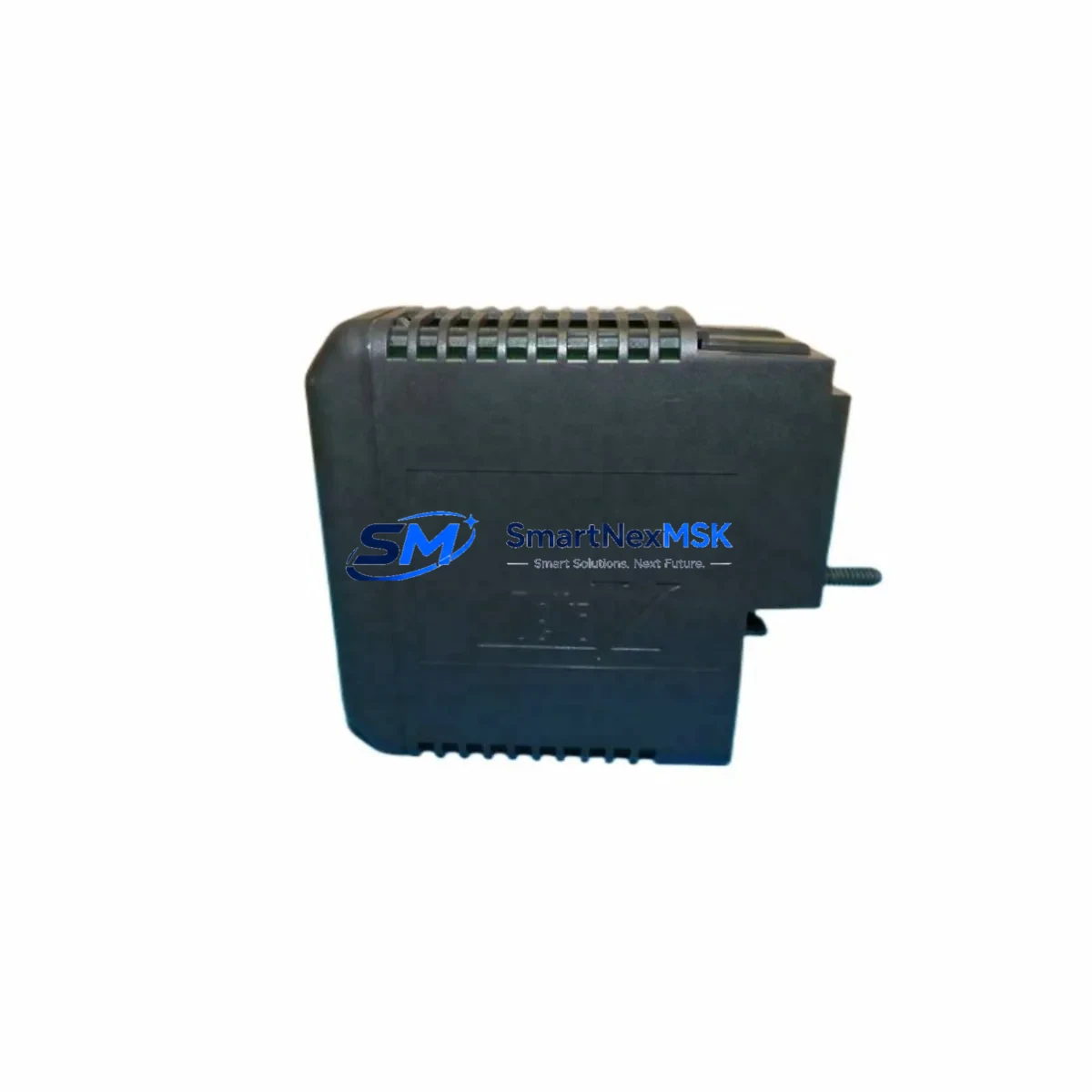

The Emerson KJ3001X1-BB1 (part number 12P0550X132) is a 16-channel Digital Input Module designed for the DeltaV distributed control system platform. As legacy DeltaV installations age and original spare parts become increasingly difficult to source, this module serves as a direct retrofit replacement for facilities managing end-of-life automation infrastructure. Whether you are upgrading a control cabinet, recovering from an unplanned module failure, or executing a planned migration away from discontinued hardware, the KJ3001X1-BB1 provides a reliable, specification-matched solution that minimizes engineering rework and commissioning time.

This module mounts directly onto the DeltaV Series 2 carrier and interfaces with the DeltaV controller via the standard backplane bus. It supports 24 VDC discrete inputs and is fully compatible with the DeltaV Operate HMI environment, meaning existing faceplates, alarm configurations, and I/O assignments can be preserved without modification to the control database. For sites running DeltaV v11 through v14, the module integrates without firmware conflicts, and the I/O channel addressing remains consistent with the original hardware mapping.

Before installing a replacement KJ3001X1-BB1, engineers should verify the following during retrofit planning: confirm the carrier slot assignment and module address in the DeltaV Explorer; review the terminal block wiring diagram against the existing field cable schedule; validate that the 24 VDC field power supply — typically sourced from a KJ1501X1-BA1 or equivalent power supply module — provides sufficient current capacity for all active channels; and check that the HART pass-through configuration in the DeltaV controller matches the field device requirements. If the site uses a KJ2201X1-BA1 HART Multiplexer, ensure the multiplexer polling list is updated to reflect the replacement module’s channel assignments.

In multi-drop wiring configurations, the KJ3001X1-BB1 supports standard IS (intrinsically safe) barriers when paired with appropriate Zener barriers or galvanic isolators. Sites with hazardous area classifications should confirm that the existing barrier model — such as those used alongside KJ3002X1-BB1 Analog Input Modules on the same carrier — remains within the approved entity parameters for the replacement module.

For control cabinets undergoing broader modernization, the KJ3001X1-BB1 is commonly installed alongside the KJ3222X1-BA1 Digital Output Module, the KJ3002X1-BB1 Analog Input Module, and the KJ3003X1-BB1 Analog Output Module, all of which share the same Series 2 carrier form factor. When replacing multiple modules simultaneously, it is recommended to document the existing I/O list, export the DeltaV control module configuration, and perform a staged replacement — one carrier at a time — to maintain partial system availability during the migration window.

Communication continuity is a critical concern during any DeltaV retrofit. The KJ3001X1-BB1 communicates over the DeltaV I/O bus, and its controller assignment is managed through the DeltaV Explorer node hierarchy. If the site is also migrating from an older MD or MD Plus controller to a newer MD3 or MQ controller, the I/O subsystem reassignment must be completed in the DeltaV database before the physical swap. Failure to update the controller node assignment will result in the module appearing as unassigned in the DeltaV Diagnostics workspace, triggering a loss-of-communication alarm on the associated HMI graphics.

Sites that rely on the DeltaV SIS (Safety Instrumented System) platform should note that the KJ3001X1-BB1 is a standard DCS I/O module and is not rated for SIL-2 safety applications. For safety loop replacements, the appropriate module family is the KJ3221X1-BA1 or equivalent SIS-certified hardware. However, for non-safety discrete input functions — including motor run feedback, valve position indication, equipment status monitoring, and process interlock inputs — the KJ3001X1-BB1 is the correct and cost-effective replacement choice.

All units supplied by SMARTNEXMSK undergo pre-shipment functional verification, including power-on self-test confirmation and visual inspection of the backplane connector and terminal block interface. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping is available for emergency breakdown situations, and our technical team can provide wiring diagrams, DeltaV configuration guidance, and commissioning support upon request.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing control cabinet. For DeltaV installations, this means documenting every module installed on each carrier, including the KJ3002X1-BB1 Analog Input Modules, KJ3003X1-BB1 Analog Output Modules, KJ3222X1-BA1 Digital Output Modules, and any KJ2201X1-BA1 HART Multiplexers. The carrier itself — typically a 4-slot or 8-slot Series 2 carrier — must be inspected for backplane connector integrity before a new KJ3001X1-BB1 is seated.

Power distribution within the cabinet is another critical checkpoint. The KJ1501X1-BA1 Power Supply Module provides 24 VDC to the I/O subsystem, and its load capacity must be recalculated when adding or replacing modules. If the existing power supply is operating near its rated output, a second KJ1501X1-BA1 or an upgraded power supply unit should be installed before the retrofit proceeds. Overlooking this step is a common cause of intermittent module faults after replacement.

For sites that use a DeltaV MD or MD Plus controller, the controller’s I/O capacity and node assignments should be reviewed in DeltaV Explorer before the physical swap. If the replacement module is being installed in a different slot than the original, the I/O channel addresses in the control module configuration must be updated accordingly. This is particularly important for interlock logic that references specific channel tags, as a mismatch will cause the controller to generate a configuration mismatch alarm and may inhibit the associated control module from executing.

When the site also uses a KJ3221X1-BA1 for safety-rated inputs or a KJ2201X1-BA1 for HART device management, the replacement of the KJ3001X1-BB1 should be coordinated with the instrument engineer responsible for those subsystems to ensure that the HART polling schedule and safety system bypass procedures are properly managed during the maintenance window. Programming cables such as the DELTAV-KFEP02 or equivalent USB-to-serial adapters may be required for on-site configuration verification.

Downtime Control During System Migration

Minimizing downtime during a DeltaV module replacement requires a structured approach that protects the existing control logic and maintains field device communication for as long as possible. The recommended sequence is: first, export the current DeltaV control module configuration and I/O list as a backup; second, place the affected control modules in manual mode at the DeltaV Operate HMI to prevent automatic control actions during the swap; third, de-energize only the specific carrier slot being replaced, using the carrier’s individual slot isolation feature if available; fourth, seat the new KJ3001X1-BB1 and restore power; fifth, verify module assignment in DeltaV Diagnostics; and sixth, return the control modules to automatic mode after confirming all channel inputs are reading correctly.

For sites where continuous process control is required and a cold swap is not acceptable, a parallel installation strategy can be employed. This involves installing a second carrier with the replacement KJ3001X1-BB1 alongside the existing hardware, transferring field wiring one channel at a time, and updating the DeltaV I/O assignments incrementally. While this approach requires more engineering time and temporary cabinet space, it eliminates the risk of a full process shutdown and allows the commissioning team to validate each channel before the original module is removed.

Throughout the migration, the DeltaV Event Chronicle should be monitored for any unexpected alarms or controller communication errors. If a loss-of-communication alarm appears for the replacement module, the most common causes are an incorrect slot assignment in DeltaV Explorer, a seating issue with the backplane connector, or a power supply overload condition. Resolving these issues promptly — ideally with a pre-staged spare KJ3001X1-BB1 on hand — ensures that the migration window stays within the planned maintenance schedule.

Retrofit Support FAQ

Q: Is the KJ3001X1-BB1 12P0550X132 a direct drop-in replacement for my existing DeltaV Digital Input Module?
A: Yes, provided your existing module is installed on a DeltaV Series 2 carrier and operates at 24 VDC. The KJ3001X1-BB1 uses the same backplane interface and terminal block layout, so field wiring and DeltaV I/O assignments are preserved. If your existing module is on a Series 1 carrier, a carrier upgrade will be required.

Q: What commissioning steps are required after installing the replacement module?
A: After seating the module, open DeltaV Explorer and confirm the module appears as assigned in the correct carrier slot. Then open DeltaV Diagnostics and verify that all 16 channels are reporting correctly. Place the associated control modules in manual mode before the swap and return them to automatic mode only after all channels have been validated. Check the DeltaV Event Chronicle for any configuration mismatch or communication alarms.

Q: Can I use this module in a hazardous area (Ex) installation?
A: The KJ3001X1-BB1 itself is installed in the safe area control cabinet. For hazardous area field devices, the module supports use with approved Zener barriers or galvanic isolators installed between the module terminal block and the field wiring. Confirm that the selected barrier model is within the entity parameters specified for this module before installation.

Q: What does the 12-month warranty cover, and what is the shipping lead time?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. Standard shipping lead time is 3–7 business days. Expedited shipping is available for emergency breakdown situations — contact our sales team directly for priority order processing.
