Emerson KJ3001X1-BJ1 Maintenance-Ready Spare for DeltaV DCS

Emerson KJ3001X1-BJ1 Maintenance-Ready Spare for DeltaV DCS: Spare Replacement & Industrial Downtime Risk Control

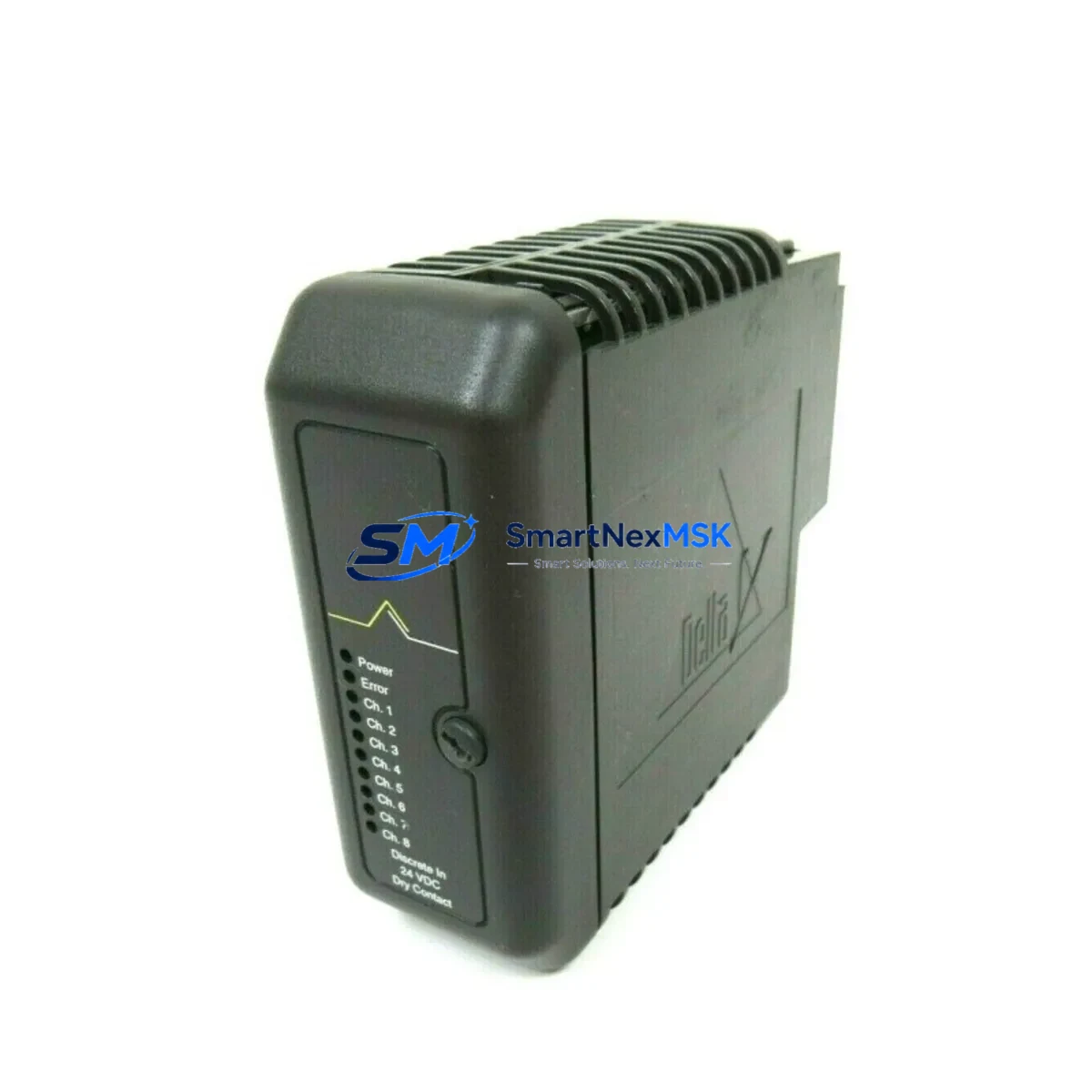

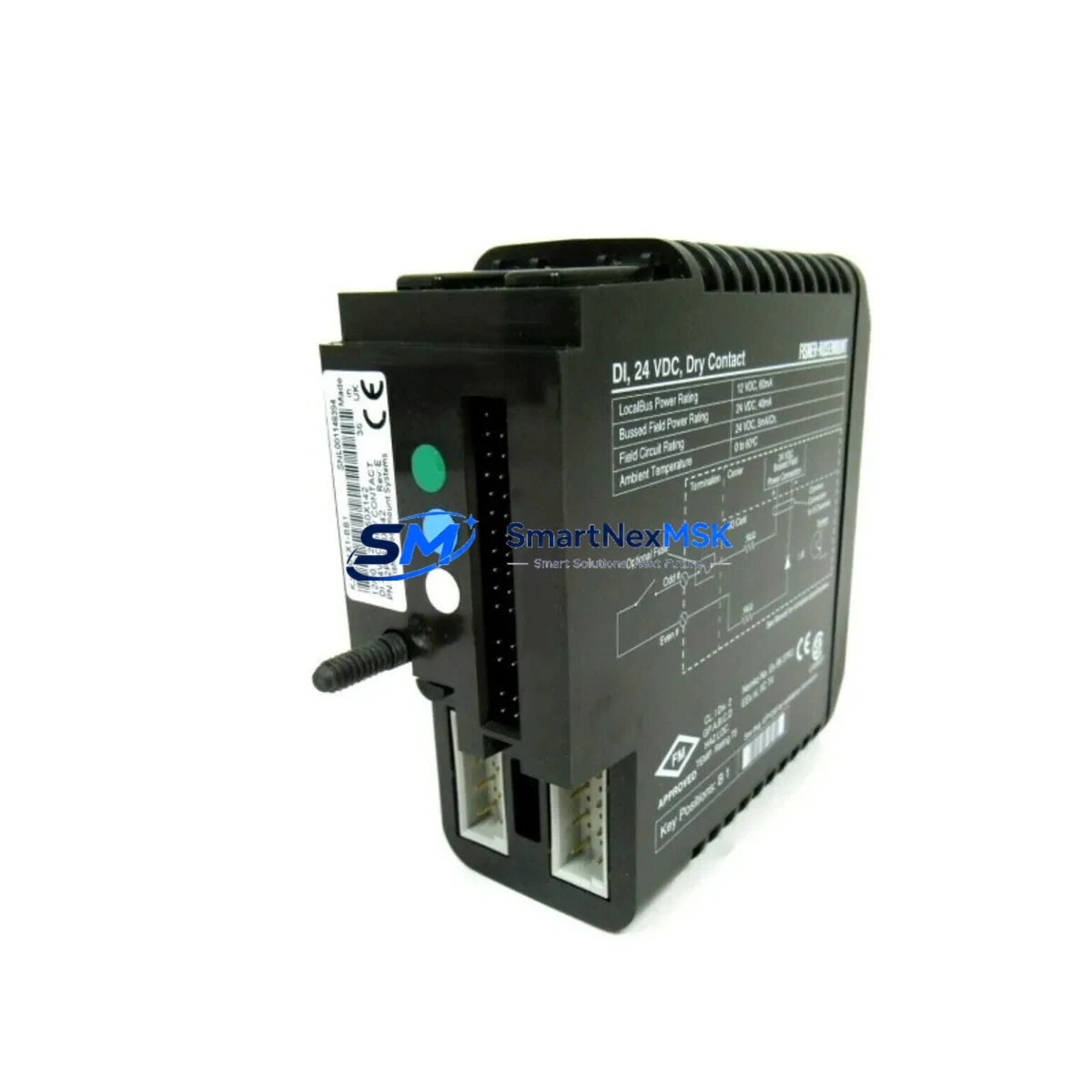

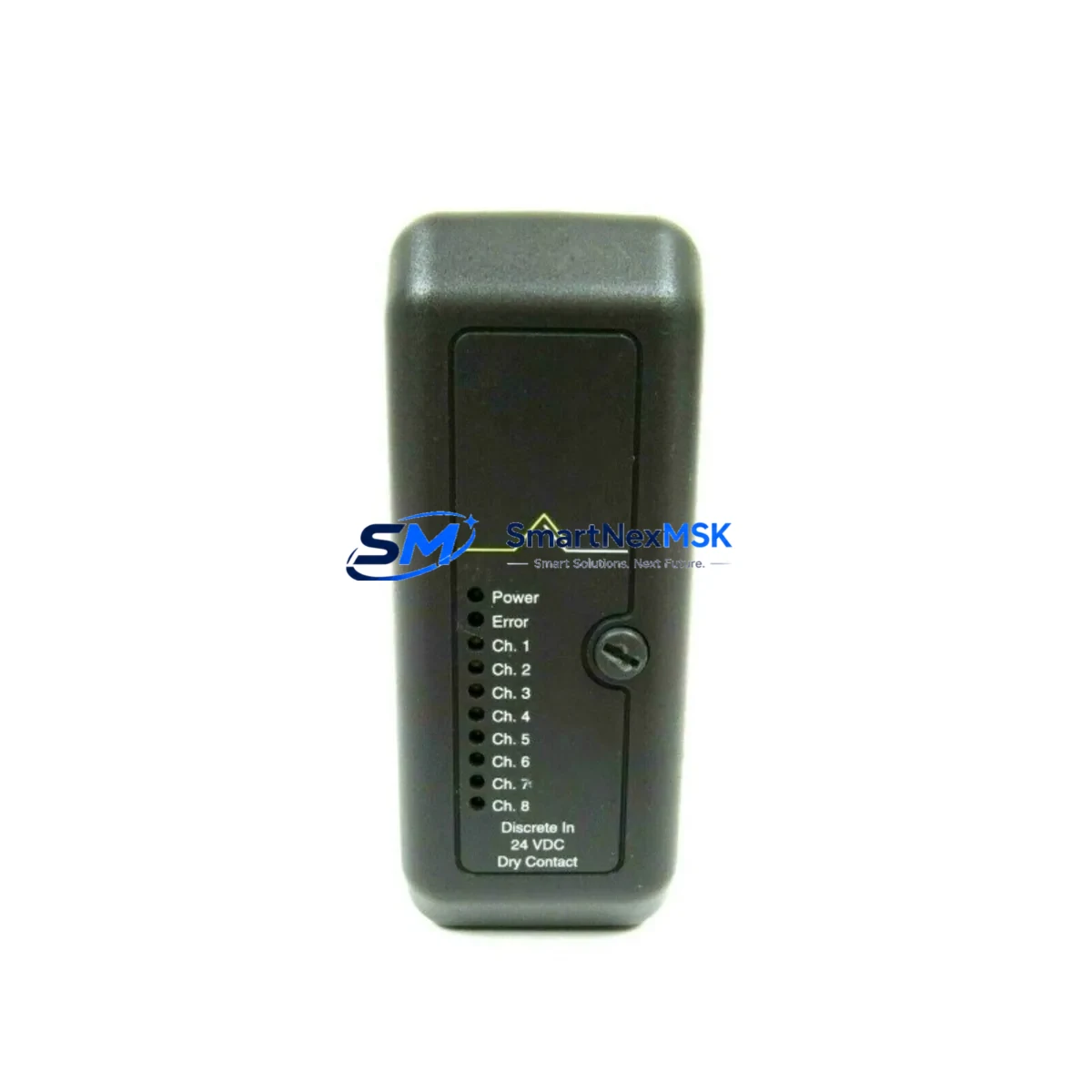

The Emerson KJ3001X1-BJ1 (Part No. 12P0555X152) is a digital output module designed for the Emerson DeltaV distributed control system (DCS). As a critical field I/O component, it manages discrete output signals to actuators, solenoid valves, motor starters, and relay-driven field devices across process automation environments. When this module fails or degrades, the consequences range from partial process disruption to full unit shutdown — making a verified, maintenance-ready spare an essential element of any industrial reliability program.

This listing provides an original Emerson KJ3001X1-BJ1 12P0555X152 spare, sourced, inspected, and dispatched with a 12-month warranty. Each unit undergoes functional verification prior to shipment to ensure it meets OEM electrical and communication specifications for direct installation into DeltaV controller cabinets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the KJ3001X1-BJ1 in a live DeltaV system is rarely an isolated task. Maintenance engineers and reliability planners should treat this module replacement as a trigger for a broader cabinet inspection. The digital output module interfaces directly with the DeltaV I/O carrier (KJ3002X1 series) — carrier contact wear or corrosion can cause intermittent channel faults that mimic module failure. Before condemning the KJ3001X1-BJ1, verify carrier integrity and clean or replace the carrier if contact resistance is elevated.

Upstream of the module, the DeltaV power supply module (PS5 or PS6 series, e.g., KJ4001X1-BA1) must be confirmed stable. A sagging 24 VDC bus — even within nominal tolerance — can cause marginal output switching behavior, particularly under high-channel-count load. Inspect the power supply’s LED status indicators and measure bus voltage at the carrier terminal before assuming the DO module is at fault.

Field wiring connected to the KJ3001X1-BJ1 output channels should be inspected at the marshalling cabinet terminal blocks. Loose or corroded terminals on the field side — particularly on solenoid valve circuits or motor starter coil loops — can generate back-EMF spikes that stress output driver circuits over time. If the plant uses signal isolators or relay output modules (such as Phoenix Contact or Weidmüller DIN-rail relay modules) between the DeltaV output and field devices, verify that these intermediary components are within their rated switching cycle life.

For DeltaV systems with HART-enabled field instruments, the digital output module works in conjunction with the DeltaV HART I/O multiplexer or CHARM I/O modules. If the plant is transitioning from traditional I/O to CHARM architecture, confirm that the replacement KJ3001X1-BJ1 is compatible with the installed controller firmware revision. Emerson DeltaV firmware version mismatches between the controller module (e.g., MD Plus or MD Controller) and I/O modules are a known source of communication faults post-replacement.

During planned shutdowns, it is best practice to simultaneously inspect the DeltaV redundant controller pair, the system power distribution fuses and circuit breakers within the I/O cabinet, and any fiber optic or Ethernet communication cables connecting the I/O subsystem to the DeltaV workstation network. A module swap that restores output function but leaves a degraded communication link unaddressed will result in a repeat call-out within the next maintenance cycle.

Spare inventory planning for the KJ3001X1-BJ1 should also account for associated components: DeltaV I/O carriers, redundant power supply modules, marshalling terminal blocks, and field junction box fuses. Plants operating legacy DeltaV S-Series hardware should maintain at least one spare DO module per controller node as part of a minimum viable spare parts kit, given the increasing lead times for OEM-sourced DeltaV components.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the KJ3001X1-BJ1 by reviewing DeltaV Diagnostics in DeltaV Operate or DeltaV Diagnostics Explorer. Check for channel-level fault codes versus carrier or bus-level alarms. Document the current module firmware version if readable.

Step 2 — Safe state and isolation: Place all output channels served by the module into a safe state via the DeltaV control application (force outputs to de-energized or hold-last-value as appropriate for the process). Notify the control room and obtain a permit-to-work before opening the cabinet.

Step 3 — Hot-swap or cold-swap: The DeltaV system supports hot-swap of I/O modules in most configurations. Confirm with your site’s DeltaV system documentation whether the installed controller firmware and carrier type support hot-swap for DO modules. If hot-swap is supported, the replacement KJ3001X1-BJ1 will be auto-recognized and commissioned by the DeltaV controller without a full system restart.

Step 4 — Post-installation verification: After seating the replacement module, verify LED status (green RUN indicator, no FAULT LED). Force-test each output channel from DeltaV Diagnostics to confirm field device response. Check the marshalling terminal block connections for each channel before returning the loop to automatic control.

Step 5 — Documentation and spare replenishment: Log the replacement in the plant CMMS (Maximo, SAP PM, or equivalent). Immediately initiate a reorder for the consumed spare to maintain minimum stock levels. This listing supports long-term supply continuity for the KJ3001X1-BJ1 with consistent availability and 12-month warranty coverage on every unit.

Spare Parts Support FAQ

Q1: Is this KJ3001X1-BJ1 an original Emerson part or a third-party replacement?
This is an original Emerson KJ3001X1-BJ1 (12P0555X152) spare — not a clone, aftermarket copy, or refurbished unit of unknown origin. Each module is sourced through verified industrial supply channels and undergoes functional testing before dispatch. The 12-month warranty covers manufacturing defects and operational failures under normal DeltaV system conditions.

Q2: How do I confirm compatibility with my installed DeltaV system version?
The KJ3001X1-BJ1 is compatible with Emerson DeltaV S-Series and M-Series I/O subsystems using standard DeltaV I/O carriers. Compatibility depends on your DeltaV controller firmware version and carrier type. We recommend confirming your DeltaV system version (available in DeltaV Explorer under System Configuration) before ordering. Our technical team can assist with compatibility verification — contact sales@smartnexmsk.com with your system details.

Q3: What pre-shipment testing is performed on each module?
Each KJ3001X1-BJ1 unit is powered up and subjected to channel-level output function testing prior to dispatch. Modules that fail any channel test are quarantined and not shipped. A test report summary is available upon request for quality-critical procurement processes.

Q4: What is the recommended spare inventory strategy for DeltaV DO modules?
For plants with 3 or more DeltaV I/O nodes using KJ3001X1-BJ1 modules, we recommend maintaining a minimum of 2 spare units on-site. For single-node installations in critical process areas (e.g., safety-instrumented systems or continuous process units), 1 spare is the minimum. Given the extended OEM lead times for legacy DeltaV hardware, holding a local spare eliminates the risk of multi-day or multi-week downtime while waiting for factory supply. We support long-term supply agreements for consistent availability.
