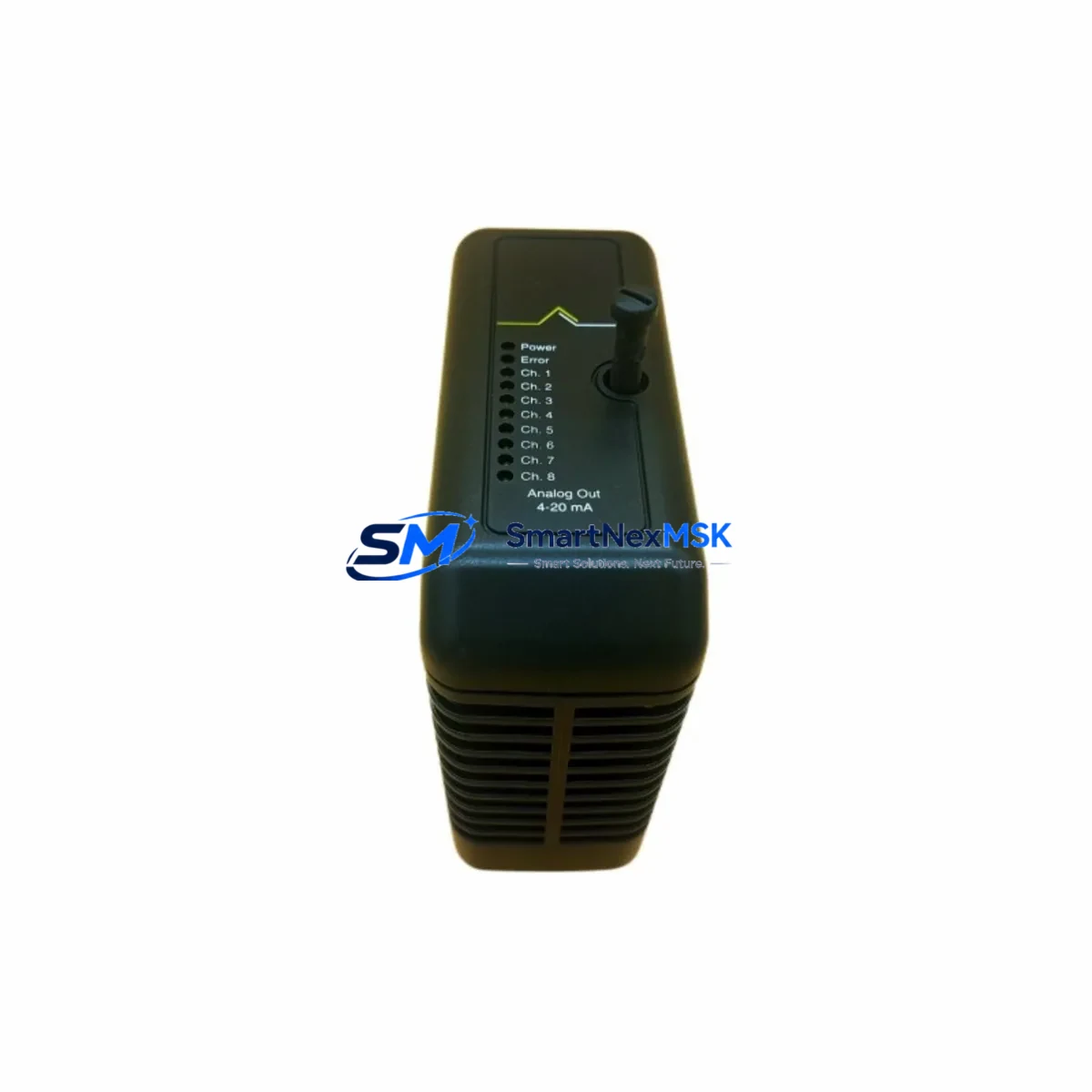

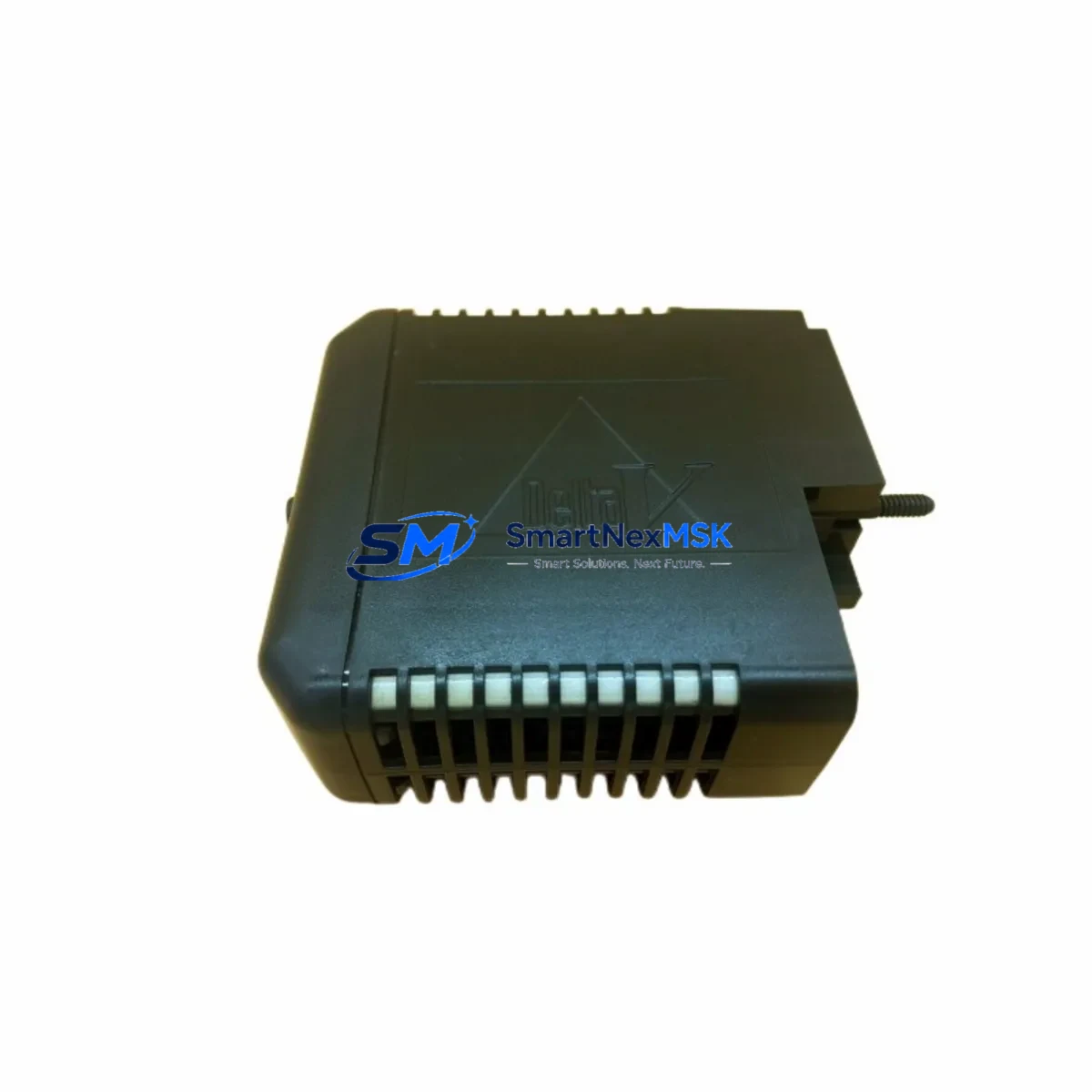

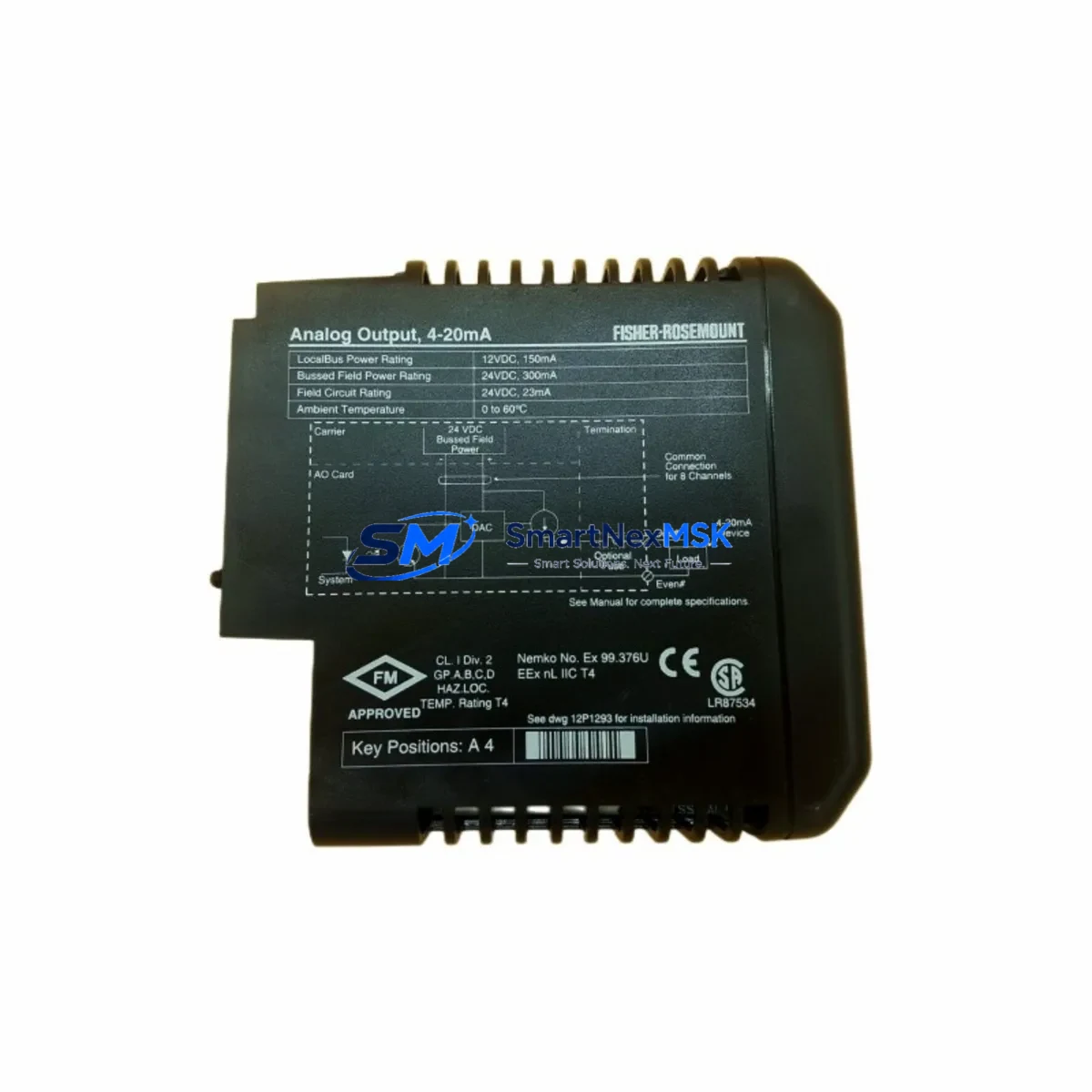

The Emerson KJ3002X1-BB1 12P0683X092 is an original 8-channel 4–20 mA analog output module designed for Emerson DeltaV distributed control systems. As a critical field interface component, it converts digital control signals from the DeltaV controller into precision analog current outputs for final control elements including control valves, variable frequency drives, and positioners. For maintenance engineers managing continuous process operations, having a verified, tested spare of this module on the shelf is a fundamental risk-mitigation strategy — unplanned downtime caused by a failed analog output card can halt an entire process unit within minutes.

This listing provides an original Emerson KJ3002X1-BB1 12P0683X092 module sourced from authorized supply channels, pre-shipment tested, and backed by a 12-month warranty. It is suitable for direct replacement in DeltaV S-series and M-series controller cabinets without firmware reconfiguration in most standard configurations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ3002X1-BB1 analog output module fails or is flagged during a scheduled inspection, the replacement event is rarely isolated. Experienced maintenance engineers treat this as a trigger to audit the surrounding I/O infrastructure and control cabinet health. Before returning the loop to service, the following components in the same control cabinet or electrical circuit should be inspected or tested:

The DeltaV I/O carrier or backplane (such as the KJ3001X1-BA1 or equivalent 8-slot carrier) should be checked for bent connector pins, corrosion, or mechanical damage that may have contributed to the module failure. A faulty carrier can damage a replacement module within hours of installation. Similarly, the DeltaV controller card (MD Plus, MD, or S-series controller) should be verified for active diagnostics and communication health before the new AO module is commissioned.

The 24 VDC field power supply feeding the analog output loops should be measured under load — voltage sag or ripple can cause 4–20 mA output drift and false diagnostics. If the cabinet uses a redundant power supply pair, both units should be checked. Inline fuse blocks and terminal strips on the output wiring should be inspected for oxidation, loose terminations, or blown fuses that may have caused the original fault condition.

For HART-enabled loops, the HART multiplexer or HART interface module connected to this AO card should be verified for communication continuity. If the plant uses a DeltaV CHARM I/O architecture in parallel zones, cross-check that no CHARM analog output cards (such as the CHAO module) in adjacent cabinets are showing similar fault patterns — a systemic power or grounding issue may affect multiple I/O types simultaneously.

Downstream, the control valve positioners (electro-pneumatic or digital, such as Fisher FIELDVUE DVC6200 series) receiving the 4–20 mA signal should be loop-tested to confirm full-stroke response after module replacement. Any signal isolators or loop-powered barriers in the circuit should also be tested, as these components can mask intermittent output faults. Finally, review the DeltaV Operate or AMS Device Manager diagnostic logs for any pre-existing HART communication errors or out-of-range alerts that preceded the module failure — this data is essential for root cause analysis and future preventive maintenance scheduling.

Site Replacement Workflow

Replacing the KJ3002X1-BB1 in a live DeltaV system follows a structured sequence to minimize loop disturbance and ensure safe handover. Begin by placing all affected output channels in manual mode from the DeltaV Operate workstation, holding the final control elements at their last safe position. Document the current output values for each of the 8 channels before powering down the I/O carrier slot.

With the carrier slot de-energized (or using hot-swap procedures if supported by your DeltaV version and carrier type), remove the failed module and insert the replacement KJ3002X1-BB1 12P0683X092. The DeltaV system will automatically recognize the module type via the I/O bus and download the existing channel configuration — no manual re-parameterization is required in standard installations. Verify that the module LED status indicators show normal operation (typically solid green) before returning channels to automatic control.

Perform a full 4–20 mA loop calibration check on all 8 channels using a calibrated loop calibrator or the DeltaV built-in loop test function. Confirm that each positioner or actuator responds correctly across the 0–100% output range. Update the maintenance management system (CMMS) with the replacement record, including the new module serial number, installation date, and post-replacement test results. This documentation supports warranty claims and future lifecycle planning.

For aging DeltaV systems approaching end-of-support milestones, maintaining a minimum of one spare KJ3002X1-BB1 per control cabinet is a widely adopted best practice. This strategy eliminates the risk of extended downtime caused by procurement lead times, particularly for legacy part numbers that may have limited availability in the open market.

Spare Parts Support FAQ

Q1: Is this KJ3002X1-BB1 compatible with all DeltaV controller generations?
The KJ3002X1-BB1 12P0683X092 is compatible with DeltaV S-series and M-series controller platforms using standard I/O carriers. It is not compatible with DeltaV CHARM or Electronic Marshalling architectures. If you are unsure of your system generation, provide your controller part number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this module?
Each KJ3002X1-BB1 unit undergoes functional verification including power-on self-test, I/O bus communication check, and analog output accuracy verification across all 8 channels prior to packaging. A test report is available upon request. The module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module be used as a direct drop-in replacement for a failed unit without DeltaV reconfiguration?
In most standard DeltaV installations, yes. The DeltaV system stores I/O channel configuration in the controller database, not in the module itself. When a replacement module of the same part number is installed in the same carrier slot, the system automatically downloads the existing configuration. However, if the original module was assigned a non-standard firmware version or custom calibration offsets, a DeltaV engineer should verify the configuration after replacement.

Q4: What is your spare parts inventory policy for long-term supply?
We maintain standing stock of high-demand DeltaV I/O modules including the KJ3002X1-BB1 to support both emergency replacement and planned maintenance programs. For customers managing aging DeltaV systems, we offer reserved stock arrangements and multi-unit pricing for annual maintenance kits. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance cycle.
