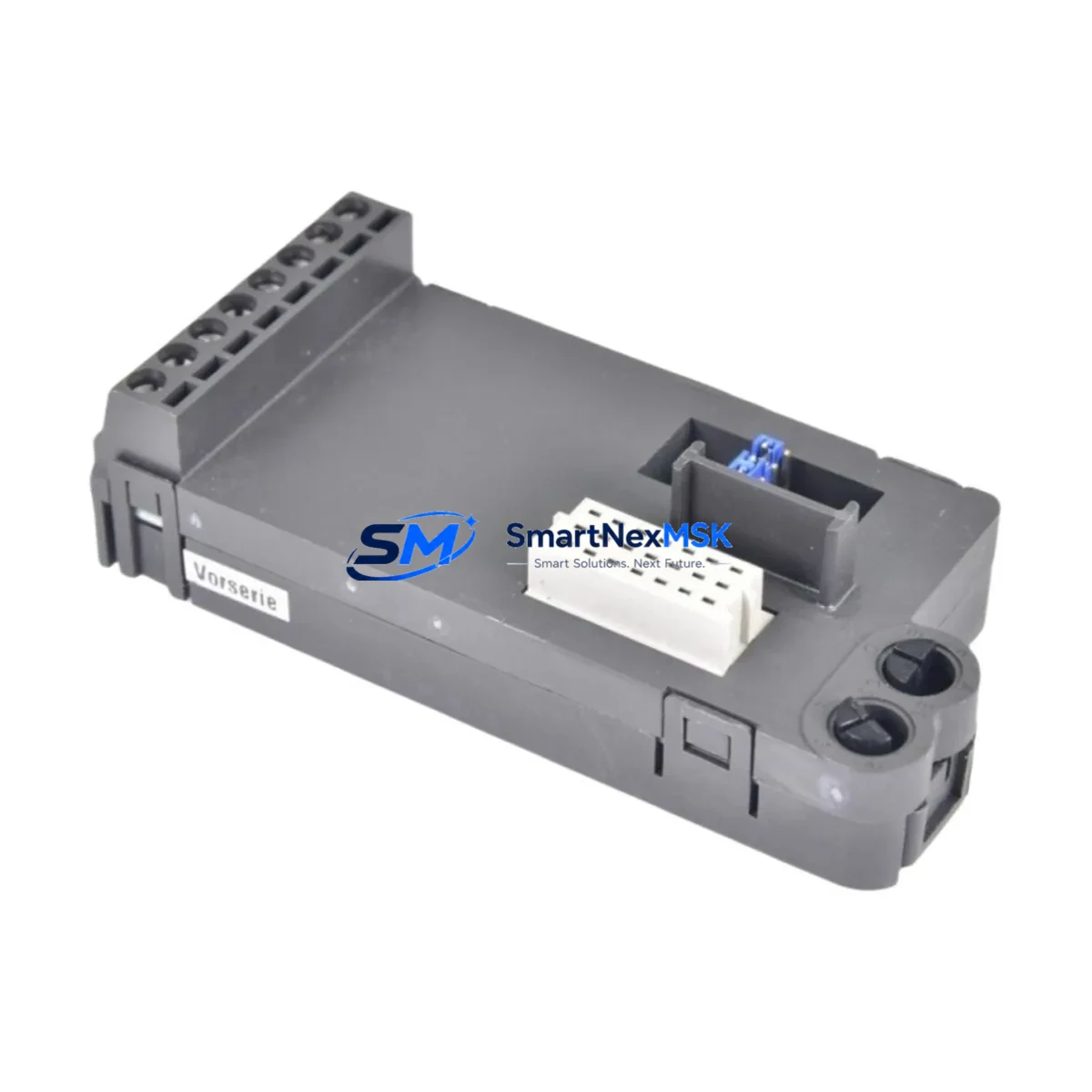

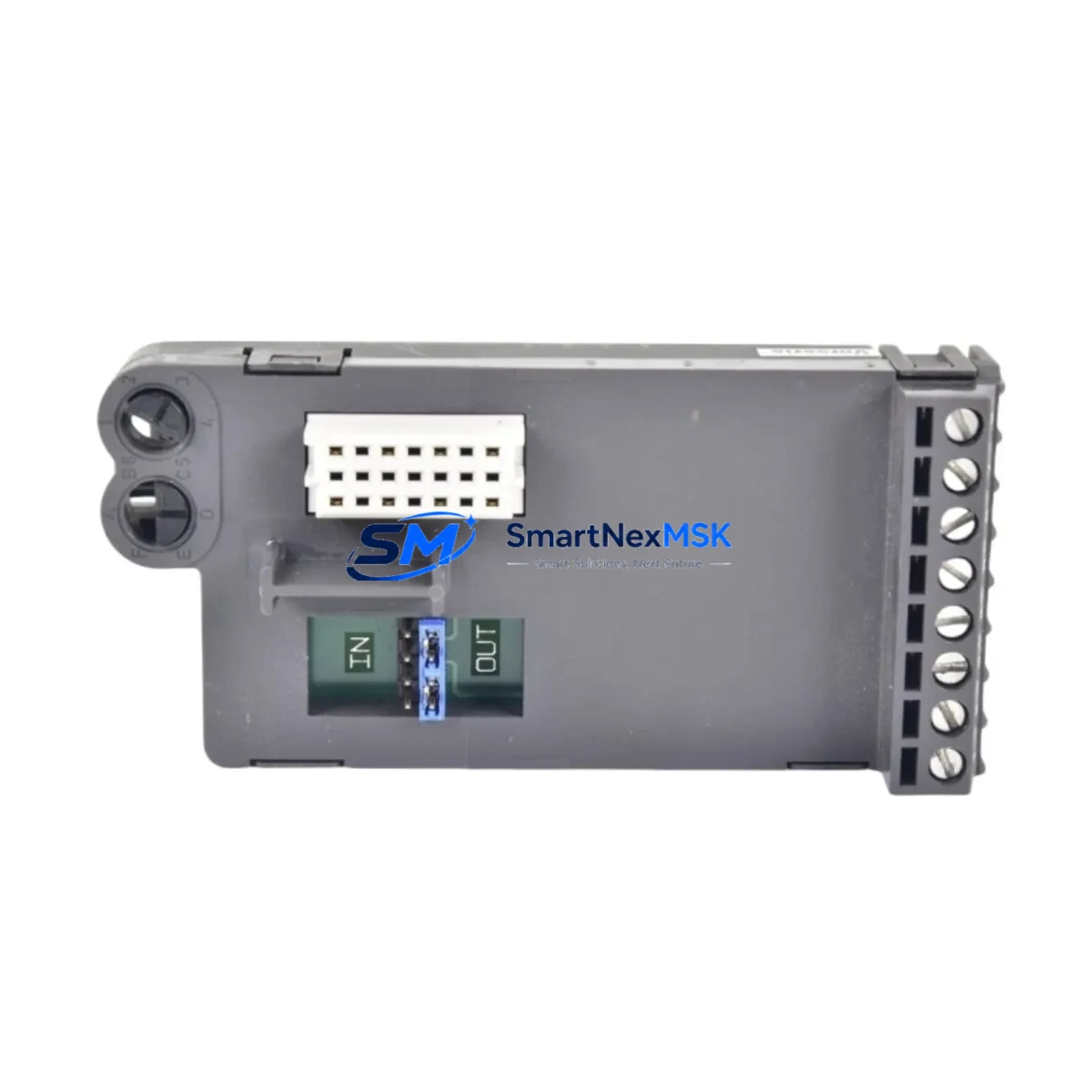

Emerson KJ3007X1-EA1 12P2413X052 Retrofit-Ready Profibus Terminal

Emerson KJ3007X1-EA1 12P2413X052 Retrofit-Ready Profibus Terminal Block for DeltaV Control Systems

The Emerson KJ3007X1-EA1 12P2413X052 is a Profibus DP terminal block module designed for use within the DeltaV distributed control system platform. As legacy DeltaV installations age and original Emerson spare parts become increasingly difficult to source, this module serves as a verified retrofit-ready replacement for facilities managing aging process control infrastructure. Whether you are upgrading a control cabinet, recovering from an unplanned module failure, or executing a planned migration from an older DeltaV hardware revision, the KJ3007X1-EA1 12P2413X052 provides the wiring compatibility, backplane interface alignment, and Profibus DP protocol support required for a smooth transition with minimal disruption to ongoing operations.

Before installing this terminal block into an existing DeltaV system, engineers should verify several critical parameters. First, confirm that the power supply module — typically a DeltaV PS2 or PS4 series power supply — provides sufficient rail capacity to support the additional Profibus segment load. Second, review the existing terminal wiring layout against the KJ3007X1-EA1 pinout to confirm that field device connections, shield grounding, and bus termination resistors are correctly positioned. Third, validate that the carrier or I/O subsystem backplane — such as the DeltaV 8-wide or 12-wide carrier — is physically and electrically compatible with this module’s form factor and connector interface.

Module address configuration is another area requiring careful attention during retrofit planning. In DeltaV systems, Profibus DP node addresses are typically assigned through DeltaV Explorer or the hardware commissioning interface. When replacing a failed KJ3007X1-EA1 unit, the replacement module must be assigned the same Profibus node address as the original to avoid disrupting the existing control strategy. If the original address assignment is unknown, it can often be recovered from the DeltaV database backup or from the field device configuration stored in the Profibus master.

Program compatibility is generally maintained when replacing like-for-like hardware within the same DeltaV hardware generation. However, if the retrofit involves migrating from an older DeltaV S-series controller to a newer MD or MX controller platform, the control application may require re-compilation and download. In such cases, it is advisable to export and archive the existing DeltaV database before beginning hardware changes, and to verify that all function block assignments, module parameters, and I/O channel mappings are preserved in the new configuration.

HMI screen updates may also be required if the retrofit changes the physical tag structure or if the Profibus segment topology is modified. DeltaV Operate or third-party SCADA systems connected via OPC DA or OPC UA should be reviewed to confirm that all process variable references remain valid after the hardware change. Communication links to upstream systems — including historian servers, MES platforms, and safety instrumented systems — should be tested under simulated load conditions before returning the process unit to full production.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the KJ3007X1-EA1 12P2413X052 into an existing DeltaV installation requires a structured approach that accounts for the full scope of hardware and software interdependencies. In a typical DeltaV control cabinet, this Profibus terminal block interfaces with a DeltaV Profibus DP master card — such as the KJ3243X1-BA1 Profibus interface module — which manages communication between the DeltaV controller and field-level Profibus slave devices including valve positioners, variable frequency drives, and intelligent transmitters.

During retrofit planning, the engineering team should produce a complete inventory of all modules installed in the affected I/O subsystem. This typically includes the DeltaV controller module (such as an MD Plus or MX controller), the associated power supply, the I/O carrier or backplane, and all terminal blocks and interface modules connected to the Profibus segment. If the retrofit scope extends beyond a single module replacement to a broader I/O subsystem upgrade, it may also be necessary to evaluate the DeltaV CIOC (Controller I/O Card) configuration and any remote I/O nodes connected via FOUNDATION Fieldbus H1 or HART multiplexers.

For facilities operating mixed-generation DeltaV hardware, the retrofit may also involve replacing legacy DeltaV Series 2 I/O modules with current-generation equivalents. In these cases, the KJ3007X1-EA1 12P2413X052 can serve as part of a broader I/O modernization effort that also addresses end-of-life DeltaV analog input modules, discrete output modules, and serial interface modules. Coordinating these replacements as a single planned outage — rather than as reactive emergency replacements — significantly reduces total downtime and minimizes the risk of configuration errors introduced under time pressure.

Field wiring documentation should be reviewed and updated before any terminal block replacement. Wiring diagrams, loop drawings, and instrument data sheets should reflect the as-built configuration of the Profibus segment, including cable type (typically Profibus-compliant shielded twisted pair), segment length, number of nodes, and termination resistor placement. Incorrect termination is one of the most common causes of Profibus communication errors following a hardware replacement, and should be verified with a Profibus cable tester or network analyzer before powering up the segment.

Downtime Control During System Migration

Minimizing process downtime during a DeltaV hardware retrofit requires careful pre-planning and a disciplined change management process. The most effective approach is to complete all preparatory work — including module procurement, wiring documentation review, DeltaV database backup, and spare parts staging — before the planned maintenance window begins. This ensures that the physical replacement of the KJ3007X1-EA1 12P2413X052 can be completed within a defined time window without unexpected delays caused by missing documentation or incompatible hardware.

Where process conditions permit, a hot-standby or redundant control path should be activated before removing the failed or end-of-life module. In DeltaV systems with redundant controller configurations, the secondary controller can maintain process control while the primary I/O subsystem is serviced. For non-redundant systems, the process unit should be placed in manual control mode and all critical setpoints documented before the hardware change begins.

After installing the replacement KJ3007X1-EA1 12P2413X052, the commissioning sequence should follow a structured verification protocol: power-on self-test confirmation, DeltaV hardware tree recognition, Profibus segment diagnostic scan, field device communication verification, and finally a controlled return to automatic control mode. Each step should be documented and signed off by the responsible engineer before proceeding to the next. This structured approach protects the original control program logic, preserves field device configurations, and ensures that the process returns to stable automatic operation with full control continuity.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing and are covered by a 12-month warranty against manufacturing defects and functional failures. In-stock units are available for same-day or next-business-day dispatch, supporting urgent maintenance requirements and minimizing unplanned production losses.

Retrofit Support FAQ

Q: Is the KJ3007X1-EA1 12P2413X052 a direct drop-in replacement for the original Emerson module?
A: Yes. The KJ3007X1-EA1 12P2413X052 is designed as a form-fit-function replacement for the original Emerson DeltaV Profibus terminal block. It uses the same backplane connector, the same terminal wiring layout, and supports the same Profibus DP protocol. No hardware adapters or wiring modifications are required for a standard like-for-like replacement.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, the module must be recognized by the DeltaV system through the hardware commissioning interface. The Profibus node address must be confirmed or reassigned to match the original configuration. A Profibus segment diagnostic scan should be performed to verify communication with all slave devices, and the DeltaV controller should be downloaded with the current application before returning to automatic control.

Q: How should field wiring be verified before and after the replacement?
A: Before removal of the original module, photograph or document all terminal connections, cable labels, and shield grounding points. After installing the replacement KJ3007X1-EA1 12P2413X052, verify each terminal connection against the wiring diagram before applying power. Confirm that Profibus bus termination resistors are correctly placed at both ends of the segment, and use a cable tester to verify segment continuity and impedance before enabling communication.

Q: What warranty coverage is provided, and what does it include?
A: All KJ3007X1-EA1 12P2413X052 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units are pre-tested before dispatch to confirm basic functionality. For warranty claims or technical support, contact our team directly.
