Emerson KJ3203X1-BK1 Spare for DeltaV Series Automation

Emerson KJ3203X1-BK1 Spare for DeltaV Series Automation: Spare Replacement & Industrial Downtime Risk Control

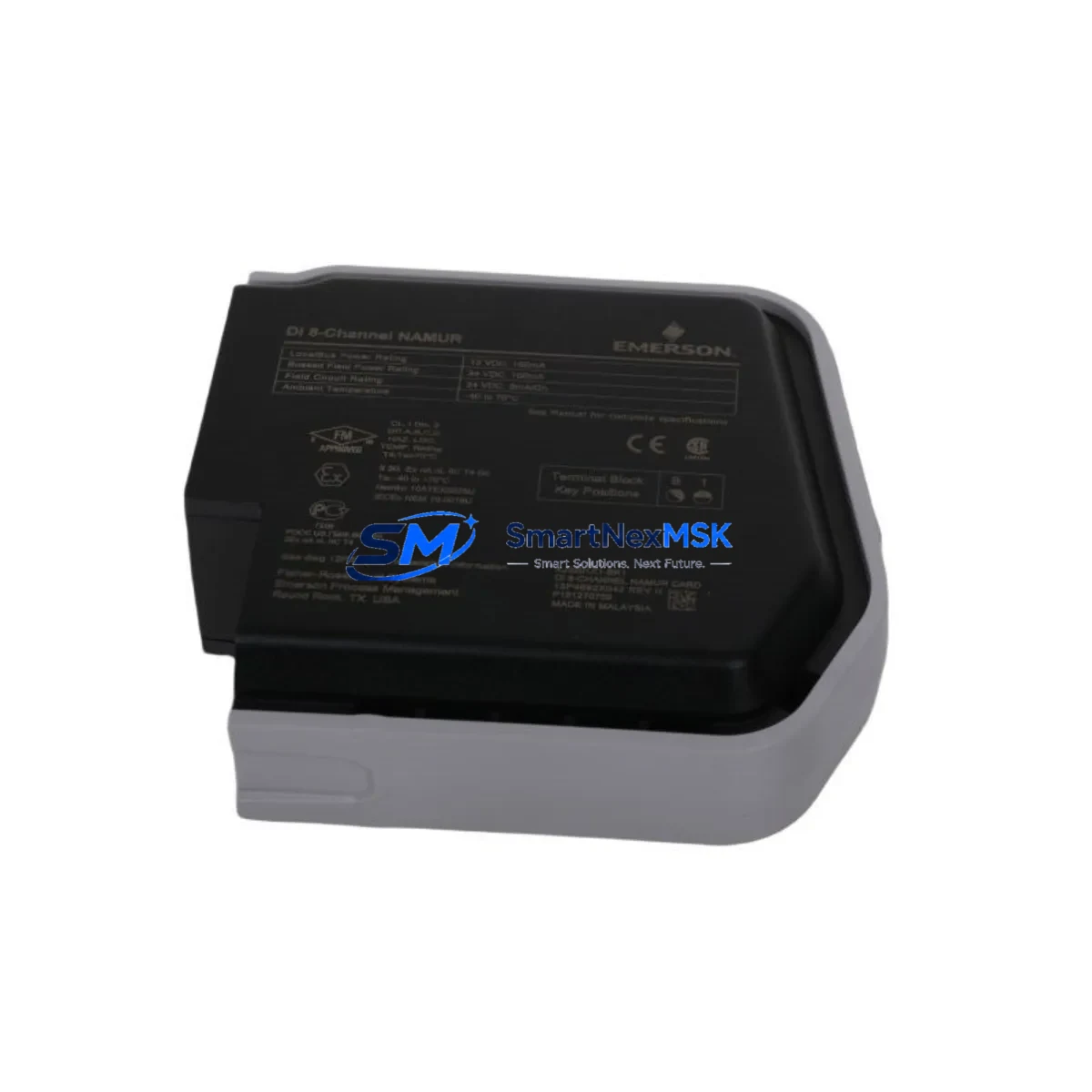

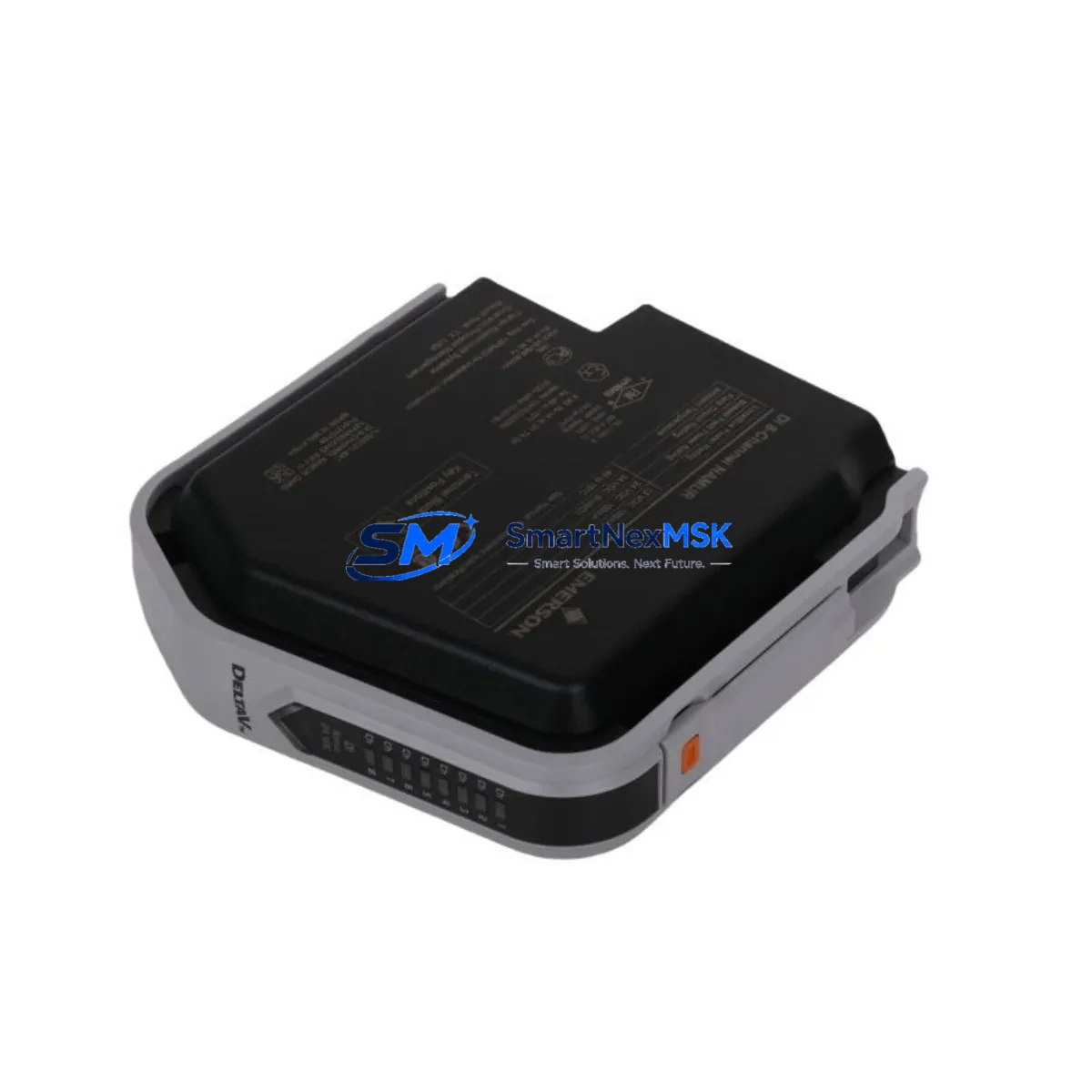

The Emerson KJ3203X1-BK1 is an original 8-channel isolated digital input module designed for the Emerson DeltaV distributed control system (DCS). As a maintenance-ready spare, it is engineered to support rapid field replacement, minimize unplanned downtime, and sustain continuous process control in critical industrial environments including oil & gas, chemical processing, power generation, and pharmaceutical manufacturing.

Sourced directly from authorized supply chains, every KJ3203X1-BK1 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification to confirm channel integrity, isolation performance, and backplane communication. Each unit is covered by a 12-month warranty and is available for fast global dispatch to support both planned maintenance schedules and emergency replacement scenarios.

For maintenance engineers managing aging DeltaV systems, having a verified spare of the KJ3203X1-BK1 on the shelf is a fundamental risk-mitigation strategy. Digital input modules are among the highest-turnover components in any DCS cabinet — subject to field wiring faults, surge events, and gradual signal degradation. A single failed channel can trigger nuisance alarms, force manual overrides, or halt production entirely. Stocking an original replacement eliminates the lead-time risk associated with last-minute procurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a KJ3203X1-BK1 digital input module is flagged for replacement during a scheduled turnaround or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding I/O subsystem is essential to prevent repeat failures and ensure a clean return to service.

Begin by inspecting the DeltaV I/O carrier or subsystem backplane to which the KJ3203X1-BK1 is mounted. Backplane connector pins can suffer from oxidation or mechanical wear, particularly in high-vibration or high-humidity environments. If the carrier shows signs of damage, replacing it alongside the module prevents intermittent communication faults post-restoration.

Next, verify the DeltaV 24 VDC field power supply feeding the digital input circuits. A degraded power supply — such as the Emerson KJ1501X1-BA2 power supply module — can cause erratic input readings that mimic module failure. Confirm output voltage stability under load before commissioning the replacement KJ3203X1-BK1.

Inspect all field wiring terminations at the associated terminal blocks. Loose or corroded terminals on the input signal cables are a leading cause of false digital input states. Where terminal blocks show signs of heat discoloration or mechanical fatigue, proactive replacement with compatible DIN-rail terminal strips is recommended.

For systems using HART-enabled field instruments connected through the digital input loop, verify that any associated signal isolators or HART multiplexers are functioning correctly. A failed isolator upstream of the KJ3203X1-BK1 can produce the same symptom profile as a failed input module.

Review the status of adjacent modules in the same I/O subsystem. If the cabinet houses Emerson KJ3221X1-BA1 analog input modules or KJ3002X1-BA1 digital output modules, check their diagnostic LEDs and DeltaV system diagnostics for any latent faults that may have contributed to the failure event. A surge or ground fault that damaged one module often affects neighboring modules in the same carrier.

For facilities running older DeltaV hardware generations, also inspect the DeltaV controller module (such as the MD or MD Plus controller) for firmware currency and memory health. Outdated controller firmware can cause communication timeouts with replacement I/O modules if the module revision is newer than the controller’s supported range.

Finally, confirm that the DeltaV workstation and application station have been updated to recognize the replacement module’s hardware revision. In some configurations, a module swap requires a brief download or module commissioning step through DeltaV Explorer to restore full diagnostic visibility.

Maintaining a coordinated spare parts inventory — including the KJ3203X1-BK1, associated power supply modules, terminal blocks, signal isolators, and at least one spare I/O carrier — is the most effective strategy for reducing mean time to repair (MTTR) in DeltaV-based control systems.

Site Replacement Workflow

Replacing the KJ3203X1-BK1 in a live DeltaV system follows a structured procedure to minimize disruption and ensure system integrity:

1. Pre-Replacement Verification: Confirm the replacement module’s part number and hardware revision against the installed unit. Cross-reference the DeltaV system’s module database to ensure compatibility. Verify that the spare has been stored in an ESD-safe environment and shows no physical damage.

2. Safe State Preparation: Place the affected control loops in manual mode or bypass at the DeltaV workstation. Notify the control room of the planned I/O interruption. For safety-instrumented systems, coordinate with the SIS engineer before proceeding.

3. Module Removal: The KJ3203X1-BK1 supports hot-swap on DeltaV systems with redundant I/O configurations. For non-redundant installations, confirm that the process is in a safe hold state before removing the module from the carrier. Retain the original module for failure analysis.

4. Installation and Commissioning: Seat the replacement module firmly into the carrier. DeltaV will automatically detect and commission the new module within seconds. Verify that all 8 input channels report correct states in DeltaV Operate before returning loops to automatic control.

5. Post-Replacement Documentation: Record the replacement in the plant’s maintenance management system (CMMS), including the module serial number, installation date, and technician ID. Update the spare parts inventory to trigger reorder of a replacement KJ3203X1-BK1 for the next maintenance cycle.

This workflow applies equally to planned maintenance replacements and emergency callouts, and is designed to keep total downtime under 30 minutes for a single module swap in a standard DeltaV cabinet configuration.

Spare Parts Support FAQ

Q1: Is the KJ3203X1-BK1 a direct drop-in replacement for older DeltaV digital input modules?
Yes. The KJ3203X1-BK1 is designed for direct installation into standard DeltaV I/O carriers without hardware modification. It is backward-compatible with DeltaV S-Series and M-Series controller platforms. Minor firmware differences between hardware revisions are handled automatically by the DeltaV system during module commissioning. Always verify the hardware revision against your system’s supported module list before installation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the KJ3203X1-BK1?
Every unit undergoes functional verification prior to dispatch, including channel continuity checks, isolation resistance testing, and backplane communication validation where test equipment permits. Units are shipped in ESD-protective packaging with inspection documentation. The 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: How should the KJ3203X1-BK1 be stored as a long-term spare?
Store in a climate-controlled environment at 15°C–25°C with relative humidity below 60%, in the original ESD-safe packaging. Avoid storage near strong magnetic fields or corrosive atmospheres. Inspect the module annually for connector oxidation and re-verify functionality if stored for more than 24 months before installation. SMARTNEXMSK recommends maintaining at least one unit per DeltaV cabinet as a minimum spare holding.

Q4: What is covered under the 12-month warranty and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order reference, installation date, and a description of the fault. Replacement or repair will be arranged within 5 business days of claim confirmation.
