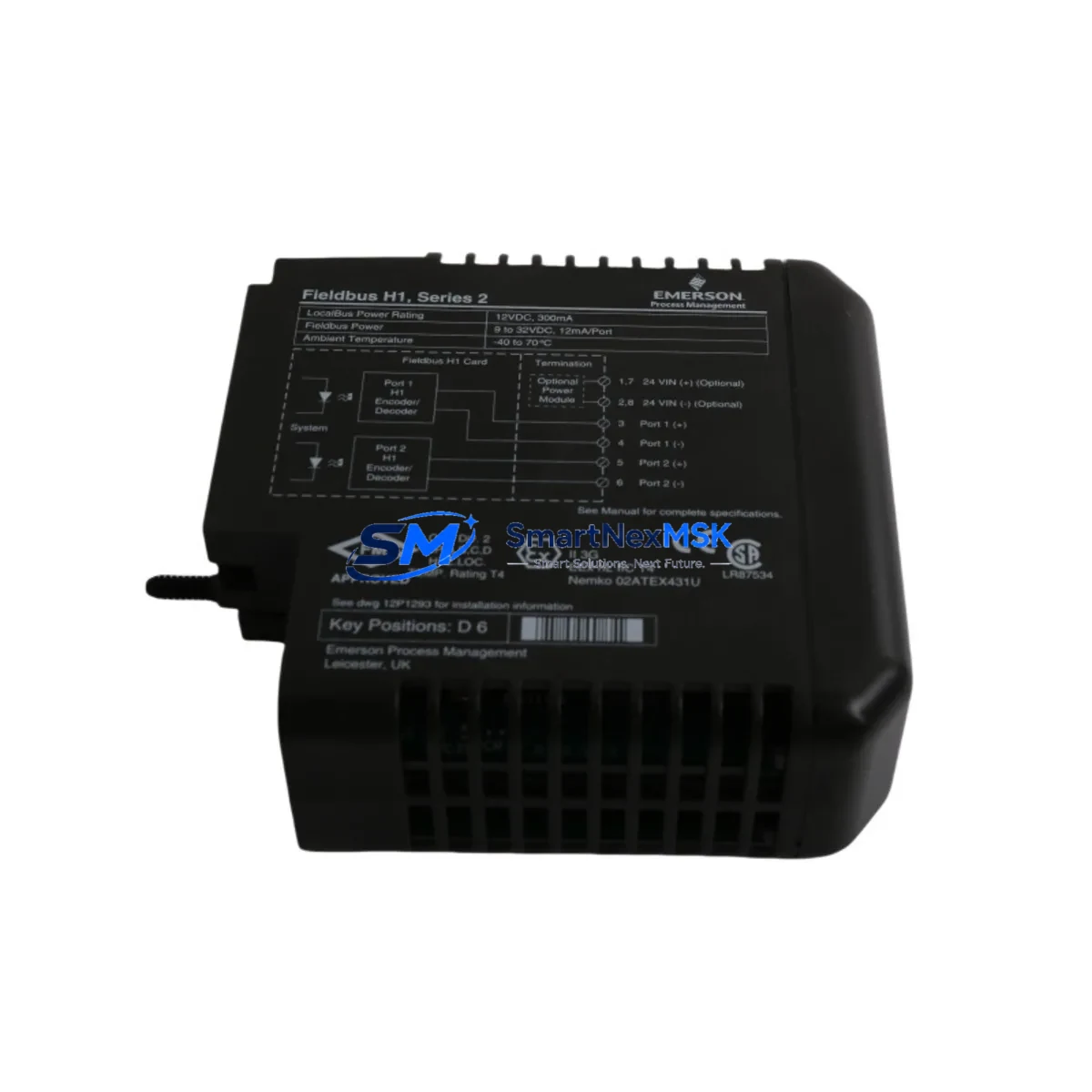

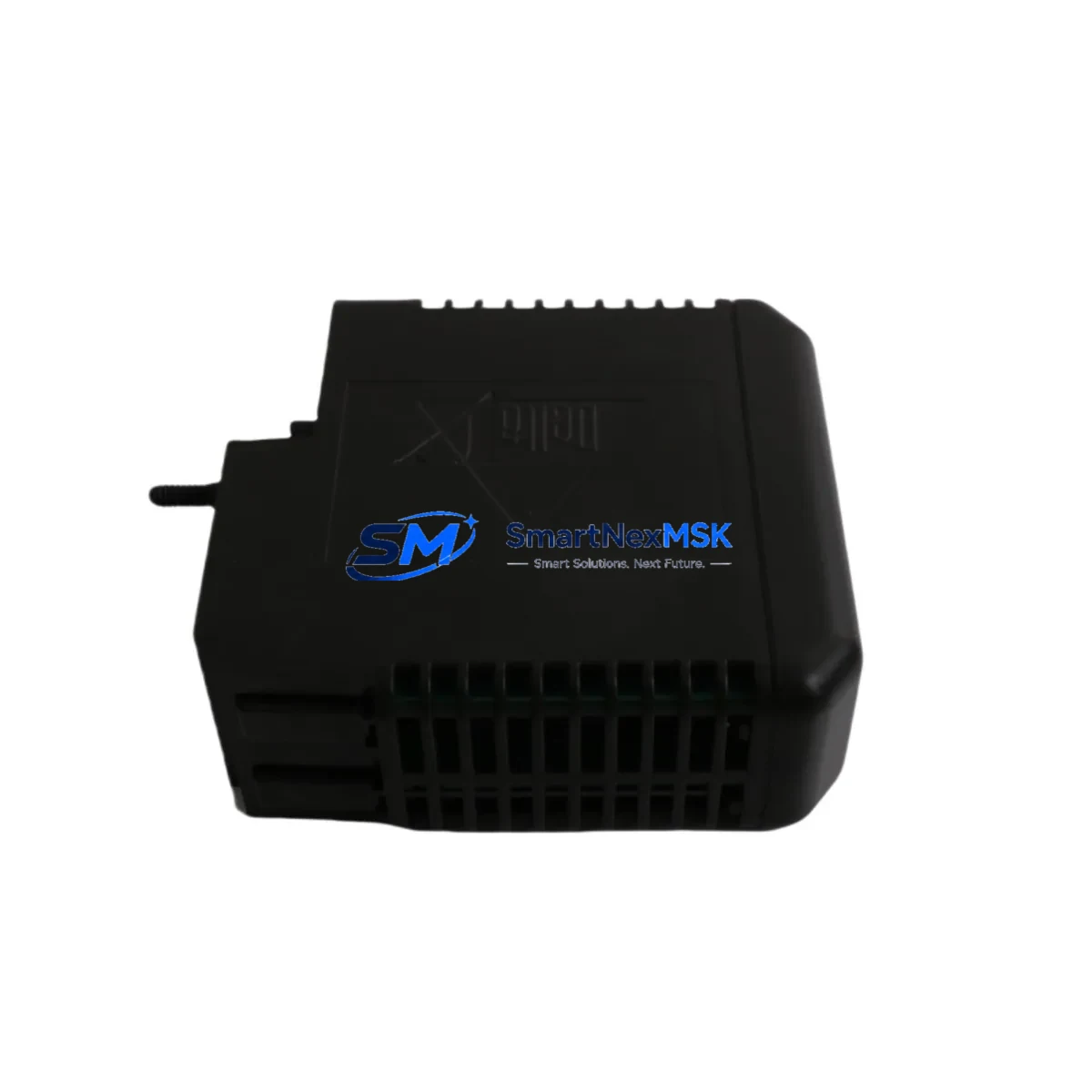

Emerson KJ3242X1-BA1 Retrofit-Ready Fieldbus H1 Interface Card for DeltaV Control Systems
The Emerson KJ3242X1-BA1 (Part No. 12P2471X062) is a Fieldbus H1 Interface Card engineered for seamless integration into Emerson DeltaV distributed control systems. Designed to serve as a direct retrofit replacement for legacy H1 interface modules, this card enables industrial facilities to modernize aging control infrastructure without requiring full system overhauls. Whether you are replacing a discontinued module, expanding I/O capacity, or migrating from an older DeltaV revision, the KJ3242X1-BA1 delivers the compatibility, reliability, and field-proven performance that process engineers and maintenance teams depend on.
In retrofit and upgrade projects, the KJ3242X1-BA1 is commonly deployed alongside the KJ2201X1-BA1 DeltaV I/O Interface Card and the KJ3001X1-BA1 DeltaV Controller Module, forming a complete modernized control node. Facilities upgrading from older DeltaV S-series hardware frequently pair this card with the KJ4001X1-BA1 Power Supply Module to ensure adequate bus power for expanded H1 segment loads. For multi-drop Fieldbus H1 topologies, the card is typically installed in a KJ3204X1-BA1 DeltaV Carrier or equivalent eight-slot I/O carrier, with segment terminators and spur cables verified prior to commissioning.
When integrating the KJ3242X1-BA1 into an existing DeltaV system, engineers must confirm that the host controller — such as the MD Plus Controller or MQ Controller — is running a firmware revision compatible with the H1 card’s device description (DD) files. Mismatched DD revisions are a leading cause of commissioning delays in H1 retrofit projects. The DeltaV Explorer configuration tool should be used to assign module addresses, verify channel assignments, and download the updated control strategy before powering the new card in the field.
For facilities transitioning from HART-based I/O to Foundation Fieldbus H1, the KJ3242X1-BA1 supports up to 16 field devices per H1 segment, subject to power budget constraints. Installers should calculate the total current draw of all connected field instruments — including Rosemount 3051 pressure transmitters, Fisher DVC6200 digital valve controllers, and Micro Motion Coriolis flow meters — against the segment power supply capacity before finalizing the wiring design. The KJ4002X1-BA1 Fieldbus Power Conditioner is recommended for segments with high device counts or long cable runs.
HMI integration is a critical step in any DeltaV H1 retrofit. After installing the KJ3242X1-BA1, operators must verify that all associated DeltaV Operate graphics, faceplates, and alarm configurations correctly reference the new module’s tag assignments. In systems using DeltaV Live or legacy DeltaV Operate HMI environments, module tag remapping may be required if the replacement card is installed in a different carrier slot than the original. Backup all existing HMI configurations and control module databases before beginning the physical swap.
Communication link integrity should be validated using the DeltaV Diagnostics tool after installation. H1 segment health indicators — including noise levels, signal levels, and device communication status — should be reviewed to confirm stable fieldbus communication before returning the loop to automatic control. For systems with redundant H1 segments, verify that the secondary path switches correctly under simulated fault conditions.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | KJ3242X1-BA1 / 12P2471X062 |
| Compatible Platform | Emerson DeltaV Distributed Control System (DCS) |
| Compatible Series | DeltaV S-series, M-series, MD/MD Plus, MQ Controllers |
| Interface Type | Foundation Fieldbus H1 |
| Carrier / Backplane | 8-slot DeltaV I/O Carrier (KJ3204X1-BA1 or equivalent) |
| Communication Protocol | Foundation Fieldbus H1 (31.25 kbit/s) |
| Max Devices per Segment | Up to 16 field devices (power budget dependent) |
| Installation Requirement | DD file version match with host controller firmware required |
| Replacement Recommendation | Direct drop-in for legacy KJ3242X1-series H1 interface cards |
| Commissioning Focus | Module address assignment, DD download, segment power budget, HMI tag verification |
| Warranty | 12-Month Warranty — tested and verified before shipment |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a thorough audit of the existing control cabinet. Before removing the legacy H1 interface card, document all terminal wiring, module slot assignments, and segment device lists. In DeltaV systems, the KJ3001X1-BA1 Controller Module manages communication with all I/O cards in the carrier; any changes to carrier slot assignments must be reflected in the DeltaV configuration database before the new card is powered on.
Power supply capacity is a frequent bottleneck in H1 retrofit projects. The KJ4001X1-BA1 Power Supply Module should be inspected and load-tested before adding new H1 segments. If the existing power supply is operating near capacity, a supplemental KJ4002X1-BA1 Fieldbus Power Conditioner may be required. For control cabinets with mixed I/O types, verify that the KJ2201X1-BA1 I/O Interface Card and any co-installed analog or discrete I/O modules are not drawing excess current from the shared backplane bus.
Wiring adaptation is often required when replacing older H1 cards with the KJ3242X1-BA1. Confirm that the H1 segment cable — typically a Type A shielded twisted pair — is terminated correctly at both ends, with only one active terminator per segment. Spur lengths must comply with Foundation Fieldbus specifications to avoid signal reflections that can cause intermittent device communication faults. A Fieldbus segment tester or oscilloscope should be used to verify signal integrity before connecting field devices.
For facilities also upgrading their operator interface, the transition from legacy DeltaV Operate to DeltaV Live HMI should be coordinated with the H1 card replacement to minimize the number of separate commissioning windows. Combining the HMI migration with the I/O retrofit reduces total downtime and allows a single integrated functional acceptance test (FAT) to cover both changes.
Downtime Control During System Migration
Minimizing production downtime is the primary operational constraint in any live-system H1 retrofit. The recommended approach is to pre-configure the KJ3242X1-BA1 offline — assigning module addresses, loading DD files, and verifying the control strategy in a staging environment — before scheduling the physical installation window. This preparation reduces the in-field commissioning time to a card swap, wiring verification, and a controlled download, typically achievable within a planned maintenance window of two to four hours.
To protect existing program logic, export a full backup of the DeltaV control module database and HMI configuration before beginning any hardware changes. If the replacement card is installed in the same carrier slot as the original, the existing module tag assignments and control strategy references will remain valid, eliminating the need for tag remapping. For installations where the slot position changes, use DeltaV Explorer to update all affected module references before downloading to the controller.
During the cutover, maintain manual control of critical process loops where possible. Coordinate with the operations team to place affected control loops in manual mode before removing the legacy card, and confirm that all field devices on the H1 segment are in their safe fallback states. After installing the KJ3242X1-BA1 and completing the configuration download, bring loops back to automatic control one at a time, verifying stable PV readings and correct output response at each step before proceeding to the next loop.
All units are tested and verified prior to shipment, and are covered by a 12-month warranty from the date of delivery. This ensures that your retrofit project is supported by a reliable supply chain with traceable quality assurance at every stage.
Retrofit Support FAQ
Q: Is the KJ3242X1-BA1 a direct drop-in replacement for my existing DeltaV H1 interface card?
A: Yes, the KJ3242X1-BA1 is designed as a direct replacement for legacy Emerson DeltaV H1 interface cards of the same form factor. It installs into the same carrier slot and uses the same backplane interface. However, you must verify that the DD file version loaded in your DeltaV system matches the firmware revision of the replacement card to ensure full compatibility.
Q: What wiring changes are required when installing the KJ3242X1-BA1?
A: In most cases, no wiring changes are required if the replacement card is installed in the same carrier slot. The H1 segment cable connections at the carrier terminal block remain unchanged. If the installation requires a different slot position, re-terminate the H1 segment cables at the new slot’s terminal block and verify segment termination at both ends before powering on.
Q: How do I verify compatibility with my existing DeltaV controller and HMI?
A: Use DeltaV Explorer to confirm that the host controller firmware supports the KJ3242X1-BA1’s DD file version. In DeltaV Live or DeltaV Operate, verify that all HMI graphics and faceplates reference the correct module tags after installation. Run a full diagnostic scan using the DeltaV Diagnostics tool to confirm H1 segment health and device communication status before returning loops to automatic control.
Q: What does the 12-month warranty cover, and how are units tested before shipment?
A: All KJ3242X1-BA1 units supplied by SMARTNEXMSK are functionally tested prior to shipment to verify correct operation of the H1 interface, backplane communication, and power supply circuits. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units showing failure due to manufacturing defects within the warranty period will be repaired or replaced at no charge.
