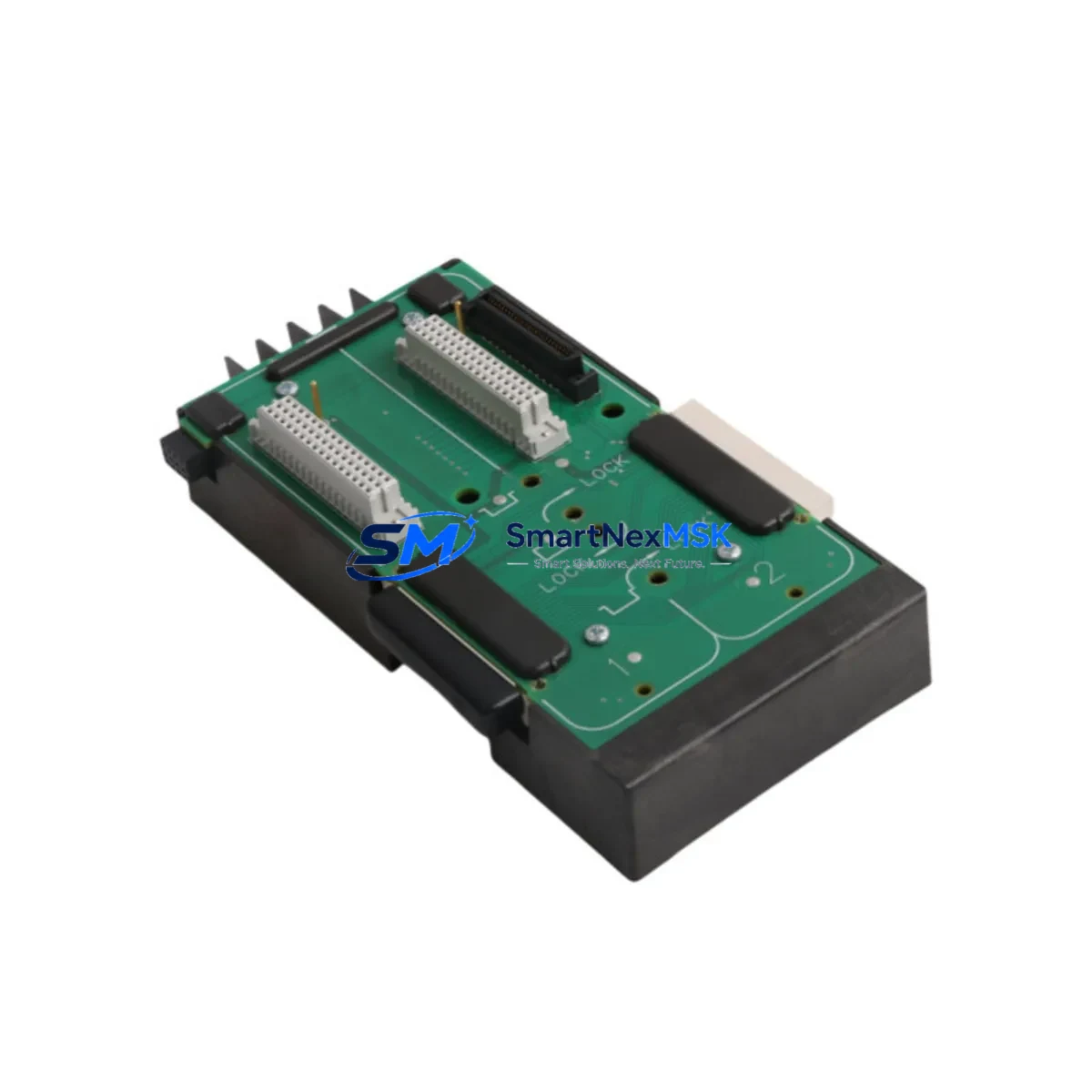

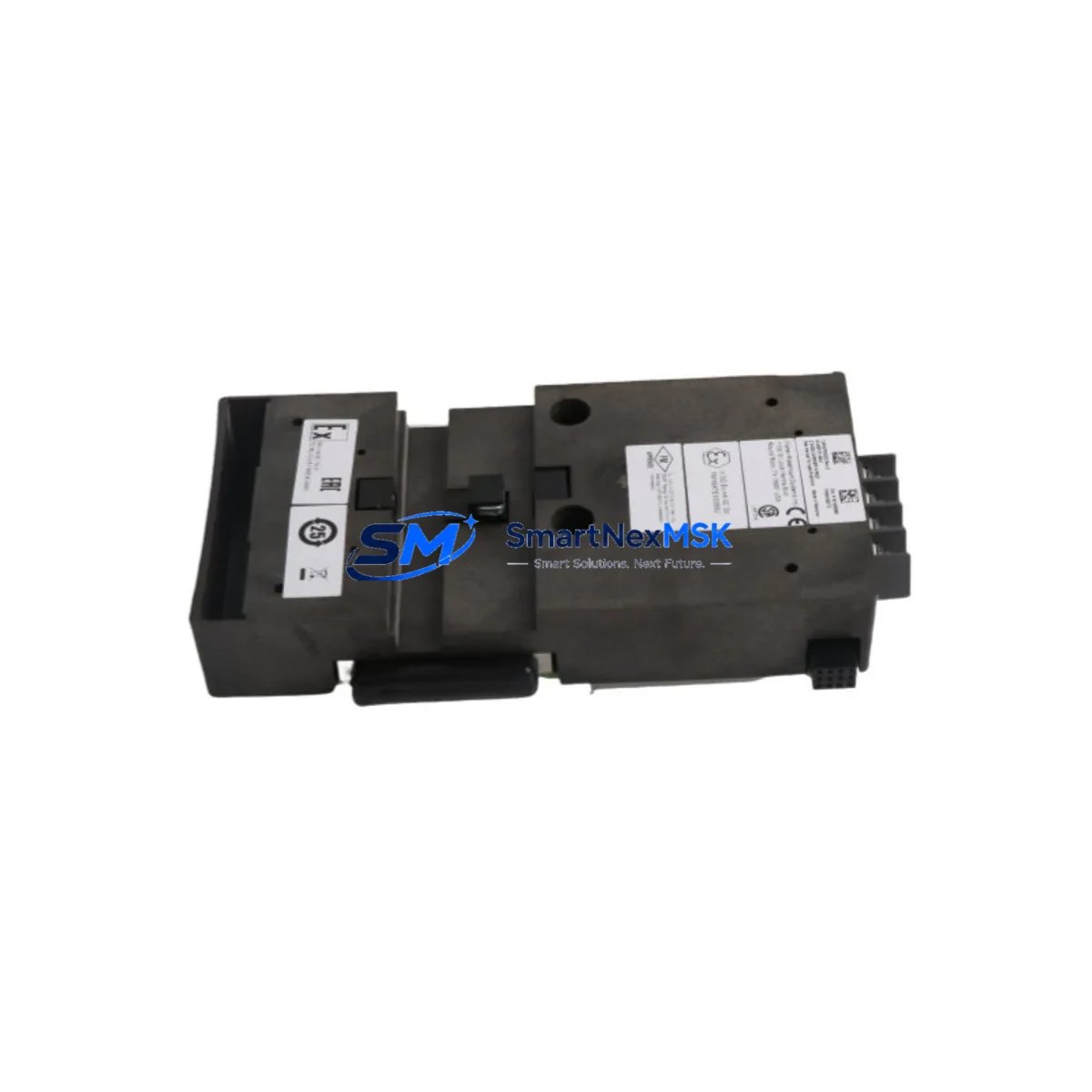

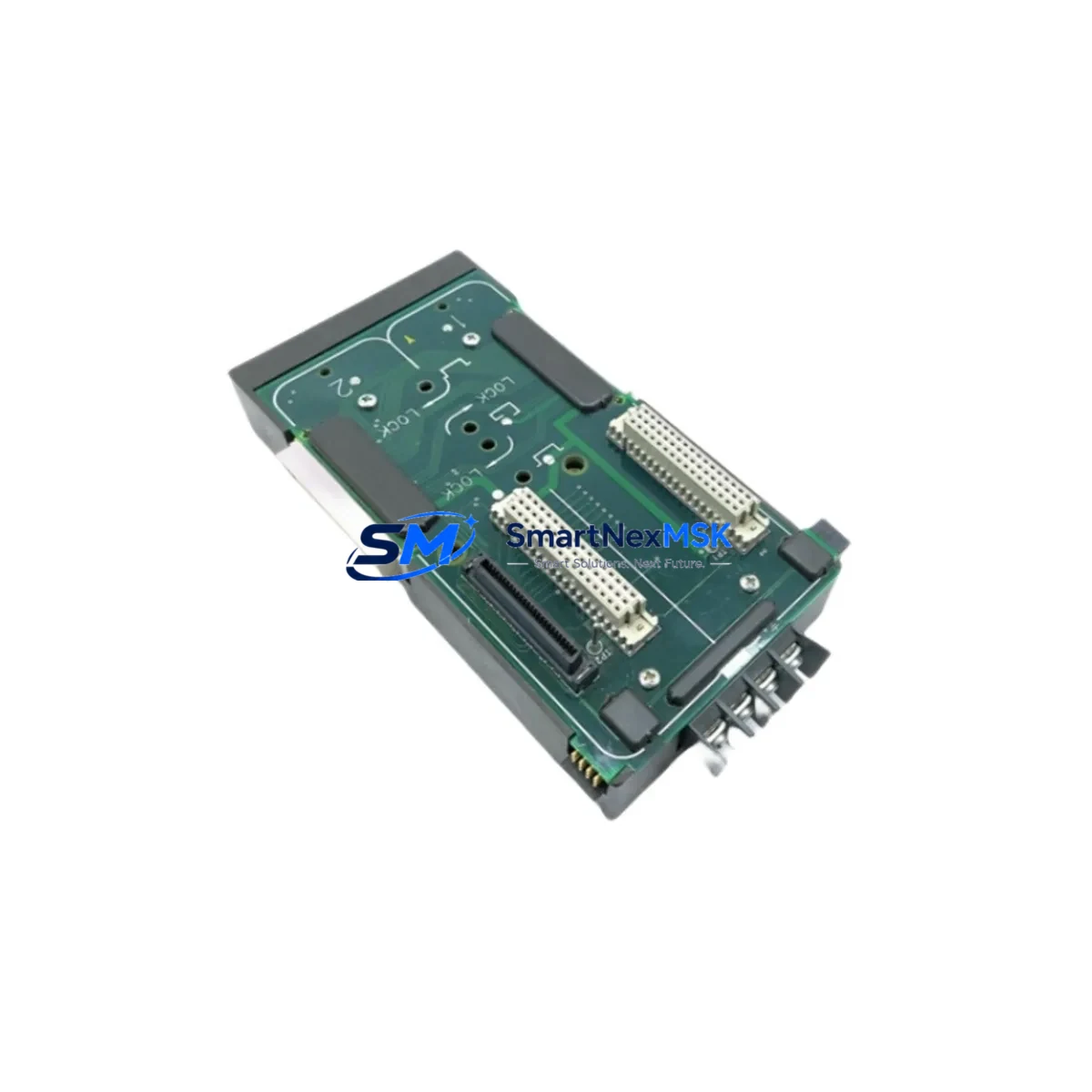

Emerson KJ4001X1-BA3 Retrofit-Ready Power Controller for DeltaV DCS Control Systems
The Emerson KJ4001X1-BA3 (also referenced as 12P3378X032 / VE3051C0) is a proven power controller module engineered for the Emerson DeltaV DCS platform. Designed to serve as a direct retrofit replacement for aging or discontinued power supply assemblies within DeltaV S-series and M-series controller enclosures, this module enables plant engineers to restore full system functionality without requiring a complete control system overhaul. SMARTNEXMSK maintains verified stock of the KJ4001X1-BA3 with a 12-month warranty, pre-shipment functional testing, and documented traceability for regulated industries.
Industrial facilities operating legacy DeltaV architectures frequently encounter obsolescence challenges when original power modules reach end-of-life. The KJ4001X1-BA3 addresses this directly by maintaining electrical compatibility with existing DeltaV controller backplanes, preserving the original rack wiring topology and eliminating the need to re-engineer terminal block assignments or modify cabinet layouts. Engineers replacing a failed KJ3001X1 or KJ2003X1 controller node power assembly will find the KJ4001X1-BA3 a reliable upgrade path that retains the same backplane connector footprint and DC bus voltage profile.
Before committing to a retrofit, site engineers should verify the following parameters against the existing installation: input voltage range (24 VDC nominal from the DeltaV power bus), output current capacity relative to the total I/O load on the affected controller node, and backplane slot assignment as defined in the DeltaV Explorer configuration database. Mismatched slot addressing is a common source of post-replacement communication faults and should be resolved in the DeltaV configuration tool prior to module insertion.
Upgrade Compatibility Table
| Parameter | KJ4001X1-BA3 Specification | Retrofit Notes |
|---|---|---|
| Platform Compatibility | Emerson DeltaV S-Series, M-Series DCS | Verify controller node type in DeltaV Explorer before installation |
| Backplane Interface | DeltaV standard backplane connector | Compatible with existing KJ3001X1 / KJ2003X1 backplane slots |
| Input Voltage | 24 VDC (DeltaV power bus) | Confirm power supply module (e.g. KJ1501X1-BA2) output before swap |
| Communication Protocol | DeltaV internal bus (proprietary) | No protocol reconfiguration required; node address retained from configuration DB |
| Installation Format | DeltaV controller carrier / rack mount | No mechanical modification to cabinet or DIN rail required |
| Replacement Models | KJ3001X1, KJ2003X1, VE3051C0 equivalents | Cross-reference part numbers before ordering; confirm revision level |
| Commissioning Requirement | DeltaV Diagnostics / Explorer re-download | Re-download controller configuration after module replacement |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful DeltaV power module retrofit begins well before the physical swap. The engineering team should extract the current controller node configuration from DeltaV Explorer and export a full system backup, including the module database and I/O assignment map. This backup protects against configuration loss during the replacement window and provides the reference data needed to verify that the KJ4001X1-BA3 is assigned to the correct node address post-installation.
Within the same controller enclosure, the KJ4001X1-BA3 typically operates alongside a KJ1501X1-BA2 power supply module, which feeds the 24 VDC bus. Engineers should measure the actual bus voltage under load before the replacement to confirm the supply is within tolerance. If the power supply itself is degraded, replacing only the KJ4001X1-BA3 without addressing the upstream supply will not resolve recurring faults. In multi-node cabinets, the KJ3232X1 I/O interface module and associated KJ3002X1 analog input cards should be inspected for corrosion or loose terminal connections during the same maintenance window.
For plants running HART-enabled field instruments through DeltaV I/O subsystems, the retrofit window is also an appropriate time to audit the KJ3222X1 HART multiplexer connections and verify that HART pass-through is correctly configured in the DeltaV I/O module parameters. Communication interruptions between the DeltaV controller and field devices are frequently traced to incorrect HART enable settings rather than hardware failure.
Cabinet-level planning should also account for the DeltaV workstation running the Operate interface. If the HMI graphics reference specific controller node tags that are temporarily offline during the swap, operators should be briefed on expected alarm behavior and the DeltaV Operate display should be placed in maintenance mode to suppress nuisance alarms. The DeltaV SIS logic solver, if present in the same cabinet, must remain isolated from the power module replacement activity to avoid inadvertent safety function interruption.
For facilities migrating from older Fisher-Rosemount RS3 or Provox DCS architectures to DeltaV, the KJ4001X1-BA3 represents a key component in the new controller node build-out. Migration projects of this type also typically require DeltaV serial interface modules for legacy Modbus RTU device integration and OPC DA/UA gateway configuration to bridge historian data continuity across the cutover.
Downtime Control During System Migration
Minimizing unplanned downtime during a DeltaV power module replacement requires a structured pre-outage checklist and a clearly defined rollback procedure. The recommended approach is to schedule the replacement during a planned maintenance window, with the process unit in a safe, stable hold state. Before de-energizing the controller node, the site engineer should confirm that all DeltaV controller redundancy pairs are healthy — if the affected node operates in a redundant pair configuration, the secondary controller should assume control before the primary is powered down.
The physical replacement of the KJ4001X1-BA3 is straightforward: the module is extracted from its carrier slot, the replacement is seated and locked, and the controller node is re-energized. The DeltaV system will automatically detect the new module and initiate a configuration download from the DeltaV Application Station. Engineers should monitor the DeltaV Diagnostics display during this sequence to confirm that the module transitions from “Needs Download” to “Healthy” status without fault codes.
If the controller node does not recover automatically, the most common causes are a mismatched module revision level, an incorrect node address in the DeltaV configuration database, or a residual fault in the backplane connector. Each of these can be resolved without a full system restart. Maintaining a spare KJ4001X1-BA3 on-site as a hot standby is strongly recommended for critical process units where extended downtime is not acceptable. SMARTNEXMSK can supply additional units with short lead times to support on-site spare inventory programs.
Retrofit Support FAQ
Q1: Is the KJ4001X1-BA3 a direct drop-in replacement for the KJ3001X1 and KJ2003X1?
In most DeltaV S-series and M-series installations, yes. The backplane connector and DC bus interface are compatible. However, engineers should confirm the revision level and firmware compatibility in DeltaV Explorer before installation, as certain early-revision backplanes may require a configuration update prior to accepting the KJ4001X1-BA3.
Q2: What wiring changes are required during the replacement?
No external wiring changes are required for a like-for-like power module swap. The KJ4001X1-BA3 connects exclusively through the backplane interface — there are no field terminal blocks on the module itself. If the replacement is part of a broader I/O expansion or cabinet upgrade, terminal block reassignments should be documented and verified against the DeltaV I/O assignment database before the outage.
Q3: How is the module commissioned after installation?
After physical installation, the DeltaV Application Station will detect the new module and prompt a configuration download. The engineer should initiate the download from DeltaV Explorer, monitor the Diagnostics display for healthy status, and verify that all I/O channels on the affected node are reporting correctly in DeltaV Operate. A functional loop check on critical analog inputs and outputs is recommended before returning the process unit to automatic control.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each KJ4001X1-BA3 unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test, and a test report is available upon request. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or physical mishandling. For warranty claims, contact sales@smartnexmsk.com with the order reference and a description of the fault.
