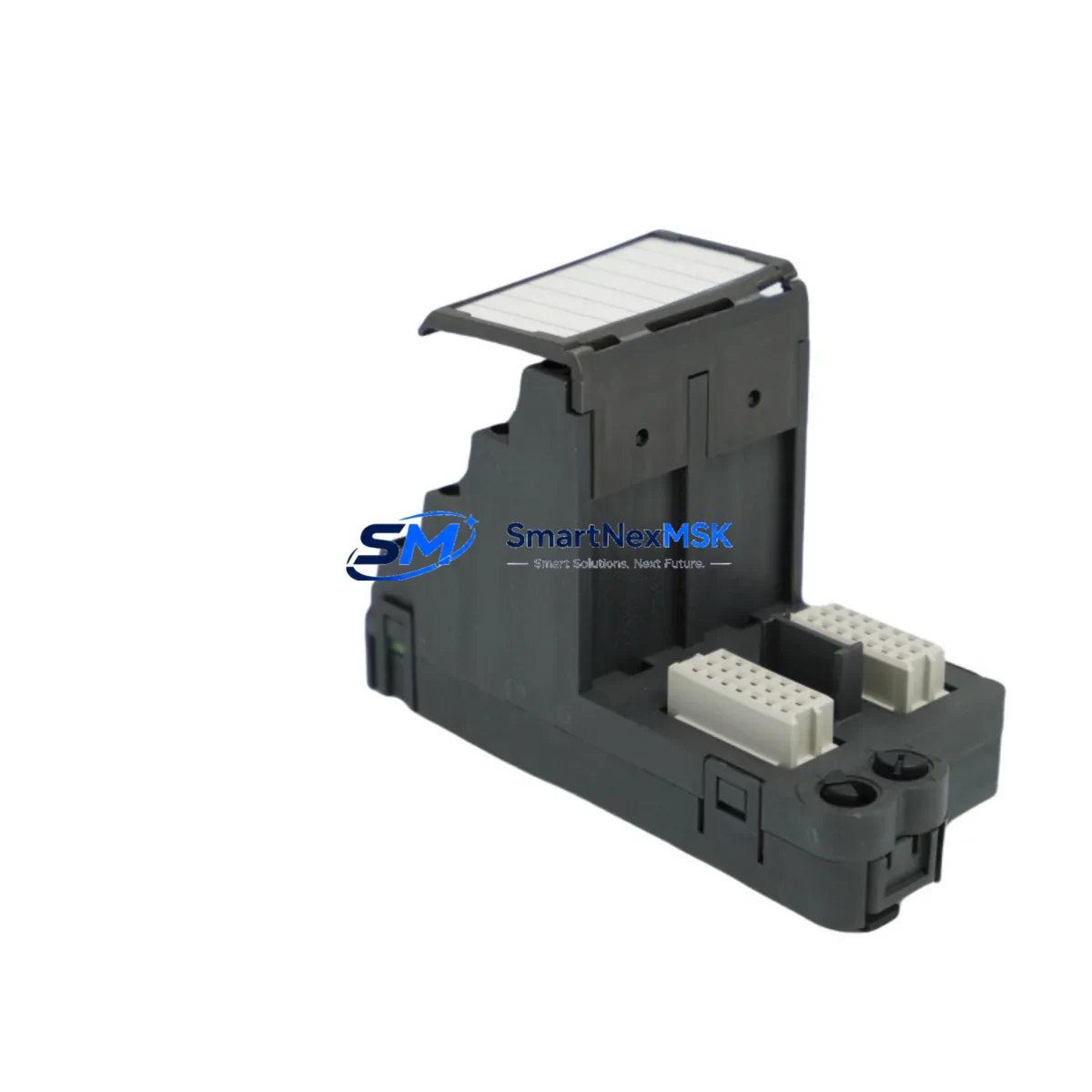

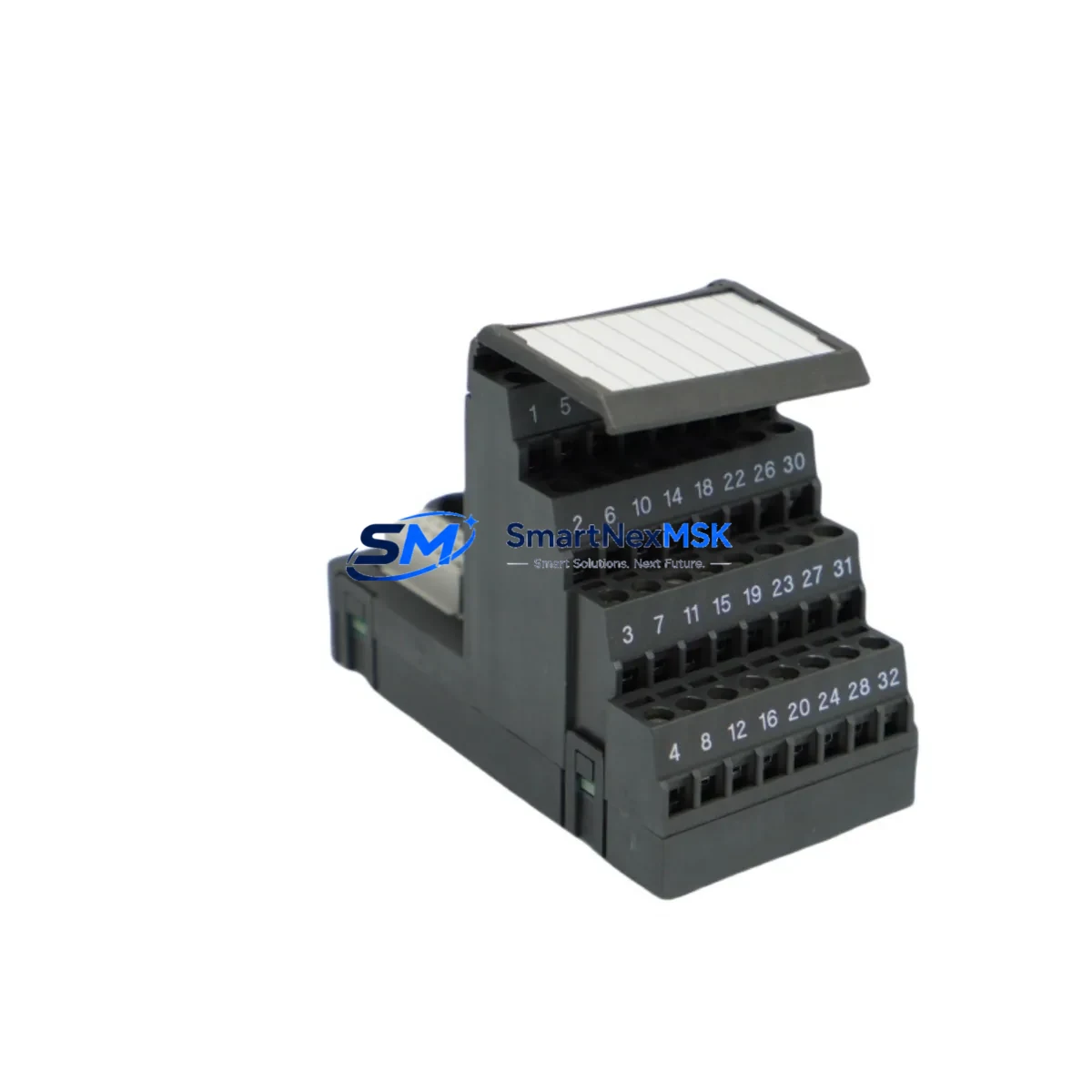

The Emerson KJ4001X1-CJ1 (also referenced as 12P1902X042) is an original I/O Channel Terminal Block designed for the Emerson DeltaV distributed control system platform. In process industries — including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing — the DeltaV DCS backbone depends on reliable I/O termination hardware to maintain signal integrity between field instruments and the controller subsystem. When a terminal block fails or degrades, the result is immediate: loss of process visibility, spurious alarms, or unplanned shutdown. Stocking a verified original KJ4001X1-CJ1 as a maintenance spare is a fundamental risk-mitigation strategy for any facility running DeltaV Series controllers.

This listing supplies a genuine, tested KJ4001X1-CJ1 terminal block sourced through authorized industrial channels. Each unit undergoes pre-shipment electrical verification and is dispatched with full documentation. A 12-month warranty covers manufacturing defects and functional performance, giving maintenance engineers and procurement teams confidence in long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing a DeltaV-based control system, the KJ4001X1-CJ1 terminal block sits at the critical junction between field wiring and the I/O card. A structured maintenance plan should treat this component as part of a broader I/O subsystem inspection — not an isolated replacement task.

When scheduling a planned replacement of the KJ4001X1-CJ1, the following associated components should be inspected or staged as concurrent spares:

• DeltaV AI Series I/O Cards (e.g., KJ3002X1-BA1, KJ3001X1-BA1): The terminal block interfaces directly with the analog input card. If the terminal block shows signs of corrosion or thermal stress, the mating I/O card connector should be inspected for pin damage or oxidation.
• DeltaV DO / DI Module Cards: Digital output and input modules sharing the same I/O carrier should be verified for correct signal levels after terminal block replacement to rule out cascading wiring faults.
• DeltaV Power Supply Modules (e.g., KJ4001X1-EA1 or equivalent): Confirm that the 24 VDC field power rail supplying the I/O subsystem is within tolerance. A degraded power supply can cause intermittent terminal block behavior that mimics hardware failure.
• HART Multiplexer or Signal Conditioner: If the channel supports HART-enabled field instruments, verify that the HART signal path through the terminal block is intact. Signal isolators or HART modems in the loop should be checked for impedance compatibility.
• DeltaV Controller Card (MD or MD Plus): After I/O termination work, confirm that the controller recognizes all channels correctly. A controller card with marginal memory or firmware issues may misreport channel status post-maintenance.
• Marshalling Cabinet Terminal Strips and Fuse Holders: Inspect the upstream marshalling panel for loose terminations, blown fuses, or corroded terminal strips that could introduce resistance into the signal loop.
• Cable Shields and Instrument Cable (Belden or equivalent): Verify that shielded instrument cable is properly grounded at one end only. Improper shielding after terminal block replacement is a common source of noise-induced signal errors.
• DeltaV CHARM I/O Cards (if applicable): In newer DeltaV installations using CHARM architecture, confirm that the CHARM terminal block and associated CIOC (CHARM I/O Controller) are not affected by the maintenance activity.
• Surge Protection Devices (SPDs) on I/O Loops: Check that any installed surge arrestors or transient voltage suppressors on the field wiring side remain functional and have not been triggered by prior fault events.
• DeltaV Workstation and Historian Connectivity: After completing the terminal block swap, verify that the DeltaV Operate workstation and DeltaV Historian are logging the restored channel data correctly, confirming end-to-end signal restoration.

Procurement engineers should note that the KJ4001X1-CJ1 is a long-lifecycle DeltaV component. Maintaining a minimum stock of 2–4 units per facility — particularly for plants with large I/O counts — is a recognized best practice for reducing mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Replacing the KJ4001X1-CJ1 in a live DeltaV environment requires a structured approach to minimize downtime and avoid configuration errors:

1. Pre-work verification: Confirm the replacement KJ4001X1-CJ1 matches the installed revision. Check the DeltaV Explorer for the channel assignment and tag list associated with the affected terminal block position.
2. Safe isolation: Place affected I/O channels in manual mode at the DeltaV controller level. Notify the control room operator before disconnecting field wiring. Follow site LOTO (Lockout/Tagout) procedures for the relevant field instruments.
3. Wiring documentation: Photograph or record all field wiring terminations before removal. Use the as-built wiring diagram to verify terminal assignments. Label each wire before disconnection.
4. Physical swap: Remove the faulty KJ4001X1-CJ1 from the I/O carrier. Install the replacement unit, ensuring the carrier locking mechanism is fully engaged. Reconnect field wiring per the documented terminal assignments, applying correct torque to screw terminals (typically 0.5–0.6 Nm for DeltaV terminal blocks).
5. Functional verification: Restore the I/O channel in DeltaV Explorer. Verify that each channel reads the expected engineering unit value from the field instrument. Check for HART communication if applicable. Confirm no alarms are generated by the restored channel.
6. Documentation update: Record the replacement in the plant maintenance management system (CMMS). Update the spare parts inventory to reflect consumption and trigger a reorder if stock falls below the minimum threshold.

This workflow is compatible with both hot-standby DeltaV configurations and standard single-controller installations. For redundant controller setups, the replacement can typically be performed without a full process shutdown by switching control to the redundant controller during the maintenance window.

Spare Parts Support FAQ

Q1: Is the KJ4001X1-CJ1 still available as a new original part, or only as tested surplus?
We supply both new original and tested surplus units depending on current stock. All units — regardless of condition classification — undergo pre-shipment electrical testing and are covered by a 12-month warranty. The condition is clearly stated on the order confirmation. If you require a specific condition (new OEM vs. tested surplus), please specify at the time of inquiry.

Q2: How do I verify compatibility between the KJ4001X1-CJ1 and my installed DeltaV I/O cards?
The KJ4001X1-CJ1 is designed for use with Emerson DeltaV Series I/O subsystems. Compatibility is determined by the I/O card type (AI, AO, DI, DO) and the carrier revision installed in your cabinet. Cross-reference the part number against your DeltaV system configuration report or contact our technical team with your DeltaV version and I/O card model numbers for a compatibility confirmation before ordering.

Q3: What does the 12-month warranty cover, and what is the return process if a unit is found defective?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. If a unit is found defective upon receipt or fails within the warranty period, contact sales@smartnexmsk.com with your order number and a description of the fault. We will arrange a replacement shipment or full refund. Units must be returned in original ESD-safe packaging. Damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified operating range is not covered.

Q4: Can you support long-term or blanket purchase orders for ongoing DeltaV maintenance programs?
Yes. We support long-term supply agreements for facilities with recurring DeltaV maintenance requirements. Blanket POs, scheduled releases, and consignment stock arrangements are available for qualified accounts. Contact our procurement team at sales@smartnexmsk.com or +86 18259474341 to discuss volume pricing, lead time commitments, and inventory reservation options tailored to your plant’s maintenance schedule.
