Emerson KJ4001X1-NA1 12P3373X032 Spare DeltaV Automation

Emerson KJ4001X1-NA1 12P3373X032 Spare DeltaV Automation: Spare Replacement & Industrial Downtime Risk Control

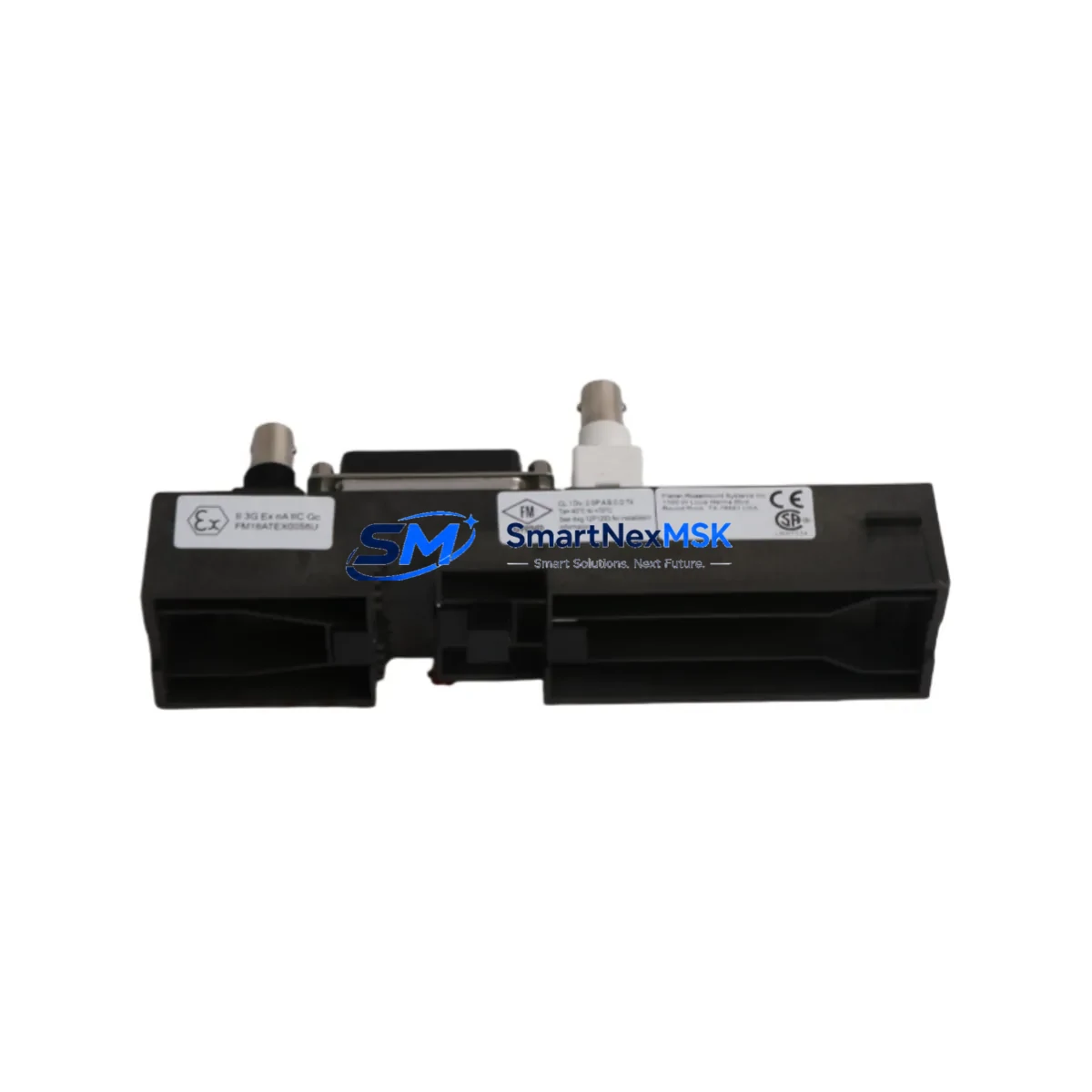

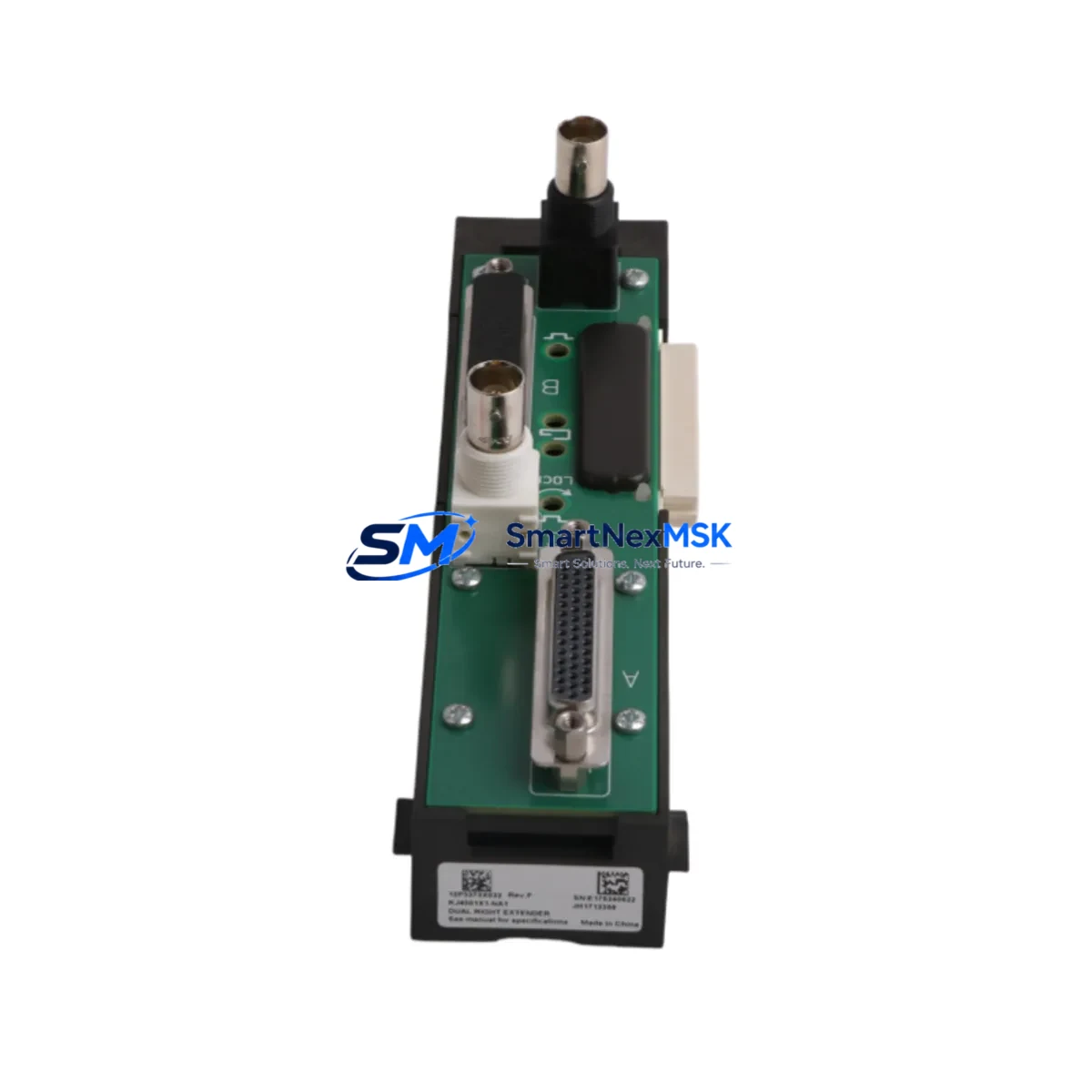

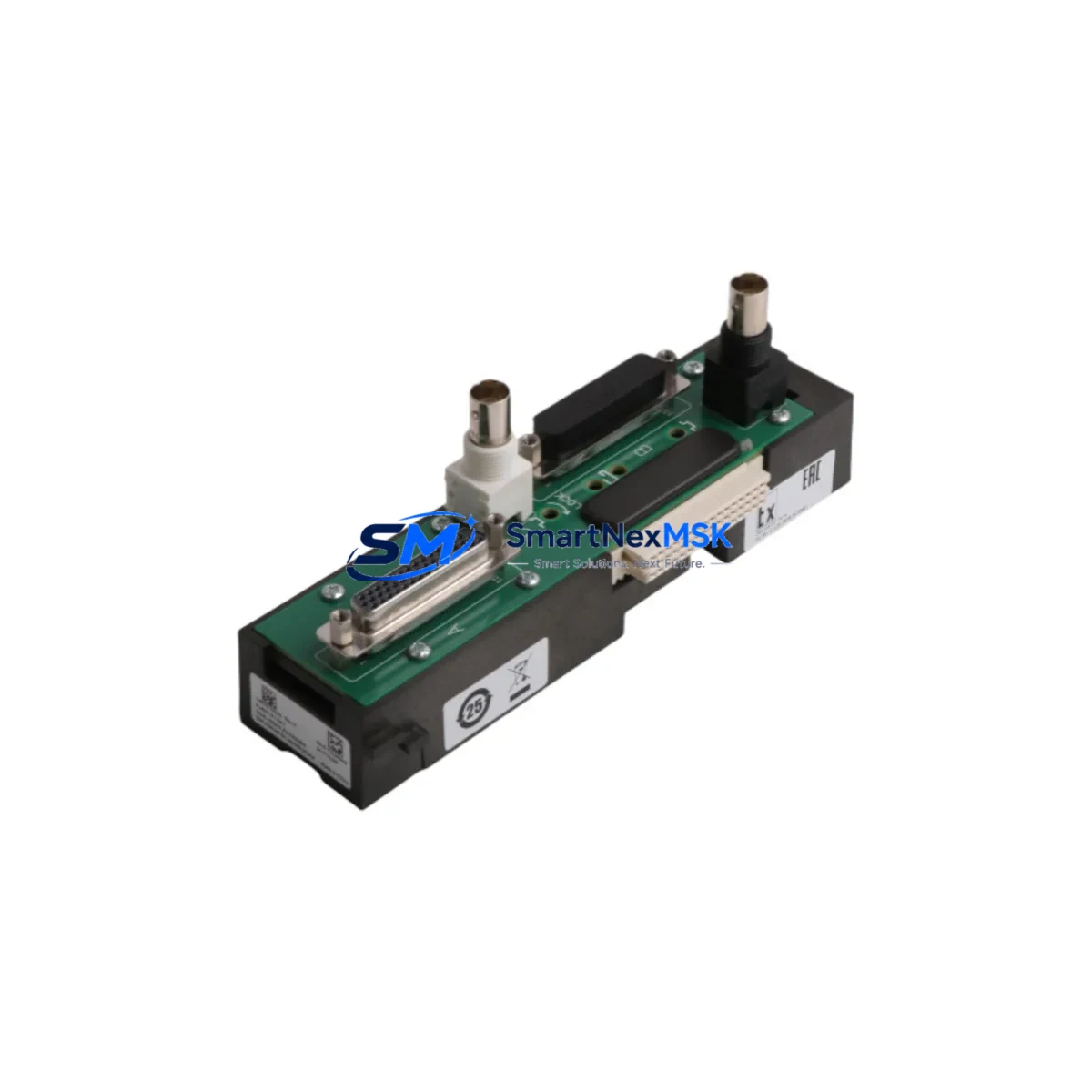

The Emerson KJ4001X1-NA1 (part number 12P3373X032) is an original Dual Right I/O Extender Module designed for the DeltaV Distributed Control System (DCS) platform. In process industries — including oil & gas, chemical, power generation, and pharmaceuticals — this module plays a critical role in extending I/O capacity within DeltaV controller nodes. When this component fails or degrades, the consequences can range from partial I/O loss to complete controller node shutdown, triggering unplanned downtime that costs thousands of dollars per hour. Maintaining a verified, tested spare of the KJ4001X1-NA1 12P3373X032 in your site inventory is one of the most effective strategies for rapid downtime recovery and long-term system reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing a DeltaV DCS environment, the KJ4001X1-NA1 12P3373X032 I/O Extender Module does not operate in isolation. Its performance is directly tied to the health of surrounding components within the same controller node and I/O subsystem. During planned maintenance windows or fault isolation procedures, replacing this module should trigger a systematic inspection of the entire I/O chain.

Start with the DeltaV controller module itself — models such as the MD Plus Controller (KJ2003X1-BA1) or the MD Controller (KJ2003X1-CA1) should be verified for firmware currency and communication health before re-commissioning the I/O extender. The I/O carrier or backplane that hosts the KJ4001X1-NA1 must be inspected for bent pins, oxidation, or mechanical damage, as backplane faults are a common root cause of extender module failures.

Power supply integrity is equally critical. The DeltaV Power Supply modules — such as the KJ1501X1-BG2 or equivalent redundant power units — should be load-tested to confirm stable voltage delivery to the I/O subsystem. Voltage sags or ripple can cause intermittent I/O extender faults that are difficult to diagnose without proper power quality measurement.

On the field side, terminal blocks and marshalling panels connected to the I/O cards hosted by this extender should be inspected for loose wiring, corrosion, or insulation breakdown. Signal isolators and barriers — particularly for HART-enabled analog I/O cards like the KJ3221X1-BA1 4-20mA AI module — should be tested for signal fidelity. Any degradation in signal isolation can cause false readings that are incorrectly attributed to the I/O extender rather than the field wiring.

For sites running redundant DeltaV architectures, the redundancy module (such as the KJ4001X1-NA2 or equivalent right-side redundancy extender) should be inspected in parallel. A failed redundancy extender may not immediately cause process disruption but will leave the system without failover protection — a risk that only becomes apparent during the next primary module fault.

Communication health should also be verified at the DeltaV workstation level. The DeltaV Operate HMI and DeltaV Diagnostics tool should show no persistent I/O communication alarms for the node hosting this extender. If alarms are present, inspect the DeltaV network switches, fiber optic links, and any CIOC (Controller I/O Card) modules in the same node before concluding the extender is the root cause.

Finally, fuse holders and circuit protection devices within the control cabinet should be checked as part of any I/O extender replacement procedure. A blown fuse on the I/O bus power rail can mimic an extender module failure and is often overlooked during rapid fault response.

Site Replacement Workflow

Replacing the KJ4001X1-NA1 12P3373X032 in a live DeltaV environment requires careful preparation to minimize downtime and avoid process disruption. The following workflow is recommended for maintenance and instrumentation engineers:

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s part number and reference number match exactly: KJ4001X1-NA1 / 12P3373X032. Verify the module has been tested and is confirmed functional prior to dispatch to site. Our units are tested before shipment and include a 12-month warranty.

Step 2 — System State Documentation: Using DeltaV Diagnostics, capture the current I/O assignment map for the controller node. Document which I/O cards are hosted on the extender to be replaced. This ensures rapid re-commissioning after the swap.

Step 3 — Controlled Shutdown: Where process conditions allow, place affected I/O in manual mode at the DeltaV Operate HMI. Coordinate with the control room operator before proceeding. For hot-swap capable configurations, follow Emerson’s documented hot-swap procedure for the DeltaV I/O subsystem.

Step 4 — Physical Replacement: Remove the faulty KJ4001X1-NA1 module from the carrier. Inspect the backplane connector for damage. Seat the replacement module firmly and verify the locking mechanism is engaged.

Step 5 — Re-commissioning and Verification: Power up the node and monitor DeltaV Diagnostics for I/O communication restoration. Confirm all I/O cards hosted on the extender return to normal communication status. Return affected loops to automatic control only after all I/O points are verified.

Step 6 — Spare Replenishment: After a successful replacement, immediately initiate procurement of a new spare KJ4001X1-NA1 12P3373X032 to restore your site’s spare parts buffer. Relying on a single spare creates vulnerability for future fault events.

Spare Parts Support FAQ

Q1: Is this KJ4001X1-NA1 12P3373X032 an original Emerson part or a third-party replacement?
This is an original Emerson DeltaV component — not a clone, copy, or third-party substitute. All units are sourced from verified industrial supply channels and are tested for functionality before shipment. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions.

Q2: How do I confirm compatibility with my DeltaV system version before ordering?
The KJ4001X1-NA1 is compatible with DeltaV S-Series and M-Series controller nodes that use the standard DeltaV I/O subsystem carrier architecture. If you are unsure about compatibility with your specific DeltaV system version or node configuration, contact us with your controller model number and DeltaV software version. Our technical team will confirm compatibility before shipment.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Each KJ4001X1-NA1 12P3373X032 unit undergoes functional testing to verify backplane communication, module identification, and I/O bus integrity prior to dispatch. The 12-month warranty covers functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling on site.

Q4: What is your recommended spare parts stocking strategy for DeltaV I/O Extender Modules?
For sites with multiple DeltaV controller nodes, we recommend maintaining a minimum of one KJ4001X1-NA1 spare per four nodes, or one spare per node for critical process units where downtime cost is high. I/O extender modules have a typical service life of 10–15 years in controlled environments, but should be proactively replaced at the first sign of intermittent I/O communication faults rather than waiting for complete failure. Pairing this spare with a controller module spare and a power supply spare provides comprehensive coverage for the most common DeltaV node failure scenarios.
