Emerson KJ4006X1-BC1 12P4720X062 Retrofit-Ready Terminal Block for DeltaV I/O

Emerson KJ4006X1-BC1 12P4720X062 Retrofit-Ready Terminal Block for DeltaV I/O Control Systems

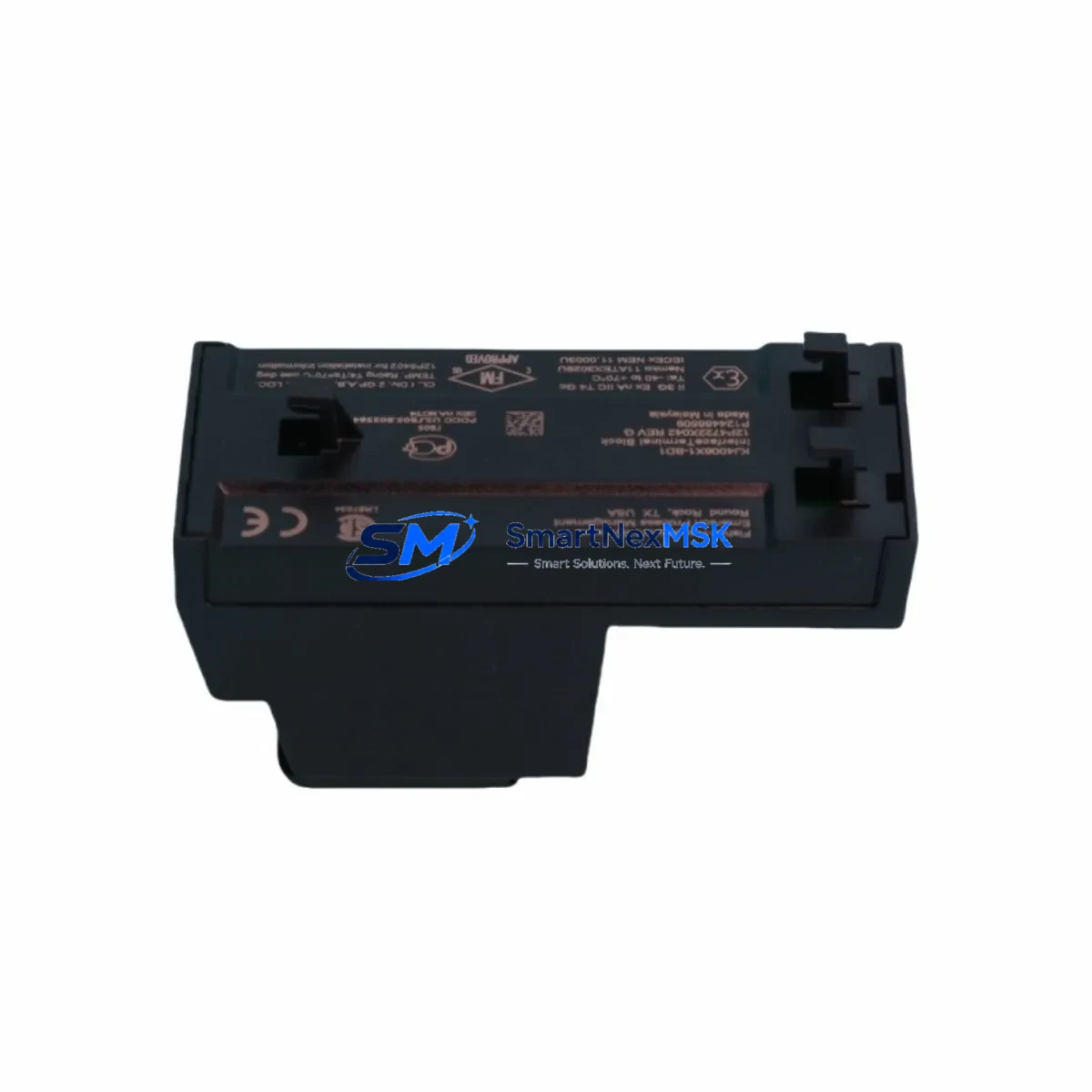

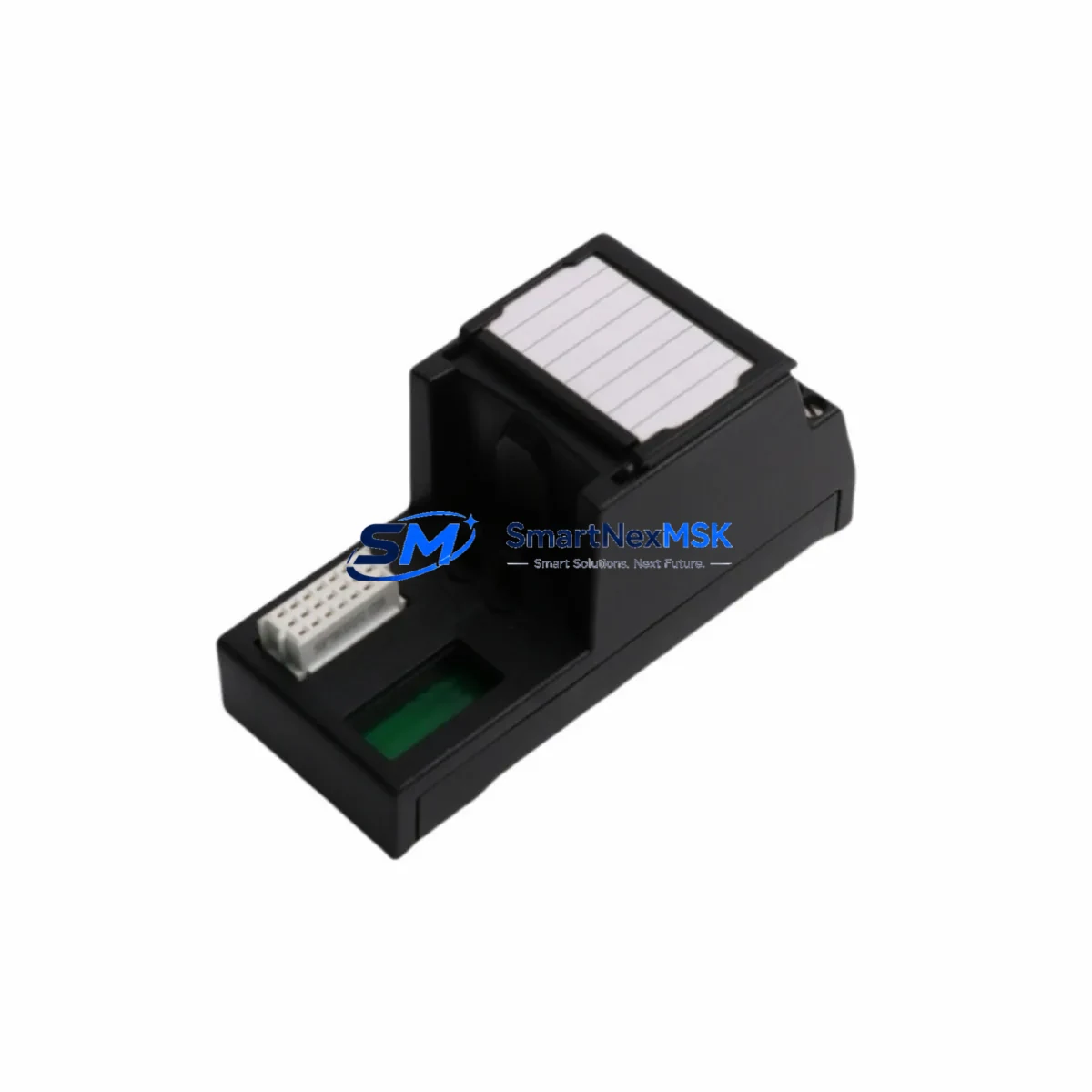

The Emerson KJ4006X1-BC1 (part number 12P4720X062) is a fused 8-channel marshalling terminal block engineered for seamless integration into Emerson DeltaV distributed control system architectures. Designed to support legacy system modernization, this terminal block serves as a direct retrofit replacement for aging or discontinued I/O interface components within DeltaV S-series and M-series controller cabinets. Whether you are executing a planned control system upgrade, recovering from an unplanned component failure, or consolidating a multi-vendor field wiring infrastructure, the KJ4006X1-BC1 provides the electrical and mechanical compatibility required to minimize engineering rework and reduce overall project risk.

In retrofit and upgrade projects, the KJ4006X1-BC1 is typically installed alongside the KJ3002X1-BA1 analog input card and the KJ2201X1-BA1 discrete output card, both of which share the same DeltaV I/O subsystem backplane architecture. Engineers replacing older KJ4001X1-BC1 or KJ4003X1-BC1 terminal blocks should verify the fuse rating, channel count, and field wiring termination pitch before proceeding. The KJ4006X1-BC1 uses standard M3 screw terminals compatible with 0.5–2.5 mm² field cables, making it suitable for direct re-termination without rewiring the marshalling cabinet.

When planning a DeltaV I/O retrofit, the following verification steps are critical to a successful cutover. First, confirm that the existing CHARM I/O carrier or traditional I/O card slot assignment matches the replacement module’s addressing scheme in DeltaV Explorer. Second, review the power budget of the PS-2 or PS-6 power supply module feeding the I/O subsystem — the KJ4006X1-BC1 draws minimal bus power, but cumulative load across a fully populated KJ4001X1-BA1 I/O carrier must remain within the 5 VDC rail specification. Third, validate that the field junction box wiring labels correspond to the terminal block’s channel numbering to avoid cross-wiring during hot-swap or cold-swap replacement procedures.

For sites migrating from a legacy Provox or RS3 control platform to DeltaV, the KJ4006X1-BC1 is frequently deployed as part of a phased I/O migration strategy. In this context, it is often paired with the CIOC (Controller I/O Card) and the DeltaV SIS logic solver to maintain safety instrumented function continuity during the transition period. Communication integrity between the I/O subsystem and the DeltaV controller is maintained via the DeltaV I/O bus, and no additional protocol conversion hardware is required when replacing like-for-like terminal blocks within the same I/O carrier assembly.

Downtime exposure during terminal block replacement is typically limited to the individual I/O channel or channel group served by the block. With proper pre-staging — including pre-wiring the replacement KJ4006X1-BC1 on a spare carrier, verifying fuse continuity, and confirming channel-level diagnostics in DeltaV Operate — field cutover can be completed in under 30 minutes per block. Sites with redundant I/O configurations using the KJ4001X1-BA1 redundant I/O carrier can execute the replacement with zero process interruption by switching to the redundant path prior to removal.

All units supplied by SMARTNEXMSK are functionally tested prior to shipment, including fuse integrity verification, terminal torque check, and visual inspection against Emerson’s published dimensional and marking standards. Each KJ4006X1-BC1 12P4720X062 is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited global shipping is available for emergency breakdown and unplanned outage scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DeltaV I/O retrofit begins well before the physical replacement. Engineering teams should extract the current I/O assignment database from DeltaV Explorer and cross-reference each KJ4006X1-BC1 channel against the field instrument tag list. For sites using HART-enabled field devices, confirm that the replacement terminal block does not interrupt the HART signal path — the KJ4006X1-BC1 is passive and transparent to HART communication, preserving compatibility with AMS Device Manager for asset health monitoring.

In cabinet upgrade projects, the KJ4006X1-BC1 is commonly installed alongside the KJ4001X1-BA1 I/O carrier, the KJ3002X1-BA1 8-channel AI card, the KJ2201X1-BA1 8-channel DO card, and the KJ1501X1-BA1 8-channel DI card. Power distribution within the cabinet is typically managed by the PS-2 or PS-6 DeltaV power supply, and the overall cabinet layout should be reviewed to ensure adequate clearance for terminal block removal and re-insertion without disturbing adjacent wiring harnesses. For sites using a DeltaV CHARM I/O architecture, note that CHARM carriers use a different terminal interface and the KJ4006X1-BC1 applies specifically to traditional I/O subsystems.

Programming compatibility is maintained at the DeltaV module level — replacing a terminal block does not alter the control module logic, parameter configuration, or alarm setpoints stored in the DeltaV controller. However, engineers should perform a channel-level diagnostic check in DeltaV Diagnostics after installation to confirm that all 8 channels report healthy status before returning the loop to automatic control. HMI faceplates in DeltaV Operate do not require modification, as the I/O address mapping remains unchanged.

Downtime Control During System Migration

Minimizing process downtime during a DeltaV I/O terminal block replacement requires a structured pre-outage preparation protocol. Begin by placing all affected control loops in manual mode at the DeltaV Operate workstation and notifying the field operations team of the planned I/O interruption window. For non-redundant I/O configurations, coordinate with process safety to confirm that the affected field instruments can be isolated or bypassed for the duration of the replacement.

Pre-stage the replacement KJ4006X1-BC1 12P4720X062 by pre-wiring field cables to the new terminal block on a temporary carrier outside the cabinet. This approach reduces in-cabinet work time to a simple carrier swap and re-seating operation. After installation, restore power to the I/O carrier, confirm green LED status on the I/O card, and verify channel diagnostics in DeltaV Diagnostics before returning loops to automatic. Total cutover time for a single terminal block under this method is typically 15–30 minutes, significantly reducing exposure to process upsets or safety system activations.

For sites with redundant I/O, the replacement can be executed with zero process interruption by switching the affected I/O carrier to its redundant counterpart in DeltaV Explorer prior to removal. After the replacement is complete and diagnostics confirm healthy status, switch back to the primary carrier and verify bumpless transfer. Document the replacement in the site’s maintenance management system and update the as-built cabinet drawings to reflect the new part number.

Retrofit Support FAQ

Q: Is the KJ4006X1-BC1 12P4720X062 a direct drop-in replacement for the KJ4001X1-BC1?
A: In most cases, yes. Both blocks use the same M3 screw terminal pitch and mount on the KJ4001X1-BA1 I/O carrier. However, you should verify the fuse rating and channel count of the existing block before proceeding, as some earlier revisions used different fuse specifications.

Q: Will replacing the terminal block require changes to the DeltaV control module or HMI configuration?
A: No. The KJ4006X1-BC1 is a passive wiring interface component. Replacing it does not alter the I/O address, control module logic, or HMI faceplate configuration in DeltaV. A channel diagnostic check after installation is recommended but no programming changes are required.

Q: What pre-shipment testing is performed on each unit?
A: Every KJ4006X1-BC1 12P4720X062 supplied by SMARTNEXMSK undergoes fuse continuity verification, terminal torque inspection, and visual dimensional check against Emerson’s published standards before shipment. A 12-month warranty is included covering manufacturing defects and functional failures under normal operating conditions.

Q: How quickly can I receive the KJ4006X1-BC1 for an emergency breakdown situation?
A: SMARTNEXMSK maintains stock inventory of the KJ4006X1-BC1 12P4720X062 and offers expedited global shipping for unplanned outage and emergency breakdown scenarios. Contact our sales team directly for lead time confirmation and express freight options.
