Emerson KJ4006X1-BD1 12P4722X042 Spare for DeltaV Automation

Emerson KJ4006X1-BD1 12P4722X042 Spare for DeltaV Automation

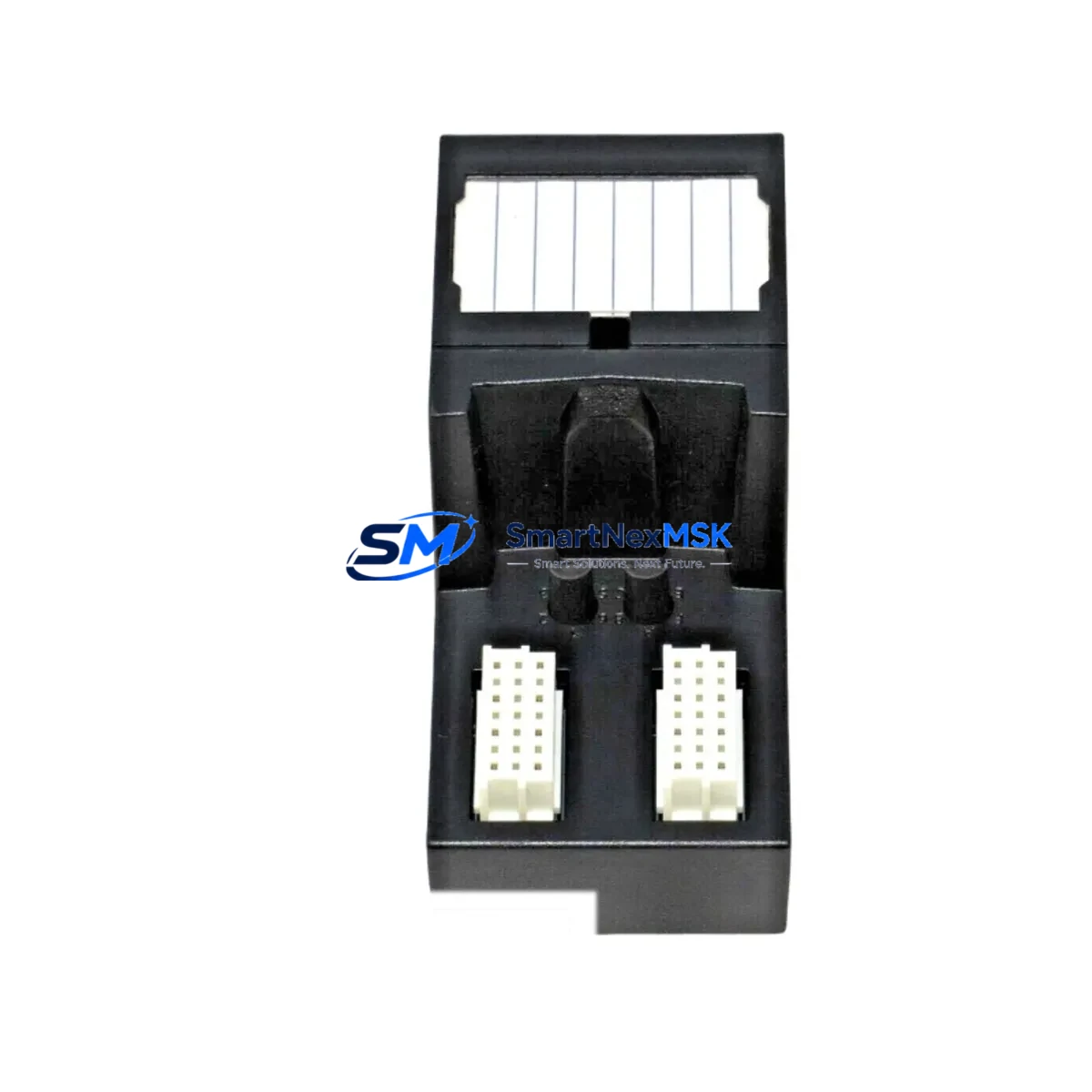

The Emerson KJ4006X1-BD1 12P4722X042 is an original Interface Terminal Block engineered for the Emerson DeltaV distributed control system (DCS). As a critical field-wiring interface component, it bridges I/O module connections to field instrumentation within the DeltaV control cabinet. When this terminal block fails or degrades, the result is immediate signal loss, I/O channel faults, and unplanned process shutdown — making rapid, verified spare replacement essential for any maintenance team managing continuous operations.

Sourced as a genuine original spare, this unit is tested prior to shipment and backed by a 12-month warranty. It is suitable for emergency breakdown response, planned turnaround restocking, and long-term lifecycle extension of legacy DeltaV systems where OEM support may be limited.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing DeltaV-based process control systems, the KJ4006X1-BD1 terminal block is rarely a standalone failure point — it operates within a tightly integrated signal chain. When replacing this component, a thorough inspection of adjacent and dependent hardware is strongly recommended to prevent repeat faults and ensure full system restoration.

Begin by verifying the associated DeltaV I/O module (such as the KJ3002X1-BA1 8-channel AI card or KJ2201X1-BA1 DI module) for channel integrity and firmware status. Check the DeltaV controller card (e.g., MD Plus or SD Plus controller) for any logged diagnostics that may have been triggered by the terminal block fault. Inspect the DeltaV power supply module (such as the KJ1501X1-BG2 or PS-series redundant supply) for stable 24 VDC output, as voltage fluctuations are a common root cause of terminal block and I/O degradation.

Examine the field wiring terminations at the terminal block for corrosion, loose ferrules, or insulation breakdown — particularly in high-humidity or chemically aggressive environments. Review the marshalling cabinet fuse blocks and individual channel fuses for continuity. If the system uses signal isolators or barriers (such as MTL or P+F Zener barriers) between the DeltaV I/O and field instruments, these should be tested for correct isolation resistance and signal pass-through.

For systems with HART-enabled field devices, confirm that the HART multiplexer or HART interface module is still communicating correctly after the terminal block swap. In cabinets with Profibus DP or FOUNDATION Fieldbus segments, verify bus termination resistors and segment voltage after any wiring disturbance. Also inspect the DeltaV workstation or operator console for any unacknowledged alarms or module offline states that may persist after hardware restoration.

Procurement engineers should consider stocking at least one spare KJ4006X1-BD1 12P4722X042 per control cabinet as part of a minimum viable spare parts kit, alongside matched I/O modules, redundant power supplies, and communication interface cards. This reduces mean time to repair (MTTR) and supports compliance with plant reliability KPIs.

Site Replacement Workflow

Step 1 — Isolation: Place the affected DeltaV I/O module in Out-of-Service (OOS) mode via DeltaV Explorer or DeltaV Operate before disconnecting any field wiring. Document all channel assignments and signal tags.

Step 2 — Removal: Disconnect field cables from the terminal block in sequence, labeling each wire. Release the terminal block from the I/O carrier using the standard DeltaV locking mechanism. Inspect the carrier connector pins for damage or contamination.

Step 3 — Installation: Seat the replacement KJ4006X1-BD1 12P4722X042 firmly onto the carrier. Reconnect field wiring per the original loop drawings. Verify torque on all screw terminals to manufacturer specification (typically 0.5–0.6 Nm).

Step 4 — Commissioning: Bring the I/O module back online in DeltaV. Perform a channel-by-channel signal check against the P&ID. Confirm HART device recognition if applicable. Clear all related alarms and document the replacement in the plant CMMS.

This workflow is compatible with both hot-swap capable DeltaV configurations and cold-swap procedures for non-redundant I/O, minimizing process disruption and ensuring system compatibility is maintained without firmware changes or reconfiguration.

Spare Parts Support FAQ

Q1: Is the KJ4006X1-BD1 12P4722X042 compatible with all DeltaV I/O carriers?
This terminal block is designed for specific DeltaV I/O carrier types. Compatibility should be confirmed against your system’s I/O carrier part number and DeltaV hardware catalog revision. Contact our technical team with your carrier model for pre-purchase verification.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment continuity and functional testing. Warranty claims are supported with direct technical assistance and replacement dispatch within 5 business days.

Q3: Can this spare replace an older revision of the KJ4006X1-BD1?
Emerson periodically releases hardware revisions (e.g., -BD1, -BC1). In most cases, later revisions are backward compatible, but revision-specific compatibility should be verified against your DeltaV system’s hardware revision matrix or release notes before installation.

Q4: What is the recommended inventory strategy for this component?
For plants with 4 or more DeltaV I/O cabinets, maintaining 2–4 units of the KJ4006X1-BD1 on-site is recommended. Given the component’s role in signal integrity, it should be included in annual spare parts audits and replaced proactively if visual inspection reveals terminal wear, discoloration, or mechanical stress.
