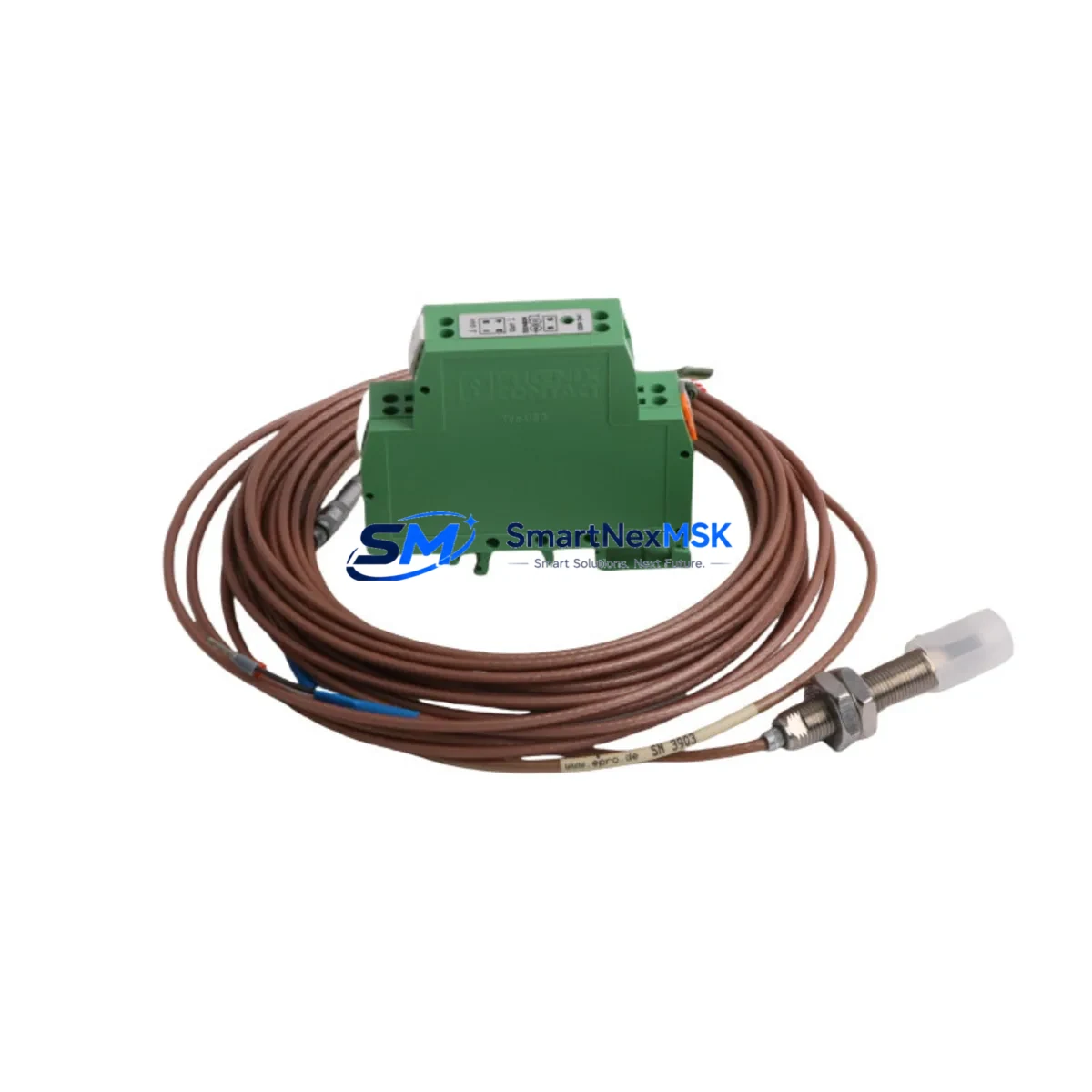

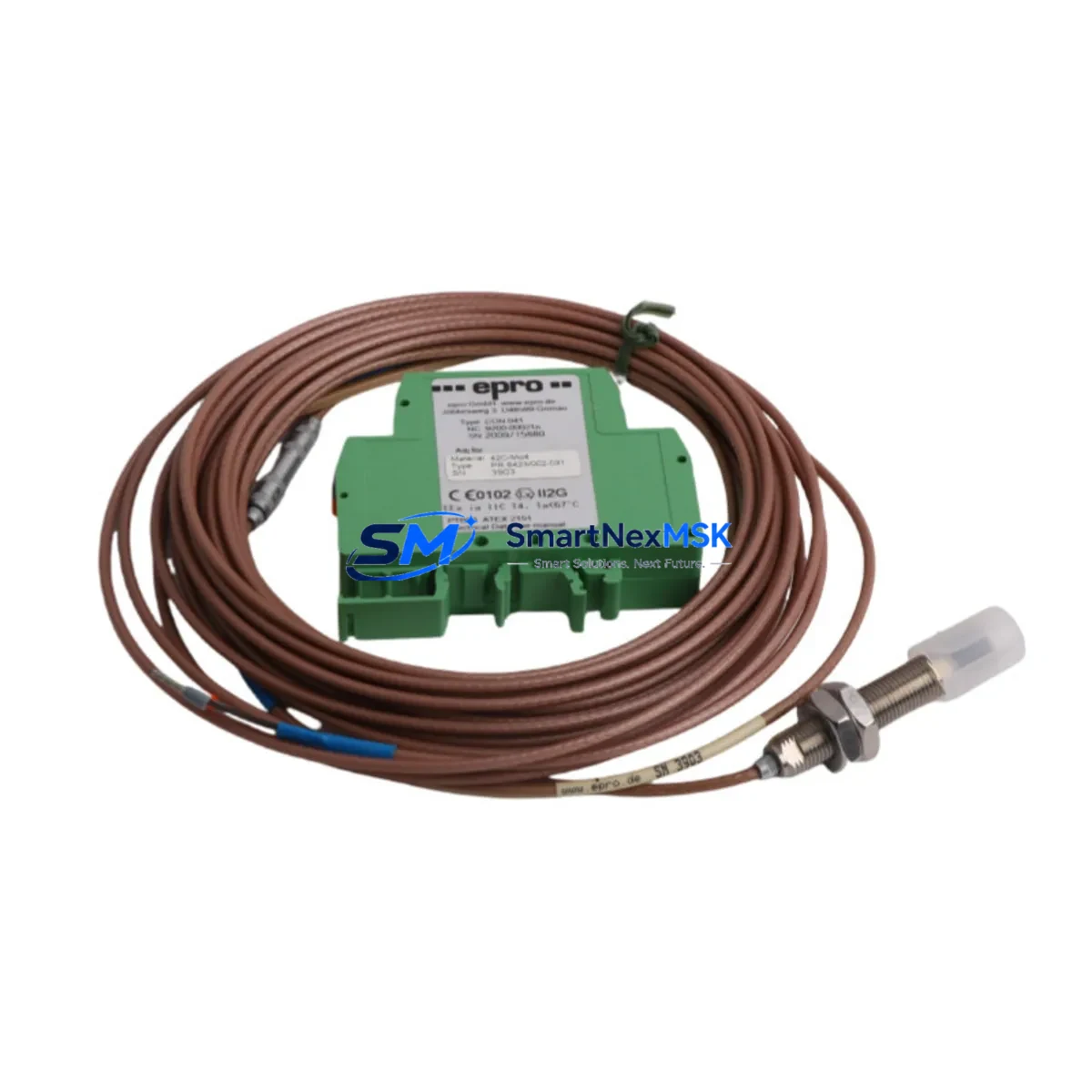

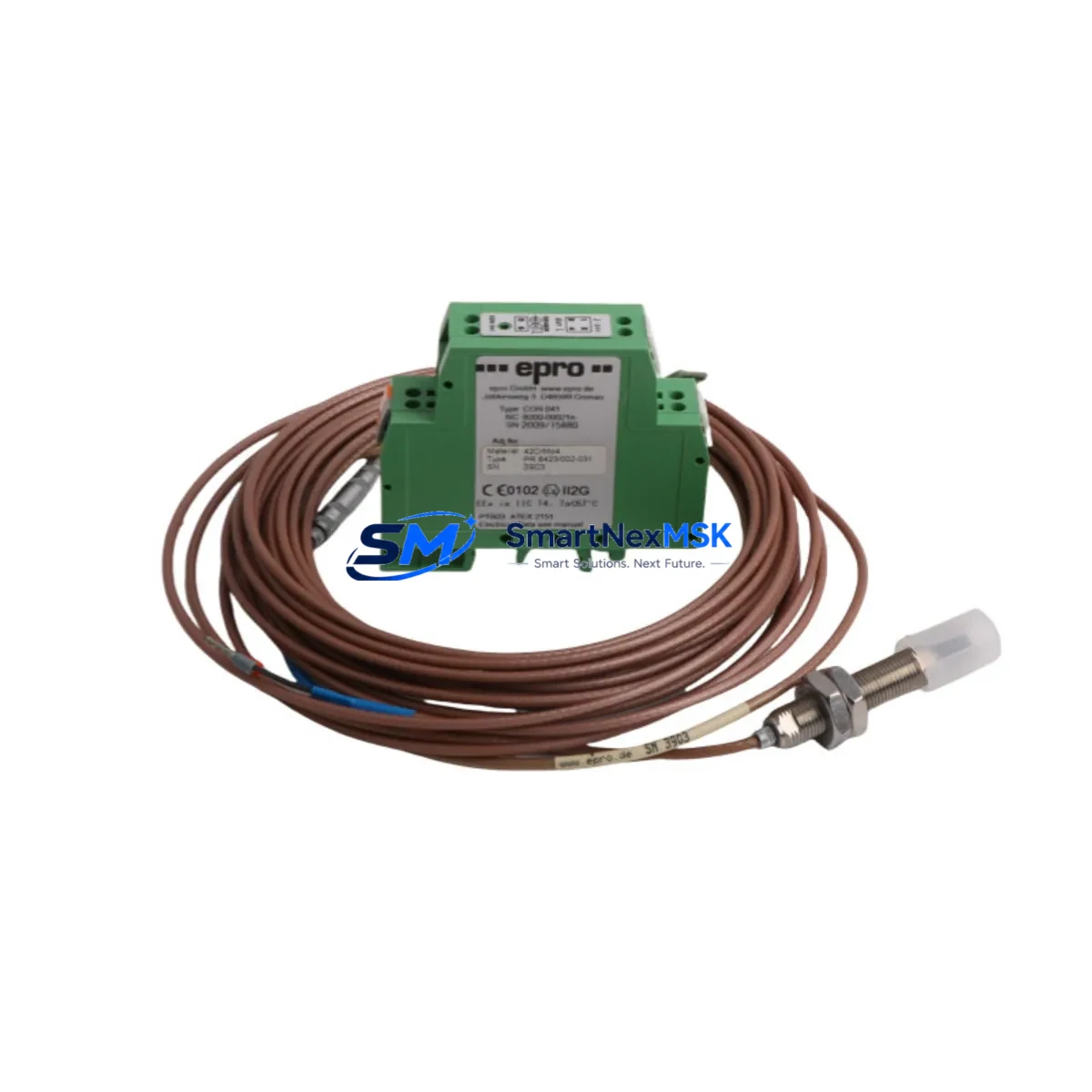

EMERSON PR6423/002-031 CON041 Retrofit-Ready Proximity Probe

EMERSON PR6423/002-031 CON041 Retrofit-Ready Proximity Probe for Epro Series Control Systems

The EMERSON PR6423/002-031 CON041 is a high-precision eddy current proximity probe engineered for turbomachinery vibration monitoring and shaft displacement measurement within the Epro Series control platform. As legacy Epro installations approach end-of-life or require capacity expansion, this probe serves as a direct retrofit solution — preserving existing wiring infrastructure, signal conditioning chains, and monitoring logic while delivering the measurement accuracy demanded by modern API 670-compliant machinery protection systems.

Industrial facilities operating aging Bently Nevada 3300 XL or early-generation Epro MMS 6000 series systems frequently encounter obsolescence challenges: discontinued OEM spares, extended lead times, and mounting pressure to migrate toward current-generation platforms such as the Emerson Machinery Health Manager or CSI 6500 ATG. The PR6423/002-031 CON041 bridges this gap — it is dimensionally and electrically compatible with the Epro PR6423 probe family, allowing maintenance teams to execute a controlled, low-risk replacement without redesigning the entire measurement loop.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the PR6423/002-031 CON041 in an operating turbomachinery train, the first step is to audit the complete measurement chain: probe, extension cable (typically a CON021 or CON041 type), driver/oscillator, and the receiving monitor card seated in the Epro MMS 6000 rack. Each element must be verified for compatibility before the machine is taken offline.

The MMS 6110 vibration monitor and MMS 6120 displacement monitor are the most common rack-mounted cards that interface with this probe family. Both accept the standard −24 VDC bias supply and expect a sensitivity of 7.87 V/mm (200 mV/mil). If the existing installation uses an older MMS 3120 or MMS 3110 card, confirm that the input impedance and bias voltage specifications remain within tolerance — minor differences in driver output impedance between CON021 and CON041 variants can affect calibration offsets by up to 3–5%.

Terminal wiring follows the standard Epro three-wire scheme: shield/common, signal (−V output), and +24 VDC supply. Before disconnecting the old probe, photograph or document the terminal block assignments on the MMS rack’s field wiring module (FWM). The FWM-6110 and FWM-6120 terminal layouts are identical for the probe input circuit, but polarity errors during reconnection will immediately trigger a Not OK (NOK) status on the monitor and may trip the machinery protection relay.

For facilities running a Bently Nevada 3500 series rack in parallel with legacy Epro hardware — a common configuration during phased migration projects — the PR6423/002-031 CON041 can feed both systems simultaneously using a passive signal splitter, provided the combined load impedance remains above the driver’s minimum specification. This approach allows engineers to validate the new probe’s output against the established 3500/25 proximity transducer monitor readings before fully decommissioning the Epro channel.

Where the retrofit scope extends to the control cabinet level, teams should also review the power supply module feeding the MMS rack. The Epro PS6901 or equivalent 24 VDC DIN-rail supply must have sufficient residual capacity to power the replacement probe driver without causing voltage droop on adjacent I/O cards. A current audit of the backplane power budget — including any recently added MMS 6823 speed/phase modules or MMS 6350 temperature monitor cards — is strongly recommended before energizing the new probe circuit.

HMI screens configured in the plant’s DCS or SCADA system (commonly a Foxboro I/A Series, Honeywell Experion, or Emerson DeltaV node) will typically require no changes if the analog signal range and engineering unit scaling remain unchanged. However, if the replacement probe is installed at a slightly different gap distance due to mechanical wear on the probe boss, the zero-offset calibration value stored in the MMS monitor must be updated to reflect the new static gap voltage. Failure to do so will result in a persistent alarm offset that can mask genuine vibration events.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any turbomachinery probe replacement. The PR6423/002-031 CON041 is supplied with a pre-shipment functional test certificate, confirming that sensitivity, linearity, and NOK threshold have been verified against Epro factory specifications. This eliminates the most common source of commissioning delay — receiving a probe that requires bench calibration before installation.

The recommended replacement sequence is: (1) confirm spare probe functionality on the bench using a calibration block and the existing CON041 driver; (2) pre-wire the new probe and extension cable assembly to a temporary terminal strip; (3) during the maintenance window, disconnect the old probe at the FWM terminal block, connect the pre-wired assembly, and verify gap voltage before closing the junction box; (4) confirm NOK status clears and vibration readings are within ±5% of the previous baseline; (5) update the MMS monitor gap calibration if required; (6) restore the machinery protection relay to automatic trip mode.

This sequence typically requires 45–90 minutes of hands-on time per measurement point, allowing a four-probe replacement on a single turbine bearing to be completed within a standard 8-hour maintenance shift. Original program logic stored in the MMS rack’s non-volatile memory is unaffected by probe replacement — no re-download or PLC program modification is required unless the measurement range or alarm setpoints are being revised as part of the upgrade scope.

For sites where continuous operation is mandatory, a hot-swap approach is possible if the MMS monitor card supports channel bypass mode. Activating bypass on the affected channel suppresses the NOK alarm and machinery trip during the probe exchange interval, preserving control continuity. Bypass duration should be logged and limited to the minimum time necessary to complete the physical swap and verify the new probe output.

Retrofit Support FAQ

Q1: Is the PR6423/002-031 CON041 a direct drop-in replacement for the original Epro OEM part?
Yes. The PR6423/002-031 CON041 is dimensionally, electrically, and functionally equivalent to the original Epro OEM specification. Thread pitch (M10 × 1), cable length (1 m), sensitivity (7.87 V/mm), and driver interface (CON041) are identical. No mechanical modification or signal conditioning adjustment is required for standard installations. A pre-shipment test certificate is included with every unit.

Q2: What commissioning checks are required after installation?
After physical installation, measure the static gap voltage at the driver output with the shaft stationary. The nominal value should be −10 V ± 0.5 V at a 1 mm air gap. Confirm the MMS monitor displays an OK status and that the vibration reading is within ±5% of the pre-replacement baseline. If the gap voltage is outside tolerance, adjust the probe axial position using the locknut and re-verify. Update the MMS gap calibration offset if the installation gap differs from the previous probe documented value.

Q3: Can this probe be used with Bently Nevada 3500 series monitors as well as Epro MMS racks?
The PR6423/002-031 CON041 is optimized for the Epro MMS platform. While the analog output signal is physically compatible with Bently Nevada 3500/25 proximity monitor inputs, sensitivity and scale factor differences between the two platforms mean that full API 670 compliance requires recalibration of the receiving monitor card. For mixed-platform installations, consult the site machinery protection engineer before connecting this probe to a 3500 series rack.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers all manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes a functional pre-shipment test covering sensitivity, linearity, insulation resistance, and NOK threshold verification. Standard in-stock units ship within 2–3 business days. Expedited dispatch is available for urgent maintenance requirements. Contact sales@smartnexmsk.com or +86 18259474341 to confirm current stock availability and lead time for your specific quantity requirement.
