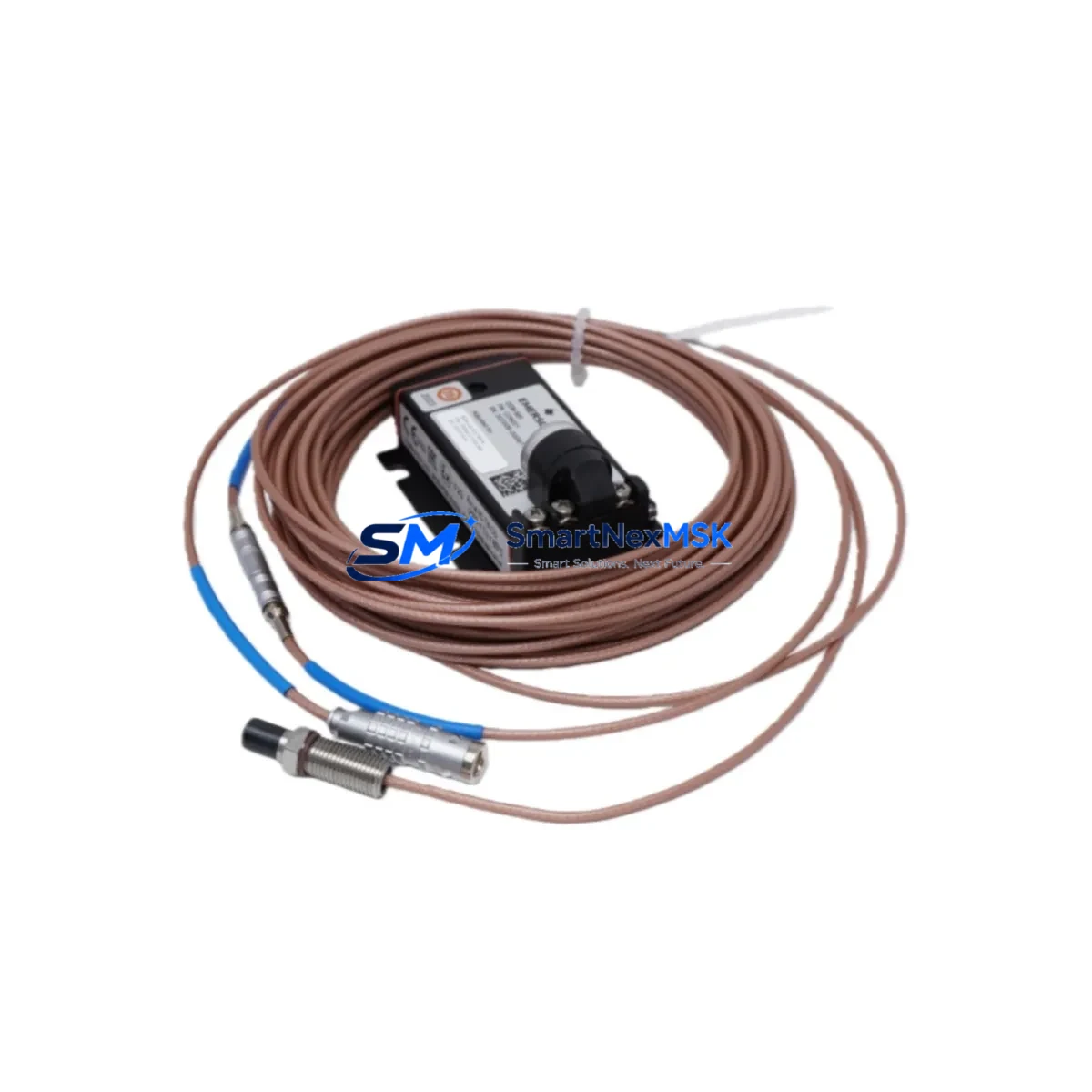

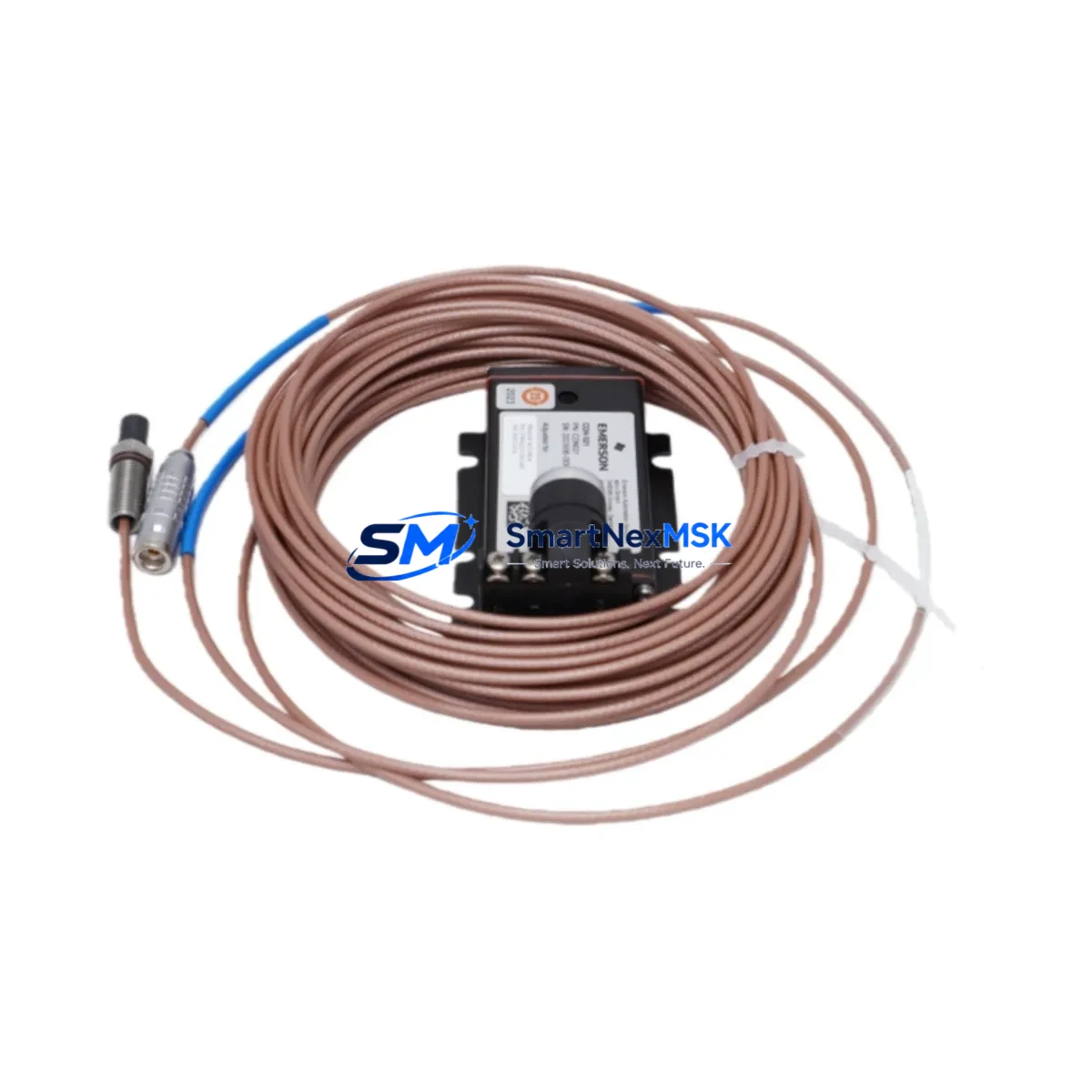

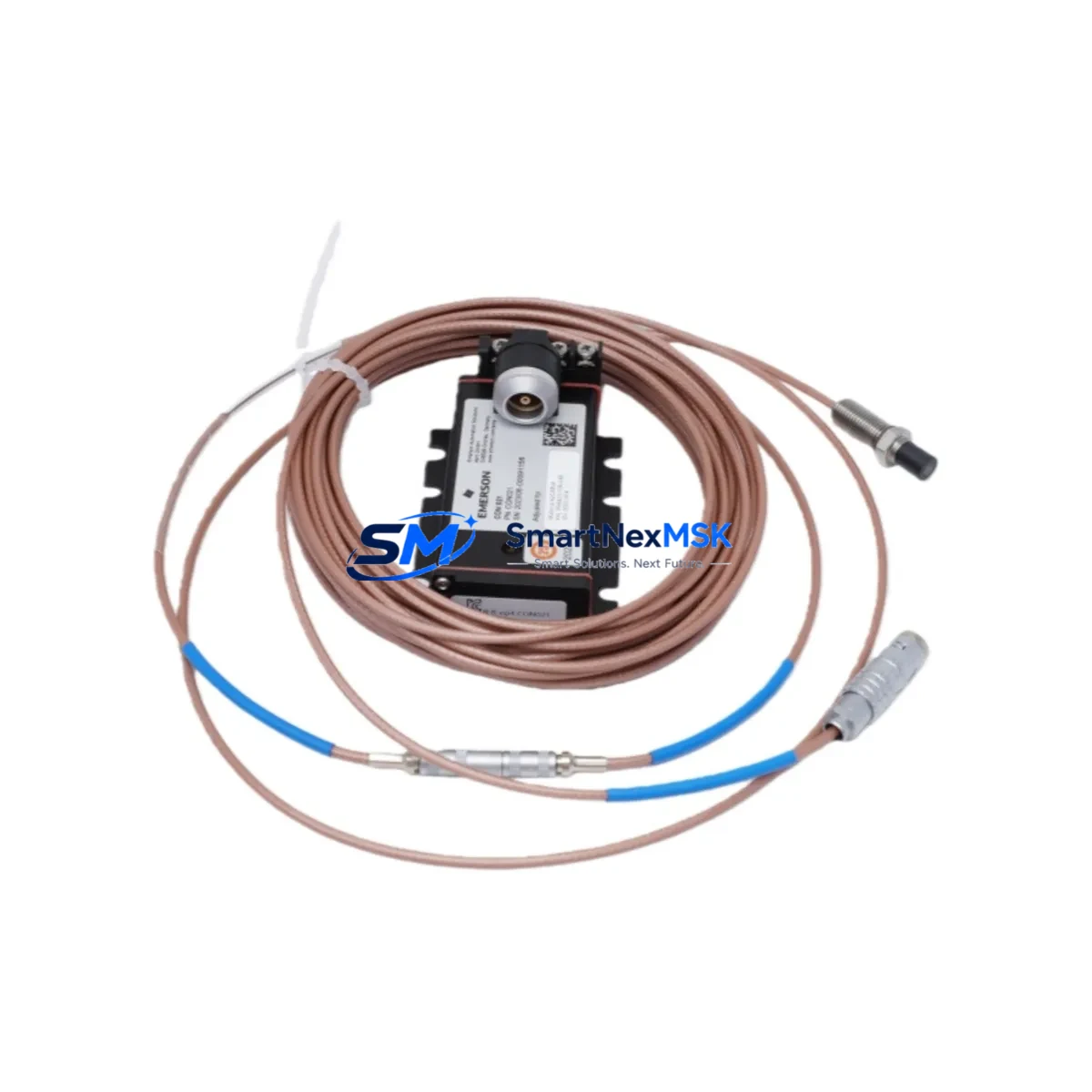

Emerson PR6423/015-040 CON021 Retrofit-Ready Signal Converter for Epro Control Systems

Emerson PR6423/015-040 CON021 Retrofit-Ready Signal Converter for Epro Control Systems

The Emerson PR6423/015-040 CON021 is a precision proximity signal converter engineered for industrial vibration monitoring and machinery protection systems operating within the Epro platform. As legacy Epro modules approach end-of-life or become increasingly difficult to source, the PR6423/015-040 CON021 serves as a verified retrofit-ready replacement that preserves existing wiring infrastructure, signal conditioning logic, and rack-level integration without requiring a full system redesign.

This converter is purpose-built for applications where rotating machinery — including turbines, compressors, pumps, and motors — must be continuously monitored for shaft displacement, vibration amplitude, and proximity gap. It accepts input from eddy-current proximity probes and conditions the raw signal into a standardized output compatible with downstream protection relays, DCS input cards, and safety shutdown systems. Engineers replacing discontinued Epro PR6423 variants will find that the CON021 suffix designates the specific connector and housing configuration required for direct panel or rack mounting in existing control cabinets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the PR6423/015-040 CON021 into an existing control architecture begins with a thorough audit of the current panel layout. Technicians should document the existing terminal block assignments, cable routing from the proximity probe junction box, and the signal path to the MMS 6000 rack’s input module. Where the original system used an Epro PR6424/010-040 or PR6426/010-040 proximity probe paired with a CON011 or CON021 converter, the replacement procedure is straightforward: disconnect the probe cable at the converter terminals, note the gap voltage reading, install the new PR6423/015-040 CON021, reconnect terminals in the same order, and verify the gap voltage returns to the pre-swap baseline.

For systems where the protection rack also houses an Epro MMS 6110 or MMS 6120 vibration monitor card, confirm that the converter’s output range matches the card’s expected input span. If the control system feeds a Honeywell Experion PKS or Emerson DeltaV DCS via an analog input card, re-check the engineering unit scaling in the DCS tag database after the swap to ensure the displayed value in the HMI reflects the correct physical measurement. HMI faceplate alarm limits should be reviewed and re-confirmed against the machinery OEM’s vibration trip setpoints.

In modernization projects where the legacy Epro rack is being migrated to a newer Bently Nevada 3500 Series or Emerson Machinery Health Manager platform, the PR6423/015-040 CON021 can serve as an interim bridge module, maintaining continuous protection during phased cutover. During this period, the Epro CON021 terminal adapter and associated PR9268/200 extension cable should be retained to avoid re-pulling field cables. Power supply modules — typically a Epro PS6901 or equivalent 24 VDC DIN-rail supply — must be verified for adequate current capacity when adding replacement modules to an existing rack segment.

For I/O expansion scenarios, where additional measurement points are being added alongside the retrofit, engineers should account for backplane slot availability in the existing MMS rack and plan for any required Epro rack extension modules or a secondary rack enclosure. Communication links to the plant historian or safety PLC should be tested end-to-end after the module swap, particularly where Modbus RTU or PROFIBUS-DP gateway devices aggregate data from multiple protection modules.

Downtime Control During System Migration

Minimizing unplanned downtime during a signal converter replacement requires a structured hot-swap or planned-outage protocol. Where the machinery protection system permits, place the affected channel in bypass mode within the MMS rack software or DCS logic before physically removing the old converter. This prevents a spurious trip signal from propagating to the emergency shutdown system during the swap interval. Document the bypass activation time in the maintenance log and set a hard time limit — typically 30 minutes — for the physical replacement and re-commissioning steps.

After installing the PR6423/015-040 CON021, restore the probe gap voltage to within ±0.5 VDC of the original baseline before removing the bypass. Confirm the OK relay is energized, the danger and alert LED indicators are in the expected state, and the DCS analog input tag is reading within the normal operating band. Only then should the bypass be lifted and the channel returned to active protection. This sequence preserves the original program logic in the safety PLC and avoids any unintended modification to the control narrative or cause-and-effect matrix.

For sites operating under IEC 61511 or ISA-84 functional safety requirements, the replacement must be documented as a Management of Change (MOC) event, with pre- and post-swap proof-test records retained for the safety instrumented function (SIF) associated with the monitored machinery.

Retrofit Support FAQ

Q1: Is the PR6423/015-040 CON021 a direct replacement for the original Epro part?
Yes. The PR6423/015-040 CON021 is a form-fit-function replacement for the original Emerson Epro part of the same SKU. Terminal pinout, housing dimensions, and signal conditioning characteristics are identical, allowing direct installation without wiring modification in the vast majority of applications. Verify the probe cable connector type (CON021) matches your existing field wiring before ordering.

Q2: What commissioning steps are required after installation?
After physical installation, re-measure the proximity probe gap voltage at the converter terminals and compare against the original commissioning record. Confirm the OK relay output is active, check the danger and alert setpoint thresholds in the associated MMS monitor card, and verify the analog output value is correctly reflected in the DCS or historian. A functional test of the trip output — using a simulated gap change — is recommended before returning the channel to service.

Q3: Can this converter be used with non-Epro proximity probes?
The PR6423/015-040 CON021 is optimized for use with Emerson Epro eddy-current proximity probes (PR6424, PR6426 series). Compatibility with third-party probes depends on the probe’s sensitivity factor (mV/mm or mV/mil) and driver circuit characteristics. Contact our technical team with your probe specifications for a compatibility assessment before substituting non-OEM probes.

Q4: What does the 12-month warranty cover?
All units are shipped after functional bench testing and carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing evidence of incorrect installation, overvoltage, or physical damage are excluded. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
