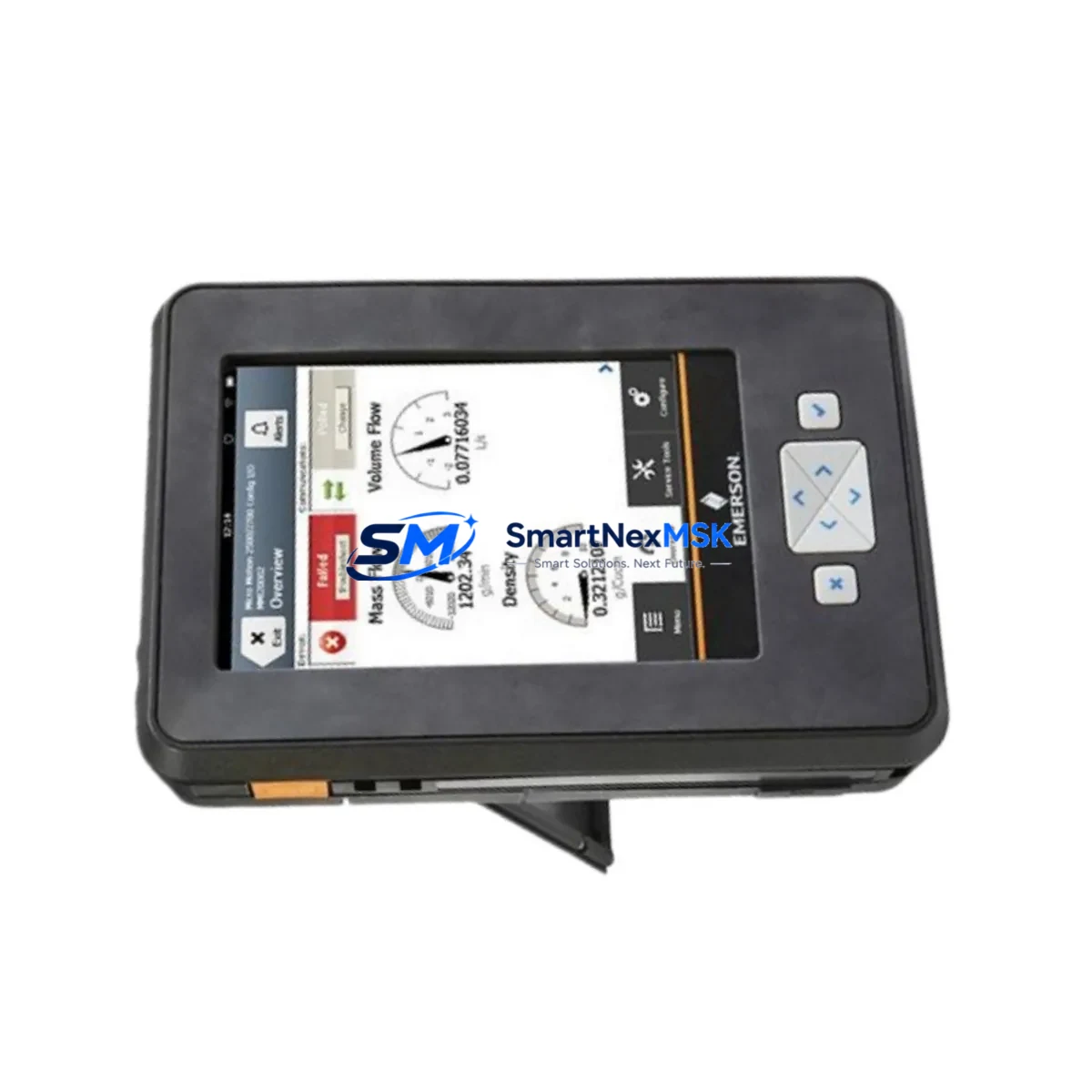

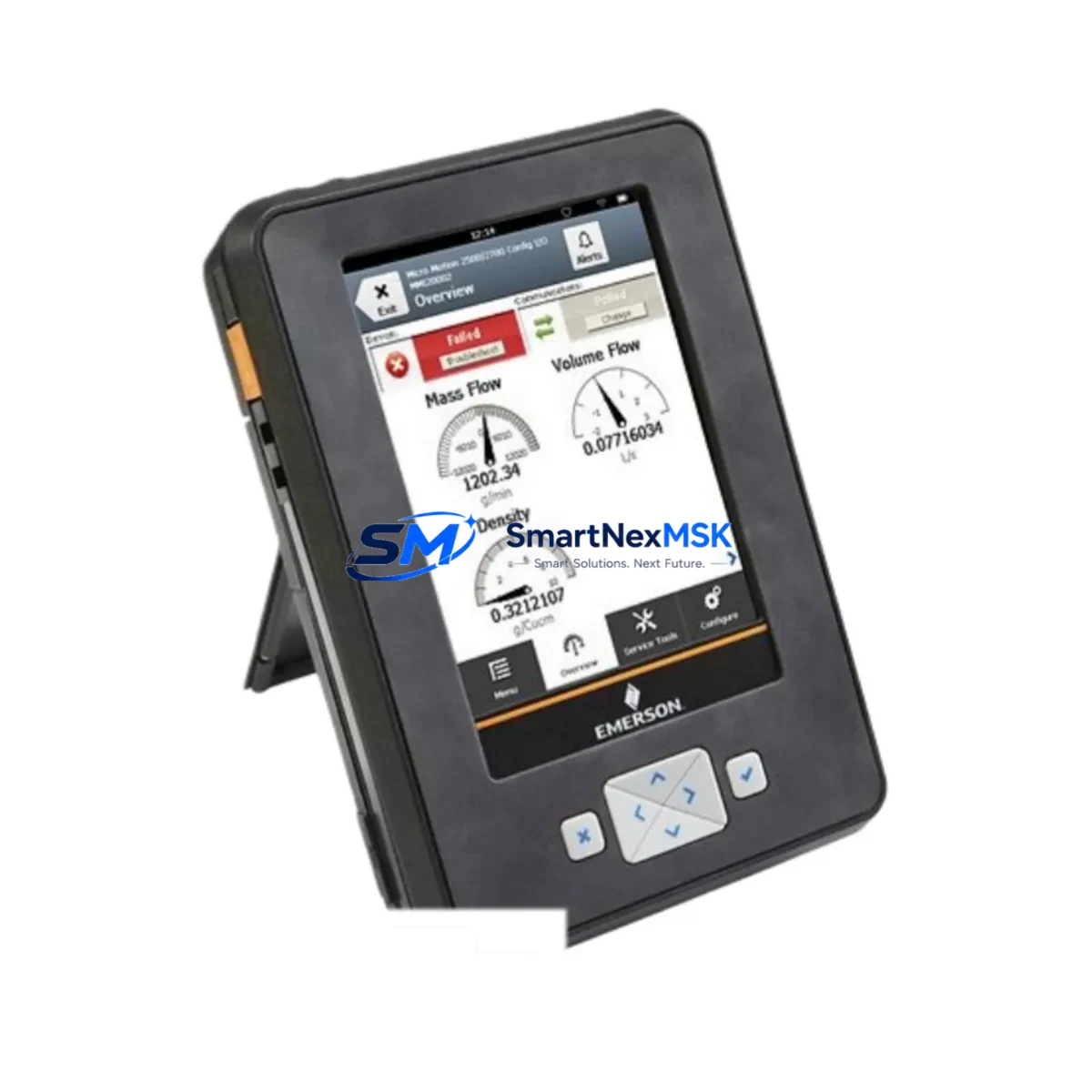

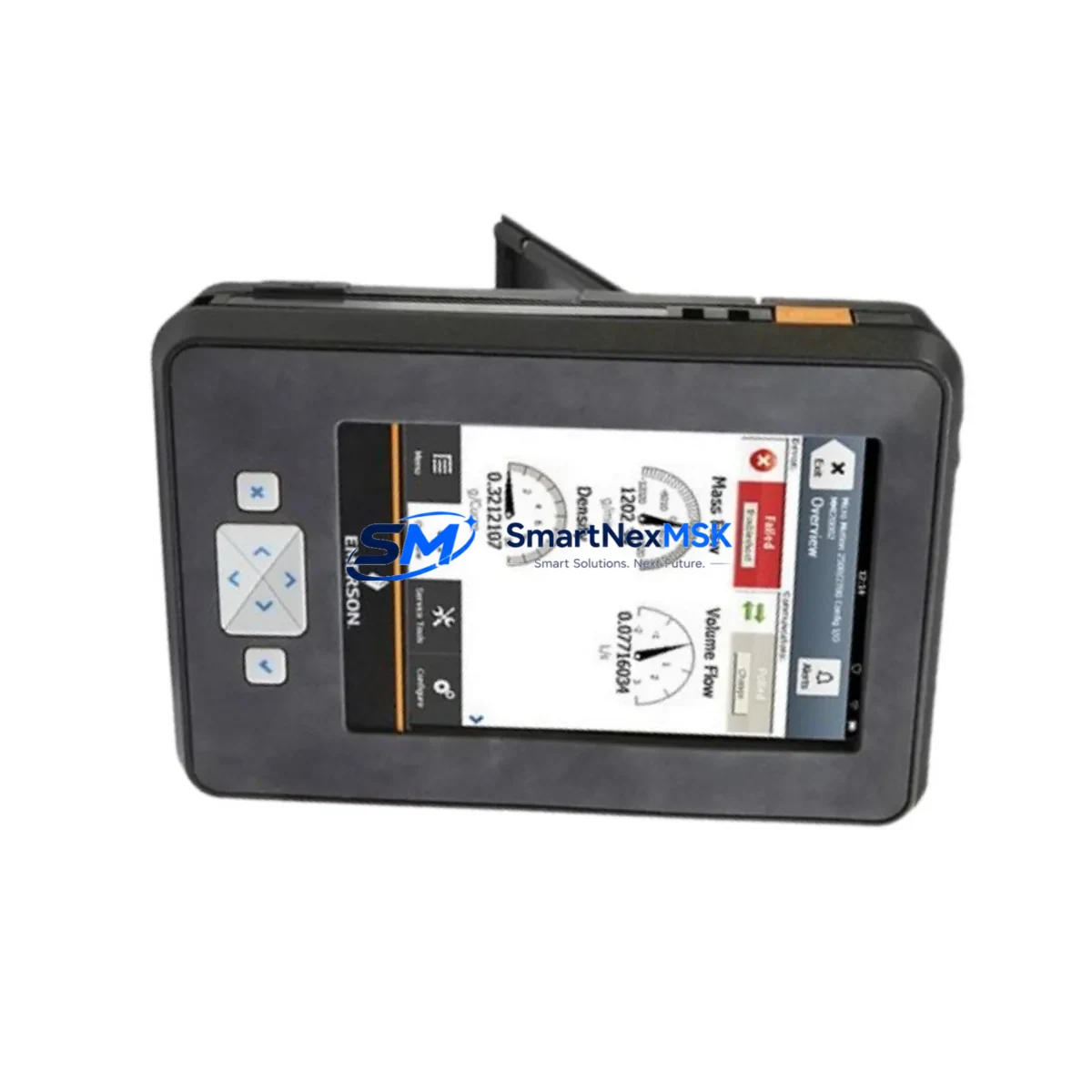

The Emerson TREXLHPNAWS1S is the AMS Trex Device Communicator Plus — a ruggedized, intrinsically safe handheld field communicator designed for HART and FOUNDATION Fieldbus (FF) instrument maintenance in continuous process automation environments. As a genuine original spare, the TREXLHPNAWS1S is the preferred replacement unit for maintenance engineers managing aging field communicator fleets, instrument calibration programs, and emergency breakdown recovery across oil & gas, chemical, power generation, and water treatment facilities.

When a field communicator fails during a planned turnaround or an unscheduled shutdown, the cost of downtime far exceeds the cost of the spare itself. Keeping a TREXLHPNAWS1S in your maintenance inventory ensures that HART-enabled transmitters — including pressure, temperature, flow, and level instruments — can be configured, diagnosed, and verified without delay. The unit supports the full AMS Device Manager integration workflow, allowing technicians to upload and download device configurations, review diagnostic alerts, and perform loop tests directly from the field.

For maintenance planners and procurement engineers, the TREXLHPNAWS1S is a direct replacement for the legacy 475 Field Communicator and the earlier TREX base models. Its backward compatibility with the existing HART 5, 6, and 7 device library means no retraining is required for field technicians already familiar with the Emerson communicator interface. The unit ships pre-loaded with the latest DD library and is ready for immediate deployment upon receipt.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for HART and FF instrument networks requires more than a single spare communicator. When scheduling a replacement of the TREXLHPNAWS1S or deploying it for the first time, maintenance engineers should simultaneously audit the condition of associated field instruments and loop components to prevent repeat callouts.

Start with the HART-enabled transmitters connected to the loop — Rosemount 3051 pressure transmitters, Rosemount 644 temperature transmitters, and Fisher FIELDVUE DVC6200 digital valve controllers are among the most common devices configured via the Trex communicator in process plants. If these instruments are approaching their calibration interval or showing diagnostic alerts, the communicator replacement is an ideal opportunity to perform a full loop verification.

Check the condition of the HART multiplexer or HART modem used for host-side communication — units such as the Pepperl+Fuchs HiDMux2700 or the Emerson 375 HART Modem may require firmware updates to maintain compatibility with newer DD files loaded on the TREXLHPNAWS1S. Similarly, if the plant uses a DeltaV DCS or an Ovation control system, verify that the AMS Device Manager server license and DD library are synchronized with the communicator’s installed version.

For control cabinet inspections, review the status of HART-transparent barriers — Pepperl+Fuchs or MTL zener barriers and galvanic isolators installed between the safe area and hazardous area instrument loops. A degraded barrier can introduce loop resistance that prevents reliable HART communication, causing false diagnostic errors that are often misattributed to the communicator itself. Signal isolators such as the MTL5541 or equivalent should be tested for correct 4–20 mA pass-through before concluding that the communicator is at fault.

Also inspect the test lead cables and HART connection clips supplied with the TREXLHPNAWS1S. These consumable accessories are frequently damaged in field use and should be included in the spare parts kit alongside the communicator. For FF segments, verify the FF terminator resistors and segment couplers — such as the Pepperl+Fuchs FieldConnex segment coupler — are correctly installed and within specification, as FF communication errors are highly sensitive to segment impedance.

Finally, ensure the replacement TREXLHPNAWS1S battery pack is fully charged and that the AMS Trex Connect PC software is available on the maintenance laptop for DD library updates and device configuration backup. A complete spare kit — communicator, charged battery, test leads, and updated DD library — eliminates the most common causes of field communicator downtime.

Site Replacement Workflow

Replacing a failed or end-of-life TREXLHPNAWS1S follows a straightforward workflow that minimizes loop disruption and ensures continuity of instrument maintenance capability:

Step 1 – Pre-shipment verification: Each TREXLHPNAWS1S unit is tested for HART and FF communication function, touchscreen response, battery charge retention, and DD library integrity before dispatch. A test report is included with shipment.

Step 2 – DD library transfer: Upon receipt, connect the new unit to the AMS Trex Connect software via USB or Wi-Fi. Export the DD library and device configuration files from the outgoing unit (if still functional) and import them to the replacement. This preserves custom device tags, calibration records, and loop documentation.

Step 3 – Loop connection and verification: Connect the TREXLHPNAWS1S to the HART loop using the supplied test leads across the 4–20 mA signal wires or the instrument terminals. Confirm that the communicator detects the field device and that the device descriptor matches the installed instrument model and revision.

Step 4 – Configuration upload and loop test: Upload the saved device configuration to the field instrument. Perform a loop test to verify output signal integrity and confirm that the DCS or safety system receives the correct process variable. Document the test result in the plant maintenance management system (CMMS).

Step 5 – Handover and spare stock update: Return the failed unit for evaluation or disposal. Update the spare parts inventory record and reorder a replacement TREXLHPNAWS1S to restore the maintenance buffer stock level.

This five-step workflow typically completes within two to four hours for a single instrument loop, keeping unplanned downtime to a minimum and maintaining full audit traceability.

Spare Parts Support FAQ

Q1: Is the TREXLHPNAWS1S a direct replacement for the Emerson 475 Field Communicator?
Yes. The AMS Trex Device Communicator Plus (TREXLHPNAWS1S) is the designated successor to the 475 Field Communicator. It supports the same HART and FOUNDATION Fieldbus protocols, uses a compatible DD library format, and integrates with AMS Device Manager. No changes to the field wiring or instrument configuration are required for the replacement.

Q2: How is compatibility with existing HART devices verified before shipment?
Each unit is tested against a representative set of HART 5, 6, and 7 devices using the pre-loaded DD library. The DD library version is confirmed and documented in the test report shipped with the unit. If your plant uses specific device models or custom DDs, please provide the device list at the time of order so compatibility can be confirmed prior to dispatch.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, communication hardware failures, touchscreen malfunctions, and battery performance below rated capacity under normal operating conditions. It does not cover physical damage from drops, liquid ingress beyond the IP54 rating, or unauthorized modifications. Warranty claims are supported by the pre-shipment test report included with each unit.

Q4: Can the TREXLHPNAWS1S be used in Zone 1 / Division 1 hazardous areas?
Yes. The TREXLHPNAWS1S carries intrinsic safety certifications for ATEX Zone 1, IECEx Zone 1, FM Class I Division 1, and CSA Class I Division 1 hazardous locations. Always verify that the specific gas group and temperature class of your installation are covered by the unit’s certification documentation before deploying in a classified area.
