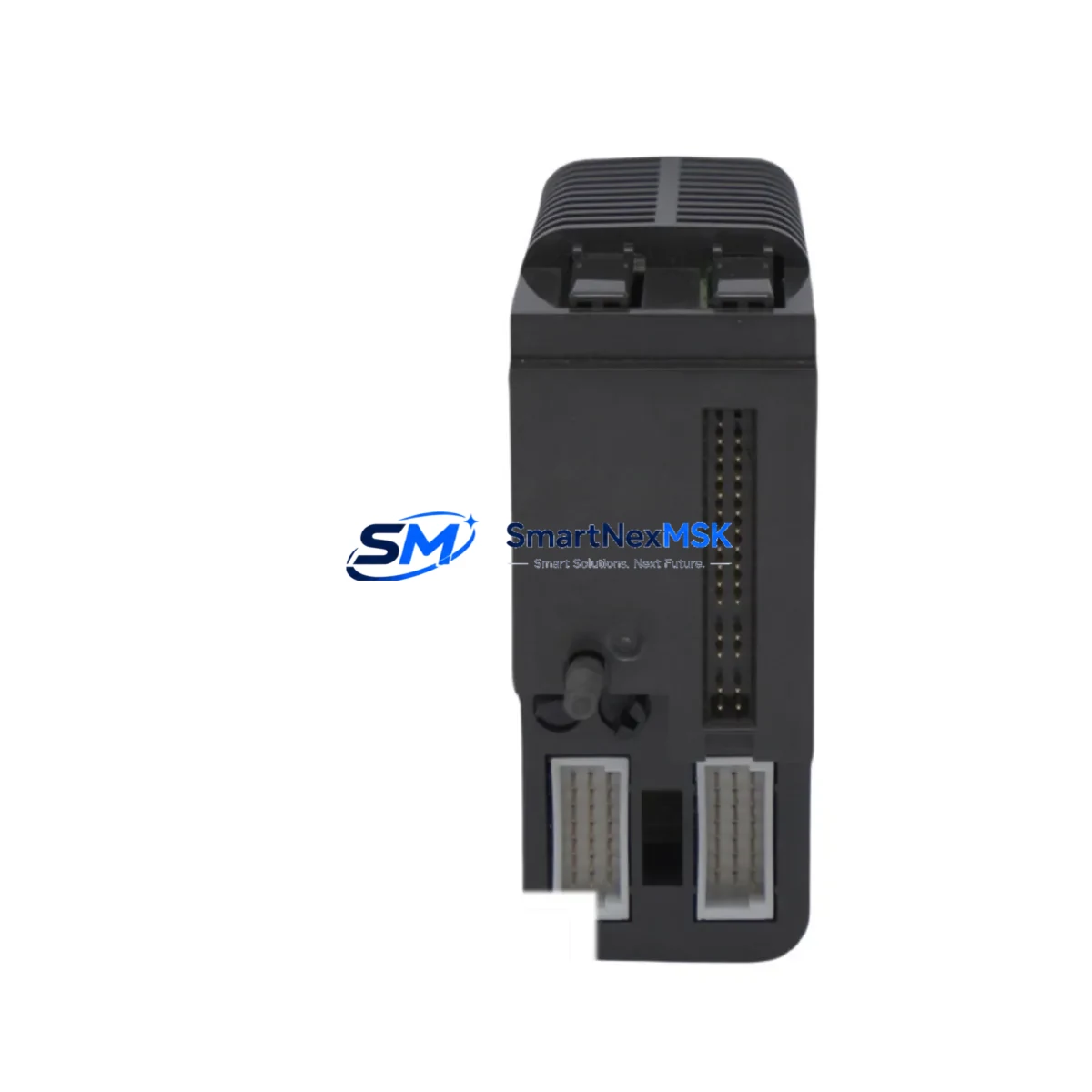

EMERSON VE4002S1T2B5 KC3020X1-BA1 12P6732X062: Retrofit-Ready Controller for DeltaV Control Systems
The EMERSON VE4002S1T2B5 (also cross-referenced as KC3020X1-BA1 and 12P6732X062) is a proven DeltaV Series DCS controller module widely deployed in process automation, oil & gas, chemical, and power generation facilities. As legacy DeltaV hardware reaches end-of-life and OEM support windows close, plant engineers and system integrators increasingly rely on verified retrofit-ready replacements to sustain production continuity without committing to full platform migrations. This module delivers the processing capacity, backplane compatibility, and communication protocol support required to slot directly into existing DeltaV control cabinets with minimal re-engineering.
Whether you are replacing a failed controller mid-campaign, upgrading an aging control node ahead of a scheduled turnaround, or consolidating spare-parts inventory across multiple production lines, the VE4002S1T2B5 is a field-proven solution backed by a 12-month warranty and pre-shipment functional testing.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Cross Reference | VE4002S1T2B5 | KC3020X1-BA1 | 12P6732X062 |
| Brand / OEM | EMERSON (Fisher-Rosemount / DeltaV Platform) |
| Module Type | DCS Controller Module |
| Series Compatibility | DeltaV S-Series, M-Series control networks |
| Backplane / Rack Interface | DeltaV standard carrier — compatible with MD, MD Plus, and SD controller slots |
| Communication Protocols | FOUNDATION Fieldbus H1, HART, Modbus RTU/TCP, OPC DA/UA |
| Power Supply Requirement | 24 VDC nominal; verify existing PS2 or PS6 power supply capacity before installation |
| Terminal Wiring | Matches legacy DeltaV I/O terminal block pinout — no rewiring required in standard retrofit |
| Installation Requirement | DIN-rail or DeltaV carrier mount; confirm slot address assignment in DeltaV Explorer |
| Replacement Recommendation | Direct drop-in for end-of-life VE4002 variants; verify firmware revision compatibility |
| Commissioning Focus | Module address, I/O channel mapping, control strategy download, HMI faceplate binding |
| Warranty | 12 Months — covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the module arrives on site. Engineers replacing the VE4002S1T2B5 in an active DeltaV environment must first audit the existing control cabinet for available power headroom. The DeltaV PS2 Power Supply and DeltaV PS6 Redundant Power Supply both impose per-carrier current budgets; adding or swapping a controller module without verifying the load balance can trip protective circuits and cause unplanned shutdowns across adjacent I/O cards.
Next, confirm the physical carrier slot. The DeltaV MD Controller and DeltaV MD Plus Controller occupy dedicated slots on the DeltaV 2-Wide Carrier or DeltaV 8-Wide Carrier. If the failed module occupied a primary controller slot, the replacement VE4002S1T2B5 must be seated in the same position to preserve the node address stored in DeltaV Explorer. Changing the slot assignment forces a full node re-commission and may invalidate existing control module downloads.
Terminal wiring on the associated DeltaV AI, AO, DI, and DO Series I/O modules is generally unaffected by a controller swap, provided the carrier and I/O sub-system remain powered. However, if the retrofit coincides with an I/O expansion — for example, adding a DeltaV CHARM I/O Card or a DeltaV Electronic Marshalling CHARM Baseplate — plan the wiring changes during the same maintenance window to avoid multiple partial outages.
Communication continuity is equally critical. If the plant network relies on a DeltaV Application Station or DeltaV Workstation running DeltaV Operate for HMI supervision, confirm that the replacement controller’s firmware version is recognized by the DeltaV system database. Mismatched firmware between the controller and the DeltaV Pro Plus Workstation can prevent the control strategy from downloading correctly. Always back up the existing module database and export the control strategy before removing the legacy hardware.
For sites migrating from serial HART loops to FOUNDATION Fieldbus H1 segments, the VE4002S1T2B5 supports both protocols natively. Coordinate with the instrument technician to verify that field device addresses on each H1 segment do not conflict with the new controller’s port assignments. A DeltaV HART Multiplexer or a dedicated FF Linking Device may already be present in the cabinet; confirm its configuration before the cutover.
Downtime Control During System Migration
Minimizing process interruption during a DeltaV controller replacement requires a structured hot-swap or cold-swap protocol depending on whether the system supports controller redundancy. Where a DeltaV MD Redundant Controller pair is installed, the standby controller can assume primary control while the failed module is replaced, reducing process impact to a brief bumpless transfer. Confirm that the redundancy link between the primary and secondary carriers is intact before initiating the switchover.
For non-redundant nodes, schedule the replacement during a planned production pause. Before powering down the carrier, export the full control strategy from DeltaV Explorer and save a timestamped backup of the module database. Document all active I/O channel states, PID setpoints, and interlock conditions so that the commissioning team can verify correct restoration after the new VE4002S1T2B5 is seated and the control strategy is downloaded.
Once the module is installed and powered, use DeltaV Diagnostics to confirm that all I/O channels report healthy status before releasing the node back to automatic control. Check HMI faceplates in DeltaV Operate for correct tag binding and alarm limit restoration. A phased return-to-service — starting with non-critical loops and progressing to primary control loops — reduces the risk of process upsets caused by undetected configuration discrepancies. Total commissioning time for a straightforward controller swap in a well-documented DeltaV system typically ranges from two to six hours, depending on the number of active control modules and the complexity of the fieldbus segment configuration.
Retrofit Support FAQ
Q1: Is the VE4002S1T2B5 a direct replacement for all VE4002 series variants?
The VE4002S1T2B5 (KC3020X1-BA1 / 12P6732X062) is compatible with the standard DeltaV controller carrier slot and is a verified replacement for the majority of VE4002 series end-of-life variants. Confirm the firmware revision level against your DeltaV system version before installation. Contact our technical team with your existing module label information for a definitive compatibility confirmation.
Q2: What wiring changes are required during installation?
In a standard controller swap, no terminal rewiring is required. The DeltaV I/O sub-system remains connected to the carrier throughout the replacement. If the retrofit includes I/O expansion or marshalling changes, plan those wiring modifications separately and document all terminal assignments before the maintenance window begins.
Q3: How is the module tested before shipment?
Every VE4002S1T2B5 unit undergoes a pre-shipment functional test covering power-on self-test, backplane communication verification, and I/O channel continuity checks. A test report is available upon request. The module is covered by a 12-month warranty against manufacturing defects from the date of shipment.
Q4: Can this module be used in a redundant controller configuration?
Yes. The VE4002S1T2B5 supports DeltaV controller redundancy when paired with a compatible redundancy carrier and a second controller module of the same type. Ensure both modules carry matching firmware revisions and that the redundancy link cable between carriers is correctly seated before commissioning the redundant pair.
