Emerson VE4006P2 KJ3241X1-BA1 Retrofit Serial DeltaV

Emerson VE4006P2 KJ3241X1-BA1 Retrofit-Ready Serial Card for DeltaV Control Systems

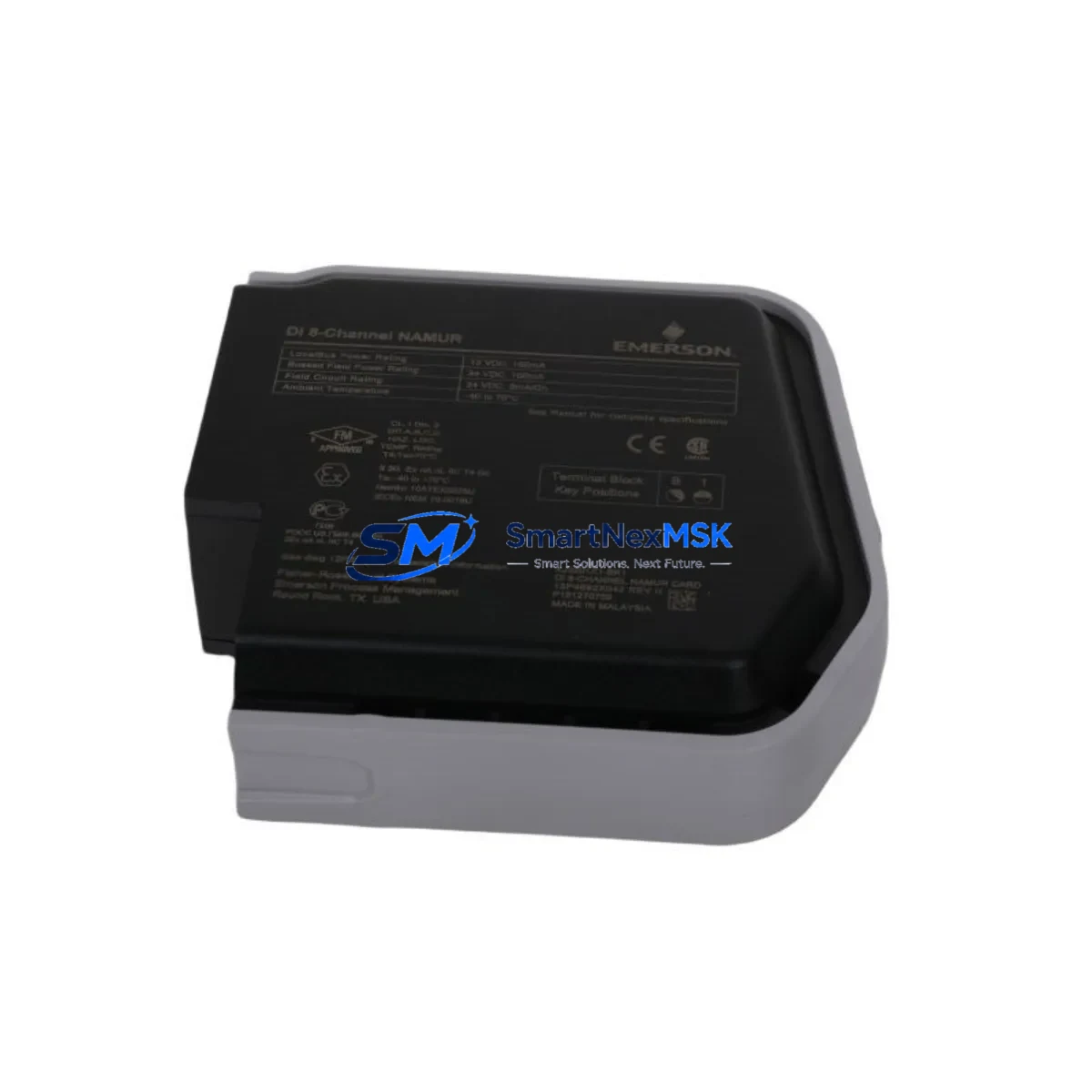

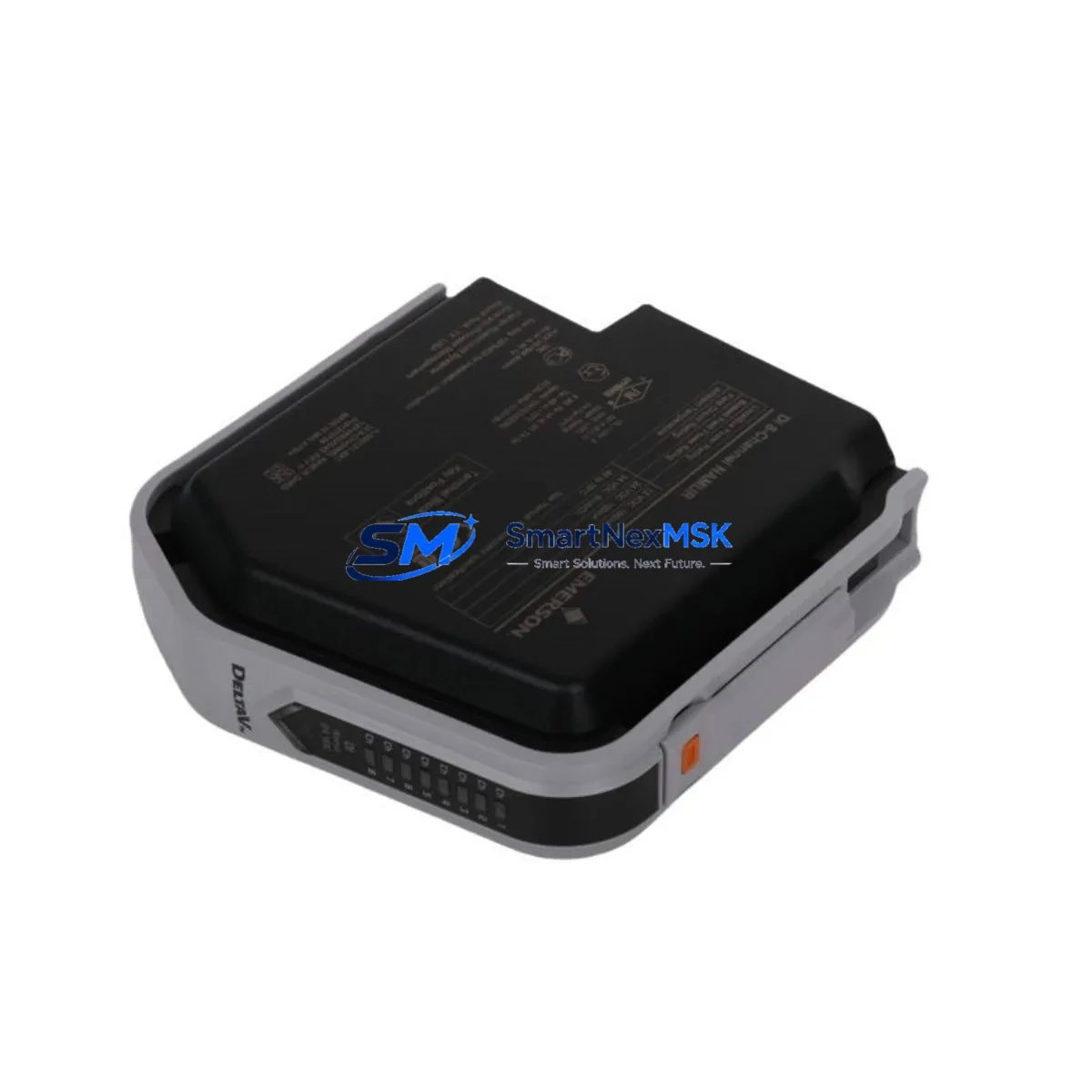

The Emerson VE4006P2 KJ3241X1-BA1 (also referenced as 12P2506X072) is a DCS serial interface card engineered for the Emerson DeltaV distributed control system platform. As legacy serial communication infrastructure ages across process plants, refineries, and manufacturing facilities, this module provides a direct, validated retrofit path — enabling engineers to restore or upgrade serial communication links without redesigning the control architecture or rewriting core program logic.

Designed for RS-232 and RS-485 serial communication, the VE4006P2 supports Modbus RTU protocol, making it compatible with a wide range of field instruments, drives, analyzers, and third-party devices that rely on serial data exchange. Its drop-in form factor and terminal-compatible wiring interface allow maintenance teams to execute replacements during planned shutdowns or emergency interventions with minimal reconfiguration time.

For procurement engineers managing aging DeltaV installations, sourcing a verified replacement for the KJ3241X1-BA1 is often the critical bottleneck in a retrofit project. SMARTNEXMSK maintains ready stock of this module, fully tested prior to shipment, with a 12-month warranty covering functional integrity under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the VE4006P2 KJ3241X1-BA1 requires a structured review of the surrounding control architecture before the replacement module is installed. Maintenance engineers should begin by auditing the DeltaV carrier assembly — confirming that the carrier itself (such as a KJ3001X1 or equivalent I/O carrier) is mechanically sound and that the backplane bus connectors show no signs of corrosion or mechanical wear that could affect signal integrity after the new card is seated.

Power distribution within the control cabinet must be verified before insertion. The DeltaV power supply module feeding the I/O subsystem — typically a KJ4001X1 or similar redundant power conditioner — should be checked for output voltage stability and load capacity, particularly if additional serial devices have been added to the network since the original system commissioning. Overloaded power rails are a common but overlooked cause of intermittent serial communication faults.

On the wiring side, the RS-485 bus termination resistors and cable shielding should be inspected. Long RS-485 runs without proper termination can cause reflections that corrupt Modbus RTU frames, leading to false diagnostics that are often misattributed to the interface card itself. If the existing cable is marginal, replacing it with a properly shielded twisted-pair cable during the same maintenance window eliminates a future failure point.

For systems where the VE4006P2 communicates with third-party analyzers, variable frequency drives, or smart transmitters via Modbus RTU, engineers should document the existing device address map and baud rate configuration before removing the old card. The DeltaV DeltaV Explorer or Control Studio environment should be used to export the current module configuration, ensuring that the replacement card can be commissioned with identical parameters. In some DeltaV versions, the module address is stored in the controller database rather than the card itself, which simplifies hot-swap procedures.

If the retrofit is part of a broader system upgrade — for example, migrating from an older DeltaV S-series controller to a newer MD or MX controller — the serial interface card replacement should be coordinated with updates to the DeltaV controller module, the DeltaV workstation software version, and any associated HMI graphics that display serial device data. Mismatched software revisions between the controller and the serial I/O subsystem are a known source of communication timeouts during post-upgrade commissioning.

Field junction boxes and marshalling panels connected to the serial network should also be inspected during the retrofit window. Terminal blocks, cable glands, and surge protection devices on the RS-232 or RS-485 lines are often overlooked during module-level replacements but can be the actual source of intermittent faults. Replacing worn terminal blocks and verifying surge arrestor continuity adds minimal time to the shutdown but significantly reduces the risk of repeat failures after the new card is commissioned.

Downtime Control During System Migration

Minimizing downtime during a DeltaV serial interface card replacement requires preparation that begins well before the maintenance window opens. The replacement VE4006P2 KJ3241X1-BA1 should be on-site and verified against the existing module’s label and firmware revision before the shutdown is scheduled. SMARTNEXMSK ships each unit with a pre-shipment functional test report, allowing engineers to confirm module integrity before the plant is taken offline.

During the replacement, the existing module’s wiring should be photographed and the terminal assignments documented against the as-built drawings. If the as-built drawings are outdated — a common situation in plants that have undergone incremental modifications — the actual field wiring should be treated as the reference. Labeling each wire before disconnection eliminates reconnection errors that can extend the maintenance window significantly.

After the new card is seated and wired, the DeltaV system should be brought online in a controlled sequence: power the I/O carrier first, allow the module to initialize and appear in the DeltaV diagnostic display, then enable the serial communication channel and verify that all configured Modbus RTU devices respond correctly. Any device that fails to respond should be diagnosed at the field level — checking device power, address settings, and cable continuity — before assuming a module fault.

For critical process loops that cannot tolerate extended interruption, a parallel commissioning approach can be used: the new module is configured and tested on a bench setup or spare carrier before the live system is touched, reducing the in-plant commissioning time to a simple swap-and-verify sequence. This approach is particularly effective when the retrofit is part of a planned turnaround where multiple DeltaV I/O modules — including analog input cards, digital output modules, and communication interface cards — are being replaced simultaneously.

Retrofit Support FAQ

Q1: Is the VE4006P2 KJ3241X1-BA1 a direct replacement for all KJ3241X1 variants?
The VE4006P2 with part reference KJ3241X1-BA1 is designed as a direct functional replacement within the DeltaV serial interface card family. Engineers should verify the hardware revision and DeltaV software version compatibility for their specific installation, as minor firmware differences between sub-variants may affect advanced configuration options. SMARTNEXMSK can provide technical documentation to support compatibility verification prior to purchase.

Q2: What pre-shipment testing is performed on each unit?
Each VE4006P2 KJ3241X1-BA1 dispatched by SMARTNEXMSK undergoes a functional test that verifies communication port operation, backplane interface integrity, and basic Modbus RTU response. A test record is available upon request. The 12-month warranty covers functional failures under normal industrial operating conditions from the date of shipment.

Q3: Can this module be used in a DeltaV system running an older software version?
The VE4006P2 is compatible with multiple DeltaV software generations. However, engineers should confirm the minimum DeltaV version required for the specific firmware revision of the replacement module. In most cases, the module will operate correctly with existing DeltaV configurations without requiring a software upgrade, but this should be validated in the DeltaV compatibility matrix for the target installation.

Q4: What is the lead time and warranty coverage?
Standard lead time is 3–7 business days from order confirmation, subject to stock availability. SMARTNEXMSK maintains buffer inventory of high-demand DeltaV serial interface modules to support urgent retrofit and emergency replacement requirements. All units are covered by a 12-month warranty from the date of shipment, with direct technical support available through the sales contact below.
