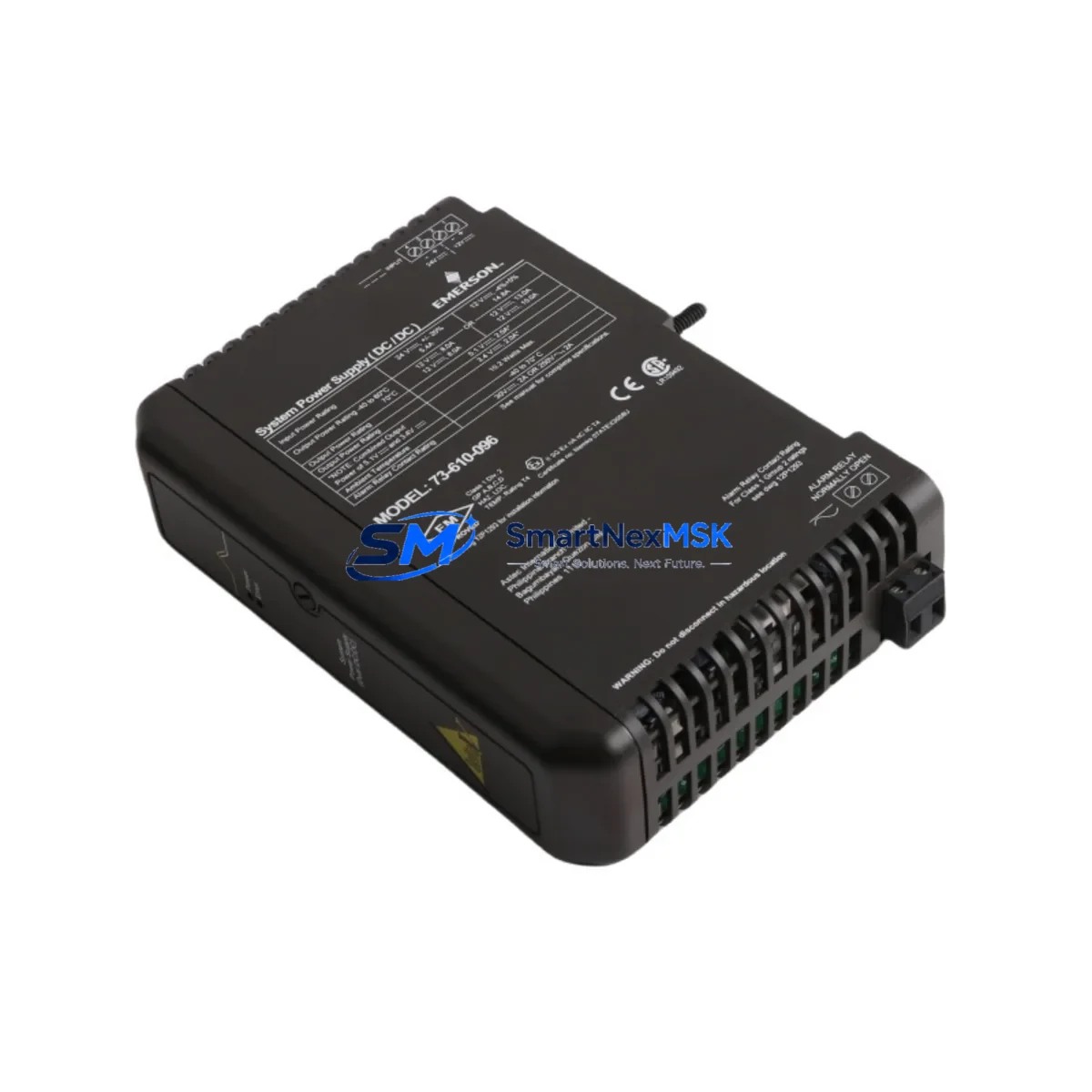

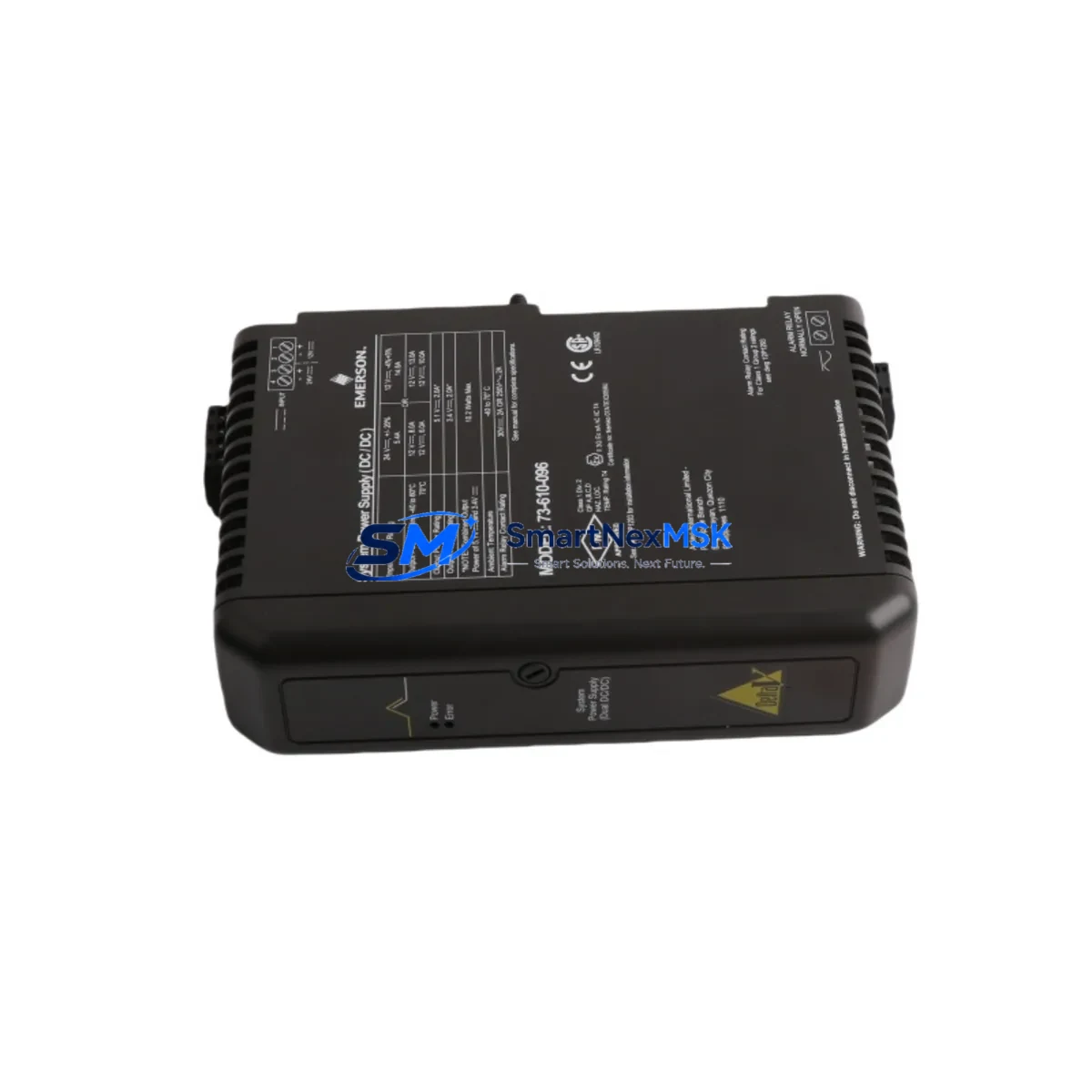

The Emerson VE5009 (KJ1501X1-BC3 / 12P3935X022) is a DC power supply module designed for the Emerson DeltaV Distributed Control System (DCS). As a critical power infrastructure component, this module supplies regulated DC power to DeltaV I/O subsystems and controller nodes. In process-critical environments — including oil & gas, chemical, pharmaceutical, and power generation — an unplanned failure of this module can trigger immediate process shutdown. Maintaining a verified original spare in your inventory is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

This listing provides an original, tested VE5009 unit, sourced from authorized channels, pre-inspected before shipment, and backed by a 12-month warranty. Each unit is verified for output voltage stability, connector integrity, and thermal performance prior to dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a VE5009 power supply module fails or shows signs of degradation — such as output voltage drift, intermittent controller resets, or DeltaV diagnostic alarms — a structured inspection of the surrounding power and control infrastructure is essential before and after replacement.

Maintenance engineers should begin by verifying the upstream AC feed to the power supply enclosure. Faulty AC input wiring, terminal blocks (such as Emerson KJ1501X1-series terminal assemblies), or a degraded DeltaV power distribution bus can cause premature failure of a replacement module. Check the DeltaV controller carrier (KJ2003X1-BA1 or equivalent) for backplane connector wear, as poor seating can cause intermittent power faults that mimic supply failure.

In parallel, inspect the DeltaV I/O subsystem power rails. If the VE5009 powers multiple I/O cards — such as KJ3002X1-BA1 analog input modules or KJ3222X1-BA1 digital output modules — verify that no individual card is drawing excessive current due to a field wiring short or failed field device. A single shorted I/O channel can stress the power supply beyond its rated capacity.

For sites running redundant DeltaV configurations, confirm that the redundant power supply module (second VE5009 or equivalent) is healthy and that the automatic switchover logic is functioning. Redundancy is only effective if both units are periodically tested under load. During planned maintenance windows, it is good practice to simulate a primary supply failure and verify seamless switchover to the backup.

Communication integrity should also be verified during any power module replacement. The DeltaV CIOC (Controller I/O Card) and associated Ethernet network switches within the control cabinet depend on stable 24 VDC power. A momentary power interruption during module swap can cause network topology changes that require manual recovery. Coordinate with the control room operator before initiating any live replacement.

Additionally, inspect DeltaV SIS (Safety Instrumented System) power feeds if the VE5009 is installed in a safety-rated enclosure. Cross-reference with the site’s SIL verification documentation to ensure the replacement module meets the required safety integrity level. For older DeltaV installations, consider whether the KJ1501X1-BC3 revision level is compatible with the installed firmware version of the controller — firmware mismatches are a known source of post-replacement instability.

Procurement engineers should note that the VE5009 / KJ1501X1-BC3 / 12P3935X022 has been subject to periodic revision updates by Emerson. When ordering, confirm the exact part number suffix and revision to ensure drop-in compatibility with your installed base. We supply original units with full traceability documentation upon request.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the VE5009 is the root cause of the fault using DeltaV diagnostics. Check the DeltaV Operate or DeltaV Diagnostics application for power supply fault codes. Document the current output voltage using a calibrated multimeter before removal.

Step 2 — Safe Isolation: If the system is not redundant, coordinate a controlled process hold with the operations team. For redundant configurations, switch load to the backup supply before removing the faulty unit. Follow site LOTO (Lockout/Tagout) procedures for the AC input circuit.

Step 3 — Module Removal: Disconnect the AC input connector and DC output wiring harness. Note the wiring configuration with a photograph before disconnection. Remove the module from the DIN rail or carrier mount using the release lever.

Step 4 — Replacement Installation: Install the new VE5009 unit. Reconnect wiring in the documented configuration. Verify connector seating and torque terminal screws to the specified value (typically 0.5–0.6 Nm for DeltaV terminal blocks).

Step 5 — Power-Up and Verification: Restore AC input power. Verify DC output voltage is within specification (24 VDC ±2%). Confirm DeltaV controller and I/O subsystem return to normal operation. Clear any latched fault codes in DeltaV Diagnostics. Document the replacement in the site maintenance log.

Step 6 — Post-Replacement Monitoring: Monitor the replacement module for the first 24–48 hours of operation. Check for thermal anomalies using an infrared thermometer. Verify that no downstream I/O faults have been introduced by the power interruption.

Spare Parts Support FAQ

Q1: Is this VE5009 an original Emerson part or a third-party replacement?
This is an original Emerson VE5009 (KJ1501X1-BC3 / 12P3935X022) unit. We do not supply counterfeit or third-party substitute modules. Each unit is sourced from authorized channels and pre-inspected before shipment.

Q2: How do I verify compatibility with my installed DeltaV system?
The VE5009 is compatible with Emerson DeltaV S-series and M-series controller and I/O subsystems. To confirm compatibility with your specific installation, provide your DeltaV system version and controller model. We can cross-reference the part number revision to ensure a drop-in fit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with full RMA support.

Q4: Can you supply multiple units for a site spare parts inventory program?
Yes. We support bulk orders for site spare parts programs and long-term supply agreements. Volume pricing is available. Contact us to discuss your inventory requirements and lead time expectations.
